3 GHz capable, 10 W carrying power (at 3 GHz), 50/75 Ω, 1 Form C Relays

    • Protective construction: Sealed type

    Please refer to "the latest product specifications" when designing your product.
    Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

      • Features

        • Excellent high frequency characteristics (50/75 Ω, up to 3 GHz)
        • Lineup includes quiet type and reversed contact type.
        • Compact size: 8.6 (W) x 14 (L) x 8 (H) mm

      • Typical Applications

        • Broadcasting and video equipment
        • Communication and measurement equipment
        • Mobile phone base stations
        • Measurement equipment market

      • Note

        • If you consider using applications with low level loads or with high frequency switching, please consult us.

      High Frequency Characteristics

      50 Ω (Initial)

      PC board terminal

      FrequencyUp to 900 MHzUp to 3 GHz
      V.S.W.R. (Max.)1.21.4
      Insertion loss (dB、Max.)0.10.35
      Isolation (dB、Min.)6035

      Surface mount terminal

      FrequencyUp to 900 MHzUp to 3 GHz
      V.S.W.R. (Max.)1.21.4
      Insertion loss (dB、Max.)0.20.4
      Isolation (dB、Min.)5530

      75 Ω (Initial)

      PC board terminal

      Frequency

      Up to 900 MHz

      		Up to 3 GHz
      V.S.W.R. (Max.)1.151.4
      Insertion loss (dB、Max.)0.10.3
      Isolation (dB、Min.)6030

      Surface mount terminal

      FrequencyUp to 900 MHzUp to  3 GHz
      V.S.W.R. (Max.)1.21.5
      Insertion loss (dB、Max.)0.20.5
      Isolation (dB、Min.)5530

      Reference Data

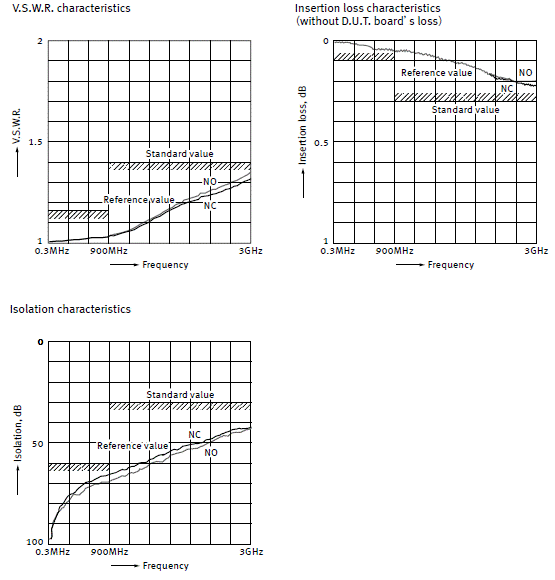

      1-1. High frequency characteristics (50 Ω, PC board terminal)

      Sample: ARS144H
      Measuring method: See "Measuring method" under "NOTES".

      高周波特性（50Ω、プリント板端子）

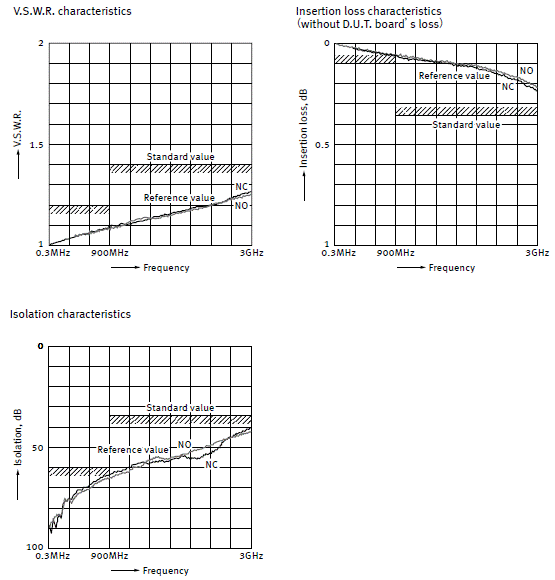

      1-2. High frequency characteristics (75 Ω, PC board terminal)

      Sample: ARS104H
      Measuring method: See "Measuring method" under "NOTES".

      高周波特性（75Ω、プリント板端子）

      1-3. High frequency characteristics (50 Ω, Surface mount terminal)

      Sample: ARS14A4H
      Measuring method: See "Measuring method" under "NOTES".

      高周波特性（50Ω、サーフェスマウント端子）

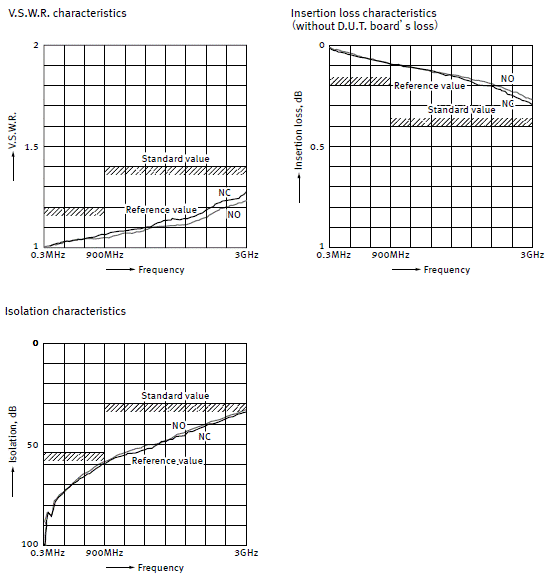

      1-4. High frequency characteristics (75 Ω, Surface mount terminal)

      Sample: ARS10A4H
      Measuring method: See "Measuring method" under "NOTES".

      高周波特性（75Ω、サーフェスマウント端子）

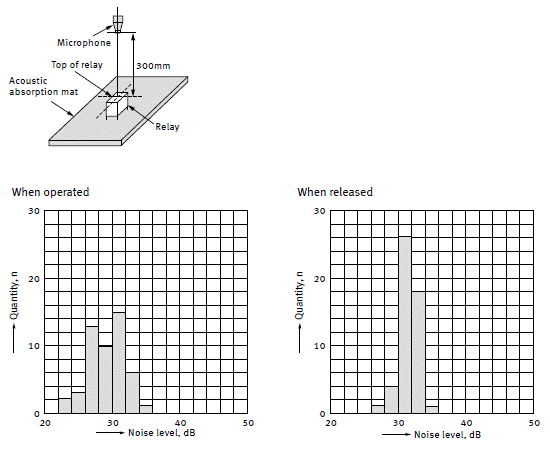

      2-1.Distribution of operation noise

      SampleARS134H (single side stable quiet type), 50 pcs.
      Coil voltagerated voltage applied (with diode)
      Equipment settingA weighted sound pressure level, FAST.
      Background noiseapprox. 20 dB
      Method of measurementSee figure below.

      動作音分布

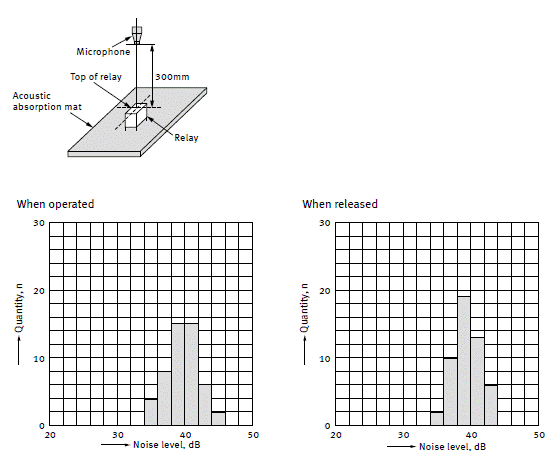

      2-2. Distribution of operation noise

      SampleARS104H (single side stable standard type), 50 pcs.
      Coil voltagerated voltage applied (with diode)
      Equipment settingA weighted sound pressure level, FAST.
      Background noiseapprox. 20 dB
      Method of measurementSee figure below.

      動作音分布

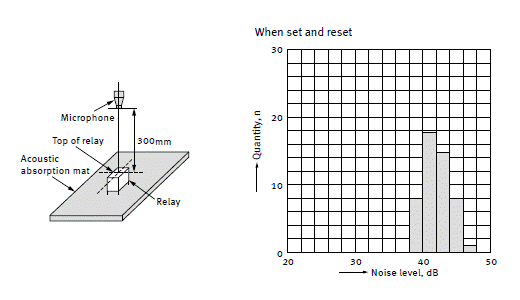

      2-3. Distribution of operation noise

      SampleARS114H (latching type), 50 pcs.
      Coil voltagerated voltage applied (with diode)
      Equipment settingA weighted sound pressure level, FAST.
      Background noiseapprox. 20 dB
      Method of measurementSee figure below.

      動作音分布

      ------------------------------ Always showing ------------------------------

      • Lineup
      • Discontinued Products
      RS Relays Product number list
      No matching products found.
      • Please review your search criteria and try again.
      • If you have any questions, feel free to contact us.

        • Notes）

          1. Packing style symbol “X”,“ Z” is not marked on the relay.
          2. Please refer to the section below for the item number "*" at the end of the surface mount terminal listed in the catalog.
            Carton packing（Standard PC board terminal only）: Nil
            Tape and reel packing（picked from 2-pin side）（ Surface-mount terminal only）: X
            Tape and reel packing（picked from 18-pin side）（Surface-mount terminal only）: Z

        • Standard packing

          PC board terminal (Carton packing)       : Inner carton 50 pcs. , Outer carton 500 pcs.
          Surface mount terminal (Tube packing) : Inner carton (1-tube) 40 pcs. , Outer carton 1,000 pcs.
          Surface mount terminal(Tape and reel packing) : Inner carton (1-reel) 500 pcs. , Outer carton 1,000 pcs.
