Realtime Express (RTEX)
Advanced Network to realize high-precise real-time performance for Servo Control
-
※1 Type E
※2 Type F
CE, UKCA, UL/cUL, TUV, Korean KC Approved
Features
Realtime Express (RTEX)
Ultimate Real-time performance
- Com. period min. 0.0625 ms [Max 16000 times/s]
- Com. speed 100 Mbps Full-duplex
- Velocity response 3200 Hz
Functionality to meet various needs
- Precise position latch & comparing
- Infinitely rotatable absolute encoder
- IEC safety I/F model available*1
Simple network
- High-performance & Low-cost
- Isochronous established by ASIC
- Easy device development
*1: Multi-functional type F. IEC61800-5-2 STO, IEC61508 SIL3.
*: Realtime Express and RTEX are registered trademarks of Panasonic Holdings Corporation.
Realtime Express (RTEX) Partner Products

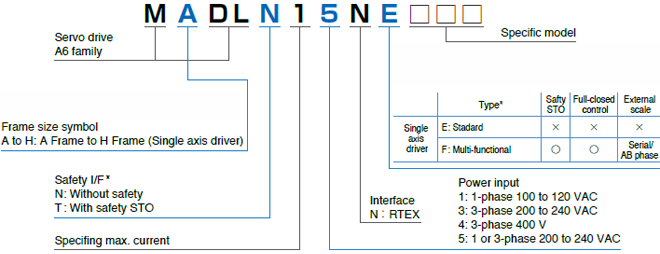

Model nomenclature
*: The combination has the following limitation: Standard type (Type E, L) is without safety I/F, and multi-functional type (Type F, M) is with safety I/F.
------------------------------ Tab2 showing ------------------------------
------------------------------ Tab3 showing ------------------------------
System Configuration

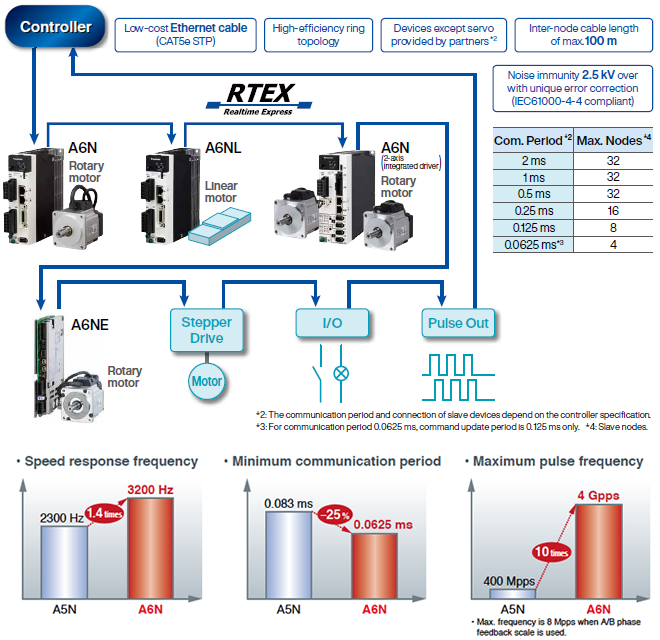

Typical system configuration

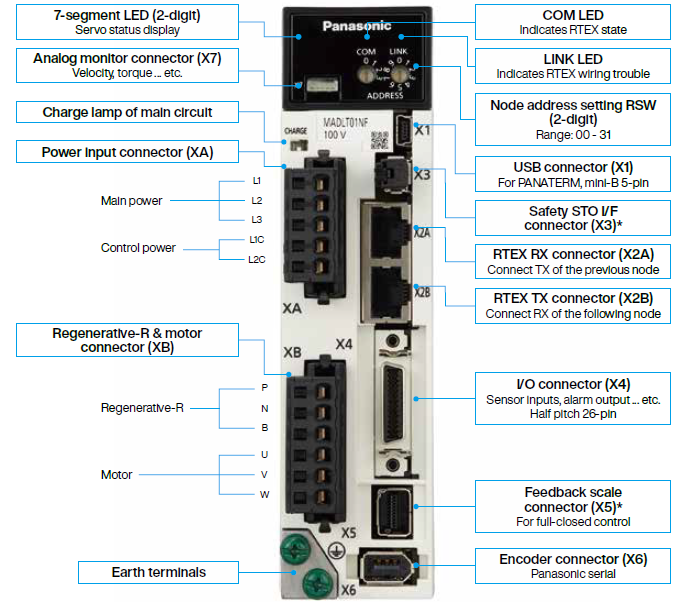

Drive appearance
A6N size A
*: This photo shows multi-functional type F. Standard type E does not have X3 and X5 connectors.
