PhotoMOS RF VSSOP 1 Form A CxR10 | PhotoMOS

Download

  • Lineup

  • Basic Information

------------------------------ Tab1 showing ------------------------------

4.6 mm2 mounting area CxR10: 30 V/40 V load voltage

No foreign certifications are acquired as of now.

Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

    • Features

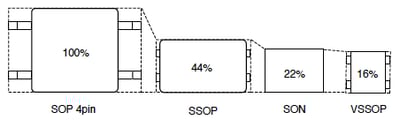

      1. VSSOP type with further reduction in mounting area
        4.6 mm2 mounting area achieved. Approx. 29 % less than previous product (SON type).
        Contributes to the miniaturization of instruments and higher density mounting.
        pic02
      2. [ Low Ron type ]
        Output capacitance: Typ. 37.5 pF, On resistance: Typ. 0.18 Ω
        Output capacitance: Typ. 14 pF, On resistance: Typ. 0.8 Ω

        [ Low Cout type ]
        Output capacitance: Typ. 1.1 pF, On resistance: Typ. 9.5 Ω

    • Typical Applications

      1. Measuring and testing equipment
        IC tester, Probe card, Board tester and other testing equipment
      2. Telecommunication equipment
         Note: Please contact our sales representative for automotive applications of PhotoMOS.

    ------------------------------ Always showing ------------------------------

    • Lineup
    • Discontinued Products
    PhotoMOS RF VSSOP 1 Form A CxR10 Product number list
    No matching products found.
    • Please review your search criteria and try again.
    • If you have any questions, feel free to contact us.

      • Packing quantity

        Packing style Y, W: 1-reel 1,000 pcs., Outer carton 1,000 pcs.

      • Note）

        1, For space reasons, only “1R6”, “1R2” or “1N2” is marked on the product as the part number.
        2, Indicate the peak AC and DC values.
        3, Only tape and reel package is available. Tape and reel packing style Y: picked from the 1/4-pin side, tape and reel packing style W: picked from the 2/3-pin side.
