Super miniature TSON package, Capacitor Coupled isolation

No foreign certifications are acquired as of now.

Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

    • Features

      1. Super miniature TSON package contributes to space savings and high density mounting.

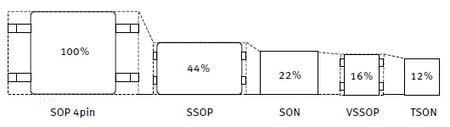

        3.5 mm2 mounting area achieved. Approx. 46 % less than previous product (SON type).
        pic02
      2. Low current consumption (input current: Max. 0.2 mA)
      3. Guaranteed performance at high temperature (Max. 105 °C)
      4. Voltage driving type (3 V to 5 V)
      5. Low on resistance and low out put capacitance available
      6. Input current of CC type is less than half of previous products, contributing energy saving of device and increases drivability

    • Typical Applications

      1. Measuring equipment
        IC tester, probe cards, board tester and other testing equipment
      2. Telecommunication equipment
      3. Security, voltage operating equipment application for requiring low electricity consumption.
        Note: Please contact our sales representative for automotive applications of PhotoMOS.

    ------------------------------ Always showing ------------------------------

    • Lineup
    • Discontinued Products
    PhotoMOS CC TSON Low CxR Product number list
    No matching products found.
    • Please review your search criteria and try again.
    • If you have any questions, feel free to contact us.

      • Packing quantity

        Packing style X, Z: 1-reel 3,500 pcs., Outer carton 3,500 pcs.
        Packing style 1X: 1-reel 1,000 pcs., Outer carton 1,000 pcs.

      • Note）

        １. For space reasons, only "1R6", "1R2", "2R2", "1R3" or "5R3" is marked on the product as the part number.
             (Ex. the label for product number AQY2C1R6PX is 1R6.)
        ２. Indicate the peak AC and DC values.
        ３. Only tape and reel package is available.Tape and reel packing style X: picked from the 1/2-pin side. Tape and reel packing style Z: picked from the 3/4-pin side.
