ARS14Y24｜RS Relays

Download

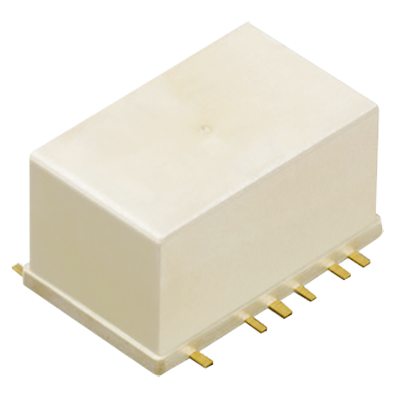

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

ARS14Y24

Part Number

ARS14Y24

Product Name

 RS Relays

Features

3 GHz capable, 10 W carrying power (at 3 GHz), 50/75 Ω, 1 Form C Relays

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberARS14Y24
Product NumberARS14Y24
Protective constructionSealed Type
Operating functionSingle Side Stable Type
Terminal shapeSurface-mount terminal Y layout
Packing styleTube package
Frequency3GHz
V.S.W.RMax. 1.2 (to 900MHz), Max. 1.4 (to 3GHz)
Insertion lossMax. 0.2dB (to 900MHz), Max. 0.4dB (to 3GHz)
IsolationMin. 55dB (to 900MHz), Min. 30dB (to 3GHz)
Impedance50Ω
Rated coil voltage24V DC
Operate voltage (at 20 ℃)Max. 75 % V of rated coil voltage (Initial)
Release voltage (at 20 ℃)Min. 10 % V of rated coil voltage (Initial)
Rated operating power200mW
Contact arrangement1 Form C
Contact materialAu plating
Contact rating1W (3GHz, 50Ω, V.S.W.R. Max. 1.4), 10mA 24V DC (resistive load)
Contact input power (CW)Max. 10W (3GHz, 50Ω, V.S.W.R. Max. 1.4)
Dielectric strength Between open contacts (initial)500 V rms for 1 min (detection current: 10 mA)
Dielectric strength Between contact and coil (initial)1,000 V rms for 1 min (detection current: 10 mA)
Expected mechanical life (cold switch)Min. 5x106 ope. (switching frequency: at 180 times/min)
ConditionsAmbient temperature: －40 to ＋70 ℃ (Allowable temperature is from －40 to ＋70 ℃ at our standard packing condition)
Humidity: 5 to 85% RH (Avoid icing and condensation)
Expected electrical life (hot switch)Conditions: Switching frequency at 20 times/min
[Resistive load]
Min. 300×103ope. 10mA 10V DC
Min. 300×103ope. 10mA 24V DC
[High frequency load] Min. 300×103ope. 1W (3GHz, 50Ω, V.S.W.R. Max.1.4)
