Digital Fiber Sensor FX-550

Download

  • Basic Information

  • Order guide

  • Option

  • Specifications

  • Dimensions

  • Circuit/ Wiring

  • Sensing characteristics

  • List of fibers

  • Cautions For Use

------------------------------ Tab1 showing ------------------------------

Basic Information

1.6 times longer sensing range than conventional models
Significantly improved stability and usability

CE,UKCA Approved

Features

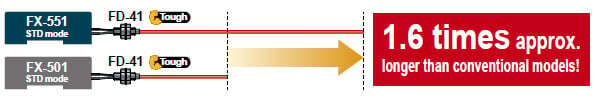

Sensing range up to 1.6 times

Ample sensing distance even with thin fiber

The sensing range of the thin reflective type fiber is about 1.6 times longer than that of a conventional product (the sensing range of the standard reflective type fiber is about 1.4 times longer). This adds extra flexibility to the sensor layout.

FiberSensing range (STD mode)Rate of increase in sensing range
FX-551FX-501
FT-31480mm18.898 in315mm 12.402 in152%
FT-421,470mm57.874 in1,130mm 44.488 in130%
FD-41200mm7.874 in125mm 4.921 in160%
FD-61620mm24.409 in450mm 17.717 in138%

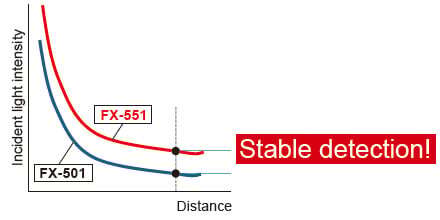

Ample sensing distance even with thin fiber

When the hysteresis is the same, the higher incident light intensity results in more stable detection.

When the hysteresis is the same, the higher incident light intensity results in more stable detection.

When the hysteresis is the same, the higher incident light intensity results in more stable detection.

Easy adjustment of beam axis

Thanks to the high emission power, a slight deviation of beam axis causes no problem. It is ideal for use in dusty areas* or for detection through an extremely small slit.
* Need to confirm proper operation in installed condition.

Easy adjustment of beam axis

Equipped with a mode to minimize the effect of ambient light

When setting to activate the environment resistance mode in the emission frequency setting, the ambient illuminance for LED lights becomes about 2.5 times higher than that in the normal mode. This reduces erroneous detections caused by LED lights.

Equipped with a mode to minimize the effect of ambient light

Simplified functions for improved operation ease

The FX-500 series and newer models are equipped with only basic functions for improved ease of use. No matter which model you select, they are all easy to use.

MODE NAVI + Direct setting

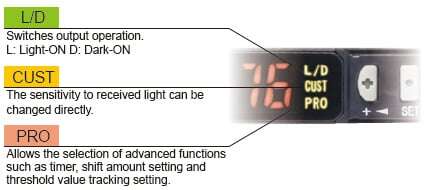

MODE NAVI uses three indicators and a dual display to show the amplifier’s basic operations. The current operation mode can be confirmed at a glance, so even a first-time user can easily operate the amplifier.

■NAVI display (lights off during RUN mode)

NAVI display

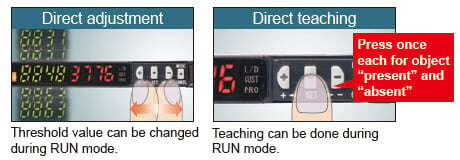

■Direct setting

Direct setting

■List of functions in PRO mode

PRO 1Response time setting, timer setting, shift amount setting
PRO 2Teaching lock setting, digital display item setting, digital display turning setting, Eco setting
PRO 3Display adjustment setting, reset setting, emission frequency setting, threshold value tracking setting

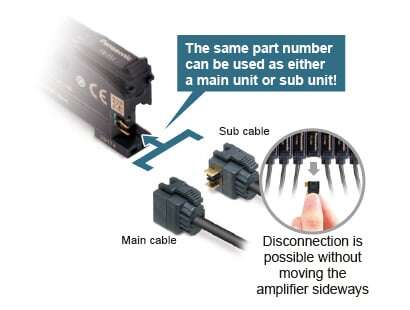

No need to specify a main unit or sub unit

All FX-500 amplifiers can be used as either a main unit or a sub unit. Just use a main cable or a sub cable to distinguish the two. This reduces the costs of inventory management.

No need to specify a main unit or sub unit

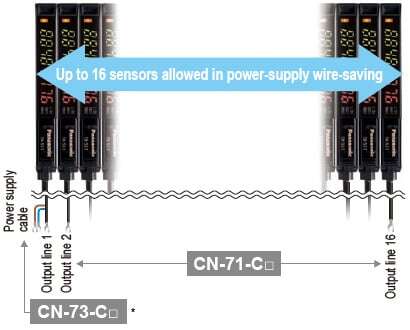

Wire-saving, space-saving

The quick-connection cables enable reduction in wiring. The connections and man-hours required for the relay terminal block setup can be reduced and valuable space is saved.

Wire-saving, space-saving

* Connection of up to 16 units with FX-500 / FX-400 / DPS-400 / LS-400 is possible.Note:FX-550 series is not equipped with a communication function.When connecting to the host communication units SC-GU3 series, SC-GU2-C and SC-GU1-485, please use FX-500 series.

------------------------------ Tab2 showing ------------------------------

Order guide

Amplifiers

Quick-connection cable is not supplied with FX-551(P). Please order it separately.

TypeAppearanceModel No.Emitting elementOutput
Connector type

FX-551Red LEDNPN open-collector transistor
FX-551PPNP open-collector transistor
Cable type

FX-551-C2NPN open-collector transistor
FX-551P-C2PNP open-collector transistor

Quick-connection cables

Quick-connection cable is not supplied with the connector type amplifier. Please order it separately.

TypeModel No.Description
Main cable
(3-core)		CN-73-C1Length: 1 m 3.281 ft0.2 mm2 3-core cabtyre cable, with connector on one end
Cable outer diameter: ø3.3 mm ø0.130 in
CN-73-C2Length: 2 m 6.562 ft
CN-73-C5Length: 5 m 16.404 ft
Sub cable
(1-core)		CN-71-C1Length: 1 m 3.281 ft0.2 mm2 1-core cabtyre cable, with connector on one end
Cable outer diameter: ø3.3 mm ø0.130 in
Connectable to a main cable up to 15 cables.
CN-71-C2Length: 2 m 6.562 ft
CN-71-C5Length: 5 m 16.404 ft

Main cable

CN-73-C□

CN-73-C□

Sub cable

CN-71-C□

CN-71-C□

End plates

End plates are not supplied with the amplifier. Please order them separately when the amplifiers are mounted in cascade.

AppearanceModel No.Description

MS-DIN-EWhen cascading multiple amplifiers, or when it moves depending on the way it is installed on a DIN rail, these end plates clamp amplifiers into place on both sides.
Make sure to use end plates when cascading multiple amplifiers together.
[2 pcs. per set]

------------------------------ Tab3 showing ------------------------------

Option

DesignationModel No.Description
Amplifier
mounting bracket		MS-DIN-2Mounting bracket for amplifier

Amplifier mounting bracket

MS-DIN-2

MS-DIN-2

------------------------------ Tab4 showing ------------------------------

Specifications

TypeConnector typeCable type
Model No.NPN outputFX-551FX-551-C2
PNP outputFX-551PFX-551P-C2
Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Supply voltage12 to 24 V DC +10−15 % Ripple P-P 10 % or less
Power consumptionNormal operation: 960 mW or less (current consumption 40 mA or less at 24 V supply voltage)
ECO mode: 680 mW or less (current consumption 28 mA or less at 24 V supply voltage)
Output<PNP output type>
PNP open-collector transistor
・Maximum source current: 100 mA
・Applied voltage: 30 V DC or less (between output and +V)
・Residual voltage: 2 V or less (Note 2) (at maximum source current)
<NPN output type>
NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (Note 2) (at maximum sink current)

 Output operationSwitchable either Light-ON or Dark-ON by L/D mode
Short-circuit protectionIncorporated
Response timeFAST : 60μs or less, STD : 250μs or less, LONG : 2ms or less, U-LG : 4ms or less, HYPR : 24ms or less, selectable
Sensitivity setting2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment
Incident light sensitivity settingIncorporated, 4 steps
Incident light intensity display rangeFAST / STD: 0 to 4,000, LONG: 0 to 8,000, U-LG / HYPR: 0 to 9,999
Timer functionIncorporated with variable OFF-delay / ON-delay / One-shot / switchable either effective or ineffective
 Timer periodTimer range "ms" : 1 to 9,999 ms approx., 1 ms approx., Timer range "sec." : 1 to 32 s approx., 1 s approx.,
Timer range "1/10 ms" : 0.1 to 999.9 ms approx., 0.1 ms approx. (Note 3)
Different frequency interference prevention function (Note 4)Incorporated (up to 4 units). Note that the response time varies depending on the setting.
F-1: 0.8 ms or less, F-2: 0.9 ms or less, F-3: 1.0 ms or less, F-4: 1.7 ms or less
ProtectionIP40(IEC)
Ambient temperature-10 to +55 ℃ +14 to +131 ℉ (If 4 to 7 units are mounted in cascade: -10 to +50 ℃ +14 to +122 ℉ or if 8 to 16 units
are mounted in cascade: -10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
Emitting element (modulated)Red LED (Peak emission wavelength: 660 nm 0.026 mil)
MaterialEnclosure, Case cover: Polycarbonate, Switch: Polyacetal
Cable-0.2 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Cable extension-Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (however, supply voltage 12 V DC or more)
WeightNet weight: 15 g approx., Gross weight: 55 g approx.Net weight: 55 g approx., Gross weight: 90 g approx.

Notes:

1)Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉.

2)In case of using the quick-connection cable (cable length 5 m 16.404 ft) (optional).

3)When set to LONG, U-LG, HYPR, IP-F or IP-R, the time range cannot be set to 1/10 ms.

4)This function increases the hysteresis. Check the sensing condition when using the function.

------------------------------ Tab5 showing ------------------------------

Dimensions

  • Unit: mm in

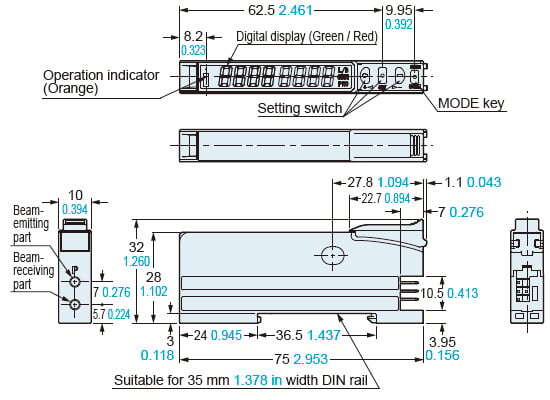

FX-551(P)

Amplifier

FX-551(P)

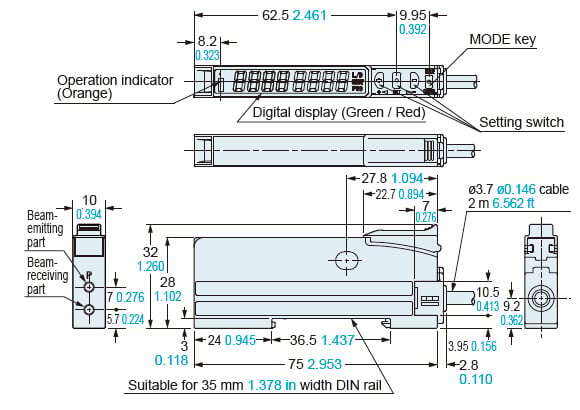

FX-551(P)-C2

Amplifier

FX-551(P)-C2

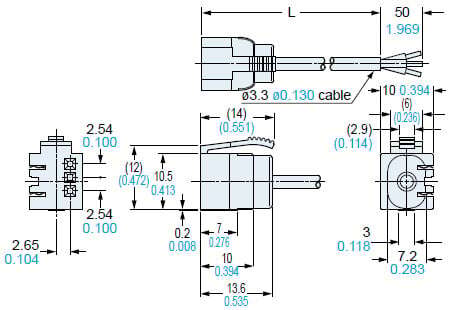

CN-73-C□

Main cable (Optional)

CN-73-C□


Length L

Model No.Length L
CN-73-C11,000
39.370
CN-73-C22,000
78.740
CN-73-C55,000
196.850

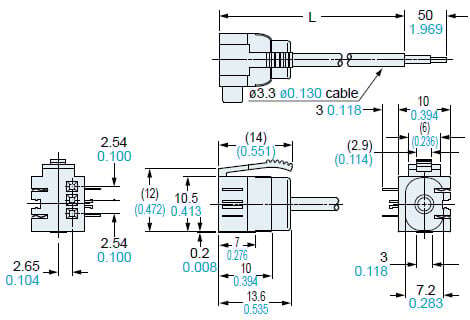

CN-71-C□

Sub cable (Optional)

CN-71-C□


Length L

Model No.Length L
CN-71-C11,000
39.370
CN-71-C22,000
78.740
CN-71-C55,000
196.850

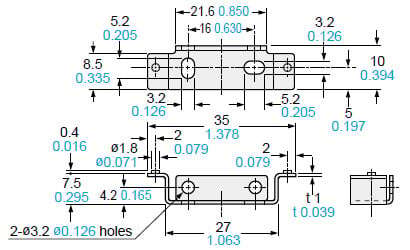

MS-DIN-2

Amplifier mounting bracket (Optional)

MS-DIN-2

Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated)

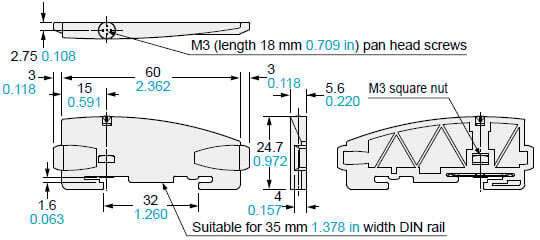

MS-DIN-E

End plate (Optional)

MS-DIN-E

Material: Polycarbonate

------------------------------ Tab6 showing ------------------------------

I/O Circuit and Wiring diagrams

FX-551(-C2)

NPN output type

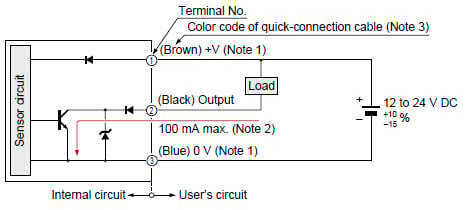

I/O circuit diagram

NPN output type FX-551(-C2) I/O circuit diagram

Notes:

1)The quick-connection sub cable does not have +V (brown) and 0 V(blue). The power is supplied from the connector of the main cable.

2)50 mA max., if five amplifiers or more, are connected together.

3)The color code of the connector attached cable is also the same.

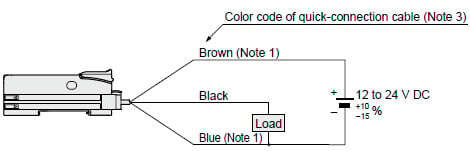

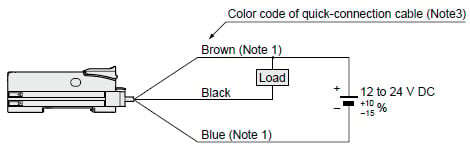

Wiring diagram

NPN output type FX-551(-C2) Wiring diagram

Note:The quick-connection sub cable does not have a brown and a blue lead wire.

Terminal arrangement diagram

NPN output type FX-551(-C2) Terminal arrangement diagram

FX-551P(-C2)

PNP output type

I/O circuit diagram

PNP output type FX-551P(-C2) I/O circuit diagram

Notes:

1)The quick-connection sub cable does not have +V (brown) and 0 V (blue). The power is supplied from the connector of the main cable.

2)50 mA max., if five amplifiers or more, are connected together.

3)The color code of the connector attached cable is also the same.

Wiring diagram

PNP output type FX-551P(-C2) Wiring diagram

Note:The quick-connection sub cable does not have a brown and a blue lead wire.

Terminal arrangement diagram

PNP output type FX-551P(-C2) Terminal arrangement diagram

回路・接続

FX-551(-C2)

NPN出力タイプ

入・出力回路図

入・出力回路図

(注1) : ワンタッチケーブルの子ケーブルには、＋V(茶)および0V(青)は装備されていません。電源は、親ケーブルのコネクタ部より供給されます。

(注2) : 連結コネクタタイプを5台以上連結した場合は、50mA MAX.となります。

(注3) : ケーブルタイプのリード線の色も同じです。

接続図

接続図

(注1) : ワンタッチケーブルの子ケーブルには、茶色リード線および青色リード線は装備されていません。

端子配列図

端子配列図

FX-551P(-C2)

PNP出力タイプ

入・出力回路図

入・出力回路図

(注1) : ワンタッチケーブルの子ケーブルには、＋V(茶)および0V(青)は装備されていません。電源は、親ケーブルのコネクタ部より供給されます。

(注2) : 連結コネクタタイプを5台以上連結した場合は、50mA MAX.となります。

(注3) : ケーブルタイプのリード線の色も同じです。

接続図

接続図

(注1) : ワンタッチケーブルの子ケーブルには、茶色リード線および青色リード線は装備されていません。

端子配列図

端子配列図

------------------------------ Tab7 showing ------------------------------

Sensing characteristics

Sensing characteristics can be downloaded at catalog download site.
Please contact our office if not listed here.
>>Go to Data download.

------------------------------ Tab8 showing ------------------------------

List of fibers

Response time of FX-550 / FX-550L series is as follows.
Note: FX-550L series does not have FAST mode.

ModeFASTSTDLONGU-LGHYPR
Response time60μs or less250μs or less2ms or less4ms or less24ms or less

List of fiber

Square Head Fiber

■Thru-beam type(one pair set)

TypeModel No.Sensing range(mm)(Note1)
FASTSTDLONGU-LGHYPR
Square headM3FT-R313105107001,1201,670
M4FT-R437501,2501,7502,6503,600(Note2)
FT-R41W8001,3001,8502,9003,600(Note2)
FT-R42W2,8003,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-R44Y8001,3001,8002,9003,600(Note2)
M6FT-R60Y1,9003,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)

Note1:Note that sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
Square headM3FD-R31G160290400600900
FD-R32EG4580110180290
FD-R34EG407090140250
FD-R33EG18304065110
M4FD-R411903404507501,150
M6FD-R61Y2504506501,0001,350

Note1:Note that sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note2:The sensing range is specified for white non-glossy paper.

For details of Square Head Fiber, refer to product information page.
>>Go to "Square Head Fiber"

Super Quality

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm)
FASTSTDLONGU-LGHYPR
ThreadedM3FT-303405708301,2401,860
M4FT-409601,5702,2003,1003,600(Note1)
Cylindricalø1.5FT-S203405508001,2001,760
ø3FT-S301,0001,6502,2503,1003,600(Note1)

Note:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
ThreadedM3FD-30140210330460800
M4FD-40140210330460800
M6FD-604207509701,3001,750
Cylindricalø3FD-S30140220330500800

Note:The sensing range is specified for white non-glossy paper.

For details of Super Quality Fiber, refer to product information page.
>>Go to "Super Quality Fiber"

Threaded Type

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
ThreadedM3FT-312904807001,0001,580
FT-31W2504205808901,300
FT-322,9003,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
M4 FT-431,4002,2003,1003,600(Note2)3,600(Note2)
FT-428901,4702,1002,9003,600(Note2)
FT-42W7101,2001,7802,6003,600(Note2)
FT-45X1,0701,600(Note2)1,600(Note2)1,600(Note2)1,600(Note2)
ElbowFT-R408601,4001,9502,9003,600(Note2)
M14Long rangeFT-14019,600(Note2)19,600(Note2)19,600(Note2)19,600(Note2)19,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
ThreadedM3 FD-31140200310450750
FD-31W80130190310480
FD-32G1703204207301,150
FD-32GX1803204907301,350
FD-34G80130180310480
Ultra-small diameterFD-EG305090120190320
FD-EG3120354570120
M4FD-41140200310450750
FD-41W2704806801,0001,400
FD-42G1703204207301,150
FD-42GW130210330540950
M6 FD-625508801,1401,4501,950
FD-613806208701,1801,630
FD-61W2704806801,0001,400
FD-61G3506008501,2001,350
FD-64X2304105907001,200
ElbowFD-R603505008001,1501,450

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is specified for white non-glossy paper.

For details of Threaded Type Fiber, refer to product information page.
>>Go to "Threaded Type Fiber"

Cylindrical Type

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
Cylindricalø1FT-S1180130180280400
ø1.5FT-S212804506701,0001,600
FT-S21W2404005808501,650
FT-S225308701,2001,9002,900
ø2.5FT-S323,0003,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
ø3FT-S31W6501,1001,6002,4503,600(Note2)
Ultra-small
diameter		ø3FT-E131221304568
FT-E2370120165250355
Side-viewø4FT-V403,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
Cylindricalø1.5FD-S215085110130175
ø3FD-S323506009001,2001,600
FD-S32W2504506501,0001,400
FD-S31130200300450700
FD-S33GW150240370550880
FD-S34G80130180310480
Ultra-small
diameter		ø1.5FD-E131223305075
ø3FD-E234580105170290

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is specified for white non-glossy paper.

For details of Cylindrical Type Fiber, refer to product information page.
>>Go to "Cylindrical Type Fiber"

Sleeve

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
ThreadedM3FT-31S2904807001,0001,580
M4FT-42S8901,4702,1002,9003,600(Note2)
CylindricalUltra-small diameterø3FT-E131221304568
FT-E2370120165250355
Side-viewø2FT-V234507501,0501,6002,400
FT-V252804506309501,400
FT-V24W95160220350500
ø2.5FT-V305509501,3001,9503,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
ThreadedUltra-small diameterM3FD-EG30S5090120190320
M4FD-41S140200310450750
FD-41SW80130190310480
M6FD-61S4006509001,3001,900
CylindricalUltra-small diameterø1.5FD-E131223305075
ø3FD-E234580105170290
Side-viewø3FD-V306590145210430
FD-V30W16303765120
ø5FD-V50110180240400530

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is specified for white non-glossy paper.

For details of Sleeve Fiber, refer to product information page.
>>Go to "Sleeve Fiber"

Flat Type

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
Flat FT-Z30H3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-Z30HW3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-Z30E3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-Z30EW3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-Z302,2003,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-Z30W1,7002,8003,600(Note2)3,600(Note2)3,600(Note2)
With bossFT-Z20W6501,1001,600(Note2)1,600(Note2)1,600(Note2)
FT-Z20HBW2804506501,0001,600(Note2)
FT-Z40W1,2002,0002,8003,600(Note2)3,600(Note2)
FT-Z40HBW7501,3001,8502,7003,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
FlatWith bossFD-Z20W80130190290450
FD-Z20HBW100170240370550
FD-Z40W2303905109501,500
FD-Z40HBW2704806801,0001,350

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is specified for white non-glossy paper.

For details of Flat Type Fiber, refer to product information page.
>>Go to "Flat Type Fiber"

Narrow Beam

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
Narrow
beam		 FT-KS403,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
Side viewFT-KV403,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-KV40W3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-KV266501,1001,6002,3003,600(Note2)
FT-KV26H16501,0001,4001,9003,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Retroreflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
With polarizing filtersFR-Z50HW100 to
950		100 to
1,150		100 to
1,400		100 to
1,800		100 to
2,250
Wafer mappingFR-KZ22E15 to
400		15 to
540		15 to
600		15 to
700		15 to
800
Narrow
beam		Top
sensing		FR-KZ50H20 to
350		20 to
400		20 to
500		20 to
1,300		20 to
1,600
Side
sensing		FR-KZ50E20 to
350		20 to
400		20 to
500		20 to
1,300		20 to
1,600

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is the possible setting range for the attached reflector. The fiber can detect an object less than setting range for the reflector.

■Reflective type

TypeSensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
Long rangeFD-Z50HW10 to
590		10 to
950		10 to
1,300		10 to
2,100		10 to
3,700

Note:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

For details of Narrow Beam Fiber, refer to product information page.
>>Go to "Narrow Beam Fiber"

Wide Beam

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
Wide beamFT-A323,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-A32W3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-A113,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
FT-A11W3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)3,600(Note2)
ArrayFT-AL056601,1501,6002,3503,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range to 3,600 mm long.

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
Wide beamFD-A16250350350--
ArrayFD-AL113204507001,0001,300

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is specified for white non-glossy paper.

For details of Wide Beam Fiber, refer to product information page.
>>Go to "Wide Beam Fiber"

Convergent Reflective Type

■Reflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
Glass substrate detectionFD-L32H0 to 500 to 650 to 750 to 900 to 100
FD-L30A0 to 460 to 520 to 620 to 680 to 72
FD-L31A3 to 403 to 423 to 422 to 430 to 50
FD-L22A0 to 320 to 340 to 350 to 350 to 35
FD-L230 to 320 to 340 to 340 to 340 to 34
FD-L110 to 120 to 130 to 130 to 130 to 14
FD-L100 to 50 to 50 to 5.50 to 5.50 to 6
FD-L212 to 181 to 191 to 191 to 201 to 20
FD-L21W3 to 172 to 182 to 181 to 191 to 19
General purposeFD-L20H0 to 250 to 330 to 400 to 500 to 65
Ultla-smallFD-L12W0 to 100 to 120 to 150 to 160 to 17

Note 1:The sensing range is specified for transparent glass 100 x 100 x t0.7 mm (FD-L32H: R edge, FD-L21 and FD-L21W: t2 mm) (FD-L20H: white non-glossy paper, FD-L10: silicon wafers 100 x 100 mm).

Note 2:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

For details of Convergent Reflective Type Fiber, refer to product information page.
>>Go to "Convergent Reflective Type Fiber"

Retroreflective Type

■Retroreflective type

TypeModel No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
With polarizing filtersFR-Z50HW100 to
950		100 to
1,150		100 to
1,400		100 to
1,800		100 to
2,250
Wafer mappingFR-KZ22E15 to
400		15 to
540		15 to
600		15 to
700		15 to
800
Narrow
beam		Top
sensing		FR-KZ50H20 to
350		20 to
400		20 to
500		20 to
1,300		20 to
1,600
Side
sensing		FR-KZ50E20 to
350		20 to
400		20 to
500		20 to
1,300		20 to
1,600

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The sensing range is the possible setting range for the attached reflector. The fiber can detect an object less than setting range for the reflector.

For details of Retroreflective Type Fiber, refer to product information page.
>>Go to "Retroreflective Type Fiber"

Chemical-resistant

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm) (Note 1)
FASTSTDLONGU-LGHYPR
Chemical-resistantFT-Z802Y3,600(Note 2)3,600(Note 2)3,600(Note 2)3,600(Note 2)3,600(Note 2)
FT-HL80Y3,600(Note 2)3,600(Note 2)3,600(Note 2)3,600(Note 2)3,600(Note 2)
FT-L80Y3,600(Note 2)3,600(Note 2)3,600(Note 2)3,600(Note 2)3,600(Note 2)
FT-V80Y1,4002,2003,600(Note 2)3,600(Note 2)3,600(Note 2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeModel No.Sensing range(mm)(Note 1)(Note 2)
FASTSTDLONGU-LGHYPR
Chemical-resistantFD-S60Y380450550700-

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending on how the fiber is cut.

Note 2:The sensing range is specified for white non-glossy paper.

For details of Chemical-resistant Fiber, refer to product information page.
>>Go to "Chemical-resistant Fiber"

Heat-resistant

■Thru-beam type (one pair set)

TypeHeat-resistant
temp.		Model No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
Heat-resistant350℃FT-H35-M26501,0501,5002,3003,600(Note2)
FT-H35-M2S66501,0501,5002,3003,600(Note2)
200℃FT-H20W-M14407301,0501,600(Note2)1,600(Note2)
FT-H20-M16001,0001,600(Note2)1,600(Note2)1,600(Note2)
130℃FT-H13-FM27501,1501,6902,7003,600(Note2)
HHeat-resistant (joint)200℃FT-H20-J20-S5308601,2001,8002,600
FT-H20-J30-S5308601,2001,8002,600
FT-H20-J50-S5308601,2001,8002,600
FT-H20-VJ50-S6201,0001,4002,2003,600(Note2)
FT-H20-VJ80-S6201,0001,4002,2003,600(Note2)

Note 1:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

Note 2:The fiber cable length practically limits the sensing range.

■Reflective type

TypeHeat-resistant
temp.		Model No.Sensing range(mm) (Note1)(Note2)
FASTSTDLONGU-LGHYPR
Heat-resistantThreaded350℃FD-H35-M2220400500600750
FD-H35-M2S6220400500600750
FD-H35-20S230410550750850
200℃FD-H20-M13004506501,0001,350
FD-H20-212504506508501,250
130℃FD-H13-FM23906709401,3001,650
Glass substrate detection convergent reflective300℃FD-H30-L320 to 160 to 210 to 250 to 420 to 60
250℃FD-H25-L431 to 261 to 281 to 291 to 301 to 31
FD-H25-L454 to 444 to 484 to 494 to 504 to 51
180℃FD-H18-L310 to 300 to 450 to 600 to 850 to 130

Note 1:The sensing range of reflective type is the value for white non-glossy paper (50 x 50 mm glass substrate for FD-H30-L32 and FD-H18-L31, transparent glass 100 x 100 x t0.7 mm for FD-H25-L43 and FD-H25-L45).

Note 2:Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

For details of Heat-resistant Fiber, refer to product information page.
>>Go to "Heat-resistant Fiber"

One-Touch Connection System Vacuum-resistant Fibers NEW

■Thru-beam type

TypeModel No.Sensing range (mm)(Note 1)
HYPRU-LGLONGSTDFAST
Vacuum-
resistant		Thru-beamFT-40V1,400950620400250

(Note 1):Atmospheric side fiber, FT-J9 (optional) is free-cut type.
Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

■Reflective type

TypeModel No.Sensing range(mm) (Note 1)(Note 2)
HYPRU-LGLONGSTDFAST
Vacuum-
resistant		Long range
reflective		FD-KZ50V5 to 1,50010 to 1,00015 to 65020 to 45020 to 300
Convergent
reflective		FD-L10V0 to 270 to 190 to 130 to 110 to 7.5

(Note 1):The sensing range is the value for transparent glass 100 × 100 × t0.7 mm 3.937 × 3.937 × t0.028 in.

(Note 2):Atmospheric side fiber, FT-J9 (optional) is free-cut type.
Note that the sensing range of the free-cut type fiber may be reduced by 20 % max. depending upon how the fiber is cut.

For details of One-Touch Connection System Vacuum-resistant Fibers, refer to product information page.
>>Go to "One-Touch Connection System Vacuum-resistant Fibers"

Vacuum-resistant

■Thru-beam type (one pair set)

TypeModel No.Sensing range(mm)
FASTSTDLONGU-LGHYPR
Vacuum-resistantThru-beamFT-H30-M1V-S2504006209501,400

■Reflective type

TypeModel No.Sensing range(mm) (Note1)
FASTSTDLONGU-LGHYPR
Vacuum-resistantReflectiveFD-H30-KZ1V-S20 to 30020 to 45015 to 65010 to 1,0005 to 1,500
Convergent
reflective		FD-H30-L32V-S0 to 7.50 to 110 to 130 to 190 to 27

Note:The sensing range of reflective type is the value for transparent glass 100 x 100 x t0.7 mm.

For details of Vacuum-resistant Fiber, refer to product information page.
>>Go to "Vacuum-resistant Fiber"

------------------------------ Tab9 showing ------------------------------

Cautions For Use

  • Never use this product as a sensing device for personnel protection.
  • In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

Wiring

  • Make sure that the power supply is OFF while adding or removing the amplifiers.
  • Note that if a voltage exceeding the rated range is applied, or if an AC power supply is directly connected, the product may get burnt or damaged.
  • Note that short-circuit of the load or wrong wiring may burn or damage the product.
  • Do not run the wires together with high-voltage lines or power lines, or put them in the same raceway.
    This can cause malfunction due to induction.
  • Verify that the supply voltage variation is within the rating.
  • If power is supplied from a commercial switching regulator, ensure that the frame ground (F.G.) terminal of the power supply is connected to an actual ground.
  • In case noise generating equipment (switching regulator, inverter motor, etc.) is used in the vicinity of this product, connect the frame ground (F.G.) terminal of the equipment to an actual ground.
  • Make sure to use the quick-connection cable (optional) for the connection of the controller.
    Extension up to total 100 m 328.084 ft is possible with 0.3 mm2 or more, cable.
    However, in order to reduce noise, make the wiring as short as possible.
  • Make sure that stress by forcible bending or pulling is not applied to the sensor cable joint and fiber cable.

Others

  • This product has been developed / produced for industrial use only.
  • The specification may not be satisfied in a strong magnetic field.
  • The ultra long distance (U-LG, HYPR) mode is more likely to be affected by extraneous noise since the sensitivity of that is higher than the other modes. Make sure to check the environment before use.
  • Do not use during the initial transient time (H-SP, FAST, STD: 0.5 sec., LONG, U-LG, HYPR: 1 sec.) after the power supply is switched ON.
  • These sensors are only for indoor use.
  • Avoid dust, dirt, and steam.
  • Make sure that the product does not come in contact with oil, grease, organic solvents such as thinner, etc., strong acid or alkaline.
  • This product cannot be used in an environment containing inflammable or explosive gases.
  • Never disassemble or modify this product.
  • This product adopts EEPROM. Settings cannot be done a million times or more because of the EEPROM's lifetime.

MENU

Recently checked products

Recently checked product numbers
