FT-KV40H1｜Narrow Beam Fiber

Download

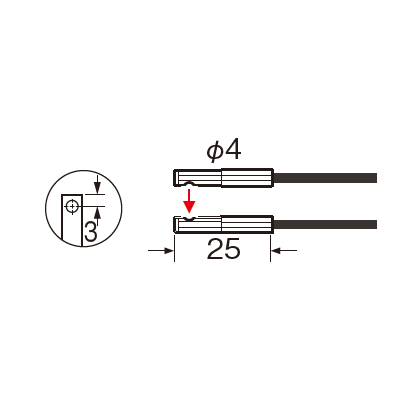

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    FT-KV40H1

    Part Number

    FT-KV40H1

    Product

    Thru-beam type Fiber

    Details

    Narrow Beam Fiber

    Product Name

    		 Narrow Beam Fiber

    Contact Us

    *Specifications and design of the products are subject to change without notice for the product improvement.

    Spec Detail

    Specifications and design of the products are subject to change without notice for the product improvement.
    ItemSpecifications
    Part NumberFT-KV40H1
    Product NumberFT-KV40H1
    Products NameThru-beam type Fiber
    Product detailsNarrow Beam Fiber
    Sensing modeThru-beam type
    Fiber typeNarrow beam
    Fiber head dia.dia. 4 mm
    Fiber head length25 mm
    With sleeveNo
    Beam directionSide-view
    Beam axis dia./ Spot diameterdia. 2.5 mm
    Beam axis accuracy : Beam axis Inclination±0.8°
    Fiber cable length2 m
    Allowable bending radiusR10 mm
    Free-cutAvailable
    Semi-customFiber length change
    Mounting lensNot available
    Mounting protective tubeNot available
    ApplicationGeneral-purpose
    Environmental resistance : ProtectionIP30
    Environmental resistance : Ambient temperature MAX105 ℃
    Environmental resistance : Ambient temperature MIN-40 ℃
    Sensing range（STD）3,600 mm 141.732 in (FX-500 series)
    Sensing range（HYPR）3,600 mm 141.732 in (FX-500 series)
    Sensing range（U-LG）3,600 mm 141.732 in (FX-500 series)
    Sensing range（LONG）3,600 mm 141.732 in (FX-500 series)
    Sensing range（FAST）2,780 mm 109.449 in (FX-500 series)
    Sensing range（H-SP）930 mm 36.614 in (FX-500 series)
    Sensing range (FX-250 series)STD : 3,600mm 141.732 in / H-PWR : 3,600mm 141.732 in / LONG : 3,600mm 141.732 in / FAST : 2,780mm 109.449 in / H-SPD : 930mm 36.614 in
