MDDHT5540E｜MINAS A5 Family Servo Driver (Discontinued)
Download
Discontinued
Last time buy (JST)
*Photo may vary from actual product.
| Part Number | MDDHT5540E |
|---|---|
| Product | Servo Driver |
| Details | A5E series |
| Product Name | MINAS A5 Family Servo Driver (Discontinued) |
| Features | 10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDDHT5540E |
| Product details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | D-Frame |
| Frequency response (kHz) | 2.3 |
| Control method | Position control |
| Safety Function | without |
| Power device Max. current rating | 50A |
| Current detector current rating | 40A |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Pulse train only |
| Dimensions (W) (Unit: mm) | 86 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.8 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Input power: Control circuit | Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Encoder feedback | 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |

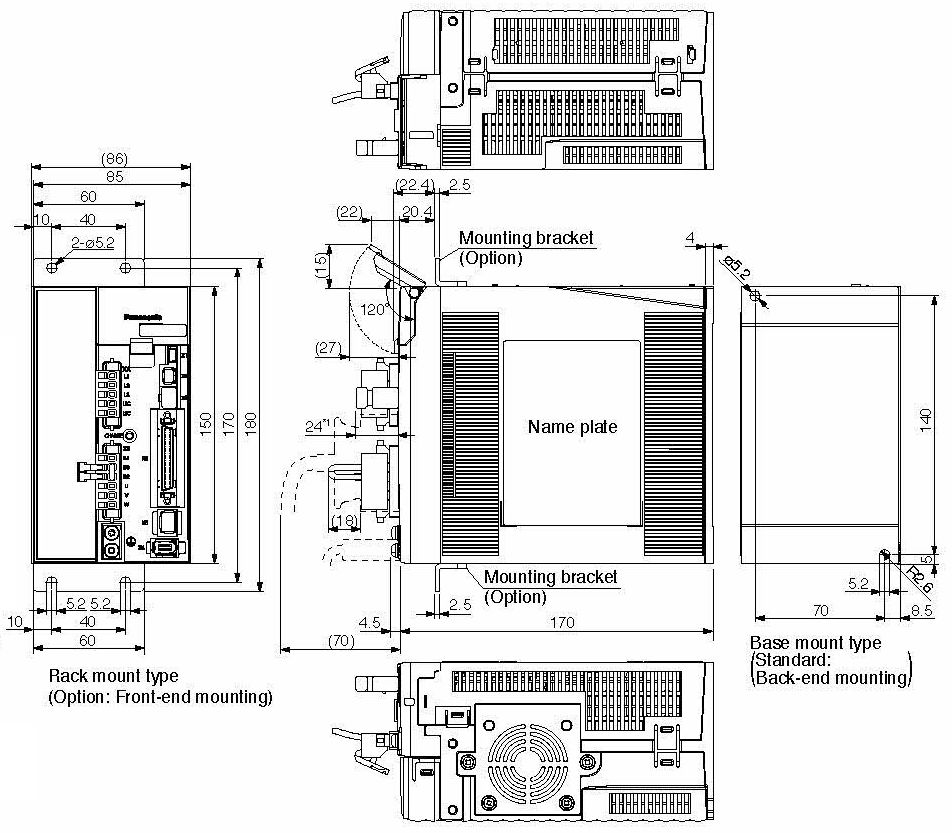

Dimensions
[Unit: mm]
*The external demension shown is for A5II and A5 series, but the demension is common between A5II , A5 series and A5IIE, and A5E series. Please refer to the catalogue for detail demension.*The air flow direction of the fan is shown on the external demeinsion or Pin diagram.

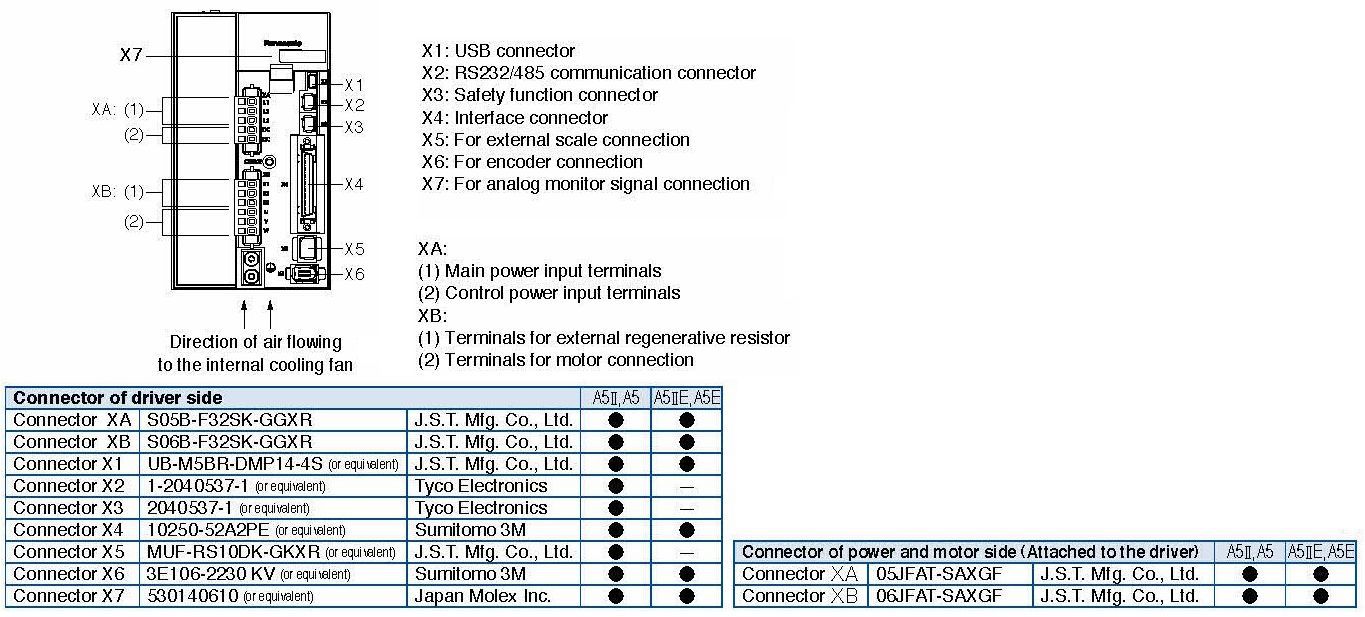

Connector specification
*The external demension shown is for A5II and A5 series. Please refer to the catalogue for detail demension*The air flow direction of the fan is shown on the external demeinsion or Pin diagram
