PD60/PD65 (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
September 30, 2019
Please refer to the details of the discontinued products and the recommended substitutes list below.
------------------------------ Tab1 showing ------------------------------
Discontinued Products
Recommended Substitutes
------------------------------ Tab2 showing ------------------------------
Specifications
General Specifications
Item | Specification | |
---|---|---|
PD60 | PD65 | |
Rated operating voltage | 24 V DC | |
Operating voltage range | 21.6 to 26.4 V DC (including ripples) | |
Rated current consumption | 0.5 A max. | |
Ambient temperature in use | 0 to +40°C | |
Storage ambient temperature | -20 to +60°C (no freezing or condensation) | |
Ambient humidity in use | 35 to 85%RH (at 25°C no freezing or condensation) | |
Storage ambient humidity | 35 to 85%RH (at 25°C no freezing or condensation) | |
Noise immunity | 1000 V pulse width 50 ns/1 µs (using noise simulator method) | |
Vibration resistance | 10 to 55 Hz, 1 sweep/min. Double amplitude of 1.5 mm. 30 min. each in X, Y and Z directions | |
Shock resistance | 196 m/s2, 5 times each in X, Y and Z directions | |
Insulation resistance (initial) | Min. 100Mohm (with a 500 VDC isolation resistance tester) *1 Parallel input/parallel output, parallel input/power, parallel input/functional earth, parallel output/power, parallel output/functional earth, power/functional earth. | |
Breakdown voltage (initial) | 500V AC/1 minute (600V AC/1 second) Cut-off current 10mA *1 Parallel input/parallel output, parallel input/power, parallel input/functional earth, parallel output/power, parallel output/functional earth, power/functional earth. | |
Protective Construction | IP67G *2 | |
Mass *3 | Approx: 500 g | Approx: 700 g |
*1 Evaluation was carried out with the primary side power supply varistor and capacitor removed from the internal circuit of the device.
*2 Evaluation was carried out with the USB cable not connected and the waterproof cap in place.
*3 Weight includes power supply I/O cable.
Function Specifications
Main Unit
Item | Specification | |||
---|---|---|---|---|
PD60 | PD65 | |||
Type | Stationary Type | Handy Type | ||
Light Configuration | 4 Control Sections | Dual Side/Diffused Lighting | ||
Read Method | External Start, Auto start | Trigger button | ||
Image capture element | Black/white C-MOS | |||
Valid pixels | 352 horizontal × 288 vertical pixels (100,000 pixels) | |||
Image capture light source | White LED | |||
Expected life | Expected Life: Min. 30000 hours (until light intensity falls to 50%) (at 25°C, internal trigger: ON, read time: 60ms, exposure time: 3ms) | |||
Exposure time | Shutter timing and interlock (0.03 to 50 ms) | |||
Visual Pilot Beam | Red LED | |||
Input/ Output | Parallel | Power I/O Cable | ||
Input | 2 Photo-coupler Inputs (trigger: 1 bit, model switch: 1 bit) | |||
Output | 3 PhotoMOS outputs (ready: 1 bit, alarm: 1 bit, OK/NG: 1 bit) | |||
Serial | Power I/O cable (RS232C communication: Max. 57600 bit/s) | |||
USB | USB Cable (AB Type) Sold separately | |||
PC I/P | USB1.1 | |||
Supported OS | Windows(R) Vista, XP, 2000, Me, 98SE |
Application Software
Item | Specification | ||
---|---|---|---|
PD60 | PD65 | ||
Detection Capability | 5 or more pixels per cell | ||
Total processing time | 30 ms to 200 ms | ||
No. of Registered Items | 7 types | ||
Type Registration Method | Teaching [settings related to codes to be decoded] | ||
Serial | Input | I/O Command | Trigger input, type switching (types 1 to 7) |
Teaching Command | Exposure time setting, and code setting (QR codes, data matrix) | ||
Output | Readability, readouts, error correction rate, and error output | ||
Parallel | Input | Trigger input, type switching (types 1, 2) mode switching (teaching/RUN) | |
Output | Evaluation result (OK/NG), READY, Alarm |
*The total processing time from receiving the trigger input to output varies with the exposure time and matrix size.
2D Code Reading
Item | Specification | ||
---|---|---|---|
PD60 / PD65 | |||
Readable code type | QR code | Model | Model 1 and Model 2 |
Matrix size | Model 1: 21 x 21 cells to 49 x 49 cells (Ver. 1 to 8) | ||
Model 2: 21 x 21 cells to 49 x 49 cells (Ver. 1 to 8) | |||
Error correction level | L (7%), M (15%), Q (25%), H (30%) | ||
Supports black/white reversed codes, horizontally-flipped codes, and dots. | |||
The model, matrix size, and the error correction level are automatically identified. | |||
Data matrix (ECC200) | Matrix size | Square symbol: 10 x 10 cells to 44 x 44 cells matrix | |
Rectangular symbol: 8 x 18 cells, 8 x 32 cells, 12 x 26 cells, 12 x 36 cells,16 x 36 cells, 16 x 48 cells | |||
Supports black/white reversed codes, horizontally-flipped codes, and dots. | |||
The matrix size is automatically identified. |
------------------------------ Tab3 showing ------------------------------
Dimensions
Unit: mm in- 1.PD60
- 2.PD65
- 3.Mounting Bracket
- 4.PD60 Front panel (option)
- 5.PD65 Guide pipe (option)
- 6.PD60 Series power supply I/O cable (option)
- 7.Extension Cable

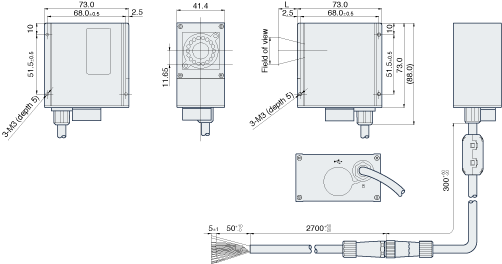

1.PD60
ANPD060-02/ANPD060-04
ANPD060-**(except for ANPD060-02/ANPD060-04)

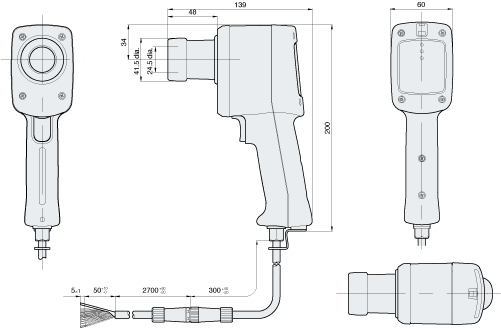

2.PD65
ANPD065-25

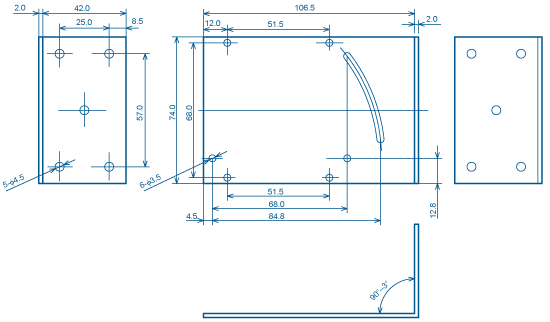

3.Mounting Bracket
ANE8870
4.PD60 Front panel (option)
ANPD068-P1
5.PD65 Guide pipe (option)
ANPD068-G1
6.PD60 Series power supply I/O cable (option)
ANPD068-K1
7.Extension cable
Product number | L |
---|---|
ANPD068-03 | 3000 +80 -20 |
ANPD068-05 | 5000 +80 -20 |
ANPD068-10 | 10000 +80 -20 |
