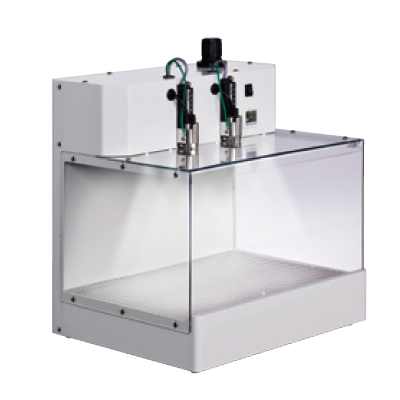

EC-B02-EX｜Bench Top Ionizer Cleaning Box EC-B

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

EC-B02-EX

Part Number

EC-B02-EX

Product

Bench Top Cleaning Box

Details

400 mm 15.748 in width type

Product Name

 Bench Top Ionizer Cleaning Box EC-B

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberEC-B02-EX
Product NumberEC-B02-EX
Products NameBench Top Cleaning Box
Product details400 mm 15.748 in width type
The price of the productPlease contact our office
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Notes: Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 °C +68 °F
Charge removal time0.5 sec. approx. or less
Notes: Typical value at 100 mm 3.937 in from the front of air outlet at an applied air pressure of 0.50 MPa.
Ion balanceplus or minus10 V or less
Applicable fluidAir (dried clean air)
Supplied air flowMax. 500 liter/min. (ANR) or less
Air pressure range0.05 to 0.50 MPa
Supply voltageAccessory AC adapter (Please prepare an AC cable separately as it is needed.)
INPUT: 100-240 V AC ±10 % 50/60 Hz
(OUTPUT: 24 V DC)
Power consumption90 VA or less
Timer mode2 sec. / 5 sec. / 10 sec. / synchronized with sensor or with external input selectable by switch
Pulse air modePulse 1 (long) / Pulse 2 (short) / OFF (continuous) selectable by switch
Ambient temperature0 to +40 ℃ +32 to +104 ℉
Ambient humidity35 % to 65 % RH (No dew condensation)
WeightMain body: 13 kg approx.
AccessoriesAC adapter: 1pc., Filter: 1pc., Protective mesh: 1pc.
