Bench Top Ionizer Cleaning Box EC-B

Download

  • Basic Information

  • Order guide

  • Option

  • Specifications

  • Dimensions

  • Circuit/ Wiring

  • Cautions For Use

------------------------------ Tab1 showing ------------------------------

Basic Information

Compact dust collection and removal features

    Features

    Three discharge modes

    pic01

    The EC-B features two pulse air modes in addition to the standard continuous mode.

    3 white LED illumination

    pic03

    Three white LEDs illuminate the work area, helping ensure you don’t overlook any dust that has adhered to workpieces.

    Dust collecting fan that prevents dust from re-adhering

    pic04

    A powerful dust collecting fan exhausts dust quickly, preventing re-adhesion of dust.

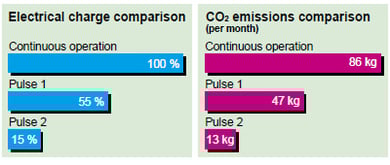

    Economic and ecological benefits of pulse (intermittent) air

    pic05

    Note: Calculated using operating conditions at Panasonic Industry Plant, 8 hours per day × 20 days.

    • Dust removal and charge removal by intermittent air
    • Possible to control dust removal time in timer mode
    • External input allows the tool to be used in conjunction with other equipment such as a foot switch

    ------------------------------ Tab2 showing ------------------------------

    Order guide

    TypeAppearanceCharge removal time
    (±1,000V→±100V)    		Ion balanceModel No.
    200 mm 7.874 in
    width type

    		0.5 sec. approx or less (Note)±10 V or lessEC-B01-EX
    400 mm 15.748 in
    width type

    		EC-B02-EX

    Note : Typical value at 100 mm 3.937 in from the front of air outlet at an applied air pressure of 0.50 MPa.

    ------------------------------ Tab3 showing ------------------------------

    Option

    TypeModel No.Description
    Duct flangeEC-BD50For Ø50 mm Ø1.969 in duct flangeA flange that connects a duct hose for air exhaust to the EC-B main body
    EC-BD76For Ø76 mm Ø2.992 in duct flange
    Air filterEC-BFX3For EC-B01-EXReplacement filter (3 pcs. per set)
    EC-B2FX3For EC-B02-EX
    Spot nozzleEC-BASExclusive nozzle for EC-B02-EXIonized air can be collected around the center. (2 pcs. per set)

    ------------------------------ Tab4 showing ------------------------------

    Specifications

    Type200 mm 7.874 in width type400 mm 15.748 in width type
    Model No.EC-B01-EXEC-B02-EX
    Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
    Charge removal time
    (±1,000 V → ±100 V)    		0.5 sec. approx. or less (Note 2)
    Ion balance±10 V or less
    Applicable fluidAir (dried clean air)
    Supplied air flowMax. 300 ℓ/min. (ANR) or lessMax. 500 ℓ/min. (ANR) or less
    Air pressure range0.05 to 0.50 MPa
    Power supply voltageAccessory AC adapter (Note 3) INPUT: 100-240 V AC ±10 % 50/60 Hz
    (OUTPUT: 24 V DC)
    Power consumption80 VA or less90 VA or less
    Dust removal operation outputPhotocoupler output / Universal
    ・Max sink current: 100 mA
    ・Residual voltage: 2.5 V or less (at sink current of 100 mA or less)
     Output operationDuring dust removal operation: ON, during standby: OFF
    External input0 V short-circuit: Input received
    Timer mode2 sec. / 5 sec. / 10 sec. / synchronized with sensor or with external input selectable by switch
    Pulse air modePulse 1 (long) / Pulse 2 (short) / OFF (continuous) selectable by switch
    Ambient temperature0 to +40 ℃ +32 to +104 ℉
    Ambient humidity35 % to 65 % RH (No dew condensation)
    Enclosure earthing methodC (capacitor) earth
    Net weightMain body: 6.5 kg approx.Main body: 13 kg approx.
    AccessoriesAC adapter: 1pc., Filter: 1pc., Protective mesh: 1pc.

    Notes:
    1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 °C +68 °F.
    2) Typical value at 100 mm 3.937 in from the front of air outlet at an applied air pressure of 0.50 MPa.
    3) Please prepare an AC cable separately as it is needed.

    ------------------------------ Tab5 showing ------------------------------

    Dimensions

    Unit: mm in

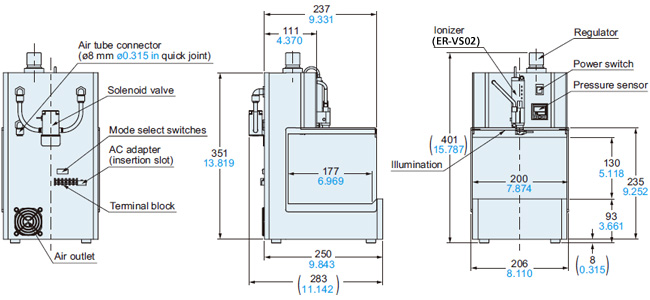

    EC-B01-EX

    Cleaning box

    EC-B01-EX

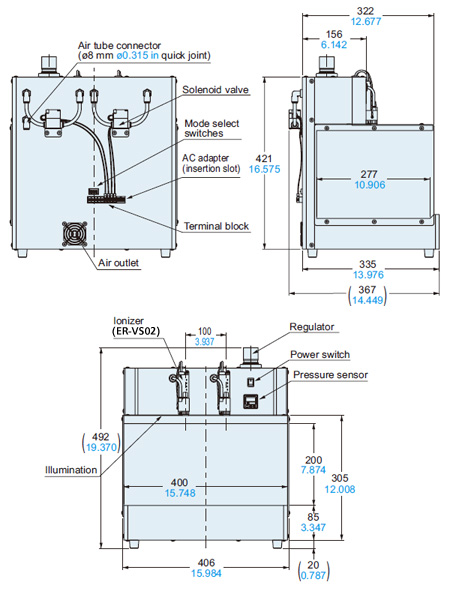

    EC-B02-EX

    Cleaning box

    EC-B02-EX

    ------------------------------ Tab6 showing ------------------------------

    I/O Circuit and Wiring diagrams

    I/O circuit diagram

    Notes:

    1) The F.G. terminal has continuity with the enclosure.
    2) This terminal is for the solenoid valve only. Do not connect any line to it other than the power supply line for the solenoid valve.
    3) The EC-B01-EX has 7 terminals, and the EC-B02-EX has 9 terminals.

    Terminal block diagram

    EC-B01-EX

    pic02
    EC-B02-EX
    EC-B02 端子台配列図

    Pin layout for AC adapter power supply connector

    ACアダプタ電源コネクタ配列図

    ------------------------------ Tab7 showing ------------------------------

    Cautions For Use

    • Never use this product in a device for personnel protection.
    • In case of using devices for personnel protection, use products which meet laws or standards, such as OSHA,
      ANSI or IEC etc., for personnel protection applicable in each region or country.
    • Do not use this product in places where there may be a danger of flammable or combustible items being present.
    • When carrying, hold the bottom of the main unit from both sides. Do not hold the transparent antistatic cover or damage may occur.
    • High voltages are applied to the discharge needle, so never touch the discharge needle while the power for the product is turned on, otherwise electric shocks may result.
    • Be sure to ground the main body of this product via ground terminal to ensure electric shock prevention and reliable charge removal.
    • Since the tip of the discharge needle is pointed, take sufficient care in handling the discharge needle, or injuries may result.
    • The cut edges of the protective mesh are sharp, so be very careful when handling the mesh, otherwise injury may occur.
    • Turn off the power and air before carrying out any maintenance or cleaning.
      Make sure that the supply of air has been fully shut off and that all pressures at the product and inside the tubes are at zero before continuing. If this is not done, air pressure may cause operating problems or accidents.
    • This product has been developed / produced for industrial use only.
    • This product detects the air supply status.
    • If air is not being supplied to the product, or if the pressure of air being supplied is 0.6 MPa or higher, the product will treat this as an error condition, and dust removal operation will not be carried out when an object (electrostatically-charged object) is inserted.
    • Do not change the pressure sensor settings. If the settings are changed, this product may cease to operate correctly.
