SC-TP8J|Sensor-PLC Connection System SC
Download
Discontinued
Last time buy (JST)

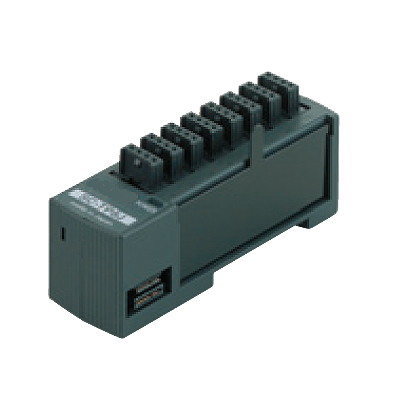

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
Spec Detail
Item | Specifications |
---|---|
Part Number | SC-TP8J |
Product Number | SC-TP8J |
Products Name | Sensor-PLC Connection System |
Product details | Connector I/O mixed extension unit |
The price of the product | Please contact our office |
Supply voltage | 5 to 24 V DC plus or minus 10 % (Note) It depends on the power supply from SC-MIL. |
Supply current for units | 800 mA or less (At a total of 8 channels) |
Signal channel No. | 8 inputs / outputs (Note) The signal for 8 channels is occupied regardless of number of I/O units connected. |
Ambient temperature | -10 to +45 degrees +14 to +113 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -20 to +70 degrees -4 to +158 degrees Fahrenheit |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Material | Enclosure: Heat-resistant ABS |
Weight | 40 g approx. |
Accessory | Index seal: 1 pc. |
Current consumption | 7 mA or less (Note) The current consumption and input current of the input unit connected are not included. |
Connectable device | Commercial I/O device |
Power indicator | Green LED (Lights up when the power is ON) |
Input indicator | - |
