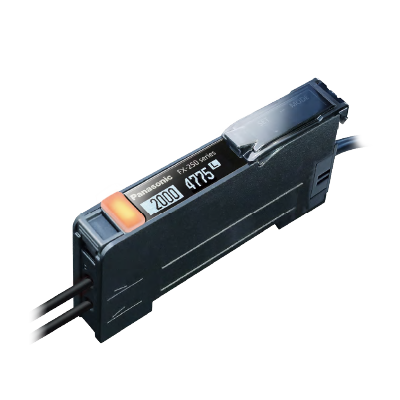

FX-251P-C2｜Digital Fiber Sensor FX-250

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

FX-251P-C2

Part Number

FX-251P-C2

Product

Digital Fiber Sensor

Product Name

 Digital Fiber Sensor FX-250

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberFX-251P-C2
Product NumberFX-251P-C2
Products NameDigital Fiber Sensor
Applicable regulationsCE Marking (EMC Directive, RoHS Directive)
Supply voltage12 to 24 V DC ±10% Ripple P-P 10% or less
Power consumption960 mW or less (current consumption 40 mA or less at 24 V supply voltage)
OutputPNP open-collector transistor
・Maximum source current: 100 mA
　 ・Applied voltage: 30 V DC or less (between output and +V)
　 ・Residual voltage: 2 V or less (at maximum source current)
Output:Output operationSwitchable either Light-ON or Dark-ON
Output:Short-circuit protectionIncorporated
Response timeH-SPD: 35 μs or less, FAST: 60 μs or less, STD: 250 μs or less, LONG: 2 ms or less, H-PWR: 24 ms or less, selectable
Output indicatorOrange LED turns on when output is ON.
Sensitivity setting2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment
Threshold value adjustment functionIncorporated
Incident light intensity adjustment functionIncorporated, max. 100 steps
Incident light intensity display rangeH-SPD / FAST / STD: 0 to 4,000, LONG / H-PWR: 0 to 9,999
Digital displayWhite organic EL display
Various settingsShift amount setting (percentage, fixed value), display style setting, display inversion setting, ECO setting, zero-set function
Timer functionOFF-delay timer / ON-delay timer / One-shot timer, switchable either effective or ineffective
(setting range: 1 to 9,999 ms in 1-ms increments)
Interference prevention functionIncorporated (4 selectable frequencies) (Note)
(Note): When the interference prevention function is used, set different light emission frequencies in the amplifiers for interference prevention.
ProtectionIP40 (IEC)
Ambient temperature-10 to +55 ℃ +14 to +131 ℉ (If 4 to 7 units close mounting: -10 to +50 ℃ +14 to +122 ℉ or if 8 to 16 units close mounting: -10 to +45 ℃ +14 to +113 ℉ ) (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity35 to 85% RH, Storage: 35 to 85% RH
Ambient illuminanceIncandescent light: 10,000 ℓx or less at the light-receiving face
Voltage withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure (Note)
(Note) The indicated voltage withstandability and insulation resistance values apply to the amplifier unit.
Insulation resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note)
(Note) The indicated voltage withstandability and insulation resistance values apply to the amplifier unit.
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (100 m/s2 max.) in X, Y and Z directions for two hours each (without power supply)
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each (without power supply)
Emitting element (modulated)Red LED (Peak emission wavelength: 660 nm 0.026 mil)
MaterialEnclosure, cover, switch: Polycarbonate
Cable0.2 mm2 3-core cabtyre cable, 2 m 6.562 ft long
Cable extensionExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (however, supply voltage 24 V DC or more)
WeightNet weight: 55 g approx., Gross weight: 80 g approx.
