FP-e (Discontinued Products)

  • Discontinued Products

  • Specifications

  • Dimensions

  • Software

Ⅾiscontinued

Last time buy (JST)

September 30, 2019

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

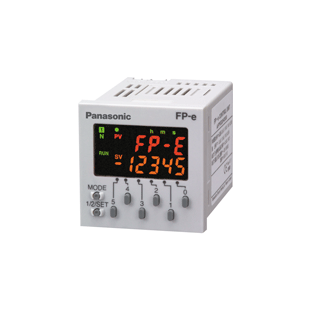

pic01-1

------------------------------ Tab2 showing ------------------------------

Specifications

 Part No.
ItemAFPE224300
Basic type
(RS-232C)
AFPE224302
Basic type
(RS-485)
AFPE224305
Calendar timer type
(RS-232C)
AFPE214325
Thermocouple input type
(RS-232C)
AFPE214322
Thermocouple input type
(RS-485)
Number of
controllable I/O points
Control unit14 points [Input: 8, Output: 6 (Tr. NPN: 5 / Ry: 1)]12 points [Input: 6, Output: 6 (Tr. NPN: 5 / Ry: 1)]
Front switch input8 points
Program memoryBuilt-in memoryBuilt-in EEPROM
Program capacity2,720 steps
Operation speed0.9 μs/step (for basic instruction)
Clock / calendar functionNot availableYear (last two digits), month, day, hour, minute, second and day of week (This function is only used when a battery is installed.)Not available
Battery lifeNot available220 days or more [actual usage value: approx. 870 days (+25℃ +77℉)] Periodic replacement interval: 1 year (Value applies when no power is supplied at all.)Not available
Pulse catch input[6 points in total ×0 and X1: 50 μs,
Interrupt input ×2 to ×5: 100 μs]
Interrupt input
COM. PortRS-232CRS-485RS-232CRS-232CRS-485
Periodical interrupt0.5 ms to 30 sec.
Constant scanAvailable
PasswordAvailable
Special FunctionsHigh-speed counter
* The combination of 1-phase × 2 ch.
and 2-phase × 1 ch. is also possible
for the high-speed counter
Counter mode: Addition / subtraction (1-phase) , Input points: 4 ch. (Max.)
Max. speed: 10 kHz (total of 4 ch.)Max. speed: 5 kHz
Counter mode: 2-phase / Individual / direction decision (2-phase), Input points: 2 ch (Max.)
Max. speed: 2 kHz (total of 2 ch.)Max. speed: 1 kHz
Pulse output
function
Output points2 independent points (Y0 and Y1) (No interpolation function)
Output frequency40 Hz to 10 kHz (Y0/Y1: 1-point), 40 Hz to 5 kHz (Y0/Y1: 2-point) 40 Hz to 5 kHz (1-point), 40 Hz to 2.5 kHz (2-point)
PWM output
function
Output points2 points (Y0 and Y1)
Output frequencyFrequency: 0.15 Hz to 1 kHz, Duty: 0.1 to 99.9 %

------------------------------ Tab3 showing ------------------------------

Dimensions

Unit: mm

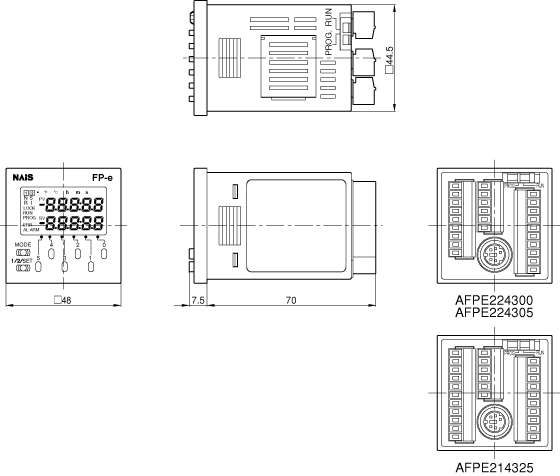

FP-e Control Units

AFPE2*****
