HL-G208B-A-MK｜Network Function Integrated Type Laser Displacement Sensor HL-G2

Download

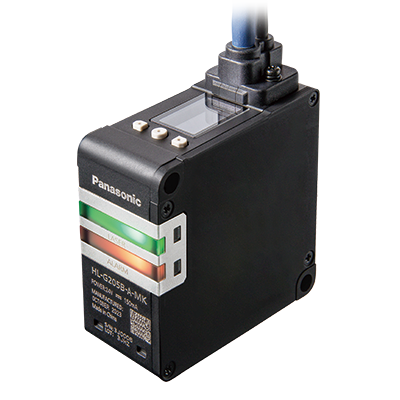

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    HL-G208B-A-MK

    Part Number

    HL-G208B-A-MK

    Product Name

    		 Network Function Integrated Type Laser Displacement Sensor HL-G2

    Contact Us

    *Specifications and design of the products are subject to change without notice for the product improvement.

    Spec Detail

    Specifications and design of the products are subject to change without notice for the product improvement.
    ItemSpecifications
    Part NumberHL-G208B-A-MK
    Product NumberHL-G208B-A-MK
    Applicable regulations and certificationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulation, TÜV SÜD Certification (U.S.A., Canada), Korea KC Mark
    Measurement center distance85 mm 3.346 in
    Measurement range±20 mm ±0.787 in
    Beam diameterX-axis: 90 μm 3.543 mil approx.
    Y-axis: 3,000 μm 118.110 mil approx.
    (Note) : The beam diameter is defined as 1/e2 (approx. 13.5 %) of the center light intensity. Due to leak light outside the defined range, the measurement values may be affected if the reflectance around the detecting point is higher than that of the detecting point.
    Resolution2.5 μm 0.098 mil
    Linearity : Limited range±0.05 % F.S. (75 mm to 95 mm) (2.953 in to 3.740 in)
    Linearity : Other than above±0.075 % F.S.
    Temprerature characteristics0.03 % F.S./℃
    Measuring methodDiffuse reflection
    Light sourceRed semiconductor laser: Class 2 [IEC / EN / JIS / GB / KS / FDA Laser Notice No. 56 (Note)]
    Maximum output: 1 mW, Peak emission wavelength: 655 nm
    (Note) : This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
    Receiving elementCMOS image sensor
    Supply voltagePower supply units with a current capacity of 500 mA or more, including 24 V DC ±10 %, ripple 0.5 V (P-P)
    Current consumption150 mA or less
    (Note) : Current consumption of the sensor only. External input current is not included.
    Sampling rate100 μs, 200 μs, 500 μs, 1 ms, 2 ms
    Analog outputOutput mode switchable by changing the setting
      When voltage output is selected When current output is selected
    Output scale (Default value) 0 V to 5 V / F.S. 4 mA to 20 mA / F.S.
    Normal output range 0 V to 5.25 V 3.2 mA to 20.8 mA
    Alarm *1 5.3 V ± 20 mV 22 mA ± 100 μA
    Indeterminate state 5.5 V ± 20 mV 23 mA ± 100 μA
    Impedance Output impedance: 100 Ω Load impedance: 300 Ω or less
    Resolution *2 ± 2 mV ± 6 μA
    Linearity *3 ±0.05 % F.S. ±0.25 % F.S.
    Temperature characteristics 0.005 % F.S./℃ 0.01 % F.S./℃

    *1: The value that will be output when Alarm analog output is set to Alarm. When set to Hold, the value immediately before alarm occurrence will be held.
    *2: This refers to the repeatability of analog output only. Static resolution and linearity error by measurement will be added.
    *3: This refers to the linearity of analog output only. Static resolution and linearity error by measurement will be added. This does not include the repeatability of analog output only.
    Control output : OUT 1 OUT 2 OUT 3• Possible to switch over between NPN transistor open collector / PNP transistor open collector by changing the setting
    • Possible to switch over between judgment output and alarm output by changing the setting
    <When NPN output is selected>
    • Maximum sink current: 50 mA
    • Applied voltage: 26.4 V DC or less (between output and 0 V)
    • Residual voltage: 2 V or less (at 50 mA sink current)
    • Leakage current: 0.1 mA or less
    <When PNP output is selected>
    • Maximum source current: 50 mA
    • Residual voltage: 2.8 V or less (at 50 mA source current)
    • Leakage current: 0.1 mA or less
    Control output : Output typePossible to switch over between open and close when set to ON by changing the setting
    Control output : ProtectionEquipped (Automatic recovery type) * This is not an overcurrent protection.
    External input : IN 1 IN 2 IN 3• Possible to switch over from trigger, zero setting, measured value resetting, laser stop, teaching, or bank by changing the setting
    • The input conditions are interlocked with NPN / PNP setting of the control output
    <When NPN output is selected>
    • Source current: 1.5 mA approx.
    • Input conditions
    Invalid: 3 to 26.4 V DC or open
    Valid: 0 to 1.5 V DC
    <When PNP output is selected>
    • Sink current: 2.5 mA approx.
    • Input conditions
    Invalid: 0 to 11 V DC or open
    Valid: 19 to 26.4 V DC
    Indicators : Laser emissionGreen LED (Lit while laser beams are being emitted)
    Indicators : AlarmOrange LED (Lit when measurement is not possible due to insufficient or excessive received light intensity, or due to excessive extraneous light)
    Display section0.9 inch organic EL
    Measured value: signed 5-digit (maximum of 4 digits after the decimal point)
    Pollution degree2
    Operating altitude2,000 m 6561.680 ft or less
    (Note) : Do not use or store this product in environments where ambient air is pressurized to an air pressure higher than the atmospheric pressure at an altitude of 0 m.
    Grounding methodCapacitor grounding
    Environmental resistance : ProtectionIP67 (IEC)
    Environmental resistance : Ambient temperature-10 to +45 ℃ -14 to 113 ℉ (No icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉ (No icing allowed)
    Environmental resistance : Ambient humidity35 to 85 % RH (No condensation allowed), Storage: 35 to 85 % RH (No condensation allowed)
    Environmental resistance : Ambient illuminanceIncandescent light: 3,000 ℓx or less at the light-receiving face
    Environmental resistance : Insulation resistance20 MΩ or higher, using 500 V DC megger
    Environmental resistance : Voltage withstandability1,000 V AC between all terminals and case for 1 minute
    Environmental resistance : Vibration resistance10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
    Environmental resistance : Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
    MaterialProduct casing: Aluminum die casting, Front cover: Glass, Cable: PVC
    WeightNet weight: 150 g approx., Gross weight: 200 g approx.
    RemarkUnless otherwise specified, the above specifications are typical values measured under the following measurement conditions. They do not guarantee performance for all target objects.
    Power supply voltage: 24 V DC, ambient temperature: 20 ℃ 68 ℉, sampling cycle: 1 ms, average count: 512 times, measurement center distance, target object: visible light shielding ceramic
