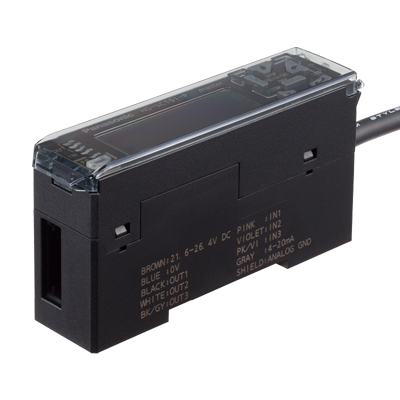

HG-TC101｜Thru-beam Type Digital Displacement Sensor HG-T

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

HG-TC101

Part Number

HG-TC101

Product

Controller

Details

Master unit / High performance type

Product Name

 Thru-beam Type Digital Displacement Sensor HG-T

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberHG-TC101
Product NumberHG-TC101
Products NameController
Product detailsMaster unit / High performance type
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Pollution degree2
Operating altitude2,000 m 6561.68 ft or less
(Note) : Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.
Environmental resistance : ProtectionIP40(IEC)
Environmental resistance : Ambient temperature-10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed) (Note), Storage: -20 to +60 ℃ -4 to +140 ℉
(Note) : When slave units are connected to the master unit, the maximum sink current / source current of control output and ambient temperature vary depending on the number of connected slave units as shown below.
Number of connected slave units Maximum sink current and source
current of control output		 Ambient temperature
  When communication unit
is connected
1 to 7 units 1 to 6 units 20 mA -10～+45℃
+14 to +113 ℉
8 to 15 units 7 to 14 units 10 mA
Environmental resistance : Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Environmental resistance : Voltage withstandability1,000 V AC for one minute between all supply terminals connected together and enclosure
Environmental resistance : Insulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Environmental resistance : Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58 Hz), Maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each
Environmental resistance : Shock resistance98m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
MaterialCase: Polycarbonate, Cover: Polycarbonate, Switches: Polyacetal
Cable0.2 mm2 2-core (brown and blue lead wires) / 0.15 mm2 7-core composite cable, 2 m 6.562 ft long
Net weight140 g approx.
Applicable sensor headHG-T1010、HG-T1110
Maximum number of connectable controllersUp to 15 slave units can be connected to a master unit.
(Note) : When connected to a communication unit for digital displacement sensor, up to 14 slave units can be connected per master unit.
Supply voltage24 V DC ±10 %, including ripple 0.5 V (P-P)
Current consumption100 mA or less (when sensor head is connected)
(Note) : Current consumption does not include analog current output.
Analogue output : Analog voltage output•Voltage output range: 1 to 5 V/F.S. (default value)
•Linearity: ±0.05 % F.S.
•Output when alarm occurs: 5.2 V
•Output impedance: 100 Ω max.
(Note) : Linearity is a value calculated from digitally measured values at F.S. = 16 mA for current output or F.S. = 4 V for voltage output.
Analogue output : Analog current output•Current output range: 4 to 20 mA/F.S. (default value)
•Linearity: ±0.25 % F.S.
•Output when alarm occurs: 0 mA
•Load impedance: 250 Ω max.
(Note) : Linearity is a value calculated from digitally measured values at F.S. = 16 mA for current output or F.S. = 4 V for voltage output.
Control output(Output 1, Output 2, Output 3)NPN open-collector transistor
•Maximum sink current: 50 mA (Note)
•Applied voltage: 30 V DC or less (between output and 0 V)
•Residual voltage: 1.5 V or less (at 50 mA sink current)
•Leakage current: 0.1 mA or less


PNP open-collector transistor
•Maximum source current: 50 mA (Note)
•Applied voltage: 30 V DC or less (between output and +V)
•Residual voltage: 1.5 V or less (at 50 mA source current)
•Leakage current: 0.1 mA or less

(Note) : When slave units are connected to the master unit, the maximum sink current / source current of control output and ambient temperature vary depending on the number of connected slave units as shown below.
Number of connected slave units Maximum sink current and source
current of control output		 Ambient temperature
  When communication unit
is connected
1 to 7 units 1 to 6 units 20 mA -10～+45℃
+14 to +113 ℉
8 to 15 units 7 to 14 units 10 mA
Control output(Output 1, Output 2, Output 3) : Short-circuit protectionIncorporated (automatic reset type)
Control output(Output 1, Output 2, Output 3) : Judgment outputN.O. / N.C. switching type
Control output(Output 1, Output 2, Output 3) : Alarm outputOpen when alarm occurs
External output switchingOutput 1, Output 2, and Output 3 can be switched to 3-value, 2-value, Logic, and Logic 2.
External input(Input 1, Input 2, Input 3)
Non-contact input or NPN open-collector transistor
•Input conditions
Invalid: +8 V to +V DC or open, Valid: 0 to +1.2 V DC
•Input impedance: 10 kΩ approx.


Non-contact input or PNP open-collector transistor
•Input conditions
Invalid: 0 to +0.6 V DC or open, Valid: +4 V to +V DC
•Input impedance: 10 kΩ approx.
External input(Input 1, Input 2, Input 3) : Input time• Trigger input: 2 ms or more (ON)
• Laser emission stop input, preset input, reset input, bank input A/B(Note): 20 ms or more (ON)
(Note) : Average count (response time) is for when the sampling cycle is set to 1 ms (standard sampling). Response times differ when the sampling cycle is set to 0.5 ms (high-speed sampling).
External input switchingInput 1, Input 2, and Input 3 can be switched to "Preset / Reset / Trigger", "Bank Input A / Bank Input B / Select (Preset, Reset, Trigger)", or "Laser emission stop".
Sampling rate1 ms (standard sampling) / 0.5 ms (high-speed sampling)
Average count (response time)1 time (2 ms), 2 times (3 ms), 4 times (5 ms), 8 times (9 ms), 16 times (17 ms), 32 times (33 ms), 64 times (65 ms), 128 times (129 ms), 256 times (257 ms), 512 times (513 ms), and 1,024 times (1,025 ms) switching type
(Note) : Average count (response time) is for when the sampling cycle is set to 1 ms (standard sampling). Response times differ when the sampling cycle is set to 0.5 ms (high-speed sampling).
Display resolution1 μm 0.039 mil
Display range-199.999 to 199.999 mm -7.874 to 7.874 in
Interference prevention functionIncorporated
(Note) : This function operates for each set of 4 connected controllers.
