HG-T1010｜Thru-beam Type Digital Displacement Sensor HG-T

Download

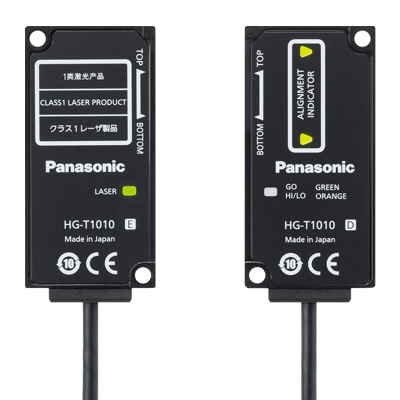

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

HG-T1010

Part Number

HG-T1010

Product

Sensor heads

Details

Measurement width 10 mm 0.394 in / Standard type

Product Name

 Thru-beam Type Digital Displacement Sensor HG-T

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberHG-T1010
Product NumberHG-T1010
Products NameSensor heads
Product detailsMeasurement width 10 mm 0.394 in / Standard type
Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA regulations
Applicable controllerHG-TC101 (-P), HG-TC111 (-P), HG-TC113
Position detection methodCMOS-based
Installation distance0 to 500 mm 0 to 19.685 in　[When side view attachment HG-TSV10 is attached, 0 to 100 mm 0 to 3.937 in (typical)]
Measurement width10 mm 0.394 in
Light sourceRed semiconductor laser: Class 1 [IEC / EN / JIS / GB / KS / FDA]
(Note)This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
Repeatability1 μm 0.039 mil (Installation distance: 20 mm 0.787 in)
2.5 μm 0.098 mil (Installation distance: 100 mm 3.937 in)
5 μm 0.197 mil (Installation distance: 500 mm 19.685 in)
(Note)This is the P-P value of digital measurement value with half shading at the middle position of the installation distance.
Linearity±0.12 % F.S. (Installation distance: 20 mm 0.787 in)
±0.28 % F.S. (Installation distance: 100 mm 3.937 in)
(Note)Indicates an error with the ideal straight line of digital measured values.
Min. sensing objectø0.5 mm ø0.020 in (Installation distance: 500 mm 19.685 in)
(Note)When the light is blocked at the center position of 500 mm 19.685 in installation distance.
Temprerature characteristics±0.03 % F.S./℃
(Note)When the light is half-blocked at the center position of 100 mm 3.937 in installation distance.
Operation indicatorEmitter : Laser radiation indicator (Green)
Receiver : Beam axis adjustment indicator (Orange / Green), Judgment output indicator (Orange / Green)
Pollution degree2
Operating altitude2,000 m 6,561.68 ft or less
(Note)Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.
Environmental resistance : ProtectionIP67 (IEC) (Excluding connectors)
Environmental resistance : Ambient temperature-10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉
Environmental resistance : Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Environmental resistance : Ambient illuminanceIncandescent light: 5,000 ℓx or less at the light-receiving face
(Note)When the sampling cycle of the controller is set to "standard sampling".
Environmental resistance : Insulation resistance20 MΩ or higher, using 250 V DC megger (between all terminals and case)
Environmental resistance : Vibration resistance10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Environmental resistance : Shock resistance196 m/s2 acceleration in X, Y and Z directions three times each
Grounding methodCapacitor grounding
MaterialCase: Die-cast aluminum, Light emitting and light receiving surfaces: Glass
Cable0.2 m 0.656 ft 4-core shielded cable with round connectors
Net weightEmitter: 30 g approx., Receiver: 30 g approx.
