Micro Laser Displacement Sensor LM10 (Discontinued Products)

Download

Discontinued Products
Specifications

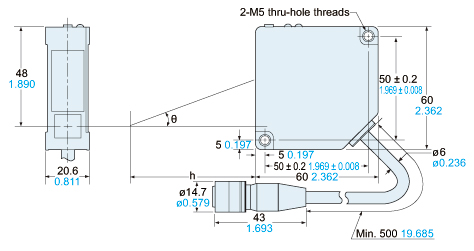

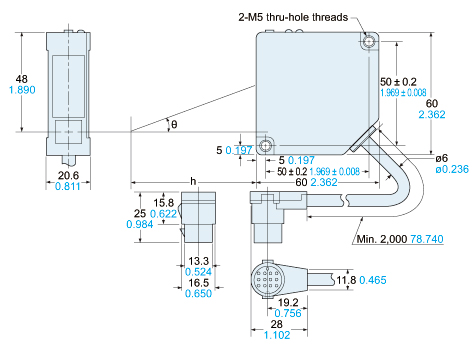

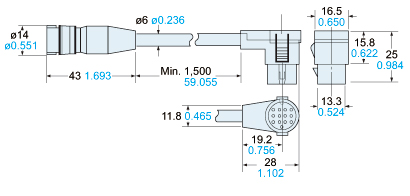

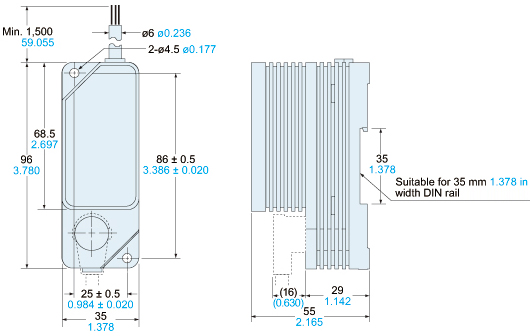

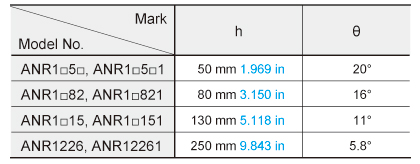

Dimensions

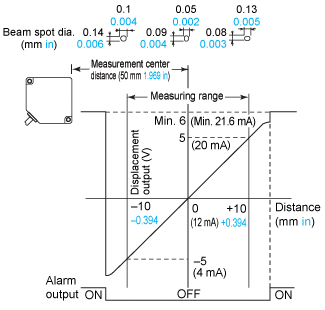

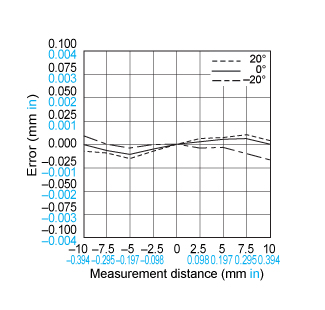

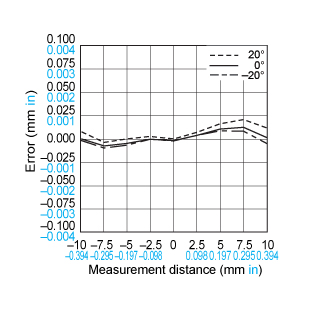

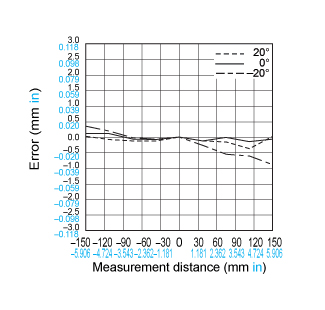

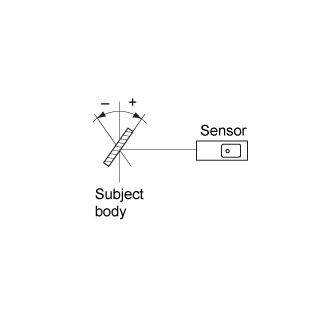

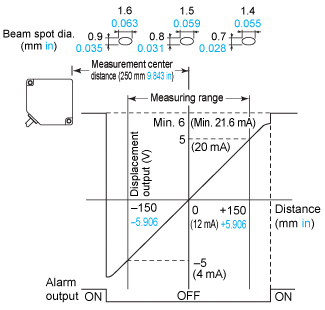

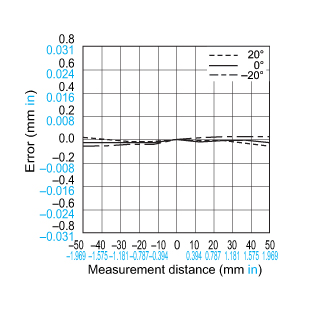

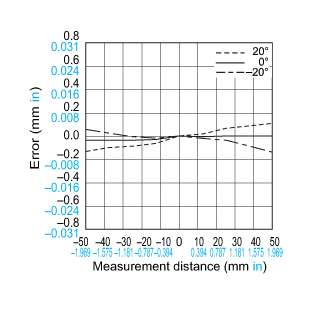

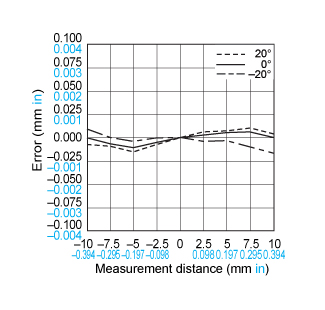

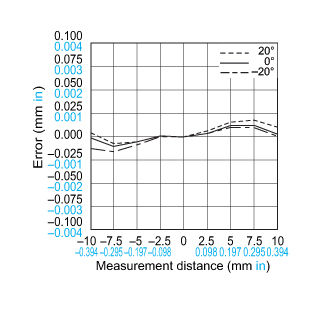

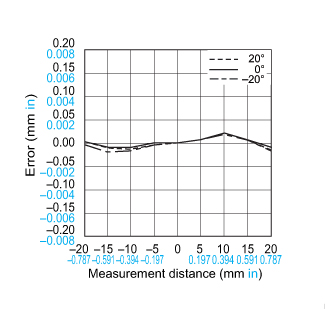

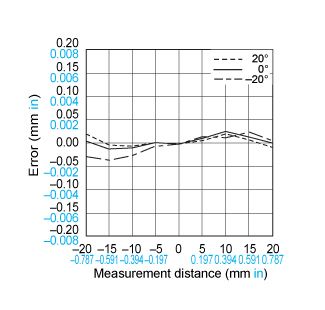

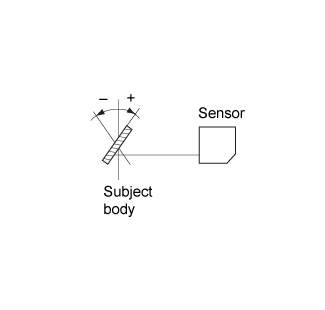

Sensing characteristics

Ⅾiscontinued

Last time buy (JST)

March 31, 2013

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

Specifications

Sensor heads [Class 1 type]

Model No.	IEC standards comforming type	ANR1150	ANR1151	ANR1182	ANR1115
Model No.	FDA regulations comforming type	ANR11501	ANR11511	ANR11821	ANR11151
Measurement center distance		50 mm 1.969 in	50 mm 1.969 in	80 mm 3.150 in	130 mm 5.118 in
Measuring range		±10 mm ±0.394 in	±10 mm ±0.394 in	±20 mm ±0.787 in	±50 mm ±1.969 in
Light source		Laser diode (Peak emission wavelength: 650 nm 0.026 mil)
	Pulse width / Max.output / Laser class	15 μs (Duty 50 %) / 0.4 mW (Peak value) / Class 1 (IEC 60825-1), (Class II for FDA regulations conforming type)
Beam spot diameter (Representative values from a measurement center distance)		0.6 x 1.1 mm 0.024 x 0.043 in approx.	0.09 x 0.05 mm 0.004 x 0.002 in approx.	0.7 x 1.2 mm 0.028 x 0.047 in approx.	0.7 x 1.4 mm 0.028 x 0.055 in approx.
Resolution (2 σ)	10Hz	5 μm 0.197 mil	5 μm 0.197 mil	20 μm 0.787 mil	100 μm 03.937 mil
	100Hz	16 μm 0.630 mil	16 μm 0.630 mil	65 μm 2.559 mil	330 μm 12.992 mil
	1kHz	50 μm 1.969 mil	50 μm 1.969 mil	200 μm 7.874 mil	1 mm 00.039 in
Linearity error (Note 2)		Within ±0.2 % of F.S.
Protection (excluding connector)		IP67 (IEC)
Ambient illuminance (Incandescent lamp)		2,500 lx or less
Weight (including cable)		Net weight: 300 g approx.

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
2) White ceramics is the target of this value.

Class 2 type

Model No.	IEC standards comforming type	ANR1250	ANR1251	ANR1282	ANR1215	ANR1226
Model No.	FDA regulations comforming type	ANR12501	ANR12511	ANR12821	ANR12151	ANR12261
Measurement center distance		50 mm 1.969 in	50 mm 1.969 in	80 mm 3.150 in	130 mm 5.118 in	250 mm 9.843 in
Measuring range		±10 mm ±0.394 in	±10 mm ±0.394 in	±20 mm ±0.787 in	±50 mm ±1.969 in	±150 mm ±5.906 in
Light source		Laser diode (Peak emission wavelength: 650 nm 0.026 mil)
	Pulse width / Max.output / Laser class	15 μs (Duty 50 %) / 1.6 mW (Peak value) / Class 2 (IEC 60825-1), (Class II for FDA regulations conforming type)
Beam spot diameter (Representative values from a measurement center distance)		0.6 x 1.1 mm 0.024 x 0.043 in approx.	0.09 x 0.05 mm 0.004 x 0.002 in approx.	0.7 x 1.2 mm 0.028 x 0.047 in approx.	0.7 x 1.4 mm 0.028 x 0.055 in approx.	0.8 x 1.5 mm 0.031 x 0.059 in approx.
Resolution (2 σ)	10Hz	1 μm 0.039 mil	1 μm 0.039 mil	4 μm 0.157 mil	20 μm 0.787 mil	150 μm 5.906 mil
	100Hz	3.5 μm 0.138 mil	3.5 μm 0.138 mil	13 μm 0.512 mil	65 μm 2.551 mil	500 μm 19.685 mil
	1kHz	10 μm 0.394 mil	10 μm 0.394 mil	40 μm 1.575 mil	200 μm 7.874 mil	1.5 mm 0.059 in
Linearity error (Note 2)		Within ±0.2 % of F.S.				Within ±0.4 % of F.S.
Protection (excluding connector)		IP67 (IEC)
Ambient illuminance (Incandescent lamp)		3,000 lx or less				2,500 lx or less
Weight		Net weight: Sensor head (including cable): 240 g approx., Intermediate cable: 130 g approx.

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
2) White ceramics is the target of this value.

Controllers

Model No.	NPN output	ANR5131	ANR5141	ANR5231	ANR5241
	PNP output	ANR5132	ANR5142	ANR5232	ANR5242
Comparative output type		Single comparator		Window comparator
Analog output		±5 V/F.S. (2 mA max.)	4 to 20 mA/F.S. (250 Ω max.)	±5 V/F.S. (2 mA max.)	4 to 20 mA/F.S. (250 Ω max.)
Output impedance		50 Ω	-	50 Ω	-
Zero-point adjustment		Within ±10 % of F.S.
Temperature drift (Sensor and controller set)		Within ±(0.03 % of F.S.) /℃	Within ±(0.04 % of F.S.) /℃	Within ±(0.03 % of F.S.) /℃	Within ±(0.04 % of F.S.) /℃
Response frequency (-3 dB) Response time (10 to 90 %)		1 kHz 0.4 ms/ 100 Hz 4 ms/ 10 Hz 40 ms (Switchable)
Comparative output		<NPN output type> NPN open-collector 2 Nos. (100 mA, 30 V DC or less, residual voltage 1.5 V or less) <PNP output type> PNP open collector 2 Nos. (100mA 30V DC or less, residual voltage 1.5V or less)		<NPN output type> NPN open-collector 3 Nos. (100 mA, 30 V DC or less, residual voltage 1.5 V or less) <PNP output type> PNP open collector 3 Nos. (100mA 30V DC or less, residual voltage 1.5V or less)
	Hysteresis	0.15 % of F.S. or less
Alarm output		<NPN output type> NPN open-collector 1 No. (100 mA, 30 V DC or less, residual voltage 1.5 V or less) <PNP output type> PNP open-collector 1 No. (100 mA, 30 V DC or less, residual voltage 1.5 V or less)
Intensity monitor output		±5 V
Comparative timing Input		No voltage input (when earthing, no comparative output allowed)
MEASUREMENT SENSORS MEASUREMENT Displacement display		Sensor head: Measuring range display LED (RANGE)		Sensor head: Measuring range display LED (RANGE) Controller: LCD 3 digit display
Gain selection		AUTO / LOW (switchable)
Mutual interference prevention (Note 2)		Between 2 sets
Operating voltage range		12 to 24 V DC ⁺¹⁰ /_-15 % including ripple 0.5 V (P-P)
Current consumption (Sensor and controller set)		250 mA or less (at 12 V DC), 125 mA or less (at 24 V DC)
Weight (including cable)		Net weight: 180 g approx.

Notes:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
2) The value of the linearity characteristics, resolution and response time might get worse.

Common

Insulation resistance (Initial)	Between external DC input and sensor metal parts (except for connector metal parts) 20 MΩ or more (at 500 V DC megger)
Voltage withstandability (Initial)	Between external DC input and sensor metal parts (except for connector metal parts) AC 500 V 1 min.
Vibration resistance (Screw installation)	10 to 55 Hz (1 cycle/min.) double amplitude of 1.5 mm 0.059 in (controller: 0.75 mm 0.030 in), in X, Y and Z directions for two hours each
Shock resistance (Screw installation)	20 G or more, in X, Y and Z directions for three times each
Ambient temperature	0 to +50 ℃ +32 to +122 ℉, Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity	35 % to 85 % RH (No dew condensation)

Note:
If there is no description for measurement conditions, the test is performed under operating voltage 24 V DC, ambient temperature +20° C +68 ℉, gain AUTO, response frequency 10 Hz, interference prevention OFF and white ceramics as a target at a measurement center distance.
