Specifications

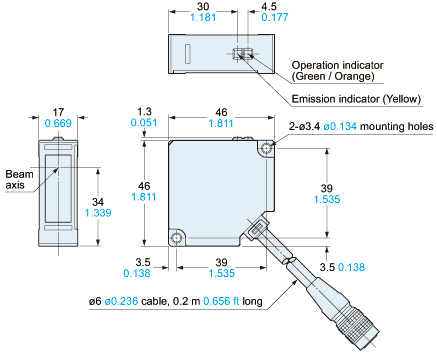

Sensor heads
| Type | 40 mm 1.575 in type | 80 mm 3.150 in type | 120 mm 4.724 in type |
| Model No. | LH-54 | LH-58 | LH-512 |
| Applicable controller | LH-CL6(P), LH-CS6(P), LH-CD6(P) |
| Measurement center distance | 40 mm 1.575 in | 80 mm 3.150 in | 120 mm 4.724 in |
| Measuring range | ±10 mm (30 to 50 mm)
±0.394 in (1.181 to 1.969 in) | ±20 mm (60 to 100 mm)
±0.787 in (2.362 to 3.937 in) | ±30 mm (90 to 150 mm)
±1.181 in (3.543 to 5.906 in) |
| Emitting element | Red LED (modulated)(Peak wavelength: 650 nm 0.026 mil) |
| Spot diameter (Note 2) | ø1.6 mm ø0.063 in or less | ø2.0 mm ø0.079 in or less | ø3.0 mm ø0.018 in or less |
Resolution
(Note 3) | Controller response time | 300 ms | 2 µm 0.079 mil | 4 µm 0.157 mil | 20 µm 00.787 mil |
| 100 ms | 4 µm 0.157 mil | 8 µm 0.315 mil | 40 µm 01.575 mil |
| 40 ms | 5 µm 0.197 mil | 14 µm 0.551 mil | 40 µm 01.575 mil |
| 30 ms | 6 µm 0.236 mil | 16 µm 0.630 mil | 75 µm 02.953 mil |
| 20 ms | 7 µm 0.276 mil | 28 µm 1.102 mil | 92 µm 03.622 mil |
| 10 ms | 10 µm 0.394 mil | 40 µm 1.575 mil | 130 µm 05.118 mil |
| 1 ms | 20 µm 0.787 mil | 120 µm 4.724 mil | 400 µm 15.748 mil |
| 0.5 ms | 40 µm 1.575 mil | 160 µm 6.299 mil | 580 µm 22.835 mil |
| Linearity (Note 4) | Within ±0.2 % F.S. |
| Ambient temperature | 0 to + 45 ℃ + 32 to + 113 ℉ (No dew condensation),
Storage: - 20 to + 60 ℃ + 4 to +140 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Protection (excluding connector part) | IP67 (IEC) |
| Cable | 0.22 mm2 11-core composite cabtyre cable, 0.2 m 0.656 ft long, with a connector at the end |
| Cable extension | Extension up to total 10.2 m 33.465 ft is possible, with optional cable |
| Weight | 70 g approx. (including cable), 45 g approx. (excluding cable) |
Notes:
1) Conditions which have not been specified are to be taken as: 24 V DC supply voltage, + 20 ℃ + 68 ℉ ambient temperature, SELECT gain setting, 300 ms response time setting, measurement center distance, interference prevention function not used and white ceramic board object.
2) This is the value at the measurement center distance, and is based on the definition of 1/e2 (13.5 %) of the beam axis light intensity. Take care that some amount of light spreads out of the specified spot diameter and, depending on the conditions around the measured object, may affect the measurement accuracy.
3) This is the typical value at the measurement center distance for a white ceramic board object. The given values are for the analog output of the applicable controller.
4) This is the value for white ceramic board object. The linearity may differ depending on the measured object. The given value is for the analog output of the applicable controller.

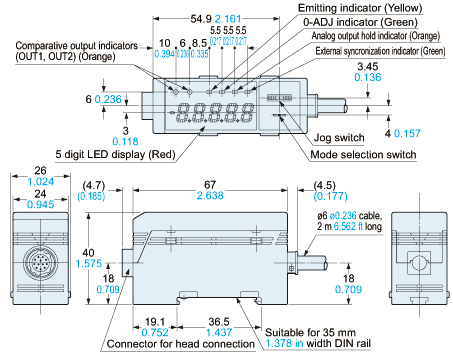

Controllers
| | General purpose |
| Type | NPN output | PNP output |
| Model No. | LH-CL6 | LH-CL6P |
| Applicable sensor head | LH-54, LH-58, LH-512 |
| Connectable sensor heads (Max.) | 1 No. |
| Supply voltage | 24 V DC±10 % Ripple P-P 10 % or less |
| Current consumption (Note 2) | 250 mA or less |
| Analog output | Analog voltage Analog current
・ Output voltage: - 5 to + 5 V/F.S.
・ Output current: 4 to 20 mA/F.S.
・ Output impedance: 100 Ω ・ Load resistance: 300 Ω or less |
| Response time (10 to 90 %) | 0.5 ms / 1 ms / 10 ms / 20 ms / 30 ms / 40 ms / 100 ms / 300 ms selectable by jog switch |
| Temperature characteristics | Within ±0.04 % F.S./℃ |
| Span adjustment / Shift adjustment | Within ±10 % F.S. (Note 2) |
| Comparative output | Independence two outputs (OUT1, OUT2)
NPN open-collector transistor
・ Maximum sink current: 100 mA
・ Applied voltage: 30 V DC or less (between comparative output and 0 V)
・ Residual voltage: 1.5 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current) | Independence two outputs (OUT1, OUT2)
PNP open-collector transistor
・ Maximum source current: 100 mA
・ Applied voltage: 30 V DC or less (between comparative output and V)
・ Residual voltage: 1.5 V or less (at 100 mA source current)
0.4 V or less (at 16 mA source current) |
| | Output operation | ON or OFF when threshold level is reached (selectable by jog switch) |
| Short-circuit protection | Incorporated |
| Alarm output | Incorporated |
| Ambient temperature | 0 to + 50 ℃ + 32 to + 122 ℉ (No dew condensation),
Storage: - 20 to + 60 ℃ - 4 to + 140 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Cable | 0.22 mm2 13-core composite cabtyre cable, 2 m 6.562 ft long. |
| Weight | 160 g approx. |
| Accessory | MS-DIN-3 (Controller mounting bracket): 1 pc. |
Notes:
1) Conditions which have not been specified are to be taken as: 24 V DC supply voltage, + 20 ℃ + 68 ℉ ambient temperature, SELECT gain setting, 300 ms response time setting, measurement center distance, interference prevention function not used and white ceramic board object.
2) Including the sensor head.
3) The linearity of the sensor head and the controller has been adjusted at the time of factory shipment. Carry out the shift adjustment and the span adjustment to suit the operating conditions.
