Specifications
Sensor head
| Model No. | LA-T11 | |
|---|---|---|
| Applicable controller | LA-TC12 | |
| Sensing area | 2 x 56 mm 0.098 x 0.236 in (Note 1) | |
| Sensible object | Winding wire flaws | |
| Measurable wire diameter | ø0.01 to ø1 mm ø0.0004 to ø0.039 in | |
| Permitted wire swing amplitude (Note 1) | ±1.2 mm ±0.047 in (sensing width direction) ±2.9 mm ±0.114 in (beam axis direction) | |
| Min. sensing object (Note 2) | Granular flaw of height 10±5μm 0.394±0.197 mil (However, length: 200μm 7.874 mil or more, line speed: 500 m/min. or less) | |
| Wire speed | 5 m/min. (length of granular flaw: 50μm 1.969 mil or more) to 2,500 m/min. (length of granular flaw: 250μm 9.843 mil or more) | |
| Warm-up time | 15 min. approx. | |
| Power indicator | Orange LED (lights up when the power is ON) | |
| Operation indicator | Yellow LED (lights up when granular flaw is detected) | |
| Alarm indicator | 3-color LED (Green: lights up under stable light condition, Orange: lights up when glass filter is defective, Red: lights up when sensor head is malfunction) | |
| Environmental resistance | Ambient temperature | +5 to +50 ℃ +41 to +122 ℉ (No dew condensation), Storage:+10 to +60 ℃ +14 to +140 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |
| Ambient illuminance | Sunlight: 10,000 lx at the light-receiving face, Incandescent light: 3,000 lx at the light-receiving face | |
| Noise immunity | Power line: 120 Vp, 10 ms cycle, and 0.5μs pulse width; Radiation: 300 Vp, 10 ms cycle, and 0.5μs pulse width (with noise simulator) | |
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | |
| Vibration resistance | 10 to 55 Hz frequency, 0.35 mm 0.014 in amplitude in X, Y and Z directions for two hours each | |
| Emitting element | Infrared semiconductor laser Class 1 (Maximum output: 0.18 mW or less, Peak emission wavelength: 780 nm 0.030 mil) | |
| Enclosure earthing | Capacitor earth | |
| Material | Enclosure: Die-cast aluminum, Window opening: Glass | |
| Cable | 0.38 mm2 12-core composite cabtyre cable, 4 m 13.123 ft long (with a connector at the end) | |
| Cable extension | Extension up to total 14 m 45.932 ft is possible with exclusive cable. (Note 3) | |
| Weight | 420 g approx. | |

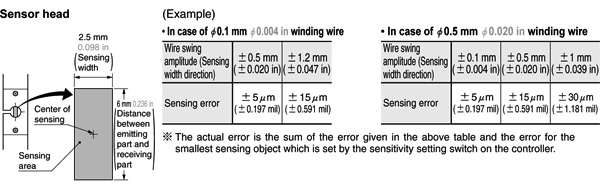

(Note 1) :
Please note that an error in the sensing of the granular flaw is produced if the winding wire swings away from the center of sensing in the sensing width direction. Further, take care that this error due to the wire swing increases with the thickness of the wire.
(Note 2) :
The smallest sensing object is as given below. Further, note that, depending upon the sensing conditions, an error exists in the sensing of the smallest object.
(Note 3) :
In case the cable is required to be extended, please use the optional extension cable (having connector on both sides).
Controller
| Model No. | LA-TC12 | |
|---|---|---|
| Applicable sensor head | LA-T11 (Max. 12 sensor heads are connectable) | |
| Supply voltage | 100 V AC±10 % 50/60 Hz | |
| Power consumption | 150 VA or less (when connecting 12 LA-T11 sensor heads) | |
| Common power supply for sensor heads | 12 V DC, 150 mA max. | |
| Sensing output (OUT 1 to OUT 12) | NPN open-collector transistor ・Maximum sink current: 100mA ・Applied voltage: 30 V DC or less (between sensing output and GND) ・Residual voltage: 1.5 V or less (at 100 mA sink current) 0.4 V or less (at 16 mA sink current) | |
| Output operation | ON upon sensing | |
| Short-circuit protection | Incorporated | |
| Alarm output (ALM. 1, ALM. 2) | NPN open-collector transistor ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less (between alarm output and GND) ・Residual voltage: 1.5 V or less (at 100 mA sink current) 0.4 V or less (at 16 mA sink current) | |
| Output operation | ALM. 1: OFF when glass filter of even one of the used sensor heads is defective ALM. 2: OFF when even one of the used sensor heads is malfunction (cable disconnection, laser deterioration or sensing output short-circuit) | |
| Short-circuit protection | - | |
| Response time | 5μs or less (when line speed switch is set to HI), 25μs or less (when line speed switch is set to LO) | |
| Warm-up time | 15 min. approx. | |
| Power indicator | Orange LED (lights up when the power is ON) | |
| Operation indicator | Yellow LED (lights up when the sensing output is ON, lights up for 3 sec., 2 sec. after power supply is switched on) | |
| Alarm indicator | 3-color LED (Green: lights up under stable light received condition, Orange: lights up when ALM. 1 is OFF, Red: lights up when ALM. 2 is OFF) (2 sec. after the power supply is switched on, the LED lights up in red, orange, green, in turn, at 1 sec. interval.) | |
| Timer function | 2 ms approx. fixed OFF-delay timer, switchable either effective or ineffective (common for all channels) | |
| Environmental resistance | Ambient temperature | +5 to +50 ℃ +41 to +122 ℉ (No dew condensation), Storage:+10 to +60 ℃ +14 to +140 ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |
| Noise immunity | Power line: 1,000 Vp, 10 ms cycle, and 0.5μs pulse width; Radiation: 300 Vp, 10 ms cycle, and 0.5μs pulse width (with noise simulator) | |
| Insulation resistance | 20 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure | |
| Enclosure earthing | Capacitor earth | |
| Material | Enclosure: Electrolytic zinc-coated steel sheet (SECC) | |
| Weight | 3.6 kg approx. | |
| Accessories | Power supply cable (3 m 9.843 ft): 1 cable., Convertor plug (3 pin → 2 pin): 1 pc. | |
------------------------------ Tab3 showing ------------------------------
Dimensions
- Unit: mm in

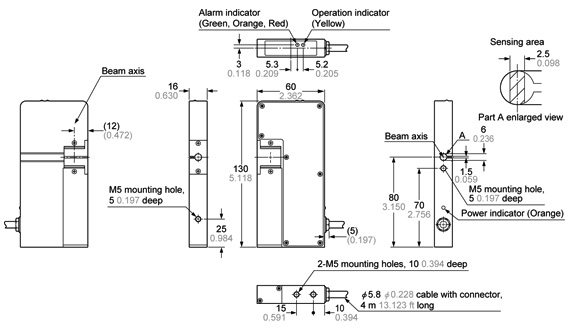

LA-T11
Sensor head

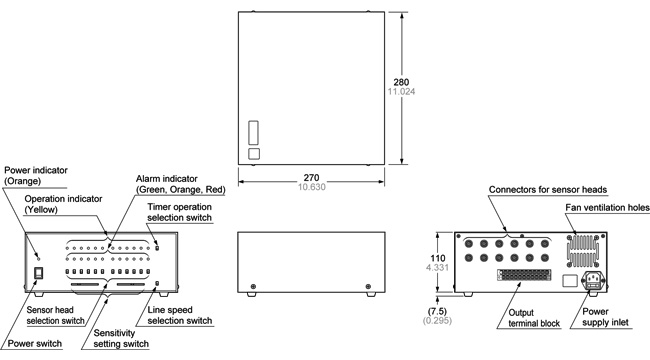

LA-TC12
Controller
