Laser Collimated Beam Sensor LA (Discontinued Products)

  • Discontinued Products

  • Specifications

  • Dimensions

  • Circuit/ Wiring

  • Sensing characteristics

  • Cautions For Use

Ⅾiscontinued

Last time buy (JST)

September 30, 2018

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

pic01-1

------------------------------ Tab2 showing ------------------------------

Specifications

Laser collimated beam sensors

TypeClass 1 type
Conforming standards
/ regulations
IEC and JIS standardsFDA regulations
Model No.LA-510LA-511
CE marking directive complianceEMC Directive, RoHS Directive
Sensing width15 mm 0.591 in
Sensing range500 mm 19.685 in
Min. sensing objectø0.1 mm ø0.004 in opaque object
Repeatability10 μm 0.394 mil or less
Supply voltage12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumptionEmitter: 35 mA or less, Receiver: 25 mA or less
Comparative outputNPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 30 V DC or less (between comparative output and 0 V)
・Residual voltage: 1 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)
 Utilization categoryDC-12 or DC-13
Response time0.5 ms or less
Output operationON when the incident beam amount is less than the threshold level
Short-circuit protectionIncorporated
Analog outputAnalog voltage
・Output voltage: 1 V (Darkest) to 5 V (Lightest)
・Output impedance: 75 Ω
 Slew rate8 V/ms or more
Temperature characteristicsWithin ±0.1 % F.S./℃ (with respect to sensing range at ambient temperature +20 ℃ +68 ℉)
Remote interlock inputLaser is emitted when it is connected to 0 V, but not emitted when connected to +V or kept open
IndicatorsOperationRed LED
(lights up when the comparative output is ON)
Laser emission warningRed LED
(lights up when laser is being emitted)
Stable incident beamGreen LED
(lights up under the stable light received condition)
Laser beam alignmentYellow LED x 4
(light up when laser beam is misaligned)
AdjustersThreshold levelAdjustment of threshold level for the comparative output, 18-turn endless adjuster
SpanAdjustment of span for the analog voltage output, 18-turn endless adjuster
Pollution degree3 (Industrial environment)
Ambient temperature0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminanceIncandescent light: 10,000 lx or less at the light-receiving face
Insulation resistance20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting elementInfrared semiconductor laser diode (Maximum output: 1.7 mW, Peak emission wavelength: 780 nm 0.031 mil)
Enclosure earthingCapacitor earth
MaterialEnclosure: Die-cast zinc alloy, Top cover: PPO, Front protection cover: Glass
Cable0.2 mm2 5-core (emitter: 4-core) shielded cable, 3 m 9.843 ft long
Cable extension (Note 2)Extension up to total 50 m 164.042 ft is possible, for both emitter and receiver, with 0.3 mm2, or more, cable. (Synchronization wire cannot be extended.)
Net weightEmitter: 290 g approx., Receiver: 280 g approx.
AccessoriesMS-LA1 (Sensor mounting bracket): 1 set for emitter and receiver
Adjusting screwdriver: 1 pc.
Crimp contact: 2 pcs.
Class 1 identification label: 1 pc. (LA-510 only)
Inspection slip: 1 pc. (LA-511 only)

Note 1 : Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.

Note 2 : LA-510 and LA-511 are CE compliant and complies with EMC directives. EN 61000-6-2 is the applicable standard that covers immunities relating to use of this product, but in order to comply with this standard, the following conditions must be satisfied.

Conditions
- This sensor should be connected less than 10 m 32.808 ft from the power supply.
- The signal line to connect with this sensor should be less than 30 m 98.425 ft.

------------------------------ Tab3 showing ------------------------------

Dimensions

  • Unit: mm in

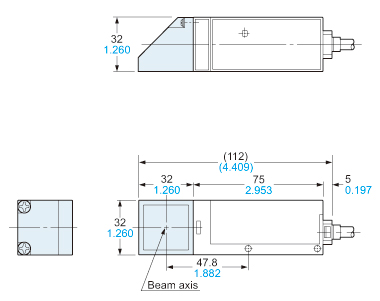

LA-510 LA-511

Laser collimated beam sensor

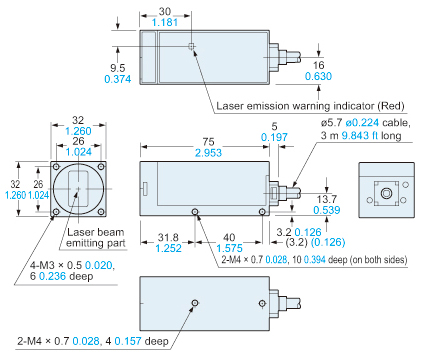

Emitter

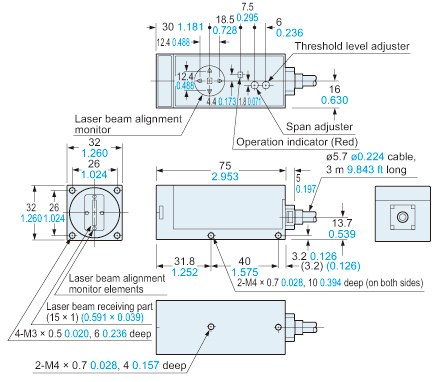

Receiver

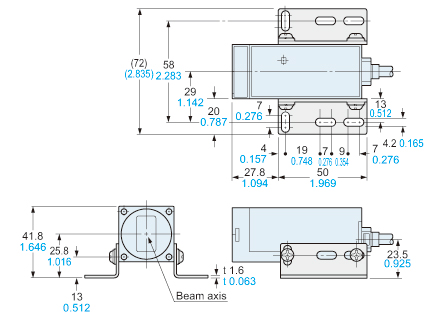

MS-LA1

Sensor mounting bracket (Accessory for LA-510 and LA-511)

Material:Cold rolled carbon steel (SPCC)(Uni-chrome plated)Set of two L-shaped brackets and fourM4 (length 8 mm0.315 in) screws with washers

Assembly dimensions

LA-SV1

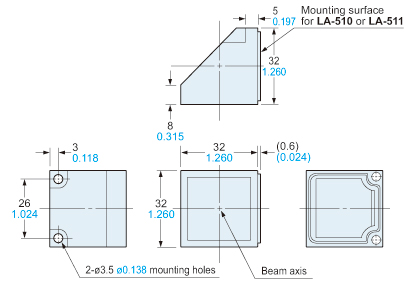

Side view attachment (Optional)

LA-SV1

Material:Glass (Front protection cover, Aluminum evaporated mirror) Polyetherimide (Enclosure)Two M3 (length 10 mm0.394 in) screws with washers are attached.

Assembly dimensions

------------------------------ Tab4 showing ------------------------------

I/O Circuit and Wiring diagrams

LA-510
LA-511

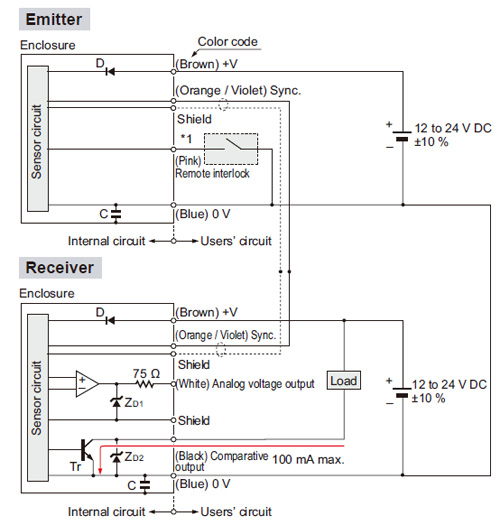

I/O circuit diagram

Laser collimated beam sensor

I/O circuit diagram

Symbols・・・

D : Reverse supply polarity protection diode
ZD1, ZD2 : Surge absorption zener diode
C : Capacitor (0.022 μF)
Tr : NPN output transistor

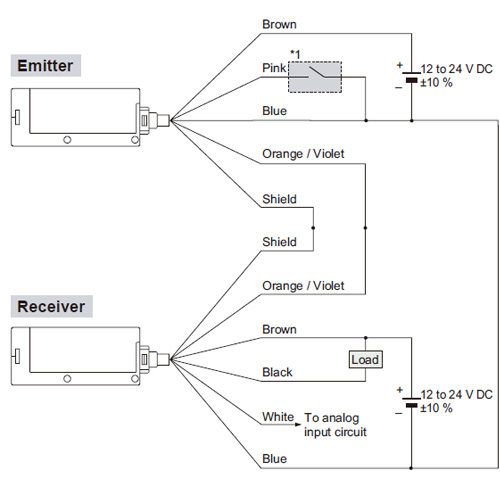

Wiring diagram

Wiring diagram

*1

------------------------------ Tab5 showing ------------------------------

Sensing characteristics

Correlation between setting distance and excess gain

Correlation between setting distance and excess gain

Correlation between transverse deviation and output voltage

Correlation between transverse deviation and output voltage

Correlation between interrupted beam width and output voltage

Correlation between interrupted beam width and output voltage

Correlation between ambient temperature and output voltage variation rate

------------------------------ Tab6 showing ------------------------------

Cautions For Use

 This website is a guide to select a suitable product. Be sure to read the instruction manual attached to the product prior to its use.

  • Never use this product as a sensing device for personnel protection.
  • In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
  • This product is classified as a Class 1 Laser Product in IEC / JIS standards and a Class I Laser Product in FDA regulations 21 CFR 1040.10. Do not look at the laser beam through optical system such as a lens.
  • The following label is enclosed with this product. Handle the product according to the instruction given on the warning label.

Class 1 type

pic01   (The English warning label based on FDA regulations is pasted on the FDA regulations conforming type.)

Mounting

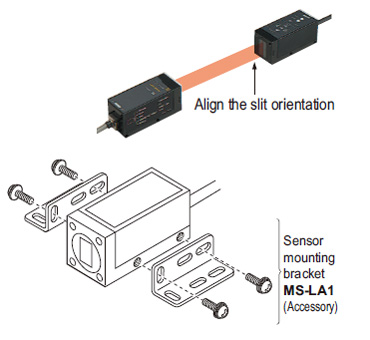

  • The emitter and the receiver must face each other with proper slit orientation so that the beam can be received.
  • The tightening torque should be 1.17 N・m or less. When mounting the sensor with the attached sensor mounting bracket, the sensor must be fixed on both sides.

Mounting

Wiring

Do not use a power supply having a single-winding transformer (auto-transformer) as this can be dangerous.

  • In LA-510 and LA-511, capacitor earth is used to enhance the noise characteristics. In case there is a high frequency noise generating equipment, such as, an ultrasonic welding machine, etc., near the sensor head and if the mounting base is electrically conducting (metallic, etc.), then insulate the sensor head from the mounting base.

Safety standards for laser beam products

  • A laser beam can harm human being’s eyes, skin, etc., because of its high energy density. IEC has classified laser products according to the degree of hazard and the stipulated safety equirements. LA-510 is identified as a “Class 1” laser product.

Classification by IEC 60825-1

ClassificationDescription
Class 1Lasers that are safe under reasonably foreseeable conditions of operation, including the use of optical instruments for intrabeam viewing.
Class 1MLasers emitting in the wavelength range from 302.5 nm to 4,000 nm which are safe under reasonably foreseeable conditions of operation, but may be hazardous if the user employs optics within the beam.
Class 2Lasers that emit visible radiation in the wavelength range from 400 nm to 700 nm where eye protection is normally afforded by aversion responses, including the blink reflex. This reaction may be expected to provide adequate protection under reasonably foreseeable conditions of operation including the use of optical instruments for intrabeam viewing
Class 2MLasers that emit visible radiation in the wavelength range from 400 nm to 700 nm where eye protection is normally afforded by aversion responses, including the blink reflex. However, viewing of the output may be more hazardous if the user employs optics within the beam.
Class 3RLasers that emit in the wavelength range from 302.5 nm to 106 nm where direct intrabeam viewing is potentially hazardous but the risk is lower than for Class 3B lasers, and fewer manufacturing requirements and control measures for the user apply than for Class 3B lasers
Class 3BLasers that are normally hazardous when direct intrabeam exposure occurs (i.e. within the NOHD). Viewing diffuse reflections is normally safe.
Class 4Lasers that are also capable of producing hazardous diffuse reflections. They may cause skin injuries and could also constitute a fire hazard.

Safe use of laser products

  • For the purpose of preventing users from suffering injuries by laser products, IEC 60825-1 (Safety of laser products). Please check the standards before use. (Refer to information about laser beam.)

Others

  • The sensor's output is proportional to the amount of laser beam received. Since there is some variation in the light intensity at the center and the periphery of the sensing area, take care that “output = dimension” may not hold.
  • For stable operation, use the sensor 10 min., or more, after switching on the power supply.
