Basic Information
The No.1* class in application compatibility with 34 different sensor head variations
* As of September 2023, in-company survey
FDA : Some models only
Features
Combining our accumulated and the latest technologies to accomplished functionality
Our proprietary measurement CMOS, the “HDLC-CMOS Sensor”
The HDLC-CMOS sensors have been developed specially for the HL-C2 series. High density light-receiving cells and a processing speed close to the maximum limit result in high resolutions and high speeds which exceed all expectations for laser displacement sensors.
HDLC: High Density Linear Cell
“MSGB” laser with sharp and fine projection
We have created the ideal laser using our proprietary optical technologies and aperture construction. Furthermore, emission adjustment algorithms have been redesigned to maintain ideal emission conditions.
MSGB: Micro Spot Gaussian Beam
HL-C201A
ø20 μm ø0.787 mil approx.
HL-C203B
ø30 μm ø1.181 mil approx.
HL-C205B
ø70 μm ø2.756 mil approx.
HL-C208B
ø100 μm ø3.937 mil approx.
HL-C211B
ø80 μm ø3.150 mil approx.
HL-C235BE
ø250 μm ø9.843 mil approx.
HL-C235CE-W
ø400 μm ø15.748 mil approx.
Ultra high-speed calculation processor
Using our specialized proprietary IC and custom algorithms for high-speed processing, information is digitally transmitted between the sensor head and controller. Both high-speed transmission and stability are realized for measurement values.

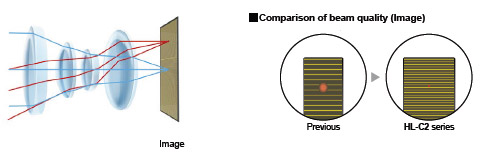

“High-resolution lens” for realizing stable optical path lengths
We designed a new high-resolution lens to reduce lens aberration as much as possible. Light entering from any angle can be gathered at a minimum point to realize even higher precision.

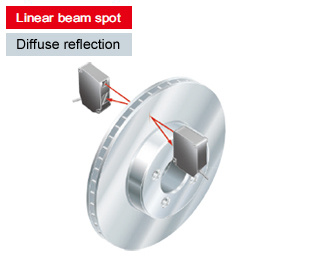

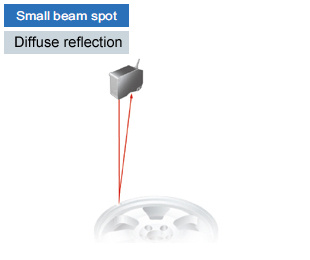

For automobile and vehicle parts measurement [ Automobile and vehicle parts production facilities ]

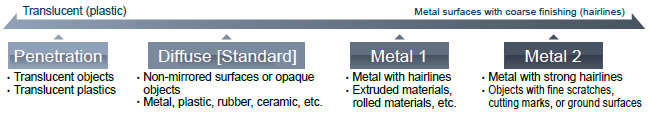

The measurement mode setting is compatible with a variety of workpieces
Select the optimal digital processing for the object to be measured.
Long-range sensor heads
Our lineup includes long-range sensor heads with measurement center distances of 110 mm 4.331 in and 350 mm 13.780 in. By keeping distance from the workpiece, the risk of sensor damage from contact with the workpiece can be reduced.

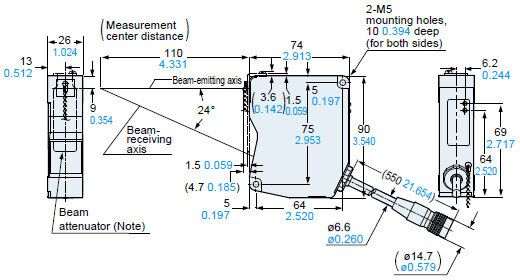

• Measurement center distance: 110 ±15 mm 4.331 ±0.591 in
HL-C211B(-MK)
HL-C211C(-MK)

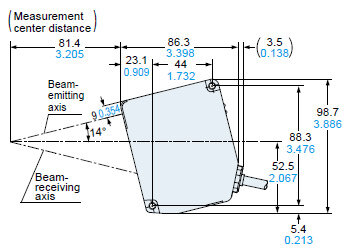

• Measurement center distance: 350 ±50 mm 13.780 ±1.969 in
HL-C235BE(-MK)
HL-C235CE(-MK)
• Measurement center distance: 350 ±200 mm 13.780 ±7.874 in
HL-C235CE-W(MK)

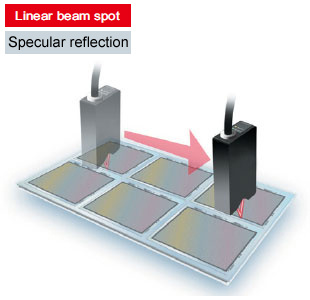

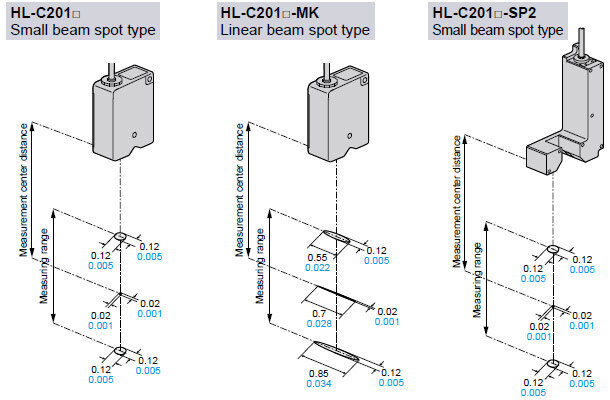

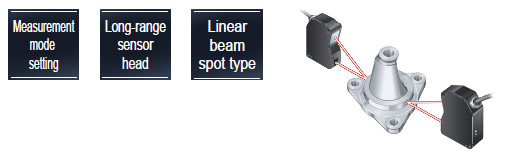

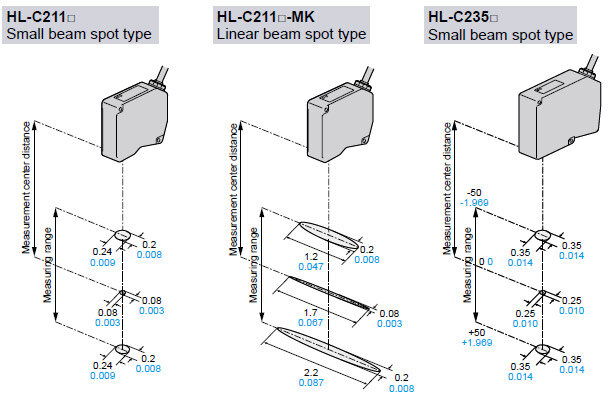

Linear beam spot type sensor heads

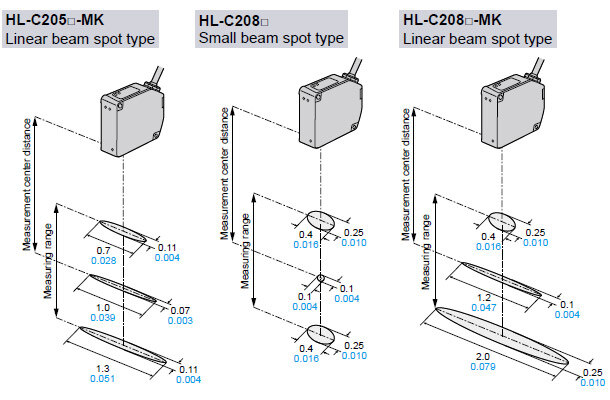

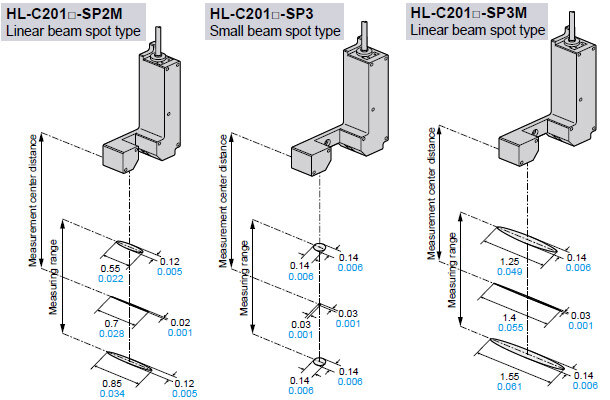

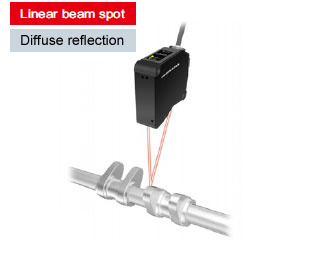

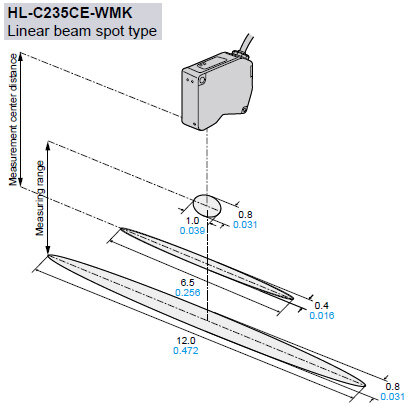

We offer linear beam spot type sensor heads with various measurement center distances that are not easily distorted by roughly-finished metal surfaces.

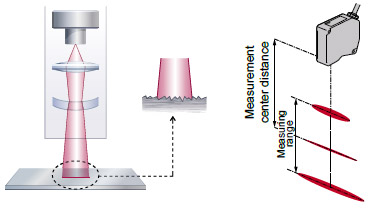

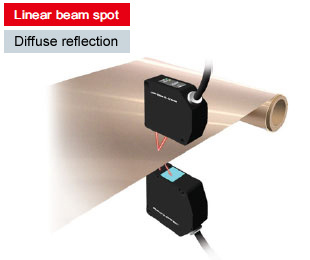

Even surfaces that appear to be flat have minor surface variations when viewed under magnification. These variations can cause errors in measurement. Linear beam spot type sensors average out the influence of these variations, allowing for stable measurement of roughly-finished workpieces.
For measurement of glass height and thickness [ FPD and solar panel production facilities ]
The measurement mode setting is compatible with a variety of workpieces

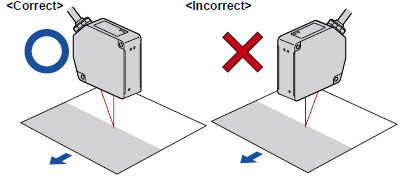

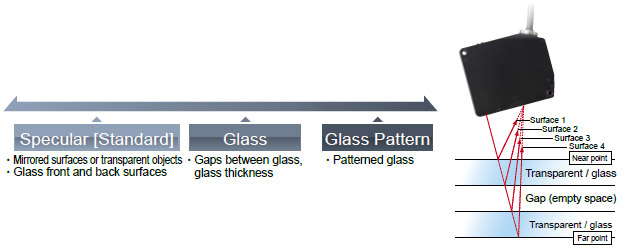

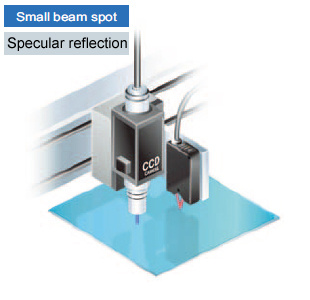

A specular reflection installation is required for measurement of transparent and mirrored-surface objects. Select the digital processing for the measurement application.

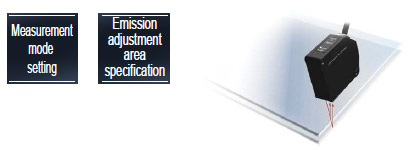

Emission adjustment area specification allows for measurement of glass surfaces

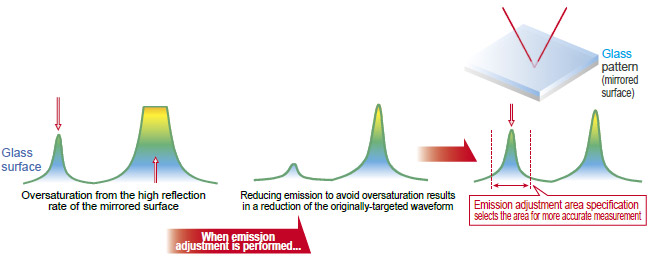

Glass surfaces can be accurately measured by combining the “Emission Adjustment” that determines the optimal emission amounts with the “Emission Adjustment Area Specification” that identifies the specific area to measure the emission.

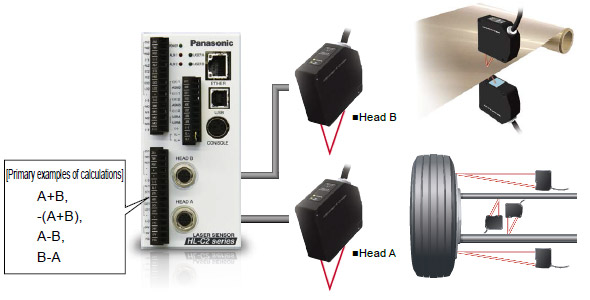

On-board processing for calculations of 2 sensor heads
The controller is equipped to perform basic calculations and output results for applications such as thickness measurement for sandwiched layers and 2-point gap measurement. This can reduce computational burdens for host controllers (such as PLCs).
Connectivity to host controllers

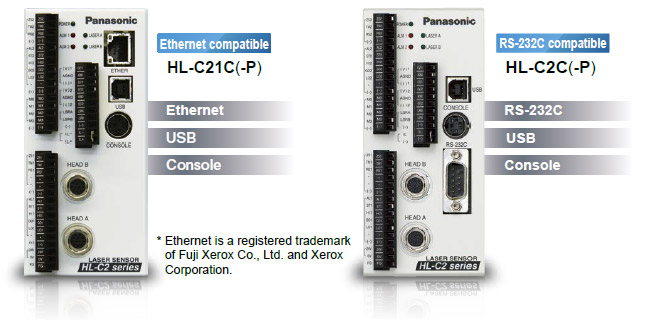

Our controller lineup offers Ethernet, USB, and RS-232C connections. The controllers can connect to devices such as PCs and PLCs.
* An API (Application Programming Interface)and sample programs can be downloaded for free from our web site for operating the controller using a PC connected by USB.

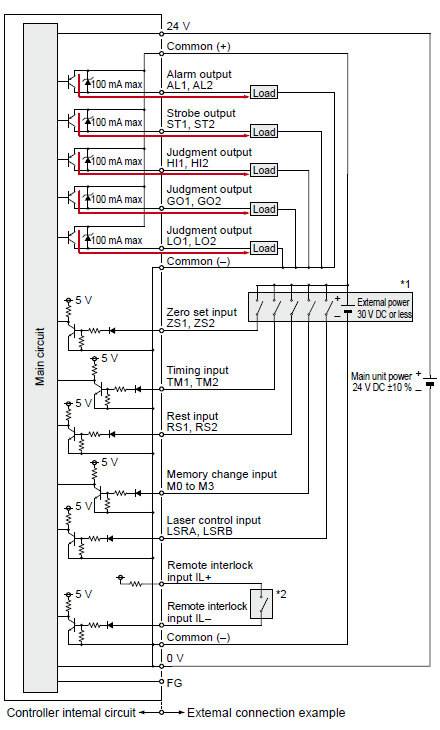

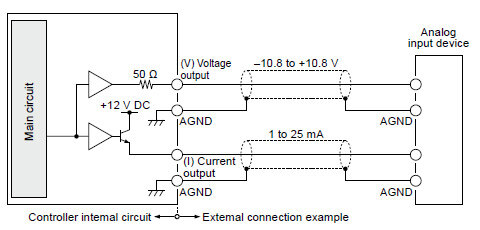

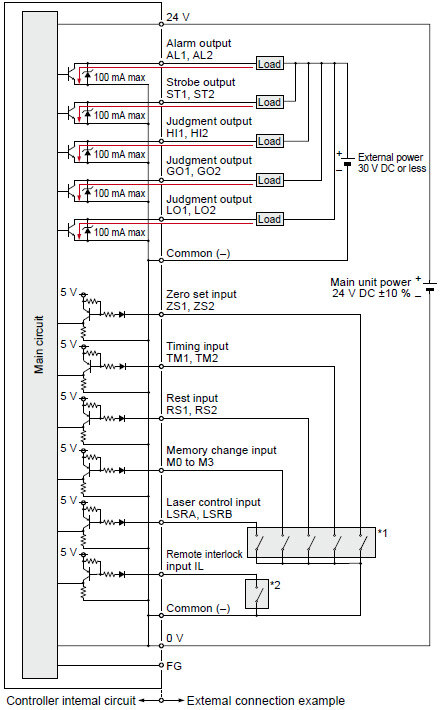

A full range of output ports allows output in line with your needs
Both Output (1) and Output (2) mounted on the controller provide independent analog outputs, various output signals (judgment, alarm, etc.), and various input signals (laser emission stop, zero set, etc.).
• Outputs, including calculation results, are assignable.
• Output (2) is also independent, and the same settings are possible.
| ○: Available | Output (1) | Output (2) | |
|---|---|---|---|
| Output circuit | Analog voltage | ○ | ○ |
| Analog current | ○ | ○ | |
| Hi / Go / Low judgment | ○ | ○ | |
| Alarm | ○ | ○ | |
| Strobe | ○ | ○ | |
| Input circuit | Zero set | ○ | ○ |
| Timing | ○ | ○ | |
| Reset | ○ | ○ | |
* Other functions such as laser control (emission stop) input and memory change are also on-board.

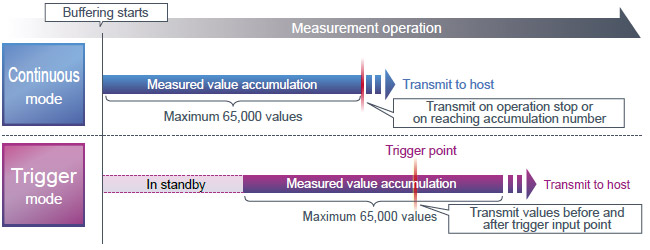

Buffering function allows for temporary accumulation of measured values
The buffering function allows measurement values acquired from high-speed sampling (10μs) to temporarily accumulate in the controller, which are then transmitted to the host.
A maximum of 65,000 values can be accumulated.
The accumulation of shape data can contribute to traceability and other activities.
Furthermore, in trigger mode, by sending a trigger input when there is an error, measured values before and after the error can be acquired to help determine the cause of the error.
Measurement status can be acquired with a programmable controller easily and without any need for programming

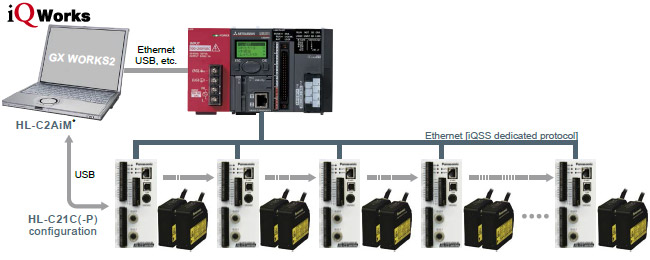

The HL-C21C(-P) supports the MEWTOCOL protocol (used by our programmable controllers), the MC protocol (used by Mitsubishi Electric’s MELSEC-Q and MELSEC-L series) as well as the iQSS dedicated protocol (used by Mitsubishi Electric’s MELSEC-L series), allowing measured values and other information to be written automatically to the data registers of programmable controllers without any need for programming.
* iQSS is an abbreviation for Mitsubishi Electric’s iQ Sensor Solution. * iQSS and iQ Works are registered trademarks of Mitsubishi Electric Corporation.
(1)The software can search for and check HL-C21C(-P) connection information.(2)The software can read and write HL-C21C(-P) sensor parameters.(3)The software can monitor data written from the HL-C21C(-P) to a sequencer.
* HL-C2AiM: HL-C2 dedicated intelligent monitor (available for download free of charge on our website)
Easy setup

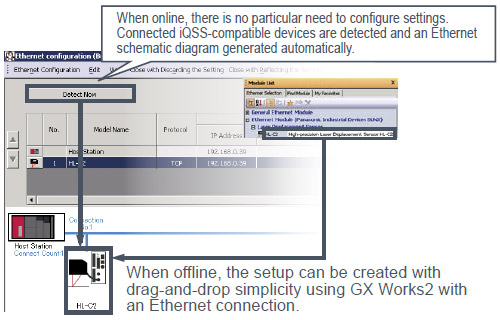

HL-C21C(-P) connection settings can be set up using automatic detection of connected devices and drag-and-drop simplicity.

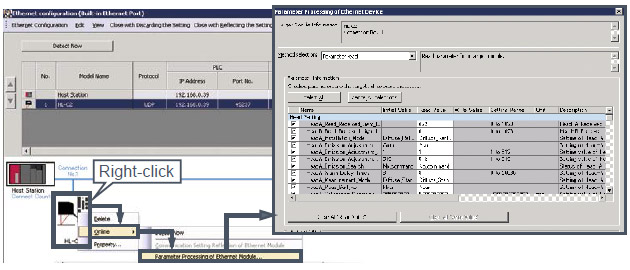

* Use Mitsubishi Electric’s GX Works2 sequencer engineering software (Ver. 1.492N or later).
Sensor monitoring

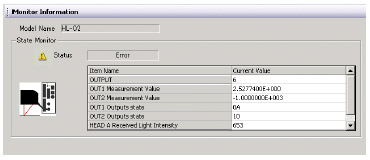

The HL-C21C(-P)’s measurement status can be easily monitored.
Reading and writing of sensor parameters
HL-C21C(-P) sensor parameters can be read and written easily.
*The HL-C21C(-P)’s Ethernet communications settings must be configured using Configurator WD (Ver. 1.62 or later of our Ethernet communications configuration tool).
(This software is available for download free of charge from our website.)
*The MC protocol is supported for the MELSEC-Q series, and sensors can be monitored.
By combining the GT12 programmable display with our software tools accessed from a PC (HL-C2AiM Intelligent Monitor), received light intensity waveforms and other information can be displayed in addition to the display of measured-value data.

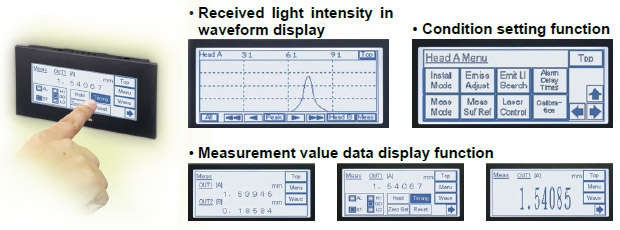

GT12 Programmable Display [ Simple touch panel operation and easy-to-read display ]
By installing screen application (provided free of charge) onto the GT12 programmable display, it can be used as a dedicated console for viewing waveforms and setting operation conditions. (A proprietary connection cable is required.)
* Orders for the GT12 series will close on the following dates.
・Type with SD memory card slot: September 30, 2024
・Type without SD memory card slot: September 30, 2025
Intelligent Monitor HL-C2AiM [ Waveform monitoring and function setting by computer is easy to do ]
* This software is available for download free of charge from our website.
| OS (Note 1) | Microsoft® Windows® 7 Professional 32-bit / 64-bit Microsoft® Windows® 8.1 Pro 32-bit / 64-bit Microsoft® Windows® 10 Pro 32-bit / 64-bit (Japanese / English / Korean / Chinese) |
|---|---|
| CPU | 1 GHz or above (Note 2) |
| Memory | 2 GB or more (Note 2) |
| Hard disk | 50 MB or more of usable space |
| Display screen | SXGA (1,280 × 1,024 full color) or above |
| Serial port | RS-232C compliant, transmission speed 115.2 kbps |
| USB port | USB 2.0 full speed (USB 1.1 compatible) |
Notes: 1)
Windows 7 / 8 / 10 are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.
Notes: 2)
Depends on the OS operation environment.
* Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
Configurator WD IP Address Search Tool
The Control Configurator WD IP address search tool is a software utility that can search for Panasonic Industry products on the same network and display a list of their IP addresses, versions, and other information. Other capabilities include changing IP addresses, updating some models’ firmware, and configuring communications, among other things.
Membership registration is required to access/ download this data.
>>Go to Data download.
------------------------------ Tab2 showing ------------------------------
Applications
HL-C201F□(-MK)

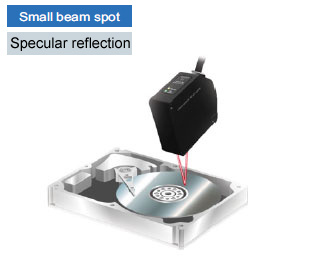

Measurement of the position of patterned glass
Control of the camera focus
HL-C203F□(-MK)
Measurement of the thickness of copper clad laminate
Measurement of HDD surface variations
Gap measurement using an exposure device
HL-C205B/C(-MK)
Measurement of disk brake thickness
HL-C211F□(-MK)
Measurement of the shape of a camshaft

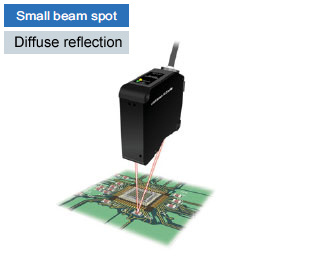

Measurement of the heights of chip parts
HL-C235CE-W(MK)
Detection of aluminum wheel grooves
------------------------------ Tab3 showing ------------------------------
------------------------------ Tab4 showing ------------------------------
------------------------------ Tab5 showing ------------------------------
Specifications
Sensor heads
Small beam spot type
| Type | Small beam spot type | |||||
|---|---|---|---|---|---|---|
| Model No. | IEC / JIS conformed type | HL-C201A(E) | HL-C201A(E)-SP2 | HL-C201A(E)-SP3 | HL-C203B(E) | |
| FDA conformed type | HL-C201F(E) | - | - | HL-C203F(E) | ||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | |||||

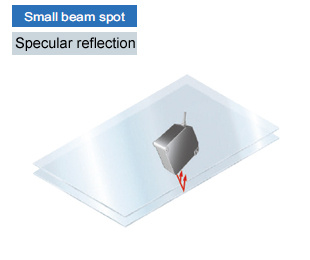

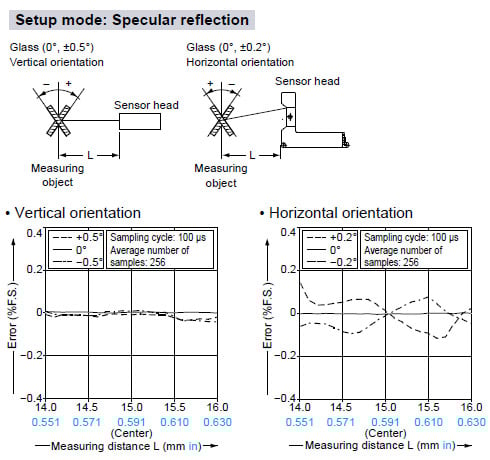

| Setup mode (Note 3) | Specular reflection | Diffuse reflection | Specular reflection | |||
| Measurement center distance | 10 mm 0.394 in | 8 mm 0.315 in | 15 mm 0.591 in | 30 mm 1.181 in | 26.4 mm 1.039 in | |
| Measuring range (Note 4) | ±1 mm ±0.039 in | ±0.8 mm ±0.031 in | ±1 mm ±0.039 in | ±5 mm ±0.197 in | ±4.6 mm ±0.181 in | |
| Resolution [Average number of samples] (Note 5,6) | • HL-C201A / HL-C201A-SP2 / HL-C201A-SP3 / HL-C201F: 0.04 μm 0.002 mil [256], 0.01 μm 0.0004 mil [4,096] • HL-C201AE / HL-C201AE-SP2 / HL-C201AE-SP3 / HL-C201FE: 0.25 μm 0.010 mil [256] | • HL-C203B / HL-C203F: 0.1 μm 0.004 mil [256] 0.025 μm 0.001 mil [4,096] • HL-C203BE / HL-C203FE: 0.25 μm 0.010 mil [256] | ||||
| Linearity (Note 7) | ±0.02 % F.S. (HL-C201FE: ±0.025 % F.S.) | ±0.03 % F.S. | ||||
| Temprerature characteristics | 0.01 % F.S./℃ (HL-C201FE: 0.013 % F.S./℃) | 0.02 % F.S./℃ | 0.01% F.S./℃ | |||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | |||||
| Max. output: 0.1 mW | Max. output: 0.3 mW | Max. output: 1 mW | ||||
| IEC / JIS conformed type | Class 1 (IEC / JIS / KS) (E) Type : Class 1 (IEC / JIS / GB / KS) | Class 2 (IEC / JIS / KS) (E) Type : Class 2 (IEC / JIS / GB / KS) | ||||
| FDA conformed type | Class 1 [FDA (Note 7) / IEC / JIS] (E) Type : Class 1 [FDA (Note 7) / IEC / JIS / GB] | - | - | Class II (FDA), Class 2 (IEC / JIS) (E) Type : Class II (FDA), Class 2 (IEC / JIS / GB) | ||
| Beam size (Note 9) | ø20 μm ø0.787 mil approx. | ø30 μm ø1.181 mil approx. | ||||
| Receiving element | Linear image sensor | |||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | ||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | |||||
| Protection | IP67 (IEC) (excluding the connector) | |||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ | |||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face (Note 10) | |||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | |||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | |||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | |||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | |||||
| Material | Enclosure, Case cover: Die-cast aluminum, Front cover: Glass | |||||
| Weight | 250 g approx. (including cable) | |||||
| Accessory | Laser warning labels (for applicable standards and regulations): 1 set | |||||
| Type | Small beam spot type | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model No. | HL-C205B(E) | HL-C205C(E) | HL-C208B(E) | HL-C208C(E) | |||||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | ||||||||
| Setup mode (Note 3) | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | |
| Measurement center distance | 50 mm 1.969 in | 46 mm 1.811 in | 50 mm 1.969 in | 46 mm 1.811 in | 85 mm 3.346 in | 81.4 mm 3.205 in | 85 mm 3.346 in | 81.4 mm 3.205 in | |
| Measuring range (Note 4) | ±5 mm ±0.197 in | ±5 mm ±0.197 in | ±20 mm ±0.787 in | ±6 mm ±0.236 in | ±20 mm ±0.787 in | ±6 mm ±0.236 in | |||
| Resolution [Average number of samples] (Note 5,6) | • HL-C205B / HL-C205C: 0.2 μm 0.008 mil [256], 0.05 μm 0.002 mil [4,096] • HL-C205BE / HL-C205CE: 0.25 μm 0.010 mil [256] | • HL-C208B / HL-C208C: 0.6 μm 0.024 mil [256], 0.15 μm 0.006 mil [4,096] • HL-C208BE / HL-C208CE: 0.6 μm 0.024 mil [256], 0.25 μm 0.010 mil [4,096] | |||||||
| Linearity (Note 7) | ±0.03 % F.S. | ±0.03 % F.S. | ±0.1 % F.S. | ±0.03 % F.S. | ±0.1 % F.S. | ||||
| Temprerature characteristics | 0.01% F.S./℃ | ||||||||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | ||||||||
| Max. output: 1 mW | Max. output: 5 mW | Max. output: 1 mW | Max. output: 5 mW | ||||||
| IEC / JIS conformed type | Class 2 [FDA (Note 8) / IEC / JIS / KS) (E) Type : Class 2 [FDA (Note 8) / IEC / JIS / GB / KS) | Class 3R [FDA (Note 8) / IEC / JIS / KS] (E) Type : Class 3R [FDA (Note 8) / IEC / JIS / GB / KS] | Class 2 [FDA (Note 8) / IEC / JIS / KS] (E) type : Class 2 [FDA (Note 8) / IEC / JIS / GB / KS] | Class 3R [FDA (Note 8) / IEC / JIS / KS] (E) Type : Class 3R [FDA (Note 8) / IEC / JIS / GB / KS] | |||||
| FDA conformed type | |||||||||
| Beam size (Note 9) | ø70 μm ø2.756 mil approx. | ø100 μm ø3.937 mil approx. | |||||||
| Receiving element | Linear image sensor | ||||||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | |||||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | ||||||||
| Protection | IP67 (IEC) (excluding the connector) | ||||||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ | ||||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||||||
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face (Note 10) | ||||||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | ||||||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | ||||||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | ||||||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | ||||||||
| Material | Enclosure, Case cover: Die-cast aluminum, Front cover: Glass | ||||||||
| Weight | 300 g approx. (including cable) | ||||||||
| Accessory | Laser warning labels (for applicable standards and regulations): 1 set | ||||||||
Notes:
1) Measuring conditions are as follows unless otherwise specified: connection with controller, supply voltage: 24 V DC, ambient temperature: +20℃ +68 ℉, sampling cycle: 40 μs, average number of samples: 256 times, measurement center distance, measurement object: white ceramic [aluminumvapor deposition surface reflection mirror for HL-C201A(E) / HL-C201A(E)-SP2 / HL-C201F(E), clear glass for HL-C201A(E)-SP3], and digital measurement value.
2) For products that comply with FDA regulations, please check the part number in the manual.
3) Use the external ND filter (optional) HL-C2F01 in case the amount of reflected beam is too large on Specular Reflection installation. (Cannot be used with HL-C201□.)
4) Measuring range at sampling periods of 20 μs and 10 μs is as follows.
| Model No. | HL-C201□ | HL-C201□-SP2 | HL-C201□-SP3 | HL-C203□ | HL-C205□ | HL-C208□ | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Setup mode | Specular reflection | Specular reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | |
| Sam pling | 20μs | +0.1 to +1.0 mm +0.004 to +0.039 in | +0.1 to +0.8 mm +0.004 to +0.031 in | +0.1 to +1.0 mm +0.004 to +0.039 in | 0 to +5.0 mm 0 to +0.197 in | 0 to +4.6 mm 0 to +0.181 in | +0.5 to +5.0 mm +0.020 to +0.197 in | +0.5 to +5.0 mm +0.020 to +0.197 in | 0 to +20 mm 0 to +0.787 in | 0 to +6.0 mm 0 to +0.236 in |
| 10μs | +0.8 to +1.0mm +0.031 to +0.039 in | +0.7 to +0.8mm +0.028 to +0.031 in | +0.8 to +1.0mm +0.031 to +0.039 in | +3.8 to +5.0mm +0.150 in to +0.197 in | +3.6 to +4.6mm +0.142 to 0.181 in | +4.7 to +5.0mm +0.185 to +0.197 in | +4.6 to +5.0mm +0.181 to +0.197 in | +18 to +20mm +0.709 to +0.787 in | Measurement not possible | |
5) The P-P value for the deviation in the digital measurement values at the measurement center distance has been converted for the measurement center distance.
6) Exports of models with a minimum resolution of under 0.25 μm 0.010 mil fall under Japanese Export Control defined by “Foreign Exchange and Foreign Trade Act.” These products are introduced to limited countries only. Please refer to “PRECAUTIONS FOR PROPER USE”.
7) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured.
8) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
9) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 % approx.) of the center light intensity. If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected.
10) Variance is ±0.03 % F.S. or less (±0.08 % F.S. or less for HL-C235CE-W) depending on the ambient illuminance.
| Type | Small beam spot type | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | IEC / JIS conformed type | HL-C211B(E) | HL-C211C(E) | |||||||
| FDA conformed type | HL-C211F(E) | HL-C211F5(E) | ||||||||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | |||||||||
| Setup mode(Note 3) | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | ||||||
| Measurement center distance | 110mm 4.331 in | 106.7mm 4.201 in | 110mm 4.331 in | 106.7mm 4.201 in | ||||||
| Measuring range (Note 4) | ±15mm ±0.591 in | ±14.5mm ±0.571 in | ±15mm ±0.591 in | ±14.5mm ±0.571 in | ||||||
| Resolution [Average number of samples] (Note 5, 6) | • HL-C211B / HL-C211C / HL-C211F / HL-C211F5: 0.4 μm 0.016 mil [256], 0.1 μm 0.004 mil [4,096] • HL-C211BE / HL-C211CE / HL-C211FE / HL-C211F5E: 0.4 μm 0.016 mil [256], 0.25 μm 0.010 mil [4,096] | |||||||||
| Linearity (Note 7) | ±0.03% F.S. | |||||||||
| Temprerature characteristics | 0.01% F.S./℃ | |||||||||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | |||||||||
| Max. output: 1 mW | Max. output: 5 mW | |||||||||
| IEC / JIS conformed type | Class 2 (IEC / JIS / KS) (E) Type : Class 2 (IEC / JIS / GB / KS) | Class 3R (IEC / JIS / KS) (E) Type : Class 3R (IEC / JIS / GB / KS) | ||||||||
| FDA conformed type Class II (FDA), Class | Class II (FDA), Class 2 (IEC / JIS) (E) Type : Class II (FDA), Class 2 (IEC / JIS / GB) | Class IIIa (FDA), Class 3R (IEC / JIS) (E) Type : Class IIIa (FDA), Class 3R (IEC / JIS / GB) | ||||||||
| Beam size (Note 9) | ø80 μm ø3.150 mil approx. | |||||||||
| Receiving element | Linear image sensor | |||||||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | ||||||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | |||||||||
| Protection | IP67 (IEC) (excluding the connector) | |||||||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation), Storage: -20 to +70 ℃ -4 to +158 ℉ | |||||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||||||
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face(Note 10) | |||||||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | |||||||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | |||||||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | |||||||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | |||||||||
| Material | Enclosure: Die-cast aluminum, Case cover: Die-cast aluminum, Front cover: Glass | |||||||||
| Weight | 300 g approx. (including cable) | |||||||||
| Accessory | Laser warning label: 1 set | |||||||||
| Type | Small beam spot type | |||||
|---|---|---|---|---|---|---|
| Model No. | IEC / JIS conformed type | HL-C235BE | HL-C235CE | HL-C235CE-W | ||
| FDA conformed type | — | — | ||||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | |||||
| Setup mode | Diffuse reflectionSpecular reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | |
| Measurement center distance | 350 mm 13.780 in | 348 mm 13.701 in | 350 mm 13.780 in | 348 mm 13.701 in | 350 mm 13.780 in | |
| Measuring range (Note 4) | ±15mm ±0.591 in | ±42mm ±1.654 in | ±50mm ±1.969 in | ±42mm ±1.654 in | ±200 mm ±7.874 in | |
| Resolution [Average number of samples] (Note 5,6) | 2.0 μm 0.079 mil [256], 0.5 μm 0.020 mil [4,096] | 8 μm 0.315 mil [256], 2 μm 0.079 mil [4,096] | ||||
| Linearity (Note 7) | ±0.03 % F.S. | ±0.04 % F.S. (-200 to 0 mm -7.874 to 0 in), ±0.08 % F.S. (0 to +200 mm 0 to +7.874 in), (F.S. = ±200 mm ±7.874 in) | ||||
| Temprerature characteristics | 0.01% F.S./℃ | |||||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | |||||
| Max. output: 1 mW | Max. output: 5 mW | Max. output: 5 mW | ||||
| IEC / JIS conformed type | Class 2 (IEC / JIS / GB / KS) | Class 3R (IEC / JIS / GB / KS) | Class 3R [FDA (Note 8) /IEC / JIS / GB / KS] | |||
| FDA conformed type Class II (FDA), Class | — | — | ||||
| Beam size (Note 9) | ø250 μm ø9.843 mil approx. | ø400 μm ø15.748 mil approx. | ||||
| Receiving element | Linear image sensor | |||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | ||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | |||||
| Protection | IP67 (IEC) (excluding the connector) | |||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation), Storage: -20 to +70 ℃ -4 to +158 ℉ | |||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face | |||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | |||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | |||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | |||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | |||||
| Material | Enclosure: Die-cast aluminum, Case cover: Die-cast aluminum, Front cover: Glass | |||||
| Weight | 450 g approx. (including cable) | 300 g approx. (including cable) | ||||
| Accessory | Laser warning label: 1 set | |||||
Notes:
1) Measuring conditions are as follows unless otherwise specified: connection with controller, supply voltage: 24 V DC, ambient temperature: +20℃ +68 ℉, sampling cycle: 40 μs, average number of samples: 256 times, measurement center distance, measurement object: white ceramic, and digital measurement value.
2) For products that comply with FDA regulations, please check the part number in the manual.
3) Use the external ND filter (optional) HL-C2F01 in case the amount of reflected beam is too large on Specular Reflection installation. (Cannot be used with HL-C201□.)
4) Measuring range at sampling periods of 20 μs and 10 μs is as follows.
| Model No. | HL-C211□ | HL-C235□ | HL-C235CE-W | |||
|---|---|---|---|---|---|---|
| Setup mode | Diffuse reflection | Specular reflection | Diffuse reflection | Diffuse reflection | Diffuse reflection | |
| Sampling | 20 μs | +0.5 to +15.0 mm +0.020 to +0591 in | +0.5 to +14.5 mm +0.020 to +0.571 in | 0 to +50 mm 0 to +1.969 in | 0 to +42 mm 0 to +1.654 in | -70 to +200 mm -2.756 to +7.874 in |
| 10 μs | +12.5 to +15.0 mm +0.492 to +0.591 in | +12.5 to +14.5 mm +0.492 to +0.571 in | +36 to +50 mm +1.417 to +1.969 in | +36 to +42 mm +1.417 to +1.654 in | +100 to +200 mm +3.937 to +7.874 in | |
5) The P-P value for the deviation in the digital measurement values at the measurement center distance has been converted for the measurement center distance.
6) Exports of models with a minimum resolution of under 0.25 μm 0.010 mil fall under Japanese Export Control defined by “Foreign Exchange and Foreign Trade Act.” These products are introduced to limited countries only. Please refer to “PRECAUTIONS FOR PROPER USE”.
7) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured.
8) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
9) This beam diameter is the size at the measurement center distance. These values were defined by using 1/e2 (13.5 % approx.) of the center light intensity. If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected.
10) Variance is ±0.03 % F.S. or less (±0.08 % F.S. or less for HL-C235CE-W) depending on the ambient illuminance.
Linear beam spot type
| Type | Linear beam spot type | |||||
|---|---|---|---|---|---|---|
| Model No. | IEC / JIS conformed type | HL-C201A(E)-MK | HL-C201A(E)-SP2M | HL-C201A(E)-SP3M | HL-C203B(E)-MK | |
| FDA conformed type | HL-C201F(E)-MK | - | - | HL-C203F(E)-MK | ||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | |||||
| Setup mode (Note 3) | Specular reflection | Diffuse reflection | Specular reflection | |||
| Measurement center distance | 10 mm 0.394 in | 8 mm 0.315 in | 15 mm 0.591 in | 30 mm 1.181 in | 26.4 mm 1.039 in | |
| Measuring range (Note 4) | ±1 mm ±0.039 in | ±0.8 mm ±0.031 in | ±1 mm ±0.039 in | ±5 mm ±0.197 in | ±4.6 mm ±0.181 in | |
| Resolution [Average number of samples] (Note 5,6) | • HL-C201A-MK / HL-C201A-SP2M / HL-C201A-SP3M / HL-C201F-MK: 0.04 μm 0.002 mil [256], 0.01 μm 0.0004 mil [4,096] • HL-C201AE-MK / HL-C201AE-SP2M / HL-C201AE-SP3M / HL-C201FE-MK: 0.25 μm 0.010 mil [256] | • HL-C203B-MK / HL-C203F-MK: 0.1 μm 0.004 mil [256] 0.025 μm 0.001 mil [4,096] • HL-C203BE-MK / HL-C203FE-MK: 0.25 μm 0.010 mil [256] | ||||
| Linearity (Note 7) | ±0.02 % F.S. (HL-201FE-MK: ±0.025 % F.S.). | ±0.03 % F.S | ||||
| Temprerature characteristics | 0.01% F.S./℃ | 0.02 % F.S./℃ | 0.01 % F.S./℃ | |||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | |||||
| Max. output: 1 mW | Max. output: 0.3 mW | Max. output: 1 mW | ||||
| IEC / JIS conformed type | Class 1 (IEC / JIS / KS) (E) Type : Class 1 (IEC / JIS / GB / KS) | Class 2 (IEC / JIS / KS) (E) Type : Class 2 (IEC / JIS / GB / KS) | ||||
| FDA conformed type Class II (FDA), Class | Class 1 [FDA (Note 7) /IEC / JIS] (E) type : Class 1 [FDA (Note 7) /IEC / JIS / GB] | - | - | Class II (FDA), Class 2 (IEC / JIS) (E) Type : Class II (FDA), Class 2 (IEC / JIS / GB) | ||
| Beam size (Note 9) | 20 × 700 μm 0.787 × 27.559 mil mil approx. | 30 × 1,400 μm 1.181 × 55.118 mil mil approx. | 30 × 1,200 μm 1.181 × 47.244 mil mil approx. | |||
| Receiving element | Linear image sensor | |||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | ||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | |||||
| Protection | IP67 (IEC) (excluding the connector) | |||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation), Storage: -20 to +70 ℃ -4 to +158 ℉ | |||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
| Ambient illuminance | Incandescent light: 3,000 ℓx at or less the light-receiving face (Note 9) | |||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | |||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directionsthree times each | |||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | |||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | |||||
| Material | Enclosure, Case cover: Die-cast aluminum, Front cover: Glass | |||||
| Weight | 250 g approx. (including cable) | |||||
| Accessory | Laser warning labels (for applicable standards and regulations): 1 set | |||||
| Type | Linear beam spot type | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model No. | HL-C205B(E)-MK | HL-C205C(E)-MK | HL-C208B(E)-MK | HL-C208C(E)-MK | |||||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | ||||||||
| Setup mode (Note 3) | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | |
| Measurement center distance | 50 mm 1.969 in | 46 mm 1.811 in | 50 mm 1.969 in | 46 mm 1.811 in | 85 mm 3.346 in | 81.4 mm 3.205 in | 85 mm 3.346 in | 81.4 mm 3.205 in | |
| Measuring range (Note 4) | ±5 mm ±0.197 in | ±5 mm ±0.197 in | ±5 mm ±0.197 in | ±5 mm ±0.197 in | ±20 mm ±0.787 in | ±6 mm ±0.236 in | ±20 mm ±0.787 in | ±6 mm ±0.236 in | |
| Resolution [Average number of samples] (Note 5, 6) | • HL-C205B-MK / HL-C205C-MK: 0.2 μm 0.008 mil [256], 0.05 μm 0.002 mil [4,096] • HL-C205BE-MK / HL-C205CE-MK: 0.25 μm 0.010 mil [256] | • HL-C208B-MK / HL-C208C-MK: 0.6 μm 0.024 mil [256], 0.15 μm 0.006 mil [4,096] • HL-C208BE-MK / HL-C208CE-MK: 0.6 μm 0.024 mil [256], 0.25 μm 0.010 mil [4,096] | |||||||
| Linearity (Note 7) | ±0.03 % F.S. | ±0.03 % F.S. | ±0.1 % F.S. | ±0.03 % F.S. | ±0.1 % F.S. | ||||
| Temprerature characteristics | 0.01% F.S./℃ | ||||||||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | ||||||||
| Max. output: 1 mW | Max. output: 5 mW | Max. output: 1 mW | Max. output: 5 mW | ||||||
| IEC / JIS conformed type | Class 2 [FDA (Note 8) / IEC / JIS / KS) (E) Type : Class 2 [FDA (Note 8) / IEC / JIS / GB / KS) | Class 3R [FDA (Note 8) / IEC / JIS / KS] (E) Type : Class 3R [FDA (Note 8) / IEC / JIS / GB / KS] | Class 2 [FDA (Note 8) / IEC / JIS / KS] (E) Type : Class 2 [FDA (Note 8) / IEC / JIS / GB / KS] | Class 3R [FDA (Note 8) / IEC / JIS / KS] (E) Type : Class 3R [FDA (Note 8) / IEC / JIS / GB / KS] | |||||
| FDA conformed type | |||||||||
| Beam size (Note 9) | 70 × 1,000 μm 2.756 × 39.370 mil approx. | 100 × 1,200 μm 3.937 × 47.244 mil approx. | |||||||
| Receiving element | Linear image sensor | ||||||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | |||||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | ||||||||
| Pollution degree | 3 (Industrial environment) | ||||||||
| Protection | IP67 (IEC) (excluding the connector) | ||||||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation), Storage: -20 to +70 ℃ -4 to +158 ℉ | ||||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||||||
| Ambient illuminance | Incandescent light: 3,000 ℓx at or less the light-receiving face (Note 10) | ||||||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | ||||||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | ||||||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | ||||||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | ||||||||
| Material | Enclosure, Case cover: Die-cast aluminum, Front cover: Glass | ||||||||
| Weight | 300 g approx. (including cable) | ||||||||
| Accessory | Laser warning labels (for applicable standards and regulations): 1 set | ||||||||
Notes:
1) Measuring conditions are as follows unless otherwise specified: connection with controller, supply voltage: 24 V DC, ambient temperature: +20℃ +68 ℉, sampling cycle: 40 μs, average number of samples: 256 times, measurement center distance, measurement object: white ceramic [aluminum vapor deposition surface reflection mirror for HL-C201A(E)-MK / HL-C201A(E)-SP2M / HL-C201F(E)-MK, clear glass for HL-C201A(E)-SP3M], and digital measurement value.
2) For products that comply with FDA regulations, please check the part number in the manual.
3) Use the external ND filter (optional) HL-C2F01 in case the amount of reflected beam is too large on Specular Reflection installation. (Cannot be used with HL-C201□.)
4) Measuring range at sampling periods of 20 μs and 10 μs is as follows.
| Model No. | HL-C201□-MK | HL-C201□-SP2M | HL-C201□-SP3M | |
|---|---|---|---|---|
| Setup mode | Specular reflection | Specular reflection | Specular reflection | |
| Sampling | 20μs | +0.1 to +1.0 mm +0.039 in | +0.1 to +0.8 mm +0.004 to +0.031 in | +0.1 to +1.0 mm +0.004 to +0.039 in |
| 10μs | +0.8 to +1.0mm +0.031 to +0.039 in | +0.7 to +0.8mm +0.028 to +0.031 in | +0.8 to +1.0mm +0.031 to +0.039 in | |
| Model No. | HL-C203□-MK | HL-C205□-MK | HL-C208□-MK | ||||
|---|---|---|---|---|---|---|---|
| Setup mode | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | |
| Sampling | 20μs | 0 to +5.0 mm 0 to +0.197 in | 0 to +4.6 mm 0 to +0.181 in | +0.5 to +5.0 mm +0.020 to +0.197 in | +0.5 to +5.0 mm +0.020 to +0.197 in | 0 to +20 mm 0 to +0.787 in | 0 to +6.0 mm 0 to +0.236 in |
| 10μs | +3.8 to +5.0mm +0.150 in to +0.197 in | +3.6 to +4.6mm +0.142 to 0.181 in | +4.7 to +5.0mm +0.185 to +0.197 in | +4.6 to +5.0mm +0.181 to +0.197 in | +18 to +20mm +0.709 to +0.787 in | Measurement not possible | |
5) The P-P value for the deviation in the digital measurement values at the measurement center distance has been converted for the measurement center distance.
6) Exports of models with a minimum resolution of under 0.25 μm 0.010 mil fall under Japanese Export Control defined by “Foreign Exchange and Foreign Trade Act.” These products are introduced to limited countries only. Please refer to “PRECAUTIONS FOR PROPER USE”
7) Indicates error with respect to the ideal linear values for digital displacement output when standard objects were measured by our company. It may vary depending on the types of objects being measured.
8) This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.
9) This beam diameter is the size at the measurement center distance. These values were defined by using 1/es2 (13.5 % approx.) of the center light intensity. If there is a slight leakage of light outside the normal spot diameter and if the periphery surrounding the sensing point has a higher reflectivity than the sensing point itself, then the results may be affected.
10) Variance is ±0.03 % F.S. or less depending on the ambient illuminance.
| Type | Linear beam spot type | ||||
|---|---|---|---|---|---|
| Model No. | IEC / JIS conformed type | HL-C211B(E)-MK | HL-C211C(E)-MK | ||
| FDA conformed type | HL-C211F(E)-MK | HL-C211F5(E)-MK | |||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | ||||
| Setup mode(Note 3) | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | |
| Measurement center distance | 110 mm 4.331 in | 106.7 mm 4.201 in | 110 mm 4.331 in | 106.7 mm 4.201 in | |
| Measuring range (Note 4) | ±15 mm ±0.591 in | ±14.5 mm ±0.571 in | ±15 mm ±0.591 in | ±14.5 mm ±0.571 in | |
| Resolution [Average number of samples] (Note 5,6) | HL-C211B-MK / HL-C211C-MK / HL-C211F-MK / HL-C211F5-MK: 0.4 μm 0.016 mil [256], 0.1 μm 0.004 mil [4,096] • HL-C211BE-MK / HL-C211CE-MK / HL-C211FE-MK / HL-C211F5E-MK: 0.4 μm 0.016 mil [256], 0.25 μm 0.010 mil [4,096] | ||||
| Linearity (Note 7) | ±0.03% F.S. | ||||
| Temprerature characteristics | 0.01% F.S./℃ | ||||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | ||||
| Max. output: 0.1 mW | Max. output: 5 mW | ||||
| IEC / JIS conformed type | Class 2 (IEC / JIS / KS) (E) Type : Class 2 (IEC / JIS / GB / KS) | Class 3R (IEC / JIS / KS) (E) Type : Class 3R (IEC / JIS / GB / KS) | |||
| FDA conformed type | Class II (FDA), Class 2 (IEC / JIS) (E) Type : Class II (FDA), Class 2 (IEC / JIS / GB) | Class IIIa (FDA), Class 3R (IEC / JIS) (E) Type : Class IIIa (FDA), Class 3R (IEC / JIS / GB) | |||
| Beam size (Note 9) | 80 × 1,700 μm 3.150 × 66.929 mil approx. | ||||
| Receiving element | Linear image sensor | ||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | |||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | ||||
| Protection | IP67 (IEC) (excluding the connector) | ||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ | ||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face (Note 10) | ||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | ||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | ||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | ||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | ||||
| Material | Enclosure: Die-cast aluminum, Case cover: Die-cast aluminum, Front cover: Glass | ||||
| Weight | 300 g approx. (including cable) | ||||
| Accessory | Laser warning labels (for applicable standards and regulations): 1 set | ||||
| Type | Linear beam spot type | ||||||
|---|---|---|---|---|---|---|---|
| Model No. | IEC / JIS conformed type | HL-C235BE-MK | HL-C235CE-MK | HL-C235CE-WMK | |||
| FDA conformed type | - | - | |||||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, FDA Regulations(Note 2), Korea’s radio regulations (Radio Wave Act KC) | ||||||
| Setup mode(Note 3) | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | Diffuse reflection | Specular reflection | |
| Measurement center distance | 350 mm 13.780 in | 348 mm 13.701 in | 350 mm 13.780 in | 348 mm 13.701 in | 350 mm 13.780 in | ||
| Measuring range (Note 4) | ±50 mm ±1.969 in | ±42 mm ±1.654 in | ±50 mm ±1.969 in | ±42 mm ±1.654 in | ±200 mm ±7.874 in | ||
| Resolution [Average number of samples] (Note 5,6) | 2.0 μm 0.079 mil [256], 0.5 μm 0.020 mil [4,096] | 8 μm 0.315 mil [256], 2 μm 0.079 mil [4,096] | |||||
| Linearity (Note 7) | ±0.03% F.S. | ±0.04 % F.S. (-200 to 0 mm -7.874 to 0 in), ±0.08 % F.S. (0 to +200 mm 0 to +7.874 in), (F.S. = ±200 mm ±7.874 in) | |||||
| Temprerature characteristics | 0.01% F.S./℃ | ||||||
| Light source | Red semiconductor laser (Peak emission wavelength: 658 nm 0.026 mil) | ||||||
| Max. output: 1 mW | Max. output: 5 mW | Max. output: 5 mW | |||||
| IEC / JIS conformed type | Class 2 (IEC / JIS / GB / KS) | Class 3R (IEC / JIS / GB / KS) | Class 3R [FDA (Note 8) / IEC / JIS / GB / KS] | ||||
| FDA conformed type | - | - | |||||
| Beam size (Note 9) | 250 × 3,500 μm 9.843 × 137.795 mil approx. | 400 × 6,500 μm 15.748 × 255.905 mil approx. | |||||
| Receiving element | Linear image sensor | ||||||
| Indicator | Laser emission | Green LED (lights up during laser emission) | |||||
| Measuring range | Yellow LED (lights up when near the measurement center distance, blinks when within the measuring range, and lights out when outside of the measuring range.) | ||||||
| Protection | IP67 (IEC) (excluding the connector) | ||||||
| Ambient temperature | 0 to +45 ℃ +32 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ | ||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||||
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face (Note 10) | ||||||
| Vibration resistance | 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X,Y and Z directions for two hours each | ||||||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X,Y and Z directions three times each | ||||||
| Cable | Cabtyre cable, 0.5 m 1.640 ft long with connector | ||||||
| Cable extension | Extension up to total 30 m 98.425 ft is possible, with optional cable. | ||||||
| Material | Enclosure: Die-cast aluminum, Case cover: Die-cast aluminum, Front cover: Glass | ||||||
| Weight | 450 g approx. (including cable) | 300 g approx. (including cable) | |||||
| Accessory | Laser warning labels (for applicable standards and regulations): 1 set | ||||||
Controllers
| Type | RS-232C-compatible | Ethernet-compatible Item | |
|---|---|---|---|
| Mode No. | NPN output type | HL-C2C(E) | HL-C21C(E) |
| PNP output type | HL-C2C(E)-P | HL-C21C(E)-P | |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), China RoHS, Korea’s radio regulations (Radio Wave Act KC) | ||
| Connectale sensor head | Number of connectable units: Max. 2 units. | ||
| Supply voltage | 24 V DC ± 10 % including ripple 0.5 V (P-P) | ||
| Current consumption | 500 mA approx. at 2 sensor heads connected 350 mA approx. at 1 sensor head connected (100 mA approx. is additionally required when the mini console is connected) | ||
| Sampling cycle | 10 μs, 20 μs, 40 μs, 100 μs, 200 μs, 400 μs, 1 ms, 2 ms | ||
| Analog output | Voltage (Note 2) | Voltage output scale: -5 to +5 V/F.S (initial value) Output range during normal status: -10.0 to +10.0 V Output at abnormal status: -10.8 V or +10.8 V Resolution: 2 mV, Linearity: ±0.05 % F.S. Max. 2 mA, output impedance 50 Ω Response delay time: 1.5 μs/V approx. | |
| Current (Note 3) | Current output scale: 4 to 20 mA/F.S (initial value) Output range during normal status: 2 to 24 mA Output at abnormal status: 1 mA or 25 mA Resolution: 3 μA, Linearity ±0.05% F.S. Load impedance: 250 Ωmax. Response delay time: 10 μs approx. | ||
| Alarm output | <NPN open-collector transistor> ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less [between each output and Common(-)] ・Residual voltage: 1 V or less (at 100 mA sink current) <PNP open-collector transistor> ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between each output and +V) ・Residual voltage: 1 V or less (at 100 mA source current) | ||
| Output operation | Opened when the amount of light is insufficient | ||
| Short-circuit protection | ncorporated | ||
| Judgment output (HI, GO, LO) | <NPN open-collector transistor> Laser emission is delayed when connected to Common (-). Laser emission stops at open Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP open-collector transistor> Laser emission is delayed when connected to IL (+). Laser emission stops at open Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| Output operation | Opened at output operation | ||
| Short-circuit protection | Incorporated | ||
| Strobe output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 100 mA ・Applied voltage: 30 V DC or less [between strobe output to Common (–)] ・Residual voltage: 1 V or less (at 100 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 100 mA ・Applied voltage: 30 V DC or less (between strobe output to +V) ・Residual voltage: 1 V or less (at 100 mA source current) | ||
| Output operation | Opened at data determination | ||
| Short-circuit protection | Incorporated | ||
| Remote interlock input | <NPN output type> Laser emission is delayed when connected to Common (–). Laser emission stop at open Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP output type> Laser emission is delayed when connected to IL (+). Laser emission stop at open Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| Laser control input | <NPN output type> Laser emission is stopped when connected to Common (–). Laser is emitted immediately after opened. Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP output type> Laser emission is stopped when connected to external power (+). Laser is emitted immediately after opened. Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| Zero set input | <NPN output type> Zero set is ON when connected with Common (–). Zero set turns to OFF after continuously connected to Common (–) for one second. Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP output type> Zero set is ON when connected with external power (+). Zero set turns to OFF after continuously connected to external power (+) for one second. Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| Timing input | <NPN output type> ON at/during connection to Common (–) (depending on analysis mode) Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP output type> ON at/during connection to external power (+) (depending on analysis mode) Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| Reset input | <NPN output type> Reset is done when connected to Common (–). Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP output type> Reset is done when connected to external power (+). Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| Memory change input | <NPN output type> Memory is specified when connected to Common (–). Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) <PNP output type> Memory is specified when connected to external power (+). Applied voltage: 30 V DC or less (Leak current: 0.1 mA or less) | ||
| RS-232C interface | Baud rate 9,600, 19,200, 38,400, 115,200 bit/s | - | |
| Ethernet interface (Note 4) | - | IEEE802.3u, 10BASE-T/100BASE-TX RJ45 Compatible protocols: iQSS-compatible proprietary protocol, MC protocol, MEWTOCOL | |
| USB interface | USB 2.0 full speed (USB 1.1 compatible) compliant | ||
| Setting / data display | GT12 Programmable Display (optional) | ||
| Indicator | Power | Green LED (lights up at power on) | |
| Sensor head A Laser radiation | Green LED (lights up during or immediately before laser emission of sensor head A) | ||
| Sensor head B Laser radiation | Green LED (lights up during or immediately before laser emission of sensor head B) | ||
| Alarm 1 | Red LED (lights up when OUT1 can not be measured due to insufficient amount of light) | ||
| Alarm 2 | Red LED (lights up when OUT2 can not be measured due to insufficient amount of light) | ||
| Environmental resistance | Ambient temperature | 0 to +50℃ +32 to +122℉ (No dew condensation or icing allowed), Storage: –20 to +70 ℃ –4 to +158 ℉ | |
| Ambient humidity | 35 to 85 %RH | ||
| Vibration resistance | 10 to 55 Hz frequency (period: 1 min.), 0.75 mm 0.030 in double amplitude in X, Y and Z directions for 30 min. each | ||
| Shock resistance | 196 m/s2 acceleration (20 G approx.) in X, Y, and Z directions three times each | ||
| Material | Case: Polycarbonate | ||
| Weight | 450 g approx. | ||
| Accessories | USB cable (2 m 6.562 ft long): 1 pc., Short bracket: 1 pc. | USB cable (2 m 6.562 ft long): 1 pc., Short bracket: 1 pc. Ferrite core (E04SR200935A made by Seiwa Electric Mfg. Co.): 3 cores | |
Compact consoles
Programmable display GT12 can be used as a console. Please refer to the specifications of Programmable Display GT12 for more information.
Discontinued products [Compact consoles]
| Type | HL-C2DP-EX | HL-C2DP-CH | HL-C2DP-KR | |
|---|---|---|---|---|
| Power | Supplied by controller | |||
| Display | Display element | STN monochrome LCD | ||
| Back light | White LED | |||
| Display range | -999.999999 to 999.999999 | |||
| Language | English | Chinese | Korean | |
| Touch panel | Operational force | 0.5 N or less | ||
| Lifetime | 1,000,000 times or more (Note 1) | |||
| Environment resistance | IP65 (at initial status) (Note 2) Dust prevention and drip-proof at the front panel (waterproof packing is used at the contact surface to board) | |||
| Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉ | |||
| Ambient humidity | 20 to 85 %RH, Storage: 10 to 85 %RH | |||
| Electrostatic noise resistance | 5,000 V or more (panel surface) | |||
| Vibration resistance | 10 to 55 Hz frequency, 0.75 mm 0.030 in amplitude in X, Y, and Z directions for 10 min. each | |||
| Shock resistance | 98 m/s2 or more acceleration (10G approx.) in X, Y, and Z directions for four times each | |||
| Material | Case: PPE, Front protective sheet: Polyester | |||
| Weight | 230 g approx. | |||
| Accessory | Connector cable for connecting the controller to the console : 1 pc., Mounting bracket: 1 set | |||
Notes:
1) This value indicates the average lifetime of the unit when used under a normal temperature of 25 ℃ +77 ℉.
2) When reinstalling the console, replace the water proof packing. (Part No: AIGT181, 10 packs included)
------------------------------ Tab6 showing ------------------------------
Dimensions
- Unit: mm in

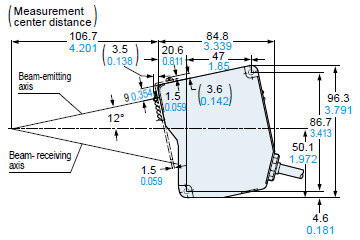

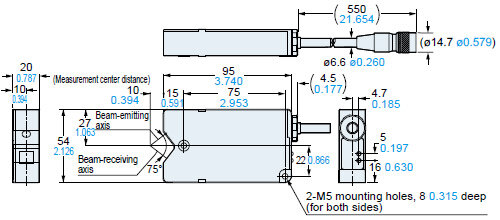

HL-C201□
HL-C201□-MK
Sensor head

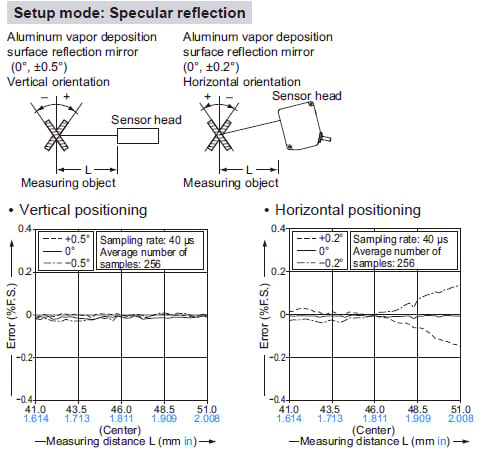

Setup mode: Specular reflection type
HL-C201□-SP2
HL-C201□-SP2M
Sensor head
Setup mode: Specular reflection type
HL-C201□-SP3
HL-C201□-SP3M
Sensor head
Setup mode: Specular reflection type

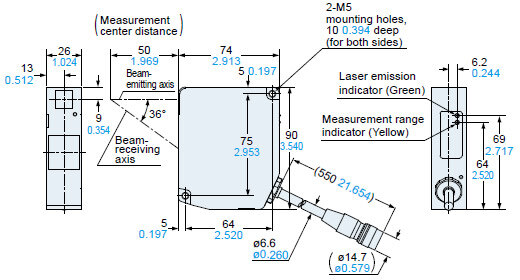

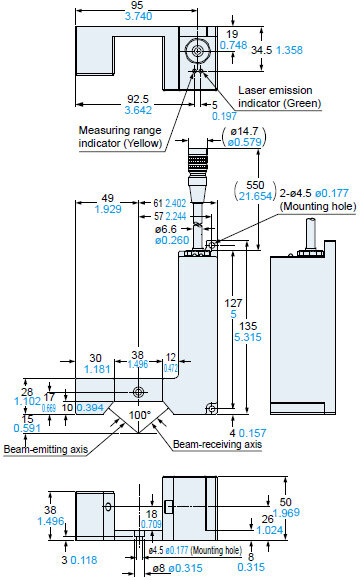

HL-C203□
HL-C203□-MK
Sensor head
Setup mode: Diffuse reflection
Note: A beam attenuator is not available for JIS / IEC conformed types.
Setup mode: Specular reflection

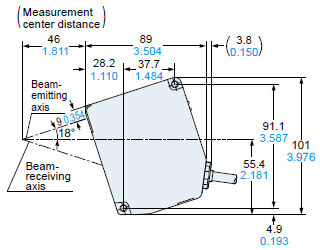

HL-C205□
HL-C205□-MK
Sensor head
Setup mode: Diffuse reflection
Setup mode: Specular reflection

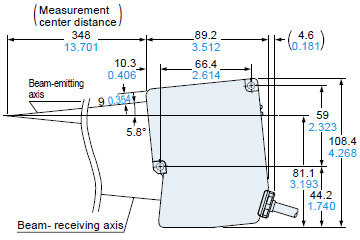

HL-C208□
HL-C208□-MK
Sensor head
Setup mode: Diffuse reflection type
Setup mode: Specular reflection type

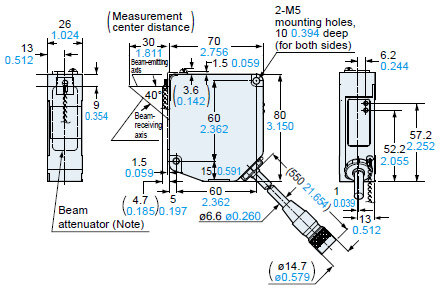

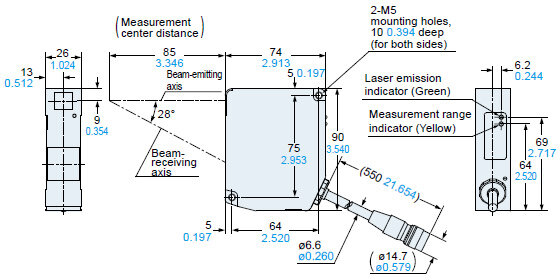

HL-C211□
HL-C211□-MK
Sensor head
Setup mode: Diffuse reflection type
Note: A beam attenuator is not available for IEC/JIS conformed types.
Setup mode: Diffuse reflection type

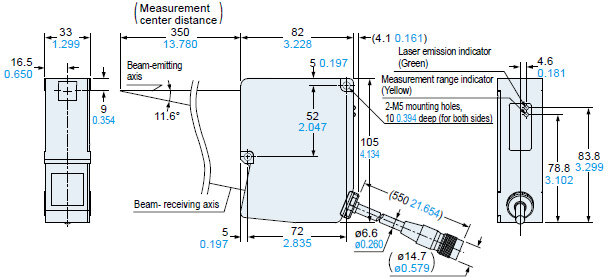

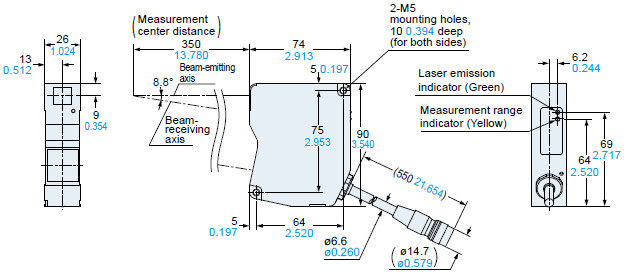

HL-C235□
HL-C235□-MK
Sensor head
Setup mode: Diffuse reflection type
Setup mode: Specular reflection type

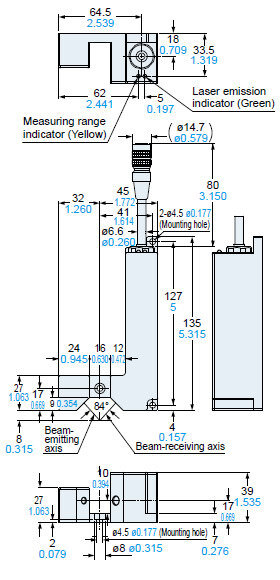

HL-C235CE-W
HL-C235CE-WMK
Sensor head

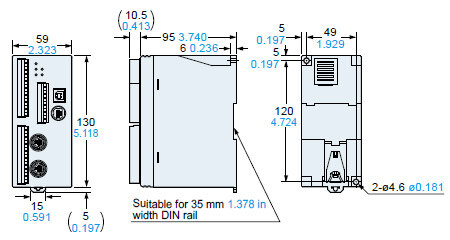

HL-C2C□
HL-C21C□
Controller

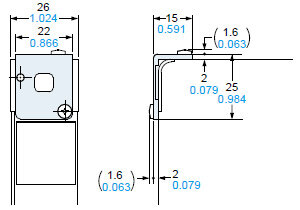

HL-C2F01
ND filter (Optional)
Material: Alminum (Mounting retention) Glass (ND part)

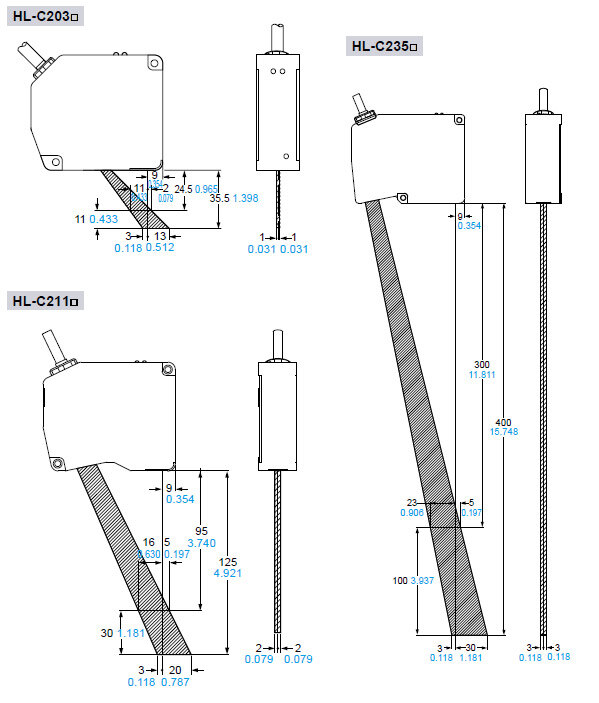

Mounting drawing with a sensor head
Notes:
1)HL-C201□ cannot be mounted.
2)For HL-C235□(-MK) models, mounting is on 2 places on the front panel.
3)Cannot be attached to FDA conformed types
------------------------------ Tab7 showing ------------------------------
I/O Circuit and Wiring diagrams

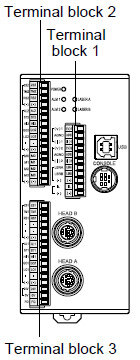

Terminal arrangement
Terminal block 1
| Terminal | Function | |
|---|---|---|
| NPN | PNP | |
| (V)1 | Analog voltage output (for OUT1) | |
| AGND | Analog ground | |
| (I)1 | Analog current output (for OUT1) | |
| (V)2 | Analog voltage output (for OUT2) | |
| AGND | Analog ground | |
| (I)2 | Analog current output (for OUT2) | |
| LSRA | Laser control input (for Head A) Laser stop during short circuit | |
| LSRB | Laser control input (for Head B) Laser stop during short circuit | |
| (–) | Common (–) | |
| IL | IL- | Remote interlock Laser stop when opened. |
| (–) | IL+ | Remote interlock common |
Terminal block 2
| Terminal | Function | |
|---|---|---|
| NPN | PNP | |
| ZS2 | Zero set input (for OUT2) ON during short circuit (Note 1) | |
| TM2 | Timing input (for OUT2) ON during short circuit | |
| RS2 | Reset input (for OUT2) ON during short circuit | |
| (–) | Common (–) | |
| AL2 | Alarm output (for OUT2) | |
| ST2 | Strobe output (for OUT2) | |
| HI2 | Judgment HI output (for OUT2) | |
| GO2 | Judgment GO output (for OUT2) | |
| LO2 | Judgment LO output (for OUT2) | |
| • | Reserved terminal (Note 2) | |
| (–) | (+) | Common (–) / Common (+) |
| M0 | Memory change (16 ways) | |
| M1 | ||
| M2 | ||
| M3 | ||
| (–) | Common (–) | |
Notes:
1) Turn off the terminal in case
short circuit lasts for more than
one second.
2) Do not connect anything to the
reserved terminals; they are
connected to the internal circuit.
Terminal block 3
| Terminal | Function | |
|---|---|---|
| NPN | PNP | |
| ZS1 | Zero set input (for OUT1) ON during short circuit (Note 1) | |
| TM1 | Timing input (for OUT1) ON during short circuit | |
| RS1 | Reset input (for OUT1) ON during short circuit | |
| • | Reserved terminal | |
| • | Reserved terminal | |
| (–) | Common (–) | |
| AL1 | Alarm output (for OUT1) | |
| ST1 | Strobe output (for OUT1) | |
| HI1 | Judgment HI output (for OUT1) | |
| GO1 | Judgment GO output (for OUT1) | |
| LO1 | Judgment LO output (for OUT1) | |
| • | Reserved terminal (Note 2) | |
| (–) | (+) | Common (–) / Common (+) |
| 24V | 24 V DC input for power supply | |
| 0V | Power supply ground 0 V | |
| FG | Frame ground | |
Notes:
1) Turn off the terminal in case
short circuit lasts for more than
one second.
2) Do not connect anything to the
reserved terminals; they are
connected to the internal circuit.
NPN output type
No voltage input or NPN transistor open
collector output
Non-voltage
input
PNP output type
No voltage input or NPN transistor open
collector output
Non-voltage
input
Analog output (Common in NPN output type and PNP output type)
Notes: 1) Do not short-circuit analog output terminals or apply voltage to them.
2) Use shielded wires for analog outputs.
------------------------------ Tab8 showing ------------------------------

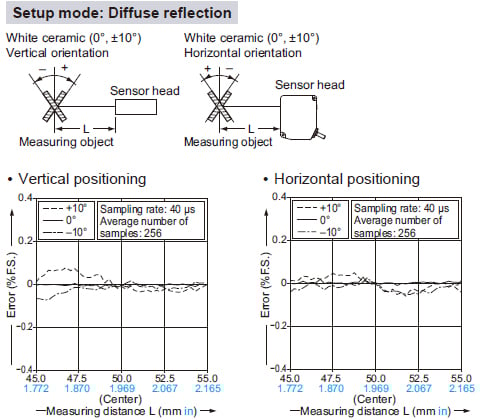

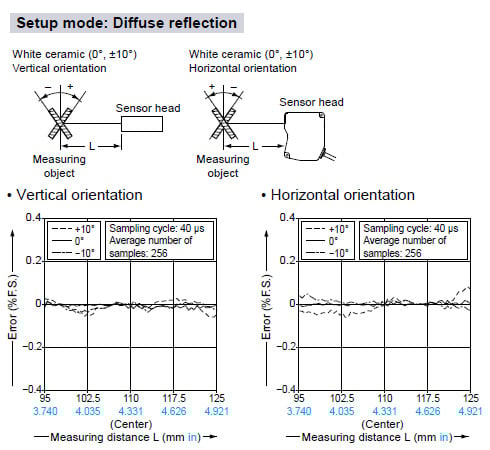

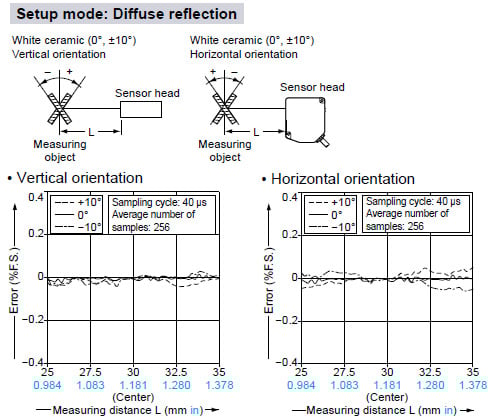

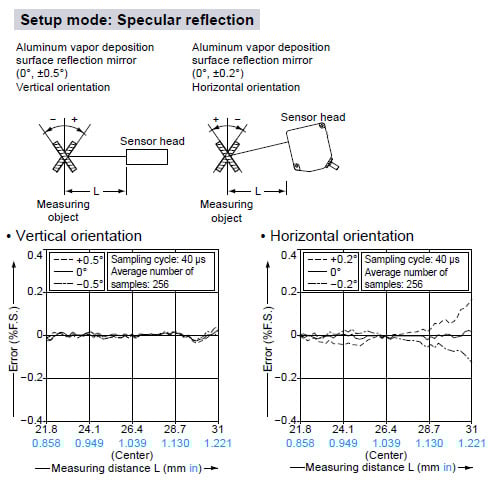

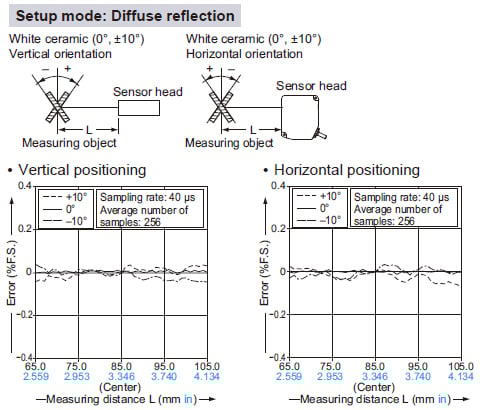

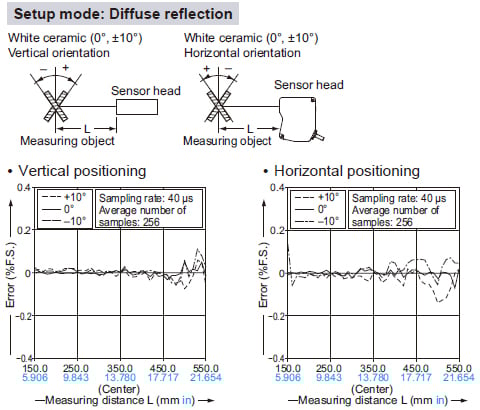

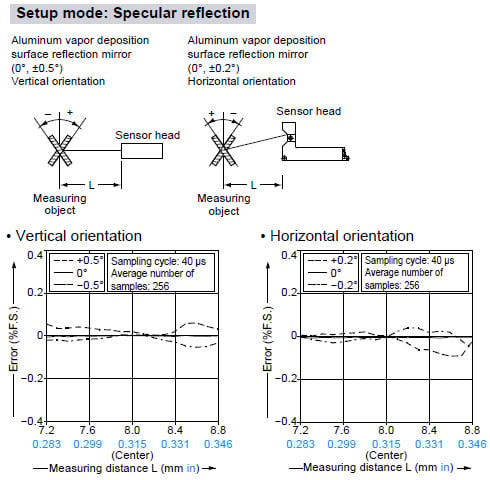

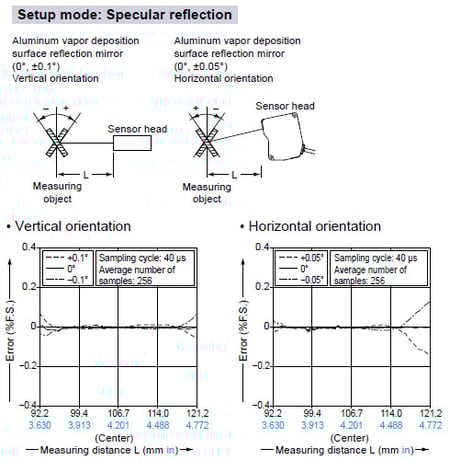

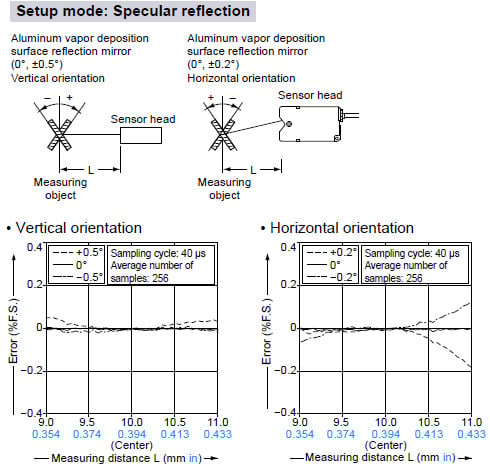

Sensing characteristics

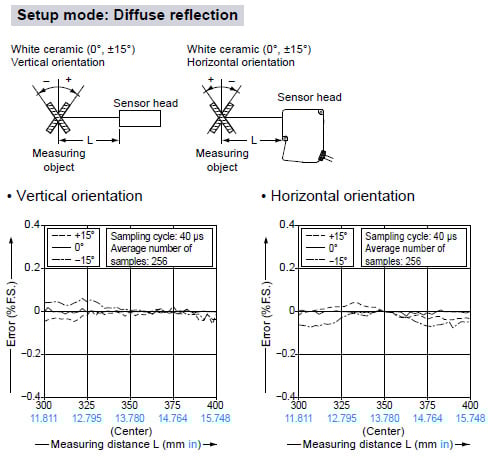

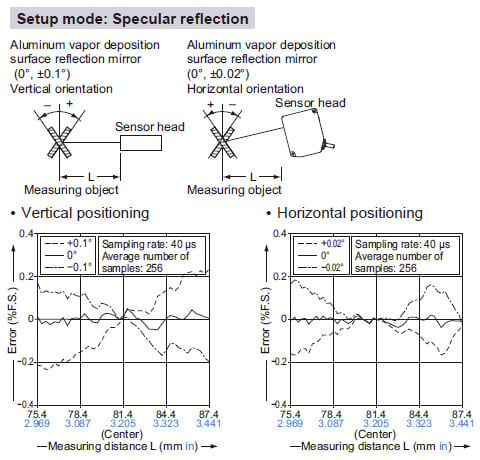

*TYPICAL
HL-C201A
HL-C201F
HL-C201A-SP2
HL-C201A-SP3
HL-C203B
HL-C203F
HL-C205B
HL-C205C
HL-C208B
HL-C208C
HL-C211B HL-C211C
HL-C211F HL-C211F5
HL-C235BE
HL-C235CE
HL-C235CE-W
------------------------------ Tab9 showing ------------------------------
- Do not operate products using methods other than those described in the instruction manual included with each product. Control or adjustment through procedures other than those specified may cause hazardous laser radiation exposure.
- The following labels are attached to the products. Handle each product according to the instruction given on the warning label.
- Types which comply with FDA regulations have an English label applied based on those FDA regulations.
- HL-C201A(E)(-MK)／HL-C201A(E)-SP2(M)／HL-C201A(E)-SP3(M)
This product is classified as a Class 1 Laser Product in IEC / JIS / KS /GB (E type only) standards. Do not look at the laser beam through optical devices such as a lens.
- HL-C203B(E)(-MK)／HL-C205B(E)(-MK)／HL-C208B(E)(-MK)／HL-C211B(E)(-MK)／HL-C235BE(-MK)
This product is classified as a Class 2 Laser Product in IEC / JIS / KS /GB (E type only) standards. Do not look at the laser beam directly or through optical devices such as a lens.
- HL-C205C(E)(-MK)／HL-C208C(E)(-MK)／HL-C211C(E)(-MK)／HL-C235CE(-MK)／HL-C235CE-W(-MK)
This product is classified as a Class 3R Laser Product in IEC / JIS / KS / GB (E type only) standards. Never directly look at or touch the laser beam or its reflection.
- This product complies with CE Marking when used together with a controller and programmable display unit that are in compliance with CE Marking. Likewise, the product complies with UKCA Marking when used together with a controller and programmable display unit that are in compliance with UKCA Marking.
- Exports of models with a minimum resolution of under 0.25 μm 0.010 mil fall under Japanese Export Control, which is defined by “Foreign Exchange and Foreign Trade Act”.
Therefore, anyone who wishes to export or transfer these products outside of Japan is required to obtain the necessary license from the Ministry of Economy, Trade and Industry of Japan.
Also, these products fall under international export control regulations, such as Nuclear Suppliers Group (NSG) guidelines 1.B.3.b.1 and Wassenaar Arrangement (WA) 2.B.6.b.1.a, and are objects of the regulation. Please comply with the export control in each country.
Note: These products are introduced to limited countries only. Please contact our office for details.
Warming up time
- To ensure the performance of the product, before use allow at least 30 minutes of warming up after turning on the power.
Safety standards for laser beam products
- A laser beam can harm human being’s eyes, skin, etc., because of its high energy density. IEC and JIS have classified laser products according to the degree of hazard and the stipulated safety requirements. (Refer to p.1593~ for information about laser beam.)
Safe use of laser products
- For the purpose of preventing users from suffering injuries by laser products, IEC 60825-1(Safety of laser products). Please check the standards before use.
(Refer to p.1593~ for information about laser beam.)
Fuctional description
Sensor head

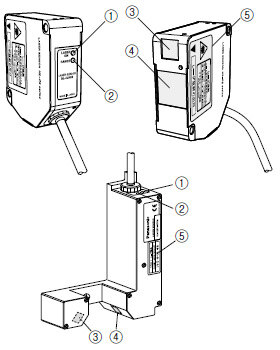

| Description | Function | |
|---|---|---|
| ① | Laser emission indicator (Green LED) | Lights up during laser emission. |
| ② | Measurement range indicator (Yellow LED) | Lights up when the target reaches the approximate center of the measurement. Blinks when the target enters within the measurement range. Turns off the light when the target goes out of the measurement range. |
| ③ | Light emitter | Emits the laser light. |
| ④ | Light receiver | Receives the laser specular light from a measurement target. |
| ⑤ | Warning label | Shows the laser emission position. Please read carefully before use. |
Controller
<RS-232C-compatible>
HL-C2C□
<Ethernet-compatible>
HL-C21C□

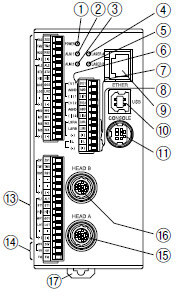

| Description | Function | |
|---|---|---|
| ① | POWER indicator | Lights up in green when electricity is provided to the controller. |
| ② | ALM1 (Alarm) indicator | Abnormal condition indicator for OUT1. Lights up in red during dark status (poor light intensity) of OUT1 or the sensor head is in unconnected status. |
| ③ | ALM2 (Alarm) indicator | Abnormal condition indicator for OUT2. Lights up in red during dark status (poor light intensity) of OUT2 or the sensor head is in unconnected status. |
| ④ | LASER A indicator | Lights up in green during the laser radiation of Head A. |
| ⑤ | LASER B indicator | Lights up in green during the laser radiation of Head B. |
| ⑥ | Analog output terminal | Terminal for analog data output. |
| ⑦ | Laser control terminal | Stops laser emission in case of short-circuiting. |
| ⑧ | Remote interlock terminal | Stops laser emission when its opened. |
| ⑨ | Ethernet connector | Equipped on HL-C21C□ models. Used for Ethernet communication with controllers. |
| ⑩ | USB connector | Used for communication with PC using USB. |
| ⑪ | Console connection connector | Used for connecting the mini console. |
| ⑫ | RS-232C connector | Equipped on HL-C2C□ models. Used for RS-232C communication with controllers. |
| ⑬ | I/O terminal | Terminal for various I/O and memory change. |
| ⑭ | Power terminal | Terminal for power supply to the controller. |
| ⑮ | Sensor head A connection connector | Controller recognizes a sensor head which is connected to this connector as “Sensor head A” and starts operation. |
| ⑯ | Sensor head B connection connector | Controller recognizes a sensor head which is connected to this connector as “Sensor head B”and starts operation. |
| ⑰ | DIN rail mounting hook | Used for hooking / removing the sensor heads to / from the 35 mm 1.378 in width DIN rail with one-touch simple operation. |
Note:
In case of connecting one sensor head to the controller, be sure to connect the sensor head to ⑮ the sensor head A connection connector (HEAD A) side. If the sensor head is connected to ⑯ the sensor head B connection connector (HEAD B) side, the measurement cannot be performed.

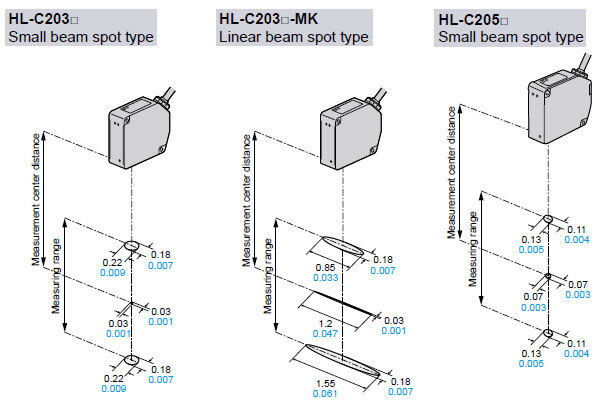

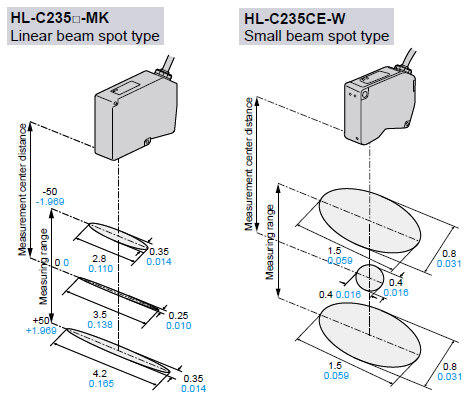

Beam size
(Unit: mm in)
Mutual interference
(Unit: mm in)
- When installing two or more sensor heads side by side, mutual interference will not occur if the laser spots from other sensor heads do not fall within the shaded areas in the figure below. When connecting two sensor heads to one controller, the mutual interference prevention function can be used. Therefore the measures shown below are not necessary in that case.

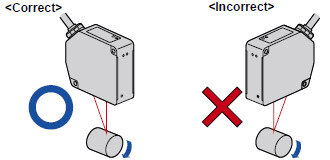

Sensor head mounting direction
- To obtain the greatest precision, the sensor head should be oriented facing the direction of movement of the object’s surface, as shown in the figure below.
Object with variations in material or color
Rotating object
Object that has large differences in gaps, grooves and colors
Others
- Do not use this product during the transient state when the power supply is turned ON.
