LP-RF200P｜FAYb Laser Marker LP-RF

Download

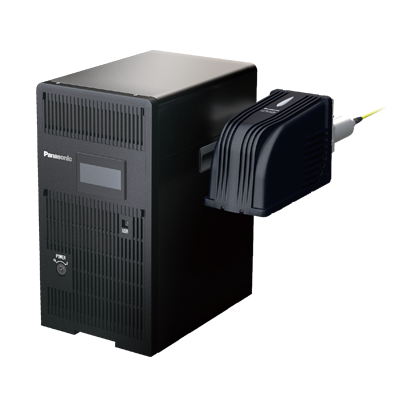

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

LP-RF200P

Part Number

LP-RF200P

Product

FAYb Laser Marker LP-RF

Product Name

 FAYb Laser Marker LP-RF

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberLP-RF200P
Product NumberLP-RF200P
Products NameFAYb Laser Marker LP-RF
Marking laser : Laser typeYb fiber laser; λ= 1,064 nm 0.0419 mil Class4 laser
Marking laser : Average oscillator output20W
Marking laser : Average output at processing point17 W (±5 %) Pulse oscillation (Pulse cycle: 5 μs to 50 μs)
(Note)This indicates the output power at processing point when maximum power is set. (Factory default)
Guide laser / pointerRed semiconductor laser; λ= 655 nm 0.026 mil; Class 2 laser: Maximum output 1 mW or less
Scanning methodGalvano scanning method
Marking field90 mm × 90 mm 3.543 in × 3.543 in
Work distance190 mm 7.480 in
(Note)There may be an individual difference of approximately ±0.5 mm ±0.02 in in the work distance.
Scan speedMaximum 12,000 mm/sec. 472.441 in/sec.
(Note1)The indicated values show the allowable setting range. The setting values that can maintain the marking / processing quality vary depending on the marking condition and target material.
(Note2)Depending on the setting data, the scan speed may be subject to upper-limit restriction in some cases.
Compatible line speedMaximum 240 m/min. 787.402 ft/min.
(Note)Depending on the setting data, the scan speed may be subject to upper-limit restriction in some cases.
CharacterEnglish uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS level-1 and level-2), symbols, user-registered characters (up to 50), True type Simplified Chinese characters: GB 2312 level-1 and level-2
Bar codeCODE39,CODE93, CODE128 (GS1-128), ITF, NW-7, EAN/UPC/JAN
GS1 DataBar Limited, GS1 DataBar Stacked,
GS1 DataBar Limited CC-A, GS1 DataBar Stacked CC-A
2D codeQR Code, Micro QR Code, iQR Code, Data Matrix, GS1 Data Matrix, PDF417
Figure dataVEC, DXF, HPGL, BMP, JPEG, AI, EPS
(Note)VEC is a figure file format designed exclusively for laser markers. If figure files in the AI or EPS format are used, they must be converted to VEC-format files in advance using the ExportVEC software provided with the product.
Input / output portI/O terminal block (40 pins), I/O connector (40 pins)
InterfaceEIA-RS-232C, Ethernet, EtherNet/IP (Note 1, 2), PROFINET (Note 1, 2)
(Note 1) : Please prepare optional items separately for communication.
LP-ANW10: EtherNet/IP, LP-ANW11: PROFINET
EtherNet/IP is a registered trademark of ODVA (Open DeviceNet Vender Association, Inc.).
PROFINET is a registered trademark of PROFIBUS & PROFINET INTERNATIONAL.
(Note 2) : Supported from the production in September 2019.
Cooling methodHead: Naturally air cooling, Controller: Forced air cooling
Power supply180-264 V AC (including power voltage fluctuation of ±10 %), 50/60 Hz
(Note)Frequency is selected and set automatically.
Power consumption370 VA or less (2.1 A or less)
(Note)The rush current (typical value) at startup is as follows: 220 V AC (current flowing time of 10 ms or less): 50 A
Protection degreeHead: IP64
Ambient temperature0 to +40 ℃ +32 to +104℉
(Note1)Common to the controller and head. There must be no dew condensation or icing.
(Note2)Laser power setting of 46 or higher: 0 to +36 ℃ +32 to +97 ℉,
Laser power setting of 1 to 45: 0 to 40 ℃ 32 to 104 ℉
Ambient temperature for storage-10 to +60 ℃ +14 to +140
(Note)Common to the controller and head. There must be no dew condensation or icing.
Ambient humidity35 to 85 % RH
(Note)Common to the controller and head. There must be no dew condensation or icing.
Net weight : Head8 kg approx.
Net weight : Controller37 kg approx.
Applicable standards and certificatesFDA Regulations, CE Marking [Machinery Directive (Declaration of Incorporation), EMC Directive, RoHS Directive], UKCA Marking [Supply of Machinery (Safety) Regulations (Declaration of Incorporation), EMC Regulations, RoHS Regulations], Chinese Standard GB 7247.1
Supplied softwareLaser Marker Smart Utility (Laser Marker NAVI Smart, logo data editing software, ExportVec, font maker software)
Laser Marker NAVI smart display languagesJapanese, English, Chinese (simplified Chinese character), German
Supported OSWindows® 10 Pro (32 bit, 64 bit), Windows® 8.1 Pro (32 bit, 64 bit)
(Note 1) : Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
(Note 2) : OS versions of which Microsoft has ended support are excluded.
