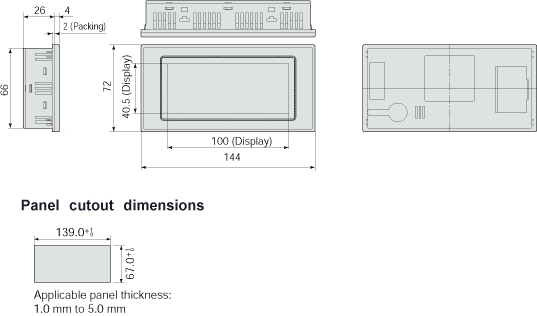

| Rated voltage | 24 V DC |
|---|
| Operating voltage range | 21.6 to 26.4 V DC |
|---|
| Power consumption | 2.4W max. |
|---|
| Power supply unit isolation method | - |
|---|
| Ambient temperature | 0 to 50 °C |
|---|
| Ambient humidity | 20 to 85% RH (No dew condensation) |
|---|
| Storage temperature | -20 to 60 °C |
|---|
| Storage humidity | 10 to 85% RH (No dew condensation) |
|---|
| Vibration resistance | 10 to 55 Hz (1-minute cycle): Double amplitude: 0.75 mm, 10 minutes in each of the X, Y, and Z directions |
|---|
| Shock resistance | 98 m/s2 min: 4 times in each of the X, Y, and Z directions |
|---|
Superposed noise
suppression | 1,000 V [P-P] min, pulse width of 50 ns, 1ms between power supply terminals (by a noise simulator) |
|---|
| Environmental resistance | IP65 (in the initial stages) Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)
*When reattaching the panel, replace the waterproof packing. |
|---|
| Mass | Approx. 230 g |
|---|
| Display | Display device | STN monochrome LCD |
|---|
| Resolution | 240 (W) x 96 (H) dots |
|---|
| Display color | 2 colors (black/white) |
|---|
| Displayable area | 96.0 (W) x 38.4 (H) mm |
|---|
| Backlight | 3-color LED (green, orange, red)/White LED *No need for replacement |
|---|
| Functions | Font types | Fixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots Characters can be displayed in the 1, 2, 4, or 8 times width or height.
TrueType (GTWIN): 10, 12, 14, 16, 24, 26, 28, 32, 36, 48, and 64 Windows (R): 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 32, 36, 48, and 64 |
|---|
| Languages | Japanese, English, Korean, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, Turkish |
|---|
| Graphics | Straight lines, continuous straight lines, squares, circles, ovals, arcs, elliptic arcs, fan shapes, elliptic fan shapes, beveled squares, bitmaps |
|---|
| Number of screens | Approx. 250 screens*1 |
|---|
| Screen No. that can be set | Base screens: No. 0 to 3FF, Keyboard screens: No. 0 to 7 |
|---|
| Part functions | Messages, lamps, switches, data, bar graphs, clocks, keyboards, line graphs, and alarm list parts |
|---|
| Other functions | Recipe, flow display, write device, alarm record, alarm list, and language switching |
|---|
| Clock function | Provided with a built-in clock function. (Can also refer to and display a PLC clock.) *Buy a commercially available battery. |
|---|
| Contrast adjustment | Contrast can be adjusted by using the touch panel. |
|---|
| Automatic communication settings | The communication conditions of dedicated software and PLC can be automatically set by connecting a cable. |
|---|
| Debugging function | GT connected between a PC and PLC allows the PLC to be debugged without a direct connection with the PC. |
|---|
| Screen creation | Dedicated software should be used. Applicable OS: Windowsｮ 95 (OSR2 or later)/98/Me/2000/NT/XP |
|---|
| Touch key resolution | Free layout (8 dots min) |
|---|
| Touch key operation force | 0.5 N max |
|---|
| Touch key life | 1 million operations min |
|---|
| COM. port | Communication standard | Conforms to RS232C | Conforms to RS422 |
|---|
| External communication conditions | Baud rate: 9,600/19,200/38,400/57,600/115,200 bps |
|---|
Data bits: 7 or 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit |
| Protocol | Our FP series supported/General-purpose serial interface supported/Other companies' PLC supported |
|---|
| Connector | Connector terminal base (8 pins) |
|---|
| Screen data transfer interface | Communication standard | Tool port (Conforms to RS232C) |
|---|
| Communication conditions with personal computers | Baud rate: 9,600/19,200/115,200/230,400 bps*2
Data bits: 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit |
|---|
| Protocol | Our dedicated protocol |
|---|
| Connector | 5-pin mini-DIN |
|---|
| Ethernet port | - |
|---|
