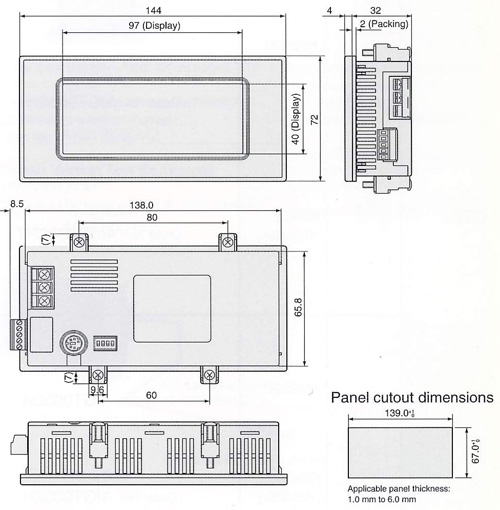

| Rated voltage | 24V DC |
|---|
| Operating voltage range | 21.6V DC to 26.4V DC (25V DC max. if installed horizontally at 40 ℃) |
|---|
| Power consumption | 5W max. |
|---|
| Ambient temperature | 0℃ to 40℃ |
|---|
| Ambient humidity | 20%RH to 85%RH (No dew condensation) |
|---|
| Storage temperature | -20℃ to 60℃ |
|---|
| Storage humidity | 10%RH to 85%RH (No dew condensation) |
|---|
| Vibration resistance | 10Hz to 55 Hz (1-minute cycle) : Conforms to JIS C0040
Double amplitude : 0.75mm, 10 minutes in each of the X, Y, and Z directions |
|---|
| Shock resistance | 98m/s2 min : Conforms to JIS C0041 4 times in each of the X, Y, and Z direction |
|---|
| Superposed noise suppression | 1,000V[P-P] min, pulse width of 50ns, 1ms between power supply terminals (by a noise simurator) |
|---|
| Environmental resistance | IP65 (in the initial stages) Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface)
* When reattaching the panel, replace the waterproof packing. |

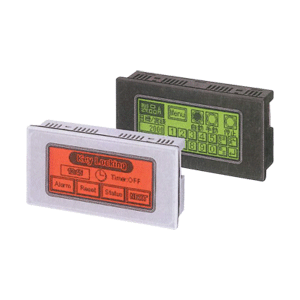

|---|
| Mass | Approx. 260g |
|---|
| Display | Display device | STN monochrome LCD |
|---|
| Resolution | 160(W) x 64(H) dots |
|---|
| Display color | Two clolrs (black / white) |
|---|
| Display area | 92.8(W) x 37.1(H)mm |
|---|
| Backlight | 3 color LED backlight (green, red, orange) * No need for replacement |
|---|
| Functions | Font types | Fixed font : 8 x 8, 16 x 8, 16 x 16 dots Characters can be displayed in the original, doubled, or quadrupled width or height.
TrueType fonts, Windows fonts |
|---|
| Language | Japanese, English, Europian languages, Simplified Chinese, Traditional Chinese, Korean |
|---|
| Graphics | Straight lines, continuous straight lines, squares, circles, ovals, arcs, elliptic arcs, fan shapes, elliptic fan shapes, beveled squares, bitmaps |
|---|
| Number of screens | Approx. 160 screens
Screen No. that can be set : Base screen No.00 to FF
The number of screens that can be registered varies according to the registered contents. |
|---|
| Part function | Message, lamps, switches, data, bar graphs, clocks, keybords |
|---|
| Colck function | Provided with a built-in clock function. (Con also refer to and display a PLC clock.) |
|---|
| Contrast adjustment | Contrast can be adjustment by using the touch panel. |
|---|
| Automatic communication setting | The communication conditions of dedicated software and PLC can be automatically set by connecting a cable. |
|---|
| Debugging function | Pass-through function (PLC can be debugged from a personal computer by connecting the computer to the TOOL port and the PLC to the COM. port.) |
|---|
| Screen creation | Dedicated software should be used. Applicable OS: Windows® 95(OSR2 or later) / 98 / Me / 2000 / NT / XP |
|---|
| Touch key resolution | 20(W) x 8(H) |
|---|
| Touch key operation force | 0.98N max |
|---|
| Touch key life | 1 million operations min |
|---|
COM.
port | Communication standard | Conforms to RS232C |
|---|
| External communication conditions | Baud rate: 9,600 / 19,200 / 38,400 / 57,600 / 76,800 / 115,200 bits/s |
|---|
data bits: 7 or 8bits
parity: None, Odd, Even
Stop bit: 1bit |
| Protocol | Our FP series supported / General-purpose serial interface supported / Other companies' PLC supported |
|---|
| Connector | Connector terminal base (5 pins) |
|---|
TOOL
port | Communication standard | Conforms to RS232C |
|---|
| Communication conditions with pewsonal computers | Baud rate: 9.600 / 19,200 / 115,200 bits/s
Data bits: 8bits
parity: None, Odd, Even
Stop bits: 1 bit |
|---|
| Protocol | Our dedicated protocol |
|---|
| Connector | 5-pin mini-DIN |
|---|
