Basic Information

Entry-level model touch panel
Features
The panel face protection sheet for the GT series is available as an option.

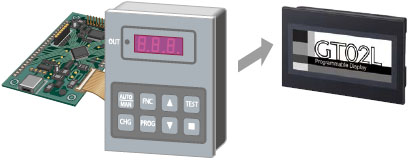

For replacing your touch panel
Contributes to the miniaturization of control panels.

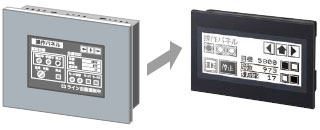

For replacement of your membrane-type switch panel
The customizable button layout and switchable screens make design modification and maintenance easier.
Compact body with a wide LCD that is the largest size in its class
The small body of 74 mm 2.913 in high and 112 mm 4.409 in wide is equipped with a 3.7 inch large LCD. The analog touch system does not display any annoying visible dots or lines.

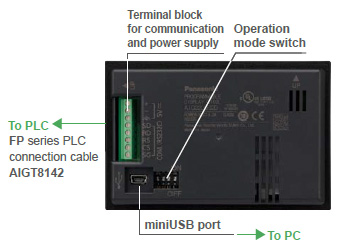

MiniUSB interface as standard equipment
Supports the through function using a USB cable, allowing simultaneous debugging of PLC and GT.
Flexible sizing and layout available for switches and characters
Switches of a minimum of 8 × 8 dots can be moved in increments of one dot.
A wide range of character fonts and sizes (10 to 64 dots) are supported.
Portrait orientation ideal for narrow spaces
Installation in narrow spaces is possible, enhancing the degree of system design freedom.
SD Solutions only Panasonic Industry can provide
Links and expansion via SD
As small-size touch panels have significantly improved their image quality, easy to read displays with sharp characters are no longer special features these days.
Instead, programmable displays will evolve with maximum "user-friendliness" in various applications with PCs or other devices.
As shown below, our touch panels exchange and store data using SD memory card, data for many applications.
PLC program transfer without the use of a PC
It is possible to modify PLC ladder programs as well as the GT screen programs by using an SD / SDHC memory card.
SD / SDHC memory card enables everyone to easily modify programs.
* Our FP series, excluding FP7 / FP0H.
SD card data transfer function
Log and other data saved on a SD memory card inserted into the GT’s onboard SD memory card slot can now be sent to a PC using a USB connection.
Notes:
1) Installation on the PC of GT_SD_Reader software is required. This software is installed simultaneously with Terminal GTWIN (Ver. 2.E1 and higher).
2) The GT unit firmware must be a version that supports this function. If you are using a version that does not support this function, please upgrade by downloading it from our website.
SD logging function to produce data “Visualization”
Capable of automatically collecting electrical power readings of Eco-POWER METERS and displaying them in a real time graph, allowing users to take quick actions for solutions.
● The GT unit can collect data, such as electrical power on an SD / SDHC memory card, and display the log data in a real time graph.
You can make data “Visualization” without using a PC as a display or Data logger for collecting data.
● One bar graph has a maximum of eight bars and can be combined with line graphs.
● The following three conditions can be selected to trigger an operation to save log data.
(1) Specified time (2) Specified cycle (1 sec. to 24 hrs.) (3) Specified condition
● Large volumes of data can be saved on an SD / SDHC memory card, which can be carried with you.
SD recipe function
For high-mix production, recipe data up to 64 types and 4,096 devices in total, can be easily set on a PC. The created recipe data is saved on an SD / SDHC memory card, and the specified data can be written or read from a PLC.
Saving alarm history data on an SD / SDHC memory card
The alarm history data stored in the GT built-in memory can be saved on an SD / SDHC memory card, making it possible to easily control problems on a PC.
Highly flexible screen design!
GT series displays use an analog-touch panel where locations of parts and characters can be adjusted in increments of one dot. The adoption of the Windows® font has widened the character size selection (10 to 240 dots), making the screen design more flexible.
Note : The maximum size varies depending on the model.
Graph function
One bar graph has a maximum of eight bars and can be combined with line graphs.
Portrait display ideal for narrow spaces
The unit can display screens in portrait orientation and can therefore be installed in narrow spaces, expanding system design possibilities and contributing to size reduction.
The portrait display is also ideal for slim equipment without enough space to install a display.
Flow display function
A flowing message of up to 64 characters (two-byte) can be displayed at the bottom of the screen. (128 messages)
Multi-function switches
Multiple operations are possible. For example, screens can be switched by setting multiple values.
4,096-color parts libraries
3D-design buttons with higher visibility and operability are available.
FP monitoring function [FP0H / FP2SH / FP0R / FP-Σ / FP-X / FP-X0 / FP-e]
*Excluding FP7
Five convenient features of GT series for improved compatibility with our FP series of PLCs
[1] Device monitor (Display and change values of FP series devices. Three different modes available.)
(1)Easy monitor mode:Use this mode when you want to monitor something. Display is continuous when one device is specified and the device can be changed.
(2)Entry monitor mode:Use this mode when you want to monitor multiple devices. You can register devices you want to display one-by-one and you can change them.
(3)Forced on / off mode:Use this mode feature to forcibly turn output on and off. You can set devices one-by-one for which you want to control output.
[2] System register monitor (Display and change of system register values.)(Excluding FP0H))
You can specify the system register number, display the value, and change it.
[3] Shared memory monitor (Display shared memory values.)
You can specify the slot number, bank number and address, and display the value. You cannot change the value.
[4] Error monitor (Display an error occurring in the FP series PLC.)
You can display the self-diagnostic result, error code and error flag, and you can even clear the error.
[5] Password setting (Set the password to protect FP series program reading and writing functions.)
Password registration and clearing is possible for the FP series password protection function.
Multiple GT displays can be connected to our PLC FP series. (RS-485 type)
GT link function
Up to 32 GT displays can be connected to one PLC unit without communication programs. The same screen operation is possible at a conveyor line or other remote locations, and the number of PLC units can be reduced, cutting the production process costs.
Notes:
1) As the number of connected units increases, the response slows down.Check the speed in the actual line.
2) The response time becomes relatively longer than those in the case of one-to-one connection. Please evaluate whether a sufficient performance can be obtained in designing the system.
Connectivity with multiple PLCs
Up to 31 PLC units can be connected to one GT unit. Progress in multiple production lines can be centrally monitored and controlled via one GT unit.
Notes:
1) This function cannot be used for a data link between PLCs.
2) The response time becomes relatively longer than those in the case of one-to-one connection. Please evaluate whether a sufficient performance can be obtained in designing the system.
Enhanced security with password protection
Password protection and operation security functions protect the data asset in the display unit and control the authorization for operation.
Password protection function
The screen data upload operation can be restricted by using passwords to protect the data asset in the display unit.
Operation security function
Up to 64 operators can set individual passwords, and up to 16 levels of restrictions can be set on displays and operations for each part. The registered users and passwords can be changed on the display unit.
High-efficiency operation with through function
This function allows operators to simultaneously carry out the transfer of screen data of a GT series display and the debugging of our FP series PLC connected to the display.
Easy-to-switch language
Conventionally, screens were created for each language. With this new language switching function, data can be registered in multiple languages (up to 16) for each part. The characters can be easily edited with Microsoft Excel® and then imported.
Write device function
This function modifies the PLC data or turns bits on/off according to the PLC status or the screen No. Now four arithmetic operations between devices are also possible.
------------------------------ Tab2 showing ------------------------------
Order guide
[Note]
The following applicable products and options are available continuously.
Product name | DescriptionScreen size | Part No. | |
---|---|---|---|
Terminal GTWIN Ver.3 *1 | Japanese version | Terminal GTWIN CD-ROM | AIGSGT7JP |
English version | Terminal GTWIN CD-ROM | AIGSGT7EN |
Note: The model of the "Available" have a built-in clock.
*1: Some functions are not supported in GT series other than GT703/704/707.
PLC connection cable
■5V DC
Power supply and communication port | Connection cable | PLC |
---|---|---|
5 V DC RS-232C | PLC connection cable (2 m 6.562 ft), 5-pin mini-DIN connector (4 single wires) + Shielding wire | Our FP Series (Excluding FP7 / FP0H / FP-XH) *2 |
5 V DC RS-422 / RS-485 | PLC connection cable (2 m 6.562 ft), 8-pin mini-DIN connector (6 single wires) + Shielding wire | Mitsubishi Electric FX Series |
*1: This cable is for GT series (5 V DC), and power is supplied through the tod port.
*2: The FP7 / FP0H / FP-XH series PLC can be connected using commercially available single wire cables.
------------------------------ Tab3 showing ------------------------------
Option
[Note]
The following applicable products and options are available continuously.
Panel face protection sheets
10 sheets in a set (option)
Part No.:AIG02800
Waterproof packing
Waterproof packing (for replacement),10 pieces in a setPackage includes one set.
Part No.:AIG02810
Note: The waterproof packing for GT02L is different from the GT02L main unit accessory.
Mounting parts
5 sets of mounting parts (4 parts/set)Package includes one set.
Part No.:AIG12830
Spare connector
5 connectors for communication and power supply in a setPackage includes one set.
Part No.:AIGT084
------------------------------ Tab4 showing ------------------------------
Specifications
Product name | GT02L | ||
---|---|---|---|
Type | 5 V , RS-232C | 5 V , RS-422 / RS-485 | |
Part No. | AIG02LQ02D | AIG02LQ04D | |
Applicable regulations | CE Marking (EMC Directive, RoHS Directive) (Excluding some models), UKCA Marking (EMC Regulations, RoHS Regulations) (Excluding some models) | ||
Power supply | 5 V DC | ||
Operating voltage range | 4.5 to 5.5 V DC | ||
Power consumption | 1 W or less | ||
Power supply unit isolation method | - | ||
Ambient temperature | 0 to +50 ℃ +32 to +122 ℉ | ||
Ambient humidity | 20 to 85 % RH (at +25 ℃ +77 ℉), (No dew condensation allowed) | ||
Storage temperature | –20 to +60 ℃ –4 to +140 ℉ | ||
Storage humidity | 10 to 85 % RH (at +25 ℃ +77 ℉), (No dew condensation allowed) | ||
Vibration resistance | 5 to 8.4 Hz amplitude: 3.5 mm 0.138 in, 8.4 to 150 Hz acceleration 9.8 m/s2, 10 sweeps each in X, Y and Z directions (1 octave/min.) | ||
Shock resistance | 147 m/s2, 3 times in each of the X, Y and Z directions | ||
Superposed noise suppression | 1,000 V [P-P] or more, pulse width of 50 ns, 1 μs between power supply terminals (by a noise simulator) | ||
Protection | IP65 (in the initial stages) (Note 1) | ||
Net weight | 150 g approx. | ||
Display | Display device | STN monochrome LCD | |
Resolution | 160 (W) × 64 (H) dots | ||
Display color | 2 colors (black / white) | ||
Displayable area | 88.0 (W) × 35.2 (H) mm 3.465 (W) × 1.386 (H) in | ||
Backlight | White LED | ||
Functions | Font types | Fixed (GTWIN) : 1/4 width (8 × 8), half width (16 × 8), full width (16 × 16) CharacteRS- can be displayed in the 1, 2, 4, or 8 times width or height. TrueType (GTWIN): 10 to 64 dots Windows®: 10 to 64 dots | |
Languages | Japanese, English, Simplified Chinese, Traditional Chinese, Korean, German, Italian, Spanish, French, Turkish, Russian, Vietnamese | ||
Graphics | Straight lines, Continuous straight lines, Squares, Circles, Ovals, Arcs, Elliptic arcs, Fan shapes, Elliptic fan shapes, Beveled squares, Bitmaps | ||
Number of screens (Note 2) | 80 screens approx. | ||
Screen setting No. | No. 0 to 3FF | ||
Part functions | Messages, Lamps, Switches, Function switches, Data, Bar graphs, Clocks, Keyboards, Line graphs, Alarm list, Custom parts (messages, lamps, switches) | ||
Other functions | Recipe, Flow display, Write device, Language switching, GT link, Operation security, Data logging, SD recipe (Note 3) | ||
Clock function | Displayed by referencing PLC clock | ||
Contrast adjustment | Contrast can be adjusted by using the touch panel. | ||
Buzzer | - | ||
Automatic communication settings | The communication speed (baud rate) is automatically changed if there is no response from the target equipment. | ||
Through function | GT connected between PC and PLC allows PLC to be debugged without a direct connection to a PC. | ||
Screen creation | Dedicated software should be used. Applicable OS: Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10 (Note 4) | ||
Touch key resolution | Free layout (8 dots min.) | ||
Touch key operation force | 0.8 N or less | ||
Touch key life | 1 million operations or more (at +25 ℃ +77 ℉) | ||
COM. port | Communication standard | Conforms to RS-232C | Conforms to RS-422 / RS-485 |
External communication conditions | Baud rate: 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps, 115,200 bps Data bits: 7 or 8 bits, Parity: None, Odd, Even, Stop bits: 1 bit | ||
Protocol | Our FP series supported, General-purpose serial interface supported, Other companies' PLC supported (Refer to the "PLC Compatibility") | ||
Connector | Connector terminal block (8 pins) | ||
Screen data transfer interface | Communication standard | USB1.1 | |
Protocol | Our dedicated protocol | ||
Connector | USB Mini-B | ||
User's memory | Memory | F-ROM | |
Capacity | 704 kbyte |
Notes:
1) AIG02MQ03D and AIG02GQ02D incorporate ferrite included in our PLC connection cable (AIGT8142).
2) This protective structure condition applies to the front surface of the installed panel. This condition does not guarantee usage in all environments provided by users. When reattaching the panel, replace the waterproof packing.
3) The number of screens that can be registered varies according to the registered contents.
4) The data logging and SD recipe functions are available with only models equipped with an SD / SDHC memory card slot.
5) The 64-bit version is not supported except for Windows® 7 / 8 / 8.1 / 10.
Windows is registered trademark or trademark of Microsoft Corporation in the United States and other countries.
Conformance to the UL / c-UL standards
UL / c-UL file No. | E96300 |
---|---|
UL standard No. | UL508 |
------------------------------ Tab5 showing ------------------------------
Dimensions

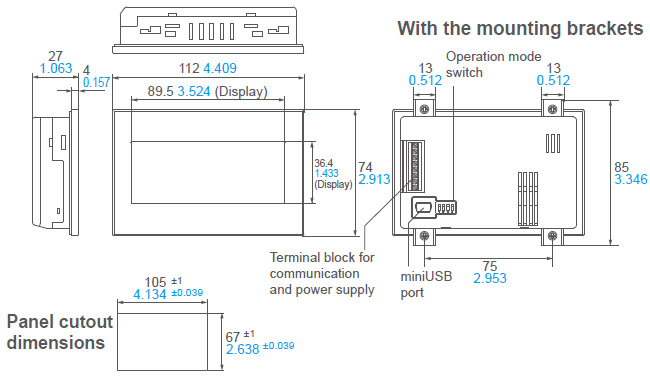

- Unit: mm in
Applicable panel thickness : 1.0 to 5.0 mm 0.039 to 0.197 in
------------------------------ Tab6 showing ------------------------------
------------------------------ Tab7 showing ------------------------------
PLC Compatibility
Models listed are the models that have been evaluated as of November, 2016.
Company name | Series | Model | RS-232C type | RS-422 / RS-485 type*2 |
---|---|---|---|---|
Our company | FP series | FP7 | ◎ | ○ |
FP-X | ◎ | ○ | ||
FP-X0 | ◎ | ○ | ||
FPΣ | ◎ | ○ | ||
FP-e | ◎ | ○ | ||
FP0 | ◎ | ○ | ||
FP0R | ◎ | ○ | ||
FP2 | ◎ | ○ | ||
FP2SH | ◎ | ○ | ||
Mitsubishi Electric*1 | FX series | FX0N | ○ | ◎ |
FX1S | ○ | ◎ | ||
FX1N | ○ | ◎ | ||
FX1NC | ○ | ◎ | ||
FX2N | ○ | ◎ | ||
FX2NC | ○ | ◎ | ||
FX3UC | ○ | ◎ | ||
FX3U | ○ | ◎ | ||
FX3G | ○ | ◎ | ||
FX3GC | ◎ | |||
IQ-F series | FX5U | ○ | ◎ | |
FX5UC | ○ | ◎ | ||
Q series | Q00CPU | ◎ | ||
Q01CPU | ◎ | |||
Q00JCPU | ○ | |||
Q00HCPU | ○ | |||
Q00UJCPU | ◎ | |||
Q26UDHCPU | ○ | ○ | ||
Q25HCPU | ◎ | |||
Q12HCPU | ◎ | |||
Q06HCPU | ◎ | |||
Q02HCPU | ◎ | |||
Q02CPU | ◎ | |||
A series (Except GT7□□) | A1N | ○ | ||
A2N | ○ | |||
A3N | ○ | |||
A1S | ○ | |||
A1SJ | ○ | |||
A2SH | ○ | |||
A1SH | ○ | |||
A2CCPU24 | ◎ | |||
Omron*1 | C series | C200H | ○ | |
C200HS | ◎ | |||
C500 | ○ | |||
C500F | ○ | |||
C1000H | ○ | |||
C2000 | ○ | |||
C2000H | ○ | |||
C1000HF | ○ | |||
C20H | ◎ | |||
C28H | ◎ | |||
C40H | ◎ | |||
C120 | ○ | |||
C120F | ○ | |||
CQM1-CPU42 | ◎ | |||
SRM1-C02 | ◎ | |||
CPM2A | ◎ | |||
CPM1-20CDR-A | ○ | |||
CQM1H-CPU21 | ◎ | |||
CPM2C | ◎ | |||
CPM2B | ◎ | |||
α series | C200HE-CPU32(-Z) | ○ | ||
C200HG-CPU33(-Z) | ○ | |||
C200HG-CPU53(-Z) | ○ | |||
C200HX-CPU34(-Z) | ○ | |||
C200HX-CPU54(-Z) | ○ | |||
C200HE-CPU42(-Z) | ◎ | |||
C200HG-CPU43(-Z) | ◎ | |||
C200HG-CPU63(-Z) | ◎ | |||
C200HX-CPU44(-Z) | ◎ | |||
C200HX-CPU64(-Z) | ◎ | |||
C200HX-CPU65-Z | ◎ | |||
C200HX-CPU85-Z | ◎ | |||
CV series | CV500 | ◎ | ||
CV1000 | ◎ | |||
CVM1 | ◎ | |||
CS1 series | CS1H-CPU67 | ◎ | ||
CS1H-CPU66 | ◎ | |||
CS1H-CPU65 | ◎ | |||
CS1H-CPU64 | ◎ | |||
CS1H-CPU63 | ◎ | |||
CS1G-CPU45 | ◎ | |||
CS1G-CPU44 | ◎ | |||
CS1G-CPU43 | ◎ | |||
CS1G-CPU42 | ◎ | |||
CJ series | CJ1H | ◎ | ||
CJ1M | ◎ | |||
CJ1G | ◎ | |||
CJ2H | ◎ | |||
CP1 series | CP1H | ○ | ||
CP1L | ○ | |||
CP1E | ◎*4 | ○ | ||
Toshiba Machine*1 | TC mini series | ◎ | ◎ | |
Models with RS-232C port | Models with RS-485 port | |||
Yokogawa Electric*1 | FA-M3 series | F3SP59-7S | ◎ | |
F3SP58-6S | ◎ | |||
F3SP58-6H | ◎ | |||
F3SP53-4S | ◎ | |||
F3SP53-4H | ◎ | |||
F3SP38-6S | ◎ | |||
F3SP38-6N | ◎ | |||
F3SP35-5N | ◎ | |||
F3SP28-3S | ◎ | |||
F3SP28-3N | ◎ | |||
F3SP25-2N | ◎ | |||
F3SP21-0N | ◎ | |||
KEYENCE*1 | KV Nano series | ◎ | ||
KV series | KV-10/16/24/40 | ◎ | ||
KV700 | ◎ | ○ | ||
KV1000 | ◎ | ○ | ||
KV3000 | ◎ | ○ | ||
KV5000 | ○ | ○ | ||
Hitachi Industrial Equipment Systems*1 | EH-150 EHV series | EHV-CPU128 | ◎ | ◎ |
EHV-CPU64 | ◎ | ◎ | ||
EHV-CPU32 | ◎ | ◎ | ||
EHV-CPU16 | ◎ | ◎ | ||
EH-150 series | EH-CPU104A | ◎ | ◎ | |
EH-CPU208A | ◎ | ◎ | ||
EH-CPU316A | ◎ | ◎ | ||
EH-CPU516 | ◎ | ◎ | ||
EH-CPU548 | ◎ | ◎ | ||
MICRO-EH series | 10-point | |||
14 / 20-point | ◎ | |||
23 / 28-point | ◎ | ◎ | ||
40 / 64-point | ◎ | |||
Web controller | 10-point | ◎ | ||
23-point | ◎ | ◎ | ||
Rockwell Automation*1 (Allen-Bradley) Models that support DF protocol | MicroLogix series | MicroLogix500 | ◎ | |
MicroLogix1000 | ◎ | |||
MicroLogix1100 | ◎ | |||
SLC-500 series | SLC-5/03 | ◎ | ||
SLC-5/04 | ◎ | |||
Siemens*1 | S7-200 series | CPU222 | ○ | ◎ |
CPU216 | ○ | ◎ | ||
CPU215 | ○ | ◎ | ||
CPU214 | ○ | ◎ | ||
CPU212 | ○ | ◎ | ||
LS Industrial Systems*1 | MASTER-K series | 80S / 200S | ◎ | |
300S / 1000S | ○ | |||
Modbus*1 | Models that support RTU protocol | *3 | ◎ | ◎ |
General-purpose serial*1 | Our dedicated protocol | *3 | ◎ | ◎ |
*1) PLCs other than our FP series may be limited in the type of device that can be used and addresses. Please see manual for details.
*2) Communication may not be possible when using RS-485 depending on the sending and receiving timing with the other device.
*3) We cannot specify what other device you should use; therefore, please test it using the actual equipment before using.
*4) Available for models equipped with on RS-232C port.
◎: Direct connection is possible to the CPU unit of the PLC.
○: Connection is possible using the communications unit or a signal conversion cable, etc.
(Example: The QJ71C24N or QJ71C24N-R2 calculator link unit is required when using the Mitsubishi Q Series.)
Blank: Not evaluated.
Refer to the HELP of the latest version of tool software "Terminal GTWIN", or GT series Connection with other companies' PLC s Manual for more details such as usable devices and addresses.
