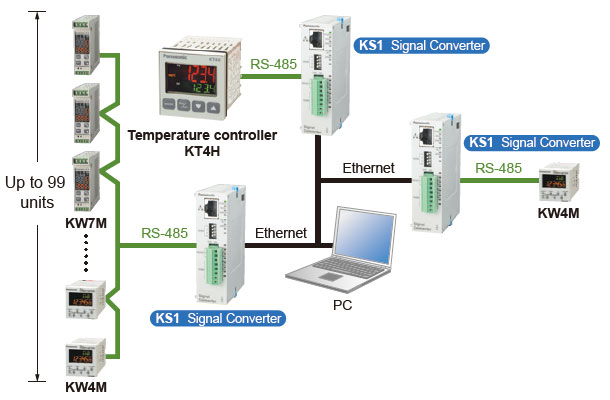

システム構成
------------------------------ Tab3 showing ------------------------------
Specifications
General Specifications
| Item | Specifications | |
|---|---|---|
| Rated voltage | 24 V DC | |
| Operating voltage range | 90 to 110%V of rated voltage (21.6 to 26.4 V DC) | |
| Rush current | 12 A or less | |
| Current consumption | 100 mA or less | |
| Allowed momentary power off time | 10 ms | |
| Fuse | Built-in type | |
| Terminal screw | M2 | |
| Ambient temperature | 0 to 55°C | |
| Storage temperature | -20 to +75°C | |
| Ambient humidity | 30 to 85% RH (at 20°C, non-condensing) | |
| Breakdown voltage | 500 V AC 1 minute | RS485 terminals ⇔ Combined power and ground terminals |
| Insulation resistance | 100 Mohm or higher (500 V DC using an insulation resistance meter) | |
| Vibration resistance | 10 to 55 Hz, 1 cycle/min.: double amplitude of 0.75 mm, 1 hour on 3 axes | |
| Shock resistance | 294 m/s2 or more, 5 times on 3 axes | |
| Dimensions | 25 X 60 X 90 | |
| Weight | Approx. 80 g | |
Communication Specifications Interface: RS232C and RS485
| Item | Specifications | ||
|---|---|---|---|
| Interface | RS-232C (non-insulated) | RS-485 (insulated) | |
| Conversion COM port*1 | COM1 | COM2 | |
| Communication style | 1:1 communication | 1:N communication | |
| Number of connection units | 1 unit | Max. 99 units | |
| Communication method | Full duplex system | Half-duplex operation | |
| Synchronous system | Synchronous communication method | ||
| Transmission distance | 15 m 49 ft | Max. 1,200 m 3,937 ft*2,3 | |
| Transmission speed | 2,400 / 4,800 / 9,600 / 19,200 / 38,400 / 57,600 / 115,200 bps | ||
| Connection connector quantity | Max. 3 | ||
| COM reception time-out | Setting range 10 ms to 300 s | ||
| Non-transmission connection cut-off time | Setting range: 0 to 1800 s （Setting value of 0 is not cut off) | ||
| Transmission format | Data length | 8 bit fixed | |
| Parity | Odd / even / none | ||
| Stop bit | 1 bit/2 bit | ||
| Terminator code | CR / CR+LF / None | ||
| Serial ⇔ Ethernet conversion format | Command response format | ||
*1 COM1 and COM2 can be used simultaneously.
*2 When connecting a commercially available device, please confirm operation using the actual device. In some case, the number of stations, transmission distance, and communication speed vary depending on the connected device.
*3 The values for the transmission distance, communication speed and number of stations should be within the values noted in the graph.
Communication Specifications Interface: Ethernet
| Item | Specifications | |
|---|---|---|
| Interface | IEEE802.3u, 10BASE-T/100BASE-TX | |
| Connector shape | RJ45 | |
| Transmission specifications | Transmission speed | 10Mbps / 100Mbps |
| Transmission method | Base band | |
| Max. segment length | 100 m | |
| Communication cable | Category 5 UTP cable | |
| Protocol | Modbus TCP (RTU, ASCII), TCP/IP | |
| Functions | Auto negotiation function, MDI/MDI-X, Auto crossover function | |
* Ethernet is a registered trademark of Xerox Corporation.
------------------------------ Tab4 showing ------------------------------

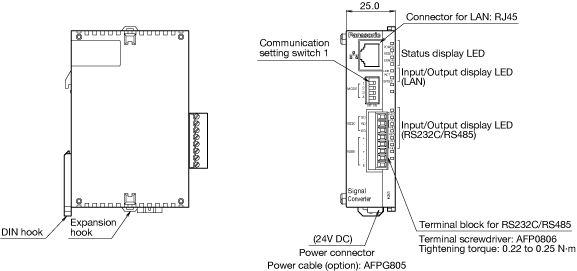

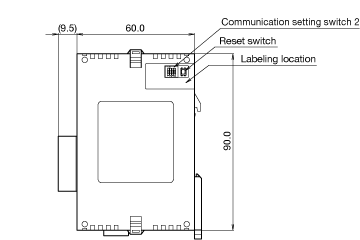

Dimensions
