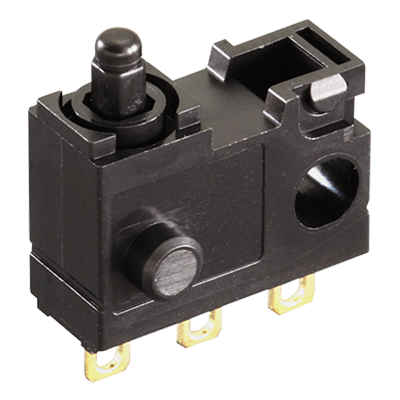

AEQ (EQ) Switches | Non Seal Type Micro Switches

Download

  • Lineup

  • Basic Information

------------------------------ Tab1 showing ------------------------------

Sliding contact construction Switches for Low-level Loads

No foreign certifications are acquired as of now.

    Please refer to "the latest product specifications" when designing your product.
    Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

      • Features

        1. Handles low level load: 100 μA at 3 V DC to 100 mA 30 V DC
        2. Long stroke: For pin plunger type, it maintains OT (Over Travel) with over 2.2 mm on the N.O. side and over 2.5 mm on the N.C. side.
        3. Since contact pressure does not depend on the operation stroke, the range of possible use over the entire stroke is greatly increased.
        4. Silent operation construction with sliding contact
        5. Protection grade: IP40

      • Typical Applications

        1. Crime prevention devices, Household appliances (Air conditioners, Air purifier, etc.)

      ------------------------------ Always showing ------------------------------

      • Lineup
      • Discontinued Products
      AEQ (EQ) Switches Product number list
      No matching products found.
      • Please review your search criteria and try again.
      • If you have any questions, feel free to contact us.
