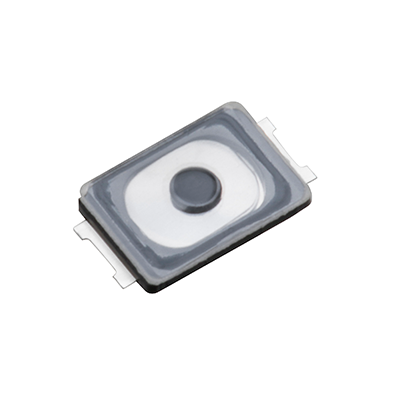

EVPAWED40｜3.0mm x 2.0mm SMD

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

EVPAWED40

Part Number

EVPAWED40

Details

Terminal with cutout type

Product Name

 3.0mm x 2.0mm SMD

Features

Low profile (0.6mm) and Small size (3.0 x 2.0mm). IP67

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberEVPAWED40
Product NumberEVPAWED40
Product detailsTerminal with cutout type
Type:EVPAW
External dimensions (LxW) (mm)3.0 x 2.0
External dimensions (H) (mm)0.6
Mounting Height (mm)0.6
Dimensions excluding push plate (mm)0.385
Operating directionTop push
Applicable solderingReflow
Mounting typeSMD
TypeSnap action / Push-on type SPST
Rating10μA 2V DC to 20mA 15V DC (Resistive load)
Contact Resistance (mΩ max.)500
Insulation Resistance (MΩ min. at 100V DC)50
Dielectric Withstanding Voltage 250 V AC (for 1minute)
Bouncing10ms max. (ON, OFF)
Operating Force (N)3.3
Travel TypeShort Push Travel
Travel (mm)0.15
Operating Life300,000 cycles
Protective constructionIP67
Operating Temperature-40℃ to +85℃
Storage Temperature-40℃ to +85℃ (Bulk)
-20℃ to +60℃ (Taping)
Terminal typeStraight
Push Plate
(Actuator)		With
Ground TerminalWithout
BossWithout
PackagingEmbossed Taping (Reel Pack)
Minimum Quantity/Packing Unit20,000 pcs.
Quantity/Carton100,000 pcs.
