ACJ5112P｜CJ Relays

Download

Discontinued

Last time buy (JST)

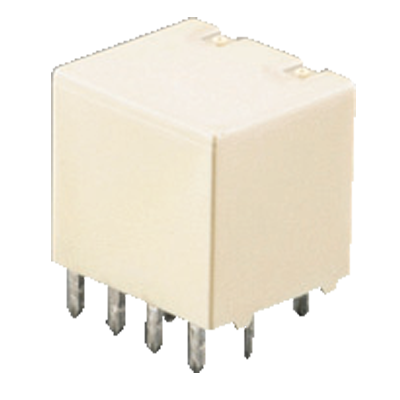

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

ACJ5112P

Part Number

ACJ5112P

Details

1 Form C x 2 (10 pins)

Product Name

 CJ Relays

Features

Compact Slim Twin and Single Type Automotive Relay
Substitute
Sub Prod No.
Sub Part No.
Remark

Spec Detail

ItemSpecifications
Part NumberACJ5112P
Product NumberACJ5112P
Product details1 Form C x 2 (10 pins)
Protective constructionFlux tight
Terminal shapePC board type
Operating functionSingle side stable
Rated coil voltage12V DC
Operate (Set) voltage (at20℃) (Initial)Max. 6.5V DC
Release (Reset) voltage (at20℃) (Initial)Min. 0.8V DC
Rated operating current [±10%] (at 20℃)66.7 mA
Coil resistance [±10%] (at 20℃)180Ω
Rated operating power (at 20℃)800mW
Usable voltage range9 to 16V DC
Mounting typePin in Paste compliant type
Contact arrangement1 Form C x 2 (10 pins)
Contact resistance (Initial)Max. 50mΩ (N.O. side: typ. 7mΩ, N.C. side: typ. 10mΩ) (By voltage drop 1A 6V DC)
Contact materialAg alloy
Rated switching capacity (resistive)N.O. side: 20A 14V DC, N.C. side: 10A 14V DC
Contact data: Max. carrying currentN.O. side: 20A for 1hour, 30A for 2 minutes (Coil applied voltage 14V DC at 20℃)
Min. switching load (resistive)1A 14V DC (at 20℃)
Insulated resistance (Initial)Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
Dielectric strength (Between open contacts) (Initial)500 Vrms for 1 min. (Detection current: 10mA)
Dielectric strength (Between contacts and coil) (Initial)500 Vrms for 1 min. (Detection current: 10mA)
Operate (Set) time
(at rated coil voltage) (at 20℃) (Initial)		Max. 10ms (without contact bounce time)
Release (Reset) time
(at rated coil voltage) (at 20℃) (Initial)		Max. 10ms (Without contact bounce time) (Without diode)
Shock resistance: FunctionalMin. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11ms; detection time: 10μs)
Shock resistance: DestructiveMin. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6ms)
Vibration resistance: Functional10 to 100 Hz, Min. 44.1 m/s2 [approx. 4.5G] (Detection time: 10μs)
Vibration resistance: Destructive10 to 500 Hz, Min. 44.1 m/s2 [approx. 4.5G],
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Expected life: Mechanical lifeMin. 107 (at 120 cpm)
Expected life: Electrical[Resistive load]Min. 105 (at rated switching capacity, operating frequency: 1s ON, 9s OFF
[Motor load]
N.O.side: Min. 105: at 25 A (inrush), 5A (steady), 14V DC: Min. 5x104: at 25A 14V DC (Motor lock)
N.C.side: Min. 105: at 20 A 14V DC (brake) (Operating frequency: 0.5s ON, 9.5s OFF)
ConditionsAmbient temperature: –40 to +85℃, Humidity: 5 to 85% RH (Avoid icing and condensation)
Unit weightApprox. 6.5 g
Packing styleTube
Inner carton (pieces)35
Outer carton (pieces)1,400
