ATX209TH｜TX Relays TH Types
Download

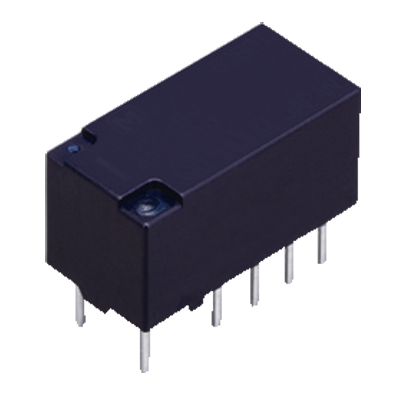

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | TX2-5V-TH |
|---|---|
| Part Number | ATX209TH |
| Details | Single side stable type, Standard PC board terminal, 5V DC |
| Product Name | TX Relays TH Types |
| Features | 7.5 A inrush current possible, 2 Form C small size relays |
- Download RoHS Compliance Certificate
- Download EU REACH SVHC Report
- A List of Part Numbers in This Series
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | ATX209TH |
| Product Number | TX2-5V-TH |
| Product details | Single side stable type, Standard PC board terminal, 5V DC |
| Protective construction | Sealed Type |
| Terminal shape | Standard PC board terminal |
| Contact type | Power type |
| Contact arrangement | 2 Form C |
| Contact material | Ag+Au plating |
| Operating function | Single side stable type |
| Rated operating power | 140mW |
| Rated coil voltage | 5V DC |
| Pick-up voltage (at20℃) | 75%V or less of nominal voltage (Initial) |
| Drop-out voltage (at20℃) | 10%V or more of nominal voltage (Initial) |
| Contact rating (resistive load) | 2A 30V DC, 0.5A 125V AC |
| Max.switching current | Inrush 7.5 A, Stedy 2 A |
| Max.switching current (*) | Inrush: 7.5 A, Steady: 2 A When used at 7.5 A. Regarding connection method, you must follow the precaution, Connection of No (pin #5 and #8) and COM (pin #4 and #9) in the cricuit is required. |
| Min. switching capacity | 10μA 10mV DC |
| Breakdown voltage (Initial) : Between open contacts | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown voltage (Initial) : Between contact and coil | 2,000 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown voltage (Initial) : Between contact sets | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Surge withstand voltage (initial): Between open contacts | 1,500 V 10 x 160 μs |
| Surge withstand voltage (initial): Between contact and coil | 2,500 V 2 x 10 μs |
| Expected life : Mechanical | Min. 100 x 106ope. (Switching frequency: at 180 times/min) |
| Expected life : Electrical | [Resistive load Switching frequency at 20 times/minute] Min. 500×103ope. 1 A 30 V DC Min. 100×103ope. 2 A 30 V DC Min. 100×103ope. 0.5 A 125 V AC [Inrush load, Switching frequency ON : OFF = 1s : 9s] Min. 200×103ope. Inrush current: 7.5 A 30 V AC (250 ms time) Steady state current: 1.5 A 30 V AC (cosΦ= 0.4) |
| Conditions | Ambient temperature: –40 to +85℃ (Allowable temperature is from －40 to ＋70 ℃ at our standard packing condition.) Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Height (mm) | 8.2 |
| Unit weight | Approx. 2 g .071 oz |
| Packing style | Tube packing |
| Standard packing: Inner packing (pcs.) | 40 |
| Standard packing: Case (pcs.) | 1000 |
Information on Compliance with Standards
Specifications and design of the products are subject to change without notice for the product improvement.
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL/C-UL | Approval 認定書(写)を 請求する | File No. | E43149 | |
| Rating | 0.5A 125V AC Resistive 0.3A 110V DC Resistive 2A 30V DC Resistive | |||
| Remarks | Approved by 100,000 operation rating | |||
| Last update | ||||
| CSA | N/A | File No. | - | |
| Rating | - | |||
| Remarks | CSA standard certified by C-UL | |||
| Last update | ||||
| BSI | Approval 認定書(写)を 請求する | File No. | BSI No.VC659956 | |
| Rating | - | |||
| Remarks | basic insulation | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
