AHEA4192｜HE-A Relays
Download

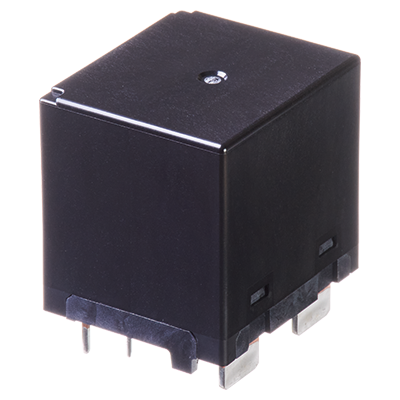

*Photo may vary from actual product.
| Product Number | AHEA4192 |
|---|---|
| Part Number | AHEA4192 |
| Product Name | HE-A Relays |
| Features | Compact size 1 Form A /１ Form A 1 Form B 110 A power relays for PV inverter, Charging station and Industrial equipment |
The external content (including but not limited to ECAD data) displayed hereafter is provided solely as reference data for design evaluation and review purposes. We make no warranties whatsoever with respect to such content, including, without limitation, its accuracy, completeness, usefulness, reliability, fitness for a particular purpose, non-infringement of intellectual property rights or other rights of any third party, or any other matter. In particular, please note that the content displayed hereafter may be presented after being simplified or converted by a third party based on data originally provided by us.
To the maximum extent permitted by applicable law, any use, editing, or any design, evaluation, manufacture, or other activities based on such content shall be undertaken solely at your own risk and responsibility. We shall not be liable for any damages, losses, or expenses arising from or in connection with any of the foregoing, whether in contract, tort (including negligence), strict liability, or otherwise.
Content provided by third parties may be subject to terms and conditions established by such third parties.
If you have read and agree to the above, please click "OK".
- Download RoHS Compliance Certificate
- Download EU REACH SVHC Report
- A List of Part Numbers in This Series
Contact Us
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AHEA4192 |
| Product Number | AHEA4192 |
| Protective construction | Flux-resistant |
| Operating function | Single side stable |
| Terminal shape | PC board terminal |
| Contact rating type | Standard type |
| Standard packing Carton (pieces) | 25 |
| Standard packing Case (pieces) | 100 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 24 V DC |
| Operate voltage (at20℃) | Max. 75% V of rated coil voltage (Initial) |
| Release voltage (at20℃) | Min. 5% V of rated coil voltage (Initial) |
| Rated operating current [±10%] (at 20℃) | 80 mA |
| Coil resistance [±10%] (at 20℃) | 300 Ω |
| Rated operating power | 1,920 mW Holding: 310 mW |
| Max. allowable voltage | (at 55℃) 110% V of rated coil voltage |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form A 1 Form B |
| Contact shape | Single |
| Contact resistance (initial) | Max. 10 mΩ (by voltage drop 6 V DC 20) Max. 100 mΩ (by voltage drop 6 V DC 1 A) |
| Contact material | Form A contact: AgNi type Form B contact: Au flashed AgNi type |
| Contact rating (Inductive load) | 90 A 277 V AC cosφ = 0.8 |
| Contact rating (resistive load) | Form A contact: 60 A 490 V AC, 55 A 800 V AC, 90 A 60 V DC Form B contact: 1 A 30 V DC |
| Max. switching power (resistive load) | Form A contact: 44,000 VA, 5,400 W Form B contact: 30 W |
| Max. switching voltage | Form A contact: 800 V AC, 60 V DC Form B contact: 30 V DC |
| Max. switching current | Form A contact: 90 A Form B contact: 1 A |
| Max. switching current (Inductive load) | 90 A |
| Max. carrying current | 110 A |
| Min. switching load (reference value) | Form A contact: 100 mA 5 V DC Form B contact: 10 mA 5 V DC |
| Insulation resistance (initial) | Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength) |
| Dielectric strength (initial) : Between open contacts | Between open Form A contacts: 2,000 Vrms for 1min (detection current: 10 mA) Between open Form B contacts: 1,000 Vrms for 1min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | Between Form A contact and coil: 5,000 Vrms for 1min (detection current: 10 mA) Between Form B contact and coil: 2,000 Vrms for 1min (detection current: 10 mA) |
| Dielectric strength : Between Form A contact and Form B contact | 5,000 Vrms for 1min (detection current: 10 mA) |
| Surge withstand voltage (initial) : Between contact and coil | 10,000 V (Between Form A contact and coil) 2,500 V (Between Form B contact and coil) |
| Coil holding voltage | 40 to 110% V (at -40 to +55℃), 40 to 60% V (at +55 to +85℃) |
| Operate time (initial) (at 20℃) | Max. 30 ms at rated coil voltage (without bounce) |
| Release time (initial) (at 20℃) | Max. 10 ms at rated coil voltage (without bounce, without diode) |
| Shock resistance (Functional) (initial) | 98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) (initial) | 980 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional)(initial) | 10 to 55 Hz (at double amplitude of 1.0 mm, detection time: 10 μs) |
| Vibration resistance (Destructive)(initial) | 10 to 55 Hz (at double amplitude of 1.5 mm) |
| Mechanical life | Min. 106 ope. (switching frequency: at 180 times/min) |
| Conditions | Ambient temperature: -40 to +55℃ (When applied coil hold voltage is 40 to 110 % V of rated coil voltage.) Ambient temperature: -40 to +85℃ (When applied coil hold voltage is 40 to 60 % V of rated coil voltage or storage.) Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 80g |
Expected electrical life
| Item | Specifications |
|---|---|
| Inductive load | [Switching capacity] 90 A 277 V AC cosφ = 0.8 [Number of operations] Min. 103 ope. (ON : OFF = 1 s : 9 s, at 85℃) |
| Resistive load | [Switching capacity] 60 A 490 V AC [Number of operations] Min. 10x103 ope. (ON：OFF = 1s：9s) [Switching capacity] 55 A 800 V AC [Number of operations] Min. 103 ope. (ON：OFF = 1s：9s) [Switching capacity] 40 A 600 V AC [Number of operations] Min. 50x103 ope. (ON：OFF = 1s：9s, 85℃) [Switching capacity] 30 A 800 V AC [Number of operations] Min. 50x103 ope. (ON：OFF = 1s：9s, 85℃) [Switching capacity] 90 A 60 V DC [Number of operations] Min. 10x103 ope. (ON：OFF = 1s：9s, 85℃) [Switching capacity] 1 A 30 V DC [Number of operations] Min. 100x103 ope. (ON：OFF = 1s：9s) |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL/C-UL | Approval 認定書(写)を 請求する | File No. | E43028 | |
| Rating | a contact 40A make/break 110A carry 600V AC resistive load 50,000 cycles 85°C 80A make/break 110A carry 277V AC resistive load 10,000 cycles 20°C 3hp 240V AC 30,000 cycles 85°C b contact 1A 30V DC resistive load 100,000 cycles 85°C | |||
| Remarks | - | |||
| Last update | ||||
| CSA | N/A | File No. | - | |
| Rating | - | |||
| Remarks | CSA standard certified by C-UL | |||
| Last update | ||||
| VDE | Approval 認定書(写)を 請求する | File No. | 40056908 | |
| Rating | a contact 10A (cosφ=1) 800V AC 30,000 cycles 85°C 90A (cosφ=1) 277V AC 1,000 cycles 85°C 50A make/break 110A carry (cosφ=1) 277V AC 50,000 cycles 85°C 90A 60V DC 10,000 cycles 85°C b contact 1A 30V DC 100,000 cycles 85°C | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
