AHE52X1N｜HE Relays PV Type
Download

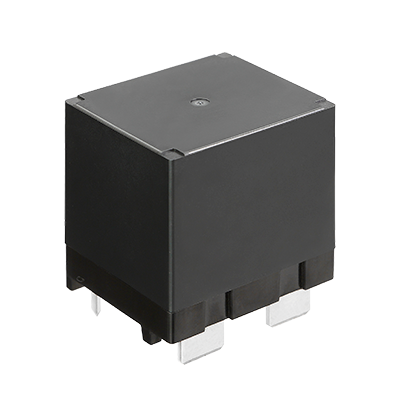

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | HE1aN-W-DC12V-Y6 |
|---|---|
| Part Number | AHE52X1N |
| Details | 90 A |
| Product Name | HE Relays PV Type |
| Features | Compact size, 1 Form A 35 A/48 A/90 A Power relays for solar inverter |
- Download RoHS Compliance Certificate
- Download EU REACH SVHC Report
- A List of Part Numbers in This Series
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | AHE52X1N |
| Product Number | HE1aN-W-DC12V-Y6 |
| Product details | 90 A |
| Protective construction | Flux-resistant |
| Operating function | Single side stable |
| Terminal shape | PC board terminal (wide blade) |
| Contact rating type | 90 A |
| Contact gap | 3.0mm |
| Packing style | Carton |
| Standard packing Carton (pieces) | 25 |
| Standard packing Case (pieces) | 100 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 12 V DC |
| Operate voltage (at20℃) | Max. 70% V of rated coil voltage (Initial) |
| Release voltage (at20℃) | Min. 10% V of rated coil voltage (Initial) |
| Rated operating current [±10%] (at 20℃) | 160 mA |
| Coil resistance [±10%] (at 20℃) | 75 Ω |
| Rated operating power | 1,920 mW |
| Max. allowable voltage (at 20℃) | 110% V of rated coil voltage |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Contact shape | Single |
| Contact resistance (initial) | Max. 10 mΩ (by voltage drop 5 V DC 20 A) Max. 3 mΩ (by voltage drop 5 V DC 90 A, reference value) |
| Contact material | AgNi type |
| Contact rating (resistive load) | 60 A 490 V AC, 90 A 60 V DC |
| Max. switching power (resistive load) | 29,400 VA (AC), 5,400 W (DC) |
| Max. switching voltage | 490 V AC, 60 V DC |
| Max. switching current | 60 A (AC), 90 A (DC) |
| Min. switching load (reference value) | 100 mA 5 V DC |
| Insulation resistance (initial) | Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric strength (initial) : Between open contacts | 2,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 5,000 Vrms for 1 min (detection current: 10 mA) |
| Surge withstand voltage (initial) : Between contact and coil | 10,000 V |
| Coil holding voltage | 40 to 100% V (at -50～55℃) 50 to 60% V (at 55～85℃) |
| Operate time (initial) (at 20℃) | Max. 30 ms at rated coil voltage (without bounce) |
| Release time (initial) (at 20℃) | Max. 10 ms at rated coil voltage (without bounce, without diode) |
| Shock resistance (Functional) | 98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) | 980 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional) | 10 to 55 Hz (at double amplitude of 1 mm, detection time: 10 μs) |
| Vibration resistance (Destructive) | 10 to 55 Hz (at double amplitude of 1.5 mm) |
| Mechanical life | Min. 106 ope. (switching frequency: at 180 times/min) |
| Conditions | Ambient temperature: -50 to +85℃ (When using at 55℃ or higher, the coil holding voltage should be 50% V to 60% V) Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 85 g |
Expected electrical life
| Item | Specifications |
|---|---|
| Resistive load | [at 85℃, switching frequency ON : OFF = 1 s : 9 s] Min. 10x103 ope. 60 A 277 V AC Min. 103 ope. 90 A 277 V AC Min. 103 ope. 90 A 60 V DC [room temperature, switching frequency ON : OFF = 1 s : 9 s] Min. 10x103 ope. 60 A 490 V AC Min. 10x103 ope. 80 A 277 V AC Min. 10x103 ope. 80 A 48 V DC |
Information on Compliance with Standards
Specifications and design of the products are subject to change without notice for the product improvement.
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL/C-UL | Approval 認定書(写)を 請求する | File No. | E43028 | |
| Rating | 80A 300V AC General use 10,000 cycles 80A 300V AC General use 6,000 cycles (at85°C) | |||
| Remarks | - | |||
| Last update | ||||
| CSA | N/A | File No. | - | |
| Rating | - | |||
| Remarks | CSA standard certified by C-UL | |||
| Last update | ||||
| VDE | Approval 認定書(写)を 請求する | File No. | 40006681 | |
| Rating | 135A 250V AC cosφ=0.8 at 85°C 50 cycles 80A 250V AC cosφ=1 at 25°C 10,000 cycles 90A 250V AC cosφ=0.8 at 85°C 1,000 cycles 80A 250V AC cosφ=0.8 at 85°C 10,000 cycles 90A 300V AC cosφ=1 at 85°C 1,000 cycles | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
