AG322960｜S Relays
Download

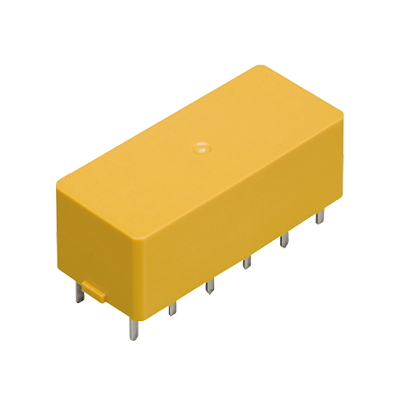

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | S2EB-L2-5V |
|---|---|
| Part Number | AG322960 |
| Product Name | S Relays |
| Features | 2 Form A 2 Form B/3 Form A 1 Form B/4 Form A /4 A Polarized power relays |
- Download RoHS Compliance Certificate
- Download EU REACH SVHC Report
- A List of Part Numbers in This Series
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | AG322960 |
| Product Number | S2EB-L2-5V |
| Protective construction | Sealed |
| Operating function | 2 coil latching |
| Terminal shape | PC board terminal |
| Accessories | Sockets are available. |
| Standard packing Carton (pieces) | 50 |
| Standard packing Case (pieces) | 500 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 5 V DC |
| Set voltage (at20℃) | Max. 70% V of rated coil voltage (Initial) |
| Reset voltage (at20℃) | Max. 70% V of rated coil voltage (Initial) |
| Rated operating current [±10%] (at 20℃) | Set coil: 38.5 mA Reset coil: 38.5 mA |
| Coil resistance [±10%] (at 20℃) | Set coil: 130 Ω Reset coil: 130 Ω |
| Rated operating power | 192 mW |
| Max. allowable voltage | 180% V of rated coil voltage (at 40℃) |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 2 Form A 2 Form B |
| Contact shape | Twin |
| Contact resistance (initial) | Max. 50 mΩ (by voltage drop 6 V DC 1 A) |
| Contact material | Double layer contact of AgNi-AgSnO2 type + Au clad |
| Contact rating (resistive load) | 4 A 250 V AC, 3 A 30 V DC |
| Max. switching power (resistive load) | 1,000 VA, 90 W |
| Max. switching voltage | 250 V AC, 48 V DC |
| Max. switching current | 4 A (AC), 3 A (DC) (30 to 48 V DC at less than 0.5 A) |
| Min. switching load (reference value) | 100 μA 100 mV DC |
| Insulation resistance (initial) | Min. 10,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric strength (initial) : Between open contacts | 750 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (Initial) : Between contact sets | 1,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 1,500 Vrms for 1 min (detection current: 10 mA) |
| Set time (Initial) (at 20℃) | Max. 15 ms at rated coil voltage (without bounce) |
| Reset time (Initial) (at20℃) | Max. 15 ms at rated coil voltage (without bounce, without diode) |
| Shock resistance (Functional) | 490 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) | 980 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional) | 10 to 55 Hz (at double amplitude of 3 mm, detection time: 10 μs) |
| Vibration resistance (Destructive) | 10 to 55 Hz (at double amplitude of 4 mm) |
| Mechanical life | Min. 100x106 ope. (switching frequency: at 50 cps) |
| Conditions | Ambient temperature: -55 to +65℃ Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 8 g |
Expected electrical life
| Item | Specifications |
|---|---|
| Resistive load | [switching frequency: 20 times/min] Min. 200x103 ope. 3 A 30 V DC Min. 100x103 ope. 4 A 250 V AC |
Information on Compliance with Standards
Specifications and design of the products are subject to change without notice for the product improvement.
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval 認定書(写)を 請求する | File No. | E43028 | |
| Rating | 4A 250V AC 1/20 HP 125V AC 1/20 HP 250V AC 3A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | Approval 認定書(写)を 請求する | File No. | 2367221 | |
| Rating | 4A 250V AC 1/20 HP 125V AC 1/20 HP 250V AC 3A 30V DC | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
