- 1. AQV10(DIP) Series
- 2. AQV11(DIP) Series
- 3. AQV20(DIP) Series
- 4. AQY2C(TSON) Series
- 5. AQY21(DIP, SOP)/AQY22(SOP, SSOP, SON, VSSOP)/
AQY23(SOP)/AQY27(Power-DIP) Series - 6. AQY22♦F(SOP, SSOP)/AQY21♦F(SOP, SSOP) Series
- 7. AQV21(DIP, SOP)/AQV22(DIP, SOP)/AQV23(DIP)/
AQV25(DIP, SOP) Series - 8. AQW21(DIP, SOP)/AQW22(DIP, SOP)/AQW25(DIP) Series
- 9. AQY41(DIP, SOP) Series
- 10. AQV41(DIP, SOP)/AQV45(DIP) Series
- 11. AQW61(DIP, SOP)/AQW65(DIP) Series
- 12. AQW41(DIP,SOP)/AQW45(DIP) Series
- 13. AQS22(SOP) Series
- 14. AQS22♦F(SOP) Series
- 15. AQZ10(SIL)/AQZ19(SIL) Series
- 16. AQZ20(SIL) Series
- 17. AQZ10♦D(SIL) Series
- 18. AQZ20♦D(SIL) Series
- 19. AQZ40(SIL) Series
- 20. APV1122(DIP)
- 21. APV1121S/APV2121S/APV2111V(SOP,SSOP)
Notes:
- E1: Power source at input side; VIN: Input voltage; IF: LED forward current; IIN: Input current; VL: Load voltage; IL: Load current; R: Current limit resistor.
- Method of connecting the load at the output is divided into 3 types.
● When you click on each figure, an enlarged view will open.

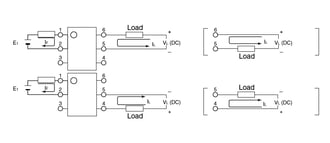

1. AQV10(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
＊ | 1a | DC | A |
|
＊ Terminal 3 cannot be used, since it is in the internal circuit of the device.

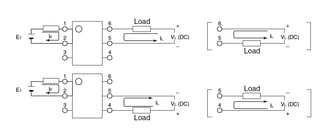

2. AQV11(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
＊ | 1a | DC | A |
|
＊ Terminal 3 cannot be used, since it is in the internal circuit of the device.

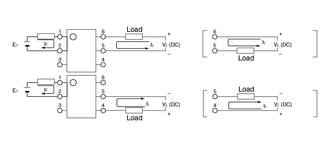

3. AQV20(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
＊ | 1a | AC/DC | A |
|
| DC | B |
Can be also connected as 2 Form A type. (However, the sum of the continuous load current should not exceed the absolute maximum rating.) |
| DC | C |
|
＊ Terminal 3 cannot be used, since it is in the internal circuit of the device.

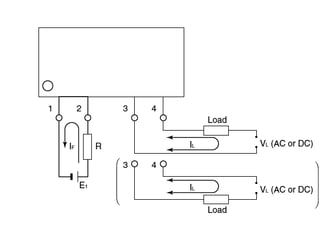

4. AQY2C(TSON) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | AC/DC | - |
|

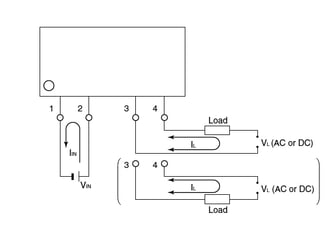

5. AQY21(DIP, SOP)/AQY22(SOP, SSOP, SON, VSSOP)/AQY23(SOP)/AQY27(Power-DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | AC/DC | - |
|

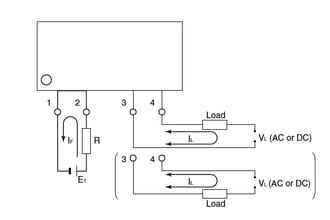

6. AQY22♦F(SOP, SSOP)/AQY21♦F(SOP, SSOP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | AC/DC | - |
|
7. AQV21(DIP, SOP)/AQV22(DIP, SOP)/AQV23(DIP)*/AQV25(DIP, SOP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
＊ | 1a | AC/DC | A |
|
| DC | B |
Can be also connected as 2 Form A type. (However, the sum of the continuous load current should not exceed the absolute maximum rating.) |
| DC | C |
|
* AQV23 series in SOP is also possible. Please inquire.
＊ Terminal 3 cannot be used, since it is in the internal circuit of the device.
8. AQW21(DIP, SOP)/AQW22(DIP, SOP)/AQW25(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 2a | AD/DC | - | (1) Two independent 1 Form A use
(2) 2 Form A use
|
9. AQY41(DIP, SOP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1b | AC/DC | - |
|
10. AQV41(DIP, SOP)/AQV45(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
＊ | 1b | AC/DC | A |
|
| DC | B |
Can be also connected as 2 Form B type. (However, the sum of the continuous load current should not exceed the absolute maximum rating.) |
| DC | C |
|
＊ Terminal 3 cannot be used, since it is in the internal circuit of the device.
11. AQW61(DIP, SOP)/AQW65(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a1b | AC/DC | - | (1) Two independent 1 Form A & 1 Form B use
(2) 1 Form A 1 Form B use
|
12. AQW41(DIP,SOP)/AQW45(DIP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 2b | AC/DC | - | (1) Two independent 1 Form B use
(2) 2 Form B use
|

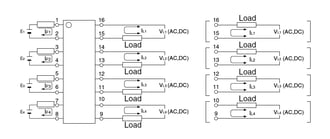

13. AQS22(SOP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 4a | AC/DC | - |
|
14. AQS22♦F(SOP) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 4a | AC/DC | - |
|

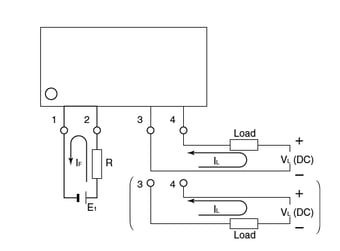

15. AQZ10(SIL)/AQZ19(SIL) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | DC | - |
|

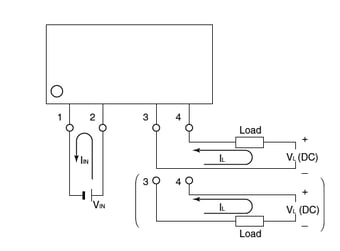

16. AQZ20(SIL) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | AC/DC | - |
|
17. AQZ10♦D(SIL) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | DC | - |
|
18. AQZ20♦D(SIL) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | AC/DC | - |
|
19. AQZ40(SIL) Series
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1b | AC/DC | - |
|
20. APV1122(DIP)
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
＊ | 1a | - | - | Power MOSFET drive wiring diagram
|
＊ Terminal 3 cannot be used, since it is in the internal circuit of the device.
21. APV1121S/APV2121S/APV2111V(SOP,SSOP)
| Schematic | Output configuration | Load type | Connection | Wiring diagram |
|---|
| 1a | - | - | Power MOSFET drive wiring diagram
|
