Low input voltage and low power consumption achieved. High speed Photo Coupler with receiver circuit IC.
UL/C-UL Approved
Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.
-
Features
- Capable of high speed communication (Transfer rate Typ. 20 Mbps)
- Low power consumption: LED forward current: 6 to 12 mA, Supply current: Max. 3 mA
- High noise immunity (CMTI Min. 20 kV/µs)
- Guaranteed performance at high temperature (-40 to +105°C)
- Isolation voltage: 3,750 Vrms

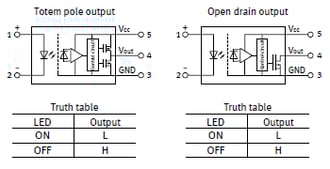

- Totem pole and Open drain output types available
-
Typical Applications
- Measuring equipment
- FA (Factory Automation) network
- I/O of high speed communication
- Microcomputer communication (SPI, I2C)
-
Note
- This product is not for automotive use.
Please contact our sales representative for automotive applications.
- This product is not for automotive use.
