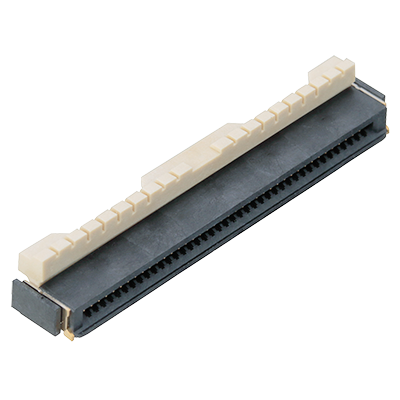

AYF564035｜Y5BH(0.5mm pitch)

Download

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AYF564035

Part Number

AYF564035

Details

Back lock

Product Name

 Y5BH(0.5mm pitch)

Features

Impedance matching products with 0.5 mm pitch and high versatility ( for FPC/FFC )

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberAYF564035
Product NumberAYF564035
Product detailsBack lock
Connector TypeFPC/FFC
Piece Type1 Piece type
ApplicationsPCs, Laptops, Tablet PCs, DSC, DVC, TV
Contact pitch (mm)0.5
Lock structureBack lock
Contact directionWith top and bottom contact construction
Differential impedance85Ω, 90Ωtype
Number of pins40
Packing styleEMBOSSED TAPE AND PLASTIC REEL
Packing Inner carton3,000 pieces (1-reel)
Packing Outer carton6,000 pieces
Soldering terminalswithout
FPC holding contactswithout
Body length (L mm)23.40
Body Height (H mm)1.8
Recommended PC board pattern Width (mm)3.68
Rated current0.4A/pin contact
Dielectric strength250V AC for 1min.
Insulation resistance (Min. MΩ) (Initial)1000
Contact resistance (Max.mΩ)100
Insertion and removal life (times)20
Molded portion materialHousing: LCP resin (UL94V-0) Lever: LCP resin (UL94V-0)
Contact and Post MaterialCopper alloy
Surface treatment materialBase: Ni plating Surface: Au plating
