AXF363500｜B01
Download

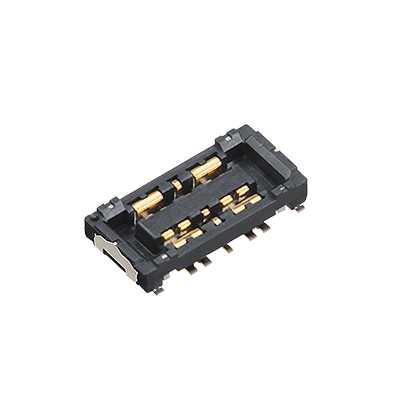

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | AXF363500 |
|---|---|
| Part Number | AXF363500 |
| Details | Socket |
| Product Name | B01 |
| Features | Achieved high current capacity ( 6 A ) and high reliability with low profile of 0.6 mm/0.8 mm |
- Download RoHS Compliance Certificate
- Download EU REACH SVHC Report
- A List of Part Numbers in This Series
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | AXF363500 |
| Product Number | AXF363500 |
| Product details | Socket |
| Connector Type | BOARD-TO-FPC |
| Piece Type | 2 Pieces type (Socket) |
| Socket/Header | Socket |
| Applications | Smartphones, Tablet PCs, Mobile devices |
| Number of pins | 6 |
| Mated height (mm) | 0.8mm |
| Packing style | EMBOSSED TAPE AND PLASTIC REEL |
| Packing Inner carton | 15,000 pieces (1-reel) |
| Packing Outer carton | 30,000 pieces |
| Soldering terminals | with |
| Positioning bosses | without |
| Body length (L mm) | 4.45 |
| Body Height (H mm) | 0.79 |
| Short width (mm) | 2.40 |
| Recommended PC board pattern Width (mm) | 2.80 |
| Rated current | 3.0A/pin contact (Power terminal) 0.3A/pin contact (Signal terminal) |
| Dielectric strength | 150V AC for 1min. |
| Insulation resistance (Min. MΩ) (Initial) | 1000 |
| Contact resistance (Max.mΩ) | Power terminal: Max. 20mΩ Signal terminal: Max. 90mΩ |
| Soldering heat resistance | The initial specification must be satisfied electrically and mechanically |
| Insertion and removal life (times) | Mechanical life: 30 times Contact resistance: Power terminal: Max. 20mΩ Signal terminal: Max. 90mΩ Composite removal force: Min. 7N |
| Molded portion material | LCP resin (UL94V-0) |
| Contact and Post Material | Copper alloy |
| Surface treatment material | Base: Ni plating Surface: Au plating |
The other side
| Part Number | Product Number | Product | Details | Mated height | Product name | |
|---|---|---|---|---|---|---|
 | AXF463500 | - | Header | 0.8mm | B01 |
