ANMX404｜AX40(Discontinued)

Download

Discontinued

Last time buy (JST)

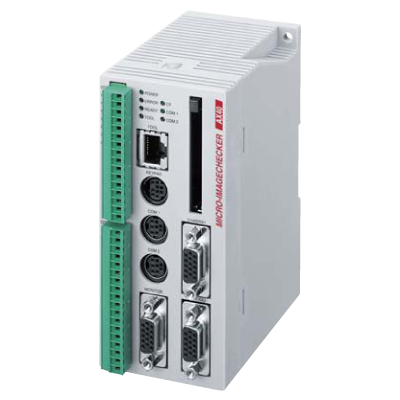

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    ANMX404

    Part Number

    ANMX404

    Product

    Machine Vision System

    Details

    Controller

    Product Name

    		 AX40(Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberANMX404
    Product NumberANMX404
    Products NameMachine Vision System
    Product detailsController
    The price of the productPlease contact our office
    Functional Specifications : Settings Data Storage CapacityApprox. 4 MB
    Functional Specifications : Frame Memory512x480 (pixels)
    Functional Specifications : Operation EnvironmentMenu selection using dedicated keypad (Japanese/English switchable)
    Menu selection using key emulation serial commands
    Functional Specifications : Inspection functions : Positioning adjustment functionMax 99/product type
    99/product type positional adjustment function (multiple adjustment possible)
    Binary edge (with priority designation)
    Gray scale edge (with priority designation)
    *Only when gray scale and differentiation processing are selected.
    Feature extraction (mask setting possible)
    Matching (template mask setting possible)
    *Only when gray scale and differentiation processing is selected.
    Functional Specifications : Inspection functions : Rotation adjustment functionMax. 99/product type (multiple adjustment possible)
    Horizontal binary ede
    Vertical binary edge
    Horizontal gray scale edge
    *Only when gray scale and differentiation processing are selected.
    Vertical gray scale edge
    *Only when gray scale and differentiation processing are selected.
    Feature extraction (mask setting possible)
    Matching (template mask setting possible)
    *Only when gradation and differentiation processing are selected.
    Contour matching (ｱ180 degrees)
    Functional Specifications : Inspection functions : Binary windowMax. 99/product type
    Shape: rectangle/polygon (3 to 16 points)/ellipse; 16
    mask shape: rectangle/polygon/ellipse; 16
    white (extraction)/black (no extraction) selectable
    Expansion and contraction filter
    Judgement = surface value
    Output = surface value
    Functional Specifications : Inspection functions : Binary edgeMax. 99/product type
    Shape = line/plane
    Selection possible among white (extraction) to black (no extraction)
    and white (extraction) to black (no extraction)
    Depth/width designation function
    Judgement = detection/no detection
    Output = edge detection coordinate
    Functional Specifications : Inspection functions : Feature extractionMax. 99/product type
    Shape: rectangle/polygon (3 to 16 points)/ellipse;
    mask shape: rectangle/polygon/ellipse; 16
    white (extraction)/black (no extraction) selectable
    Expansion and contraction filter
    Judgment: number of detections
    Output: number of detections/barycentric coordinate/area value/projection width/main axis angle/circumference
    Functional Specifications : Inspection functions : Gray scale windowMax. 99/product type
    *Only when gray scale and differential processing are selected.
    Shape: rectangle/polygon (3 to 16 points)/ellipse;
    mask shape: rectangle/polygon/ellipse; 16
    Upper and lower brightness levels can be set.
    Judgment: average gray scale value
    Output: average gray scale value
    Functional Specifications : Inspection functions : Gray scale edgeMax 99/product type
    *Only when gray scale and differentiation processing are selected.
    Shape: line/plane
    Projection/individual scan
    Light to dark; dark to light; designation of both possible
    Edge; leading edge and trailing edge; maximum derivative; multiple
    Depth/width designation function
    Judgment: number of detections
    Output: number of detections/edge detection coordinate
    Functional Specifications : Inspection functions : Smart matchingMax. 99/product type
    *Only when gray scale and differentiation processing is selected.
    Shape: rectangle template; mask shape: rectangle/polygon/ellipse; 16
    Difference setting possible
    Judgment: number of detections and number of differences
    Output: number of detections/detected coordinates/detected angle/correlation value/difference area value/number of differences
    Functional Specifications : Inspection functions : Contour matchingMax. 2/product type
    Shape: rectangle
    plus or minus180 degree detection possible
    Judgment: correlation
    Output: detected coordinate/detected angle/correlation
    Functional Specifications : Data MonitorMax. 50/product type
    Data can be displayed in chart format when running.
    Title input or numerical calculation results, judgment output results, statistical results and product numbers can be quoted.
    External output settings of quoted items
    Upper and lower limit values of numerical computations can be changed from the chart while running.
    Functional Specifications : StatisticsMax. 16 per product type
    Numerical calculation and judgment output results can be quoted.
    The following can be calculated: number of scans, number of OK results, number NG (no-go) results, OK average, OK dispersion, max. value, min. value, and range.
    Quoting is possible to the data monitor.
    Functional Specifications : External Input/Output : SerialRS232C: 2channels (max. speed 115200bps)
    Input: start/product type switching/camera display switching/template re-registration/Compact Flash restore/reference of numerical computation upper and lower limits and changes/data storage/statistical initialization/reference and change of binarization level/reference and change of gray scale edge threshold value
    Output: judgment output and quoted data from data monitor
    Computer link support: Panasonic Electric Works' FP series and Mitsubishi's A, Q and FX series/Omuron's C, CV and CS1 series/Allen-Bradley's SLC500 series
    Functional Specifications : External Input/Output : ParallelInput: 13 points; output: 14 points; removable screw-down terminal block
    Input: start, product type switching, camera display switching, template re-registration
    Output: ready/error/flash/judgment output data
    Functional Specifications : External Input/Output : Ethernet(1 channel)Ethernet: 1 channel
    Output: judgment output, data quoted from data monitor (TCP/IP)
    Setting data and image backup, restore, documentation of setting data (AXTOOL)
    Functional Specifications : External Input/Output : CF Card(1 slot)Compact Flash: 1 slot
    Output: judgment output and data quoted from data monitor (text file)
    Setting data, image backup/restore, screen hard copy
    Functional Specifications : Other : Display FunctionsTransparent menu
    Output status monitor
    Reference coordinate display (quoting to numerical computation possible)
    Numerical setting of set color and center color display
    Checkers with NG (no-go) results displayed with different color
    Functional Specifications : Other : Collective MovementChecker movement all at once is possible for each position and rotation adjustment group.
    Functional Specifications : Other : Image StorageMax. 16 images/camera
    Each time/storage possible by judgment result
    Test execution possible with saved images.
    Display of date saved.
    Function to keep last image to be saved displayed.
    Functional Specifications : Other : Setting HelpWhite balance setting
    Focusing/aperture adjustment (only when gray scale processing is selected)
    Parallel monitor
    Functional Specifications : Other : CalendarCalendar data added to saved images
    Functional Specifications : Other : PasswordPassword function for moving between setting modes.

    Functional specifications

    ItemSpecifications
    CPU32-bit RISC CPU
    Monitor displayFull color VGA/gray scale image/binary image/extraction color + brightness image through
    Memory + data display area
    Two-screen compressed display
    Number of connected cameras2
    When 1 camera is connected 2 processes can be selected among gray scale, differentiation and color extraction processing.
    When 2 cameras are connected, gray scale, differentiation or color extraction can be selected for each camera.
    Processing methodsGray scale processing: 8 bit 256 gradations (binarization processing possible, 8 groups/product type)
    Differentiation processing: 8 bit 256 gradations (binarization processing possible, 8 groups/product type)
    Color extraction processing: Max. 8 color simultaneous extraction/camera
    No. of product types16
    Numerical calculationMax. 99/product type
    4-operation computation/square/arc tangent/difference between 2 points/case arc/Sin/Cos/absolute value of difference
    Possible to quote output of each inspection function.
    Reference previous data.
    Judgement outputMax. 99/product type
    NOT/AND/OR/XOR/case arc
    Image storage condition setting/general judgment condition setting/output setting
    Conversion dataMax. 4/environment
    Quoting to numerical computation is possible.
    Comment input is possible
    MarkerMax. 8/product type
    Graphic display on screen while running (rectangle/circle and ellipse/straight lines)
