AX40 (Discontinued Products)
Download
-
Discontinued Products
-
Specifications
-
Dimensions
Ⅾiscontinued
Last time buy (JST)
August 31, 2012
We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.
------------------------------ Tab1 showing ------------------------------
Discontinued Products
Recommended Substitutes
[Note]
The following applicable products and options are available continuously.
Product name | Specification | Product number |
---|---|---|
VGA monitor cable | Monitor cable length: 3m | ANMX83313 |
C mount lens | f6.5 C mount lens with lock | ANB842L |
f8.5 C mount lens with lock | ANB843L | |
f16 C mount compact lens with lock | ANB845NL | |
f16 C mount super-compact lens with lock | ANM88161 | |
f25 C mount compact lens with lock | ANB846NL | |
f25 C mount super-compact lens with lock | ANM88251 | |
f50 C mount lens with lock | ANB847L | |
f50 C mount compact lens | ANM8850 | |
f50 C mount compact lens with lock | ANM88501 | |
Adapter ring | 5mm adapter ring | ANB84805 |
(0.5/1/5/10/20/40mm)adapter ring | ANB848 | |
Operation keypad | With 2m cable | ANM85202 |
With 3m cable | ANM85203 | |
With 2m cable: CE | ANM85202CE | |
With 3m cable: CE | ANM85203CE | |
COM port connecting cable | COM port and PC(D-SUB: 9pins) connection; 3m | ANM81103 |
COM port and PLC(discrete-wire cable) connection; 3m | ANM81303 |
------------------------------ Tab2 showing ------------------------------
Specifications
Product name | Specification | |
---|---|---|
CPU | 32-bit RISC CPU | |
Settings data storage capacity | Approx. 4 MB | |
Frame memory | 512×480 (pixels) | |
Operation environment | Menu selection using dedicated keypad (Japanese/English switchable) | |
Menu selection using key emulation serial commands | ||
Monitor display | Full color VGA/gray scale image/binary image/extraction color + brightness image through | |
Memory + data display area | ||
Two-screen compressed display | ||
Connected camera | Random color camera (progressive) | |
Number of connected cameras | 2 | |
When 1 camera is connected 2 processes can be selected among gray scale, differentiation and color extraction processing. | ||
When 2 cameras are connected, gray scale, differentiation or color extraction can be selected for each camera. | ||
Process | Gray scale processing | 8 bit 256 gradations (binarization processing possible, 8 groups/product type) |
Differentiation processing | 8 bit 256 gradations (binarization processing possible, 8 groups/product type) | |
Color extraction processing | Max. 8 color simultaneous extraction/camera | |
Number of product types | 16 | |
Inspection functions | Max 99/product type | |
Positioning adjustment function | 99/product type positional adjustment function (multiple adjustment possible) | |
Binary edge (with priority designation) Gray scale edge (with priority designation) *Only when gray scale and differentiation processing are selected. Feature extraction (mask setting possible) Matching (template mask setting possible) *Only when gray scale and differentiation processing is selected. | ||
Rotation adjustment function | Max. 99/product type (multiple adjustment possible) | |
Horizontal binary ede Vertical binary edge Horizontal gray scale edge *Only when gray scale and differentiation processing are selected. Vertical gray scale edge *Only when gray scale and differentiation processing are selected. Feature extraction (mask setting possible) Matching (template mask setting possible) *Only when gradation and differentiation processing are selected. Contour matching (ア180 degrees) | ||
Binary window | Max. 99/product type | |
Shape: rectangle/polygon (3 to 16 points)/ellipse; 16 mask shape: rectangle/polygon/ellipse; 16 white (extraction)/black (no extraction) selectable Expansion and contraction filter Judgement = surface value Output = surface value | ||
Binary edge | Max. 99/product type | |
Shape = line/plane Selection possible among white (extraction) → black (no extraction) and white (extraction) → black (no extraction) Depth/width designation function Judgement = detection/no detection Output = edge detection coordinate | ||
Feature extraction | Max. 99/product type | |
Shape: rectangle/polygon (3 to 16 points)/ellipse; mask shape: rectangle/polygon/ellipse; 16 white (extraction)/black (no extraction) selectable Expansion and contraction filter Judgment: number of detections Output: number of detections/barycentric coordinate/area value/projection width/main axis angle/circumference | ||
Gray scale window | Max. 99/product type *Only when gray scale and differential processing are selected. | |
Shape: rectangle/polygon (3 to 16 points)/ellipse; mask shape: rectangle/polygon/ellipse; 16 Upper and lower brightness levels can be set. Judgment: average gray scale value Output: average gray scale value | ||
Gray scale edge | Max 99/product type *Only when gray scale and differentiation processing are selected. | |
Shape: line/plane Projection/individual scan Light to dark; dark to light; designation of both possible Edge; leading edge and trailing edge; maximum derivative; multiple Depth/width designation function Judgment: number of detections Output: number of detections/edge detection coordinate | ||
Smart matching | Max. 99/product type *Only when gray scale and differentiation processing is selected. | |
Shape: rectangle template; mask shape: rectangle/polygon/ellipse; 16 Difference setting possible Judgment: number of detections and number of differences Output: number of detections/detected coordinates/detected angle/correlation value/difference area value/number of differences | ||
Contour matching | Max. 2/product type | |
Shape: rectangle ±180 degree detection possible Judgment: correlation Output: detected coordinate/detected angle/correlation | ||
Numerical computation | Max. 99/product type 4-operation computation/√/arc tangent/difference between 2 points/case arc/Sin/Cos/absolute value of difference Possible to quote output of each inspection function. Reference previous data. | |
Judgment output | Max. 99/product type NOT/AND/OR/XOR/case arc Image storage condition setting/general judgment condition setting/output setting | |
Data monitor | Max. 50/product type Data can be displayed in chart format when running. Title input or numerical calculation results, judgment output results, statistical results and product numbers can be quoted. External output settings of quoted items Upper and lower limit values of numerical computations can be changed from the chart while running. | |
Statistics | Max. 16 per product type Numerical calculation and judgment output results can be quoted. The following can be calculated: number of scans, number of OK results, number NG (no-go) results, OK average, OK dispersion, max. value, min. value, and range. Quoting is possible to the data monitor. | |
Operation data | Max. 4/environment Quoting to numerical computation is possible. Comment input is possible | |
Marker | Max. 8/product type Graphic display on screen while running (rectangle/circle and ellipse/straight lines) | |
External I/O | Serial | RS232C: 2channels (max. speed 115200bps) |
Input: start/product type switching/camera display switching/template re-registration/Compact Flash restore/reference of numerical computation upper and lower limits and changes/data storage/statistical initialization/reference and change of binarization level/reference and change of gray scale edge threshold value Output: judgment output and quoted data from data monitor Computer link support: Panasonic Industry's FP series and Mitsubishi's A, Q and FX series/Omuron's C, CV and CS1 series/Allen-Bradley's SLC500 series | ||
Parallel | Input: 13 points; output: 14 points; removable screw-down terminal block | |
Input: start, product type switching, camera display switching, template re-registration | ||
Output: ready/error/flash/judgment output data | ||
Ethernet | Ethernet: 1 channel Output: judgment output, data quoted from data monitor (TCP/IP) Setting data and image backup, restore, documentation of setting data (AXTOOL) | |
Complact Flash | Compact Flash: 1 slot Output: judgment output and data quoted from data monitor (text file) Setting data, image backup/restore, screen hard copy | |
Other | Display function | Transparent menu Output status monitor Reference coordinate display (quoting to numerical computation possible) Numerical setting of set color and center color display Checkers with NG (no-go) results displayed with different color |
Movement at once | Checker movement all at once is possible for each position and rotation adjustment group. | |
Screen strage | Max. 16 images/camera Each time/storage possible by judgment result Test execution possible with saved images. Display of date saved. Function to keep last image to be saved displayed. | |
Setting help | White balance setting Focusing/aperture adjustment (only when gray scale processing is selected) Parallel monitor | |
Calendar | Calendar data added to saved images | |
Password | Password function for moving between setting modes. |
------------------------------ Tab3 showing ------------------------------
Dimensions
Unit: mm inController unit

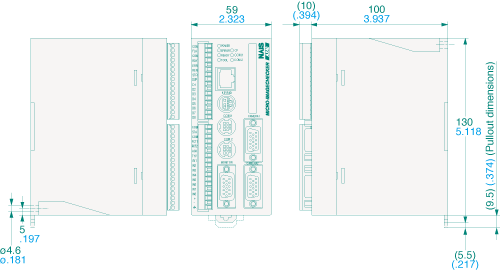

Main unit (controller)

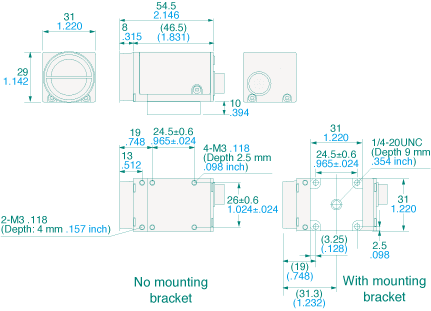

Camera
Dedicated color camera: C mount
ANMX8310
Camera cable
Color camera cable
ANMX8330**
Monitor cable
VGA/XGA monitor cable
Lens
0.3M camera lenses
ANB842NL
ANB843L
ANB845NL
ANB846NL
ANB847L
ANM88161
ANM88251
ANM88501
