EC-G01｜Pulse Air-gun Ionizer EC-G

Download

Discontinued

Last time buy (JST)

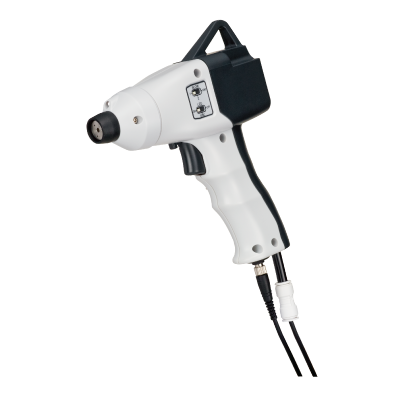

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    EC-G01

    Part Number

    EC-G01

    Product

    Pulse Air-gun Ionizer

    Details

    Gun type

    Product Name

    		 Pulse Air-gun Ionizer EC-G
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberEC-G01
    Product NumberEC-G01
    Products NamePulse Air-gun Ionizer
    Product detailsGun type
    The price of the productPlease contact our office
    Charge removal timeApprox. 0.5 sec. or less (plus or minus1,000 V to plus or minus100 V)
    (Note) Typical value for pulse air mode: CONT at 100 mm 3.937 in from the front of discharge nozzle at an applied air pressure of 0.50 MPa.
    Applicable fluidAir (dried clean air)
    (Note) Dried clean air is the air passing through air dryer (dew point –20 degrees –4 degrees Fahrenheit approx.) and air filter (mesh size 0.01 microm 0.0004 mil approx.)
    Supplied air flowMax. 300 liter/min. (ANR) or less
    Air pressure range0.05 to 0.50 MPa
    Supply voltageAccessory AC adapter INPUT: 100 - 240 V AC plus or minus10 % 50/60 Hz
    (OUTPUT: 24 V DC)
    Power consumption30 VA or less
    Discharge methodHigh-frequency AC-method
    Pulse air modePulse 1 (long) / Pulse 2 (short) / CONT (continuous) selectable by switch
    LED illumination modeON (always ON) / SYNC (synchronized with trigger) / OFF (always OFF)
    Weight270 g approx. (main unit only)
