Pulse Air-gun Ionizer EC-G

Download

  • Basic Information

  • Order guide

  • Option

  • Specifications

  • Dimensions

  • Cautions For Use

------------------------------ Tab1 showing ------------------------------

Basic Information

Air-gun type ionizer that can remove dust in a single burst using pulsed ion air

    Features

    Three discharge modes

    3種類の吐出モード

    The EC-G02 features two pulse air modes in addition to the standard continuous mode.

    White LED illumination

    White LED illumination

    The EC-G02 features a highbrightness white LED above the ionized air outlet, allowing you to target and spray dust revealed by the light with a stream of ionized air.

    Compact, highly usable design

    A high-voltage power supply circuit and solenoid valve are built into the air gun, providing a high level of usability and eliminating the need to install an external controller or route thick, highvoltage cables.
    Additionally, since the lightweight unit weighs just 270 g, it reduces stress on the operator, even when used for extended periods of time.

    Improved dust removal effectiveness thanks to pulse (intermittent) air

    Improved dust removal effectiveness thanks to pulse (intermittent) air

    Since pulse air causes dust to oscillate and lifts it up, even difficult-to-dislodge dust inside concave pockets can be easily removed. The EC-G02 can deliver greater dust removal effectiveness than continuous airflow models.

    External input

    External input allows the unit to be used in combination with a foot switch or other device.

    No-oil compliance

    All parts along the air path (air nozzle, solenoid valve, joints, etc.) are no-oil compliant.

    ------------------------------ Tab2 showing ------------------------------

    Order guide

    TypeAppearanceCharge removal time
    (±1,000V→±100V)    		Model No.
    Gun type

    		0.5 sec. approx. or less (Note 1)EC-G02

    Note:1) Typical value for pulse air mode: CONT at 100 mm 3.937 in from the front of discharge nozzle at an applied air pressure of 0.50 MPa.

    Accessories

    ER-VAPS1 (AC adapter)

    ER-VAPS1 (AC adapter)

    *  Substitute products will not guarantee the specifications of discontinued products.
    Please check the specification details from catalog before use.

    ------------------------------ Tab3 showing ------------------------------

    Option

    DesignationModel No.Description
    Discharge needleEC-GANTFor replacement (1 pc.)
    Solenoid valveEC-GAVFor replacement (1 pc.)

    ------------------------------ Tab4 showing ------------------------------

    Specifications

    TypeGun type
    Model No.EC-G02
    Applicable regulationsCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
    Charge removal time0.5 sec. approx. or less (±1,000 V → ±100 V) (Note 2)
    Ion balance±10 V or less (Note 2)
    Applicable fluidAir (dried clean air) (Note 3)
    Supplied air flow300 ℓ/min. (ANR) or less
    Air pressure range0.05 to 0.50 MPa
    Supply voltageAccessory AC adapter
    • INPUT: 100-240 V AC ±10 % 50/60 Hz
    • OUTPUT: 24 V DC
    Operating voltage of ionizer body: 24V DC
    Power consumption30 VA or less
    Discharge methodHigh-frequency AC method
    Discharge output voltageApprox. 2,000 V
    Ozone generation amount0.02 ppm or less (Note 4)
    Pulse air modePulse 1 (long) / Pulse 2 (short) / CONT (continuous) selectable by switch
    LED illumination modeON (always ON) / SYNC (synchronized with trigger) / OFF (always OFF)
    External inputIonized air emission operation ON / OFF using OR control with trigger switch
    Ionized air emission operation ON: Short-circuited to COM (-)
    Ionized air emission operation OFF: Open
    Operating altitude2,000 m or less (Note 5)
    Ambient temperature0 to +50 ℃ +32 to +122 ℉ (No dew condensation allowed), AC adapter: 0 to +40 ℃ +32 to +104 ℉
    Ambient humidity35 to 65 % RH (No dew condensation allowed)
    MaterialEnclosure: ABS, Nozzle: Stainless steel, Discharge needle: Tungsten, Nozzle guard: NBR
    Weight270 g approx. (main unit only)
    AccessoriesAC adapter (manufactured by ENG ELECTRIC, model: 6A-181-WP24): 1 pc.
    Exclusive intermediate cable (oil-resistant, heat-resistant, bending-resistant type) length 2m 6.562 ft: 1 pc.
    Straight joints
    ・Tube outer diameter ø8-ø8mm ø0.315-ø0.315 in compatible type: 1 pc. (Note 4)
    ・Tube outer diameter ø8-ø6mm ø0.315-ø0.236 in compatible type: 1 pc.
    Connector connection terminal (Manufactured by Molex): 3 pcs.

    Notes:
    1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
    2) Typical value for continuous pulse air mode at 100 mm 3.937 in from the end of discharge nozzle at an applied air pressure of 0.50 MPa.
    3) Dried clean air is the air passing through air dryer (dew point -20 ℃ -4 ℉ approx.) and air filter (mesh size 0.01 μm 0.0004 mil approx.)
    4) Typical value for continuous pulse air mode at 300 mm 11.881 in from the end of discharge nozzle at an applied air pressure of 0.25 MPa.
    5) Do not use or store the device in an environment where the air pressure is higher than the atmospheric pressure at an altitude of 0 m.
    6) At the time of shipment from the factory, ø8-ø8 mm ø0.315-ø0.315 in type is attached.

    TypeGun type
    Model No.EC-G01
    Charge removal time
    (±1,000 V → ±100 V)    		Approx. 0.5 sec. or less (Note 1)
    Applicable fluidAir (dried clean air) (Note 2)
    Supplied air flowMax. 300 ℓ/min. (ANR) or less
    Air pressure range0.05 to 0.50 MPa
    Power supply voltageAccessory AC adapter INPUT: 100 to 240 V AC ±10 % 50/60 Hz
    (OUTPUT: 24 V DC)
    Power consumption30 VA or less
    Discharge methodHigh-frequency AC-method
    Pulse air modePulse 1 (long) / Pulse 2 (short) / CONT (continuous) selectable by switch
    LED illumination modeON (always ON) / SYNC (synchronized with trigger) / OFF (always OFF)
    Weight270 g approx. (main unit only)

    Notes:
    1) Typical value for pulse air mode: CONT at 100 mm 3.937 in from the front of discharge nozzle at an applied air pressure of 0.50 MPa.
    2) Dried clean air is the air passing through air dryer (dew point –20 ℃ -4 ℉ approx.) and air filter (mesh size 0.01 μm 0.0004 mil approx.)

    ------------------------------ Tab5 showing ------------------------------

    Dimensions

    Unit: mm in

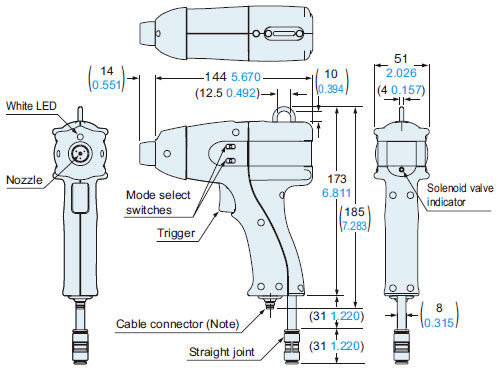

    EC-G02

    Ionizer main unit

    EC-G02

    Note: An exclusive intermediate cable (oil-resistant, heat-resistant, bending-resistant type, ø3.7 mmø0.146 in, 2 m6.562 ftlong) is attached.

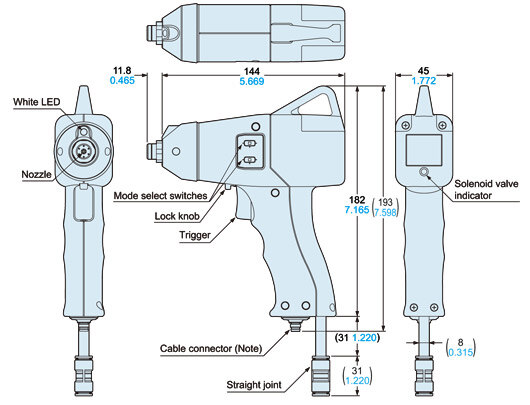

    EC-G01

    Ionizer main unit

    EC-G01

    Note:An exclusive intermediate cable (oil-resistant, heat-resistant, flexible type, ø3.7 mmø0.146 in, 2 m6.562 ftlong) is attached.

    ------------------------------ Tab6 showing ------------------------------

    Cautions For Use

    • This product has been developed / produced for industrial use.
    • This product includes precision components, so do not drop it or hit it against other objects. If this is not observed, accidents or problems with operation may occur.
    • Never use this product in a device for personnel protection.
    • Do not use this product in places where there may be danger of flammable or combustible items being present.
    • High voltages are applied to the discharge needle, so never touch the discharge needle while the power for the product is turned on, otherwise electric shocks may result.
    • Since the tip of the discharge needle is sharp, take sufficient care in handling the discharge needle, or injuries may result.
    • If this product is used in an airtight room, ozone emitted from this product may be detrimental. Therefore, in order for this product to be used in an airtight room, be sure to keep the room ventilated.
    • Do not direct ionized air toward the face. Ozone may cause irritation to places such as the nose and throat.
    • Do not look directly into the white LED spotlight. It may cause injury to the eyes.
