Basic Information
Connect Fiber Sensors and Displacement
Sensors to CC-Link IE Field for High-Speed Control
CE,UKCA Approved
Features
Introducing the industry's first* communication units compatible with CC-Link IE Field
* As of March 2017, in-company survey
Visualize collected sensor data to launch IoT initiatives!
Conditions surrounding the manufacturing industry are rapidly changing as production processes are advancing dramatically based on keywords such as IoT and Industry 4.0. To respond to the IoT trend, "visualization" is the first step to take. Panasonic Industry offers sensors and communication units that achieve the acquisition and visualization of sensor data.

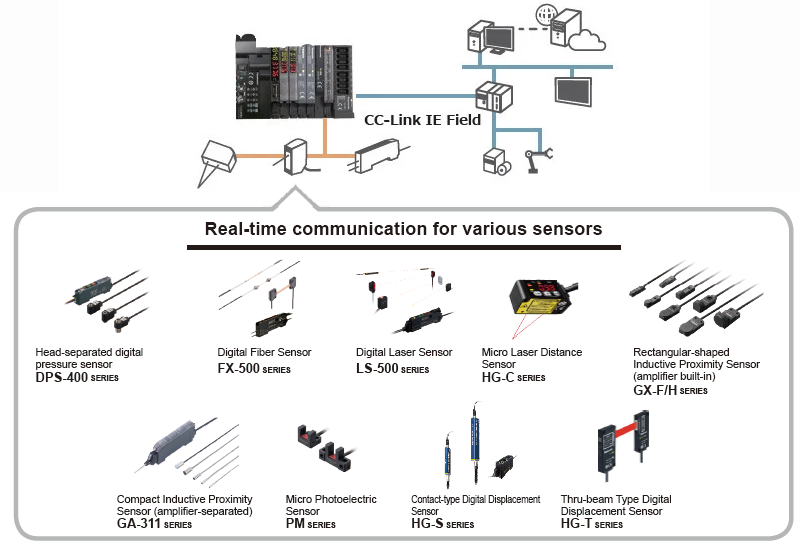

Connection of various sensors to the network
Each SC-GU3 series unit can be connected with up to 16 sensors*.
* Up to 12 units when the system is configured with FX-500 series / LS-501 unit

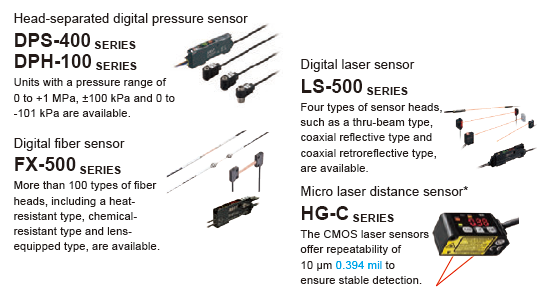

Transmission of digital (numerical) data from pressure sensors, photoelectronic sensors, laser sensors, temperature controllers, and the like to the network
Setting of sensor threshold values and operation / confirmation of current values can be performed on the network. This eliminates the need to directly operating individual sensor units.
* SC-A01 analog voltage input unit or SC-A02 analog current input unit is also required.

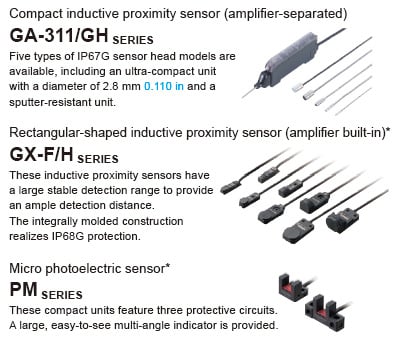

Transmission of ON/OFF data of proximity sensors and other sensors to the network
The ON/OFF data of sensors can be centrally managed on the network. Should an abnormality occur, the problem cause can be easily identified and located.
* SC-E1 1-channel connector input extension unit or SC-E81 / SC-E82 8-channel connector input extension unit is also required.
Communication unit for direct connection of sensors to the network!
Use of the communication unit enables the connection of various Panasonic Industry sensors to a CC-Link network for the real-time acquisition of digital data and ON/OFF data. This allows you to change sensor settings via the network and also log data for preventive maintenance purposes.

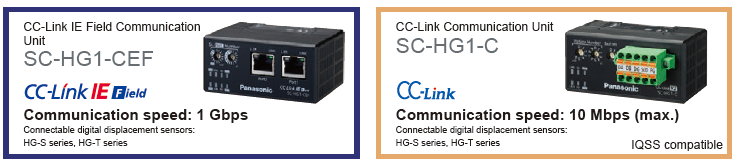

Connection of displacement sensors to the network

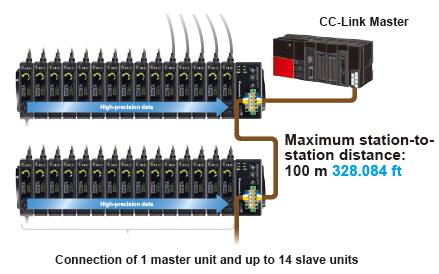

Each SC-HG1 series unit can be connected with up to 15 displacement sensors.
Transmission of digital (numerical) data from contact-type digital displacement sensors to the network
The SC-HG1 series achieves programless transmission of high-precision data.
Internal settings of multiple units can also be changed in a batch via the network.

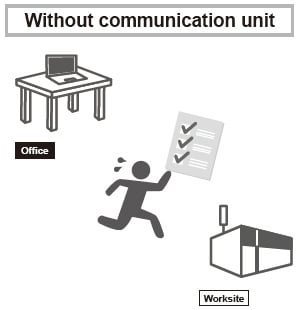

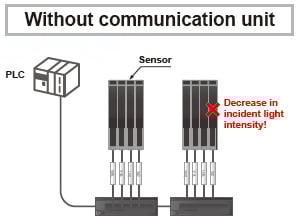

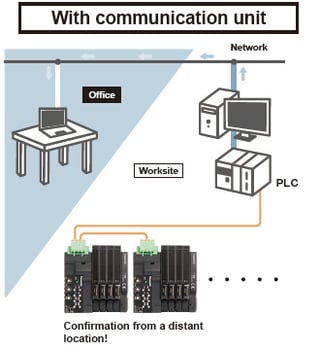

Remote equipment monitoring / operation

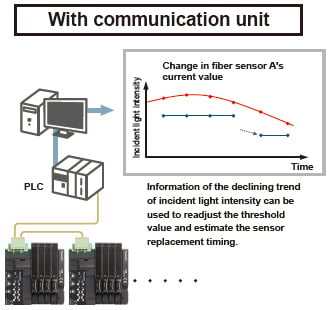

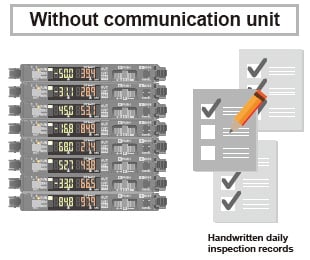

Logging of the current values of digital sensors for use in preventive maintenance!

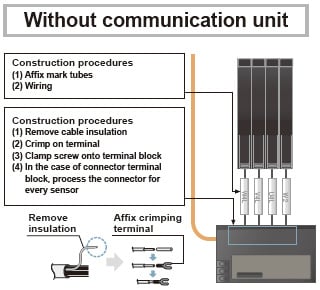

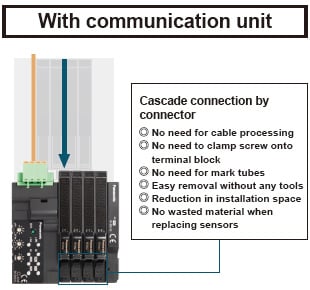

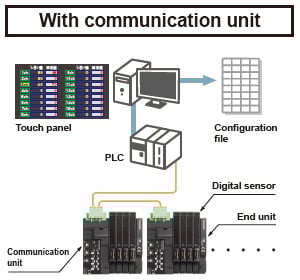

Communication unit contributes to the reduction of wiring and installation work!

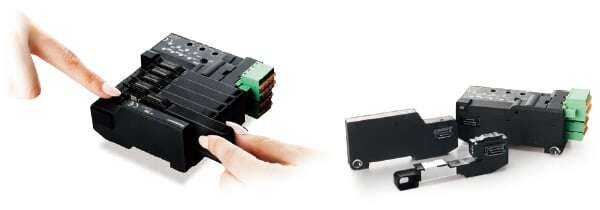

Easy replacement of a sensor without separating the adjacent sensor amplifier
Sensors are detachable simply by pushing down the lever of cascading connector unit and sliding the sensor amplifier sideways.
* SC-GU3 series

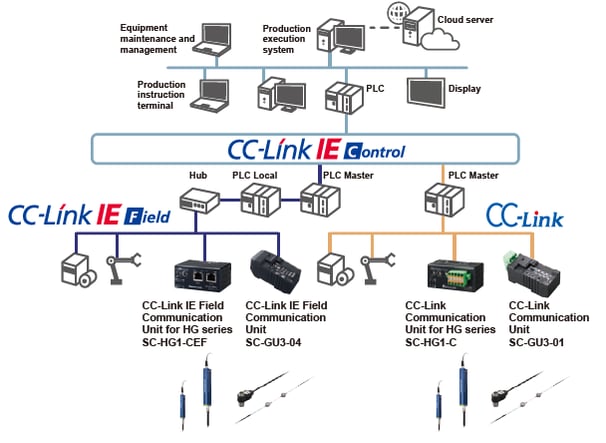

Support for Mitsubishi Electric’s iQ Sensor Solution
The SC-GU3-01 and SC-HG1-C Communication Units for CC-Link are compatible with Mitsubishi Electric's iQ Sensor Solution (iQSS) and can be used in combination with products that support iQSS, for example Mitsubishi Electric's MELSEC series.
* Supported only by SC-GU3-01 and SC-HG1-C (As of June 2017)

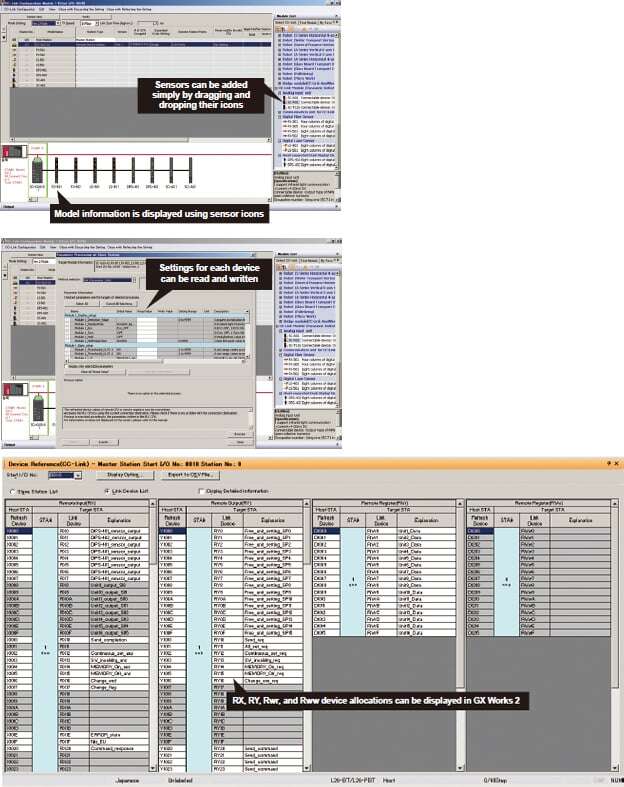

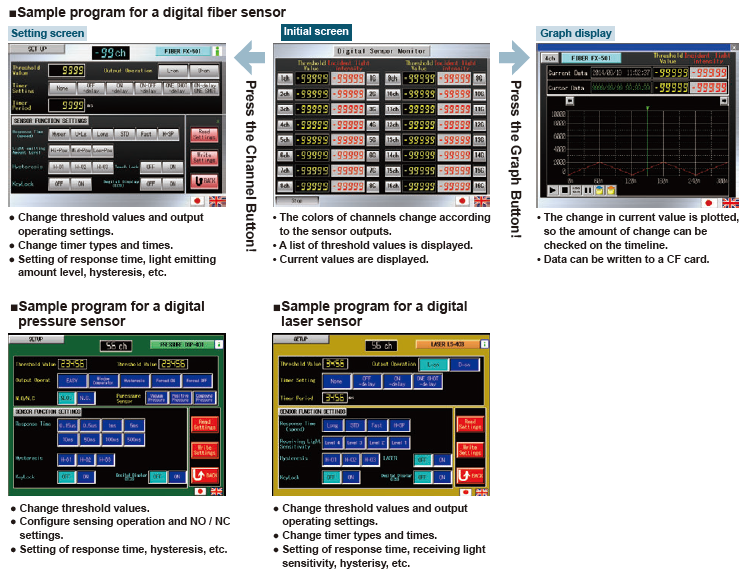

Digital sensors connected to the communication unit can be operated using Mitsubishi Electric's iQ Works (GX Works 2) software. The following functionalities can be realized by loading CSP+ data. The following functionality is supported by using iQ Works to load CSP+ data.
(Note) CSP+: CC-Link family system profile

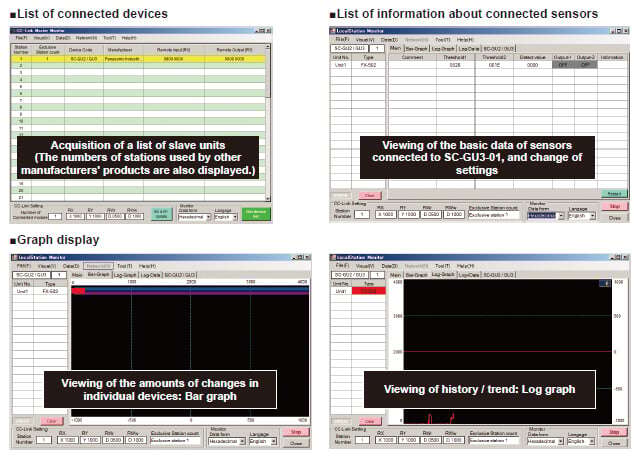

[1]CC-Link configuration information can be used to easily check the configuration of devices (sensor types:fiber, pressure, cascading configuration, number of units) connected to the communication unit.

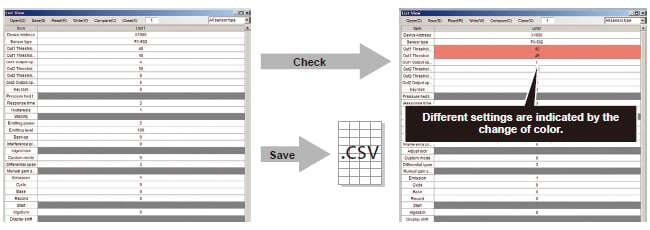

[2]A list of sensor-specific parameter data (write / read) can be acquired and changed.
[3]Allocation of the devices connected to the communication unit can be displayed by loading CSP+ data.
* Requires Mitsubishi Electric's GX Works 2 sequencer engineering software Ver. 1.492 or later.
------------------------------ Tab2 showing ------------------------------
Order guide
SC-GU3-□

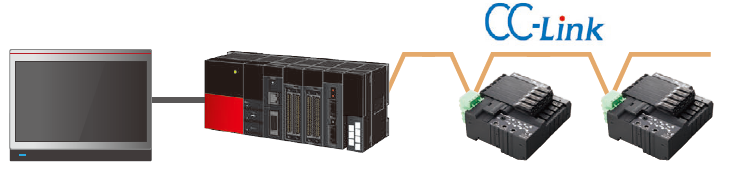

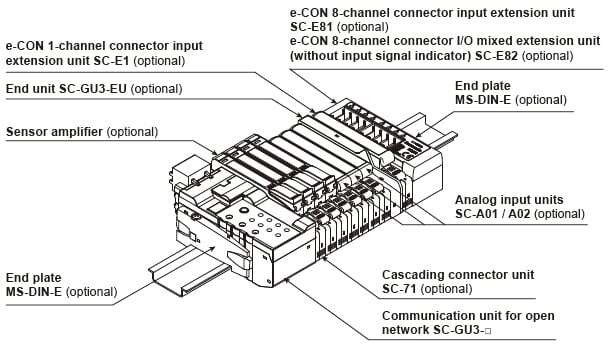

Example of system configuration
When optical communication is used in a system connected with product models not compatible with optical communication, connect the incompatible units after the SC-GU3-EU.
A maximum of 12 units can be connected if the system is connected with a FX-500 series unit or LS-501.
A maximum of 16 sensor amplifiers can be connected.

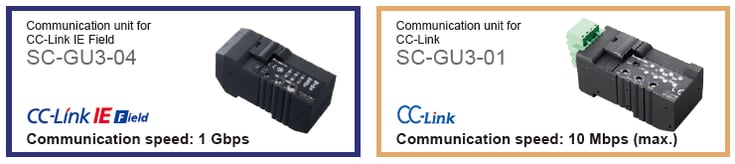

Communication units
Designation | Appearance | Model No. | Descritption |
---|---|---|---|
Communication unit for CC-Link IE Field | SC-GU3-04 | This is a communication unit, which can convert the output signal of a sensor amplifier into communication data for CC-Link IE Field. | |
Communication unit for CC-Link | SC-GU3-01 | This is a communication unit, which can convert the output signal of a sensor amplifier into communication data for CC-Link. |
Others
Designation | Appearance | Model No. | Descritption |
---|---|---|---|
End unit | SC-GU3-EU | This end unit can change and check the settings of sensor amplifiers that allow optical communication and monitor operation status. | |
Cascading connector unit | SC-71 | This one-touch connector is used to connect the following devices to SC-GU3-0□: The FX-500/410/310/300 fiber sensor, the LS-500/400 laser sensor, the DPS-400 digital pressure sensor, SC-E1, SC-A01 and SC-A02, etc. | |

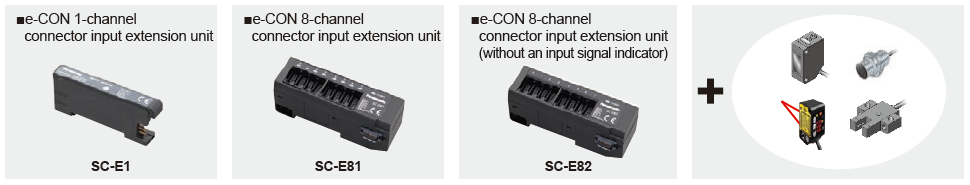

e-CON 1-channel connector input extension unit | SC-E1 | This extension unit can be connected to commercially available devices (Note) including an NPN output type or DC 2-wire type sensor. Includes power and input signal indicators (for one channel). When using in combination with the SC-GU3 series, use with the SC-71. | |
e-CON 8-channel connector input extension unit | SC-E81 | This extension unit can be connected to eight NPN output type devices. Includes power and input signal indicators (for eight channels). | |
e-CON 8-channel connector input extension unit | SC-E82 | This extension unit can be connected to eight NPN output type devices. Includes a power indicator. (Does not include an input signal indicator) | |
Analog voltage input unit | SC-A01 | This extension unit can be connected to NPN output type devices or analog voltage output type devices. When using in combination with the SC-GU3 series, use with the SC-71. | |
Analog current input unit | SC-A02 | This extension unit can be connected to NPN output type devices or analog voltage output type devices. When using in combination with the SC-GU3 series, use with the SC-71. | |
End plate | MS-DIN-E | After SC-GU3-0□, a sensor amplifier, an analog input unit or an end unit are connected on a DIN rail, make sure to install the end plates in such a way that they hold the unit in place at both ends. [Two pcs. per set] |
Note:
Conditions of connectable DC 2-wire type input device
・Leak current: 1 mA or less (when the power is OFF), Offset voltage: 3 V or less (when the power is ON)
・Product whose load current range includes 5 to 8 mA
SC-HG1-□

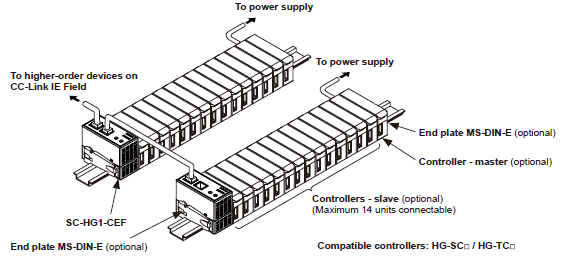

Example of system configuration
Designation | Appearance | Model No. | Description |
---|---|---|---|
CC-Link IE Field communication unit for digital displacement sensor | SC-HG1-CEF | This communication unit converts the output data from digital displacement sensors to data that can be communicated via CC-Link IE Field. | |
CC-Link communication unit for digital displacement sensor | SC-HG1-C | This communication unit converts the output data from digital displacement sensors to data that can be communicated via CC-Link. | |
End plate | MS-DIN-E | After a communication unit and controllers are connected on a DIN rail, make sure to install the end plates in such a way that they hold the unit in place at both ends. [Two pcs. per set] |
------------------------------ Tab3 showing ------------------------------
Option
For SC-GU3-□
Designation | Appearance | Model No. | Descritption |
---|---|---|---|
Cable with connector on one end | CN-M20-C2 | This cable has a connector for linking to the parallel output signal. |
Discontinued products [Order accepted till September, 2024]
------------------------------ Tab4 showing ------------------------------
Specifications
■SC-GU3-□
- Communication unit for CC-Link IE Field SC-GU3-04
- Communication unit for CC-Link SC-GU3-01
- End unit SC-GU3-EU
- Cascading connector unit SC-71
- e-CON 1-channel connector input extension unit SC-E1
- e-CON 8-channel connector input extension unit SC-E81
- e-CON 8-channel connector input extension unit SC-E82
- Analog input unit SC-A01/SC-A02
- Models connectable to SC-GU3-□
■SC-HG1-□
- CC-Link IE Field Communication Unit for HG series SC-HG1-CEF
- CC-Link Communication Unit for HG series SC-HG1-C

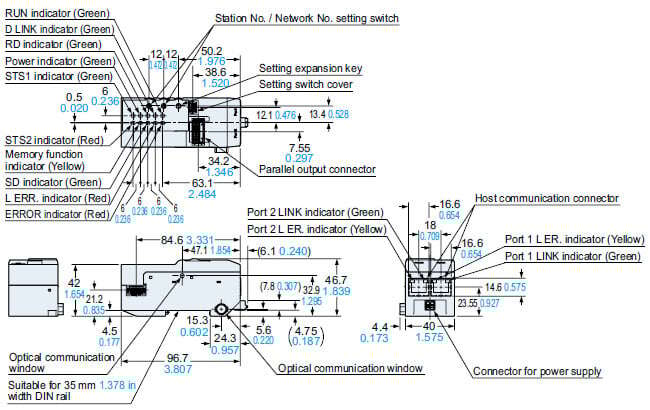

Communication unit for CC-Link IE Field

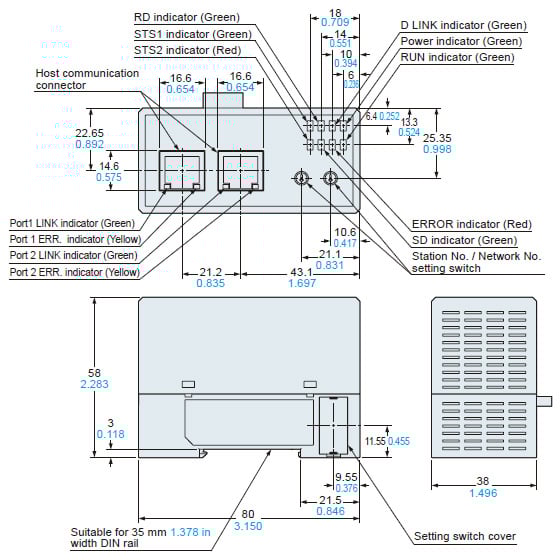

Communication unit for CC-Link SC-GU3-01
Item | SC-GU3-01 | ||||
---|---|---|---|---|---|
Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) | ||||
Number of connectable units | Maximum of 16 units per SC-GU3-01 unit (Max. 12 units when FX-500 / LS-500 series are connected) | ||||
Supply voltage | 24 V DC +10-15% Ripple P-P 10 % or less | ||||
Current consumption | 120 mA or less (without connected sensor amplifiers) | ||||
Allowable passing current | Wire-saving connector 2 A (Note 1), supply connector 6 A (Note 2) | ||||
Communication method | CC-Link Ver.1.10 | ||||
Number of occupied station | Switchable 1 or 4 station | ||||
Baud rate | 10 Mbps | 5 Mbps | 2.5 Mbps | 625 kbps | 156 kbps |
Total extension length | 100 m 328.084 ft | 150 m 492.126 ft | 200 m 656.168 ft | 600 m 1968.504 ft | 1,200 m 3937.008 ft |
Communication cable | Specified cable (twist pair cable with shield) (Note 3) | ||||
Station No. setting | 1 to 64 (0 and 65 or more: Error) | ||||
Remote station type | Remote device station | ||||
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ | ||||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||
Material | Enclosure: Polycarbonate | ||||
Weight | Net weight: 80 g approx., Gross weight: 120 g approx. |
Notes:
1) Be sure to check that total current consumption of sensor amplifiers connected in cascade does not exceed allowable passing current.
2) In case of supplying power to other devices, be sure to set the current less than allowable passing current.
3) Use only a special-use communication cable that is approved by the CC-Link Partner Association.

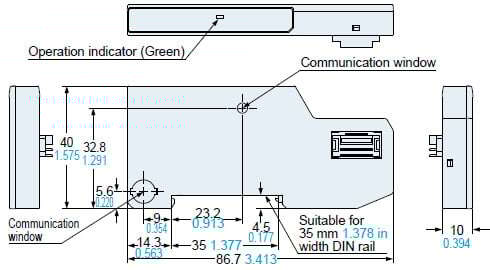

End unit
Item | SC-GU3-EU |
---|---|
CE marking directive compliance | EMC Directive, RoHS Directive |
Number of connectable units | 1 unit for 1 communication unit |
Supply voltage | 11 to 25 V DC Ripple P-P 10 % or less |
Current consumption | 25 mA or less |
Power indicator | Green LED (lights up when the power is ON) |
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Material | Enclosure: Polycarbonate |
Weight | Net weight: 20 g approx., Gross weight: 20 g approx. |

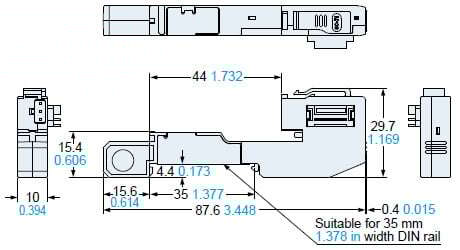

Cascading connector unit
Item | SC-71 |
---|---|
Number of connectable units | Max. 16 units per 1 communication unit |
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Material | Enclosure: Polycarbonate, Metal plate: Aluminum |
Weight | Net weight: 10 g approx., Gross weight: 25 g approx. |

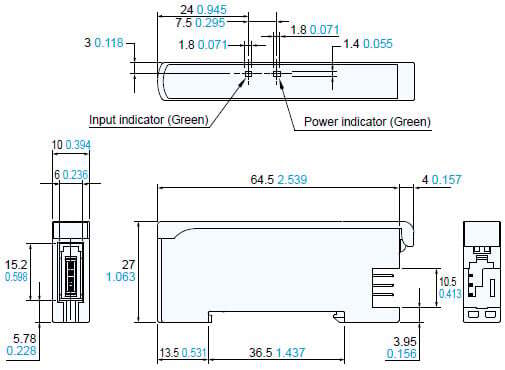

e-CON 1-channel connector input extension unit
Item | SC-E1 |
---|---|
Supply voltage | 12 to 24V DC ±10% |
Current consumption | 20 mA or less (with all indicators on) (Note 1) |
Number of signals | 1 input |
Input | Connectable devices: NPN open-collector transistor output type (Input 1) sensor, DC 2-wire output type (Input 2) sensor (Note 2), switches, and other devices Current supply for input device: 100 mA or less Input impedance: 17 kΩ approx. (Input 1) or 3.2 kΩ approx. (Input 2) |
Output | NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less (with sink current of 50 mA) |
Power indicator | Green LED (Lights up when the power is ON) |
Input indicator | Green LED (Lights up when input is being received by unit) |
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ |
Ambient humidity | 35 to 85% RH Storage:35 to 85% RH |
Material | Enclosure: Flame-resistant PBT Connector: Polyester |
Weight | Net weight: 15g approx., Gross weight: 40g approx. |
Accessory | Connector (e-CON): 1pc. |
Notes:
1) Does not include current consumption or input current for connected input devices.
2) Conditions of connectable DC 2-wire type input device
・Leak current: 1 mA or less (when the power is OFF),
Offset voltage: 3 V or less (when the power is ON)
・ Product whose load current range includes 5 to 8 mA

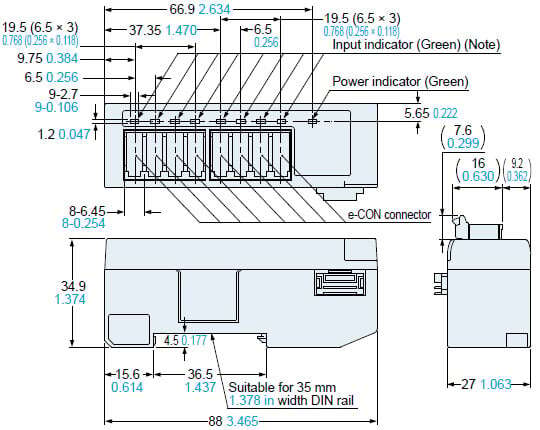

e-CON 8-channel connector input extension unit
Item | SC-E81 |
---|---|
Supply voltage | 12 to 24V DC ±10% |
Current consumption | 60 mA or less (with all indicators on) (Note 1) |
Number of signals | 8 inputs (Note 2) |
Input | Connectable devices: NPN transistor / open-collector output type sensors, switches, and other devices Current supply for input devices: 800 mA or less (total for 8 inputs) Input impedance: Approx. 17 kΩapprox |
Output | NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less (with sink current of 50 mA) |
Power indicator | Green LED (lights up when the power is ON) |
Input indicator | 8 green LEDs (light up when input is received from the corresponding channel) |
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 9 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ |
Ambient humidity | 35 to 85% RH Storage: 35 to 85% RH |
Material | Enclosure: Polycarbonate Connector: Polyester |
Weight | Net weight: 40g approx., Gross weight: 85g approx. |
Notes:
1) Does not include current consumption or input current for connected input devices.
2) Uses eight channels of signaling, regardless of the number of connected input devices.
e-CON 8-channel connector input extension unit (without an input signal indicator)
Item | SC-E82 |
---|---|
Supply voltage | 5 to 24 V DC ±10% |
Current consumption | 7mA or less |
Number of signals | 8 inputs (Note 1) |
Input | Connectable devices: NPN open-collector transistor output type sensors, switches, and other devices (Note 2) Current supply for input devices: 800 mA or less (total for 8 inputs) |
Power indicator | Green LED (Lights up when the power is ON) |
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 9 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ |
Ambient humidity | 35 to 85% RH Storage: 35 to 85% RH |
Material | Enclosure: Polycarbonate Connector: Polyester |
Weight | Net weight: 40g approx. Gross weight: 85g approx. |
Notes:
1) Uses eight channels of signaling, regardless of the number of connected input devices.
2) When using in combination with the SC-MIL, it can use as a commercially available device including a DC 2-wire type sensor or output. Refer to the SC series for the SC-MIL.

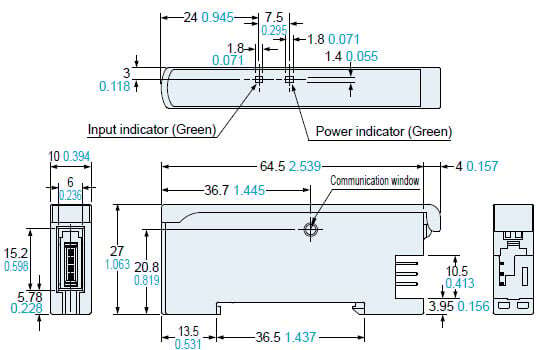

Analog voltage input unit
Analog current input unit
Item | Analog voltage input unit | Analog current input unit |
---|---|---|
SC-A01 | SC-A02 | |
Supply voltage | 12 to 24V DC±10%, Ripple P-P 10% or less | |
Current consumption | 25 mA or less (with all indicators on and 24 V applied) (Note 1) | |
Analog input | Voltage: 1 to 5 V DC (input impedance: approx. 200 kΩ) | Current: 4 to 20 mA DC (input impedance: approx. 250 kΩ) |
Communication data (Note 2) | Analogue ⇔ Communication data ・Communication data: 0 to 4,000 digits (within range of 1 to 5 V) ・Zero point: Within 0 digit ±0.5% F.S. (within the range of 1 to 5V) ・Span: Within 4,000 digits ±0.5% F.S. ・Linearity: Within ±0.5% F.S. | Analogu ⇔ Communication data ・Communication data: 0 to 4,000 digits (within range of 4 to 20 mA) ・Zero point: Within 0 digit ±0.5% F.S. ・Span: Within 4,000 digits ±0.5% F.S. ・Linearity: Within ±0.5% F.S. |
Input | Connectable devices: NPN open-collector transistor output type Current supply for input devices: 100 mA or less Input impedance: 17 kΩ approx. Operating voltage: On voltage of 17 V or more (between input and +V, 24 V applied) Off voltage of 4 V or less (between input and +V, 24 V applied) | |
Output | NPN open-collector transistor • Maximum sink current: 50 mA or less (when expanding to 5 units or more, 25 mA) • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less (with sink current of 50 mA) | |
Power indicator | Green LED (lights up when the power is ON) | |
Input indicator | Green LED (lights up when input is being received by unit) | |
Ambient temperature | –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), (If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉) Storage: –20 to +70 ℃ –4 to +158 ℉ | |
Ambient humidity | 35 to 85% RH, Storage: 35 to 85% RH | |
Material | Case: Flame-resistant PBT, Connector: Polyester | |
Weight | Net weight: 15 g approx., Gross weight: 40 g approx. | |
Accessory | Connector (e-CON): 1 |
Note:
1) Does not include current consumption or input current for connected input devices.
2) The figure below illustrates the relationship between communication data and input voltage.
Models connectable to SC-GU3-□
Communication compatibility | Type | Model No. |
---|---|---|
Models that support optical communications | Digital fiber sensor (Note) | FX-501, FX-502, FX301, FX-305 |
Digital laser sensor | LS-403, LS-501 | |
Digital pressure sensor | DPS-401, DPS-402 | |
1ch connector input unit (analog communication unit) | SC-A01, SC-A02 | |
No optical communications | Digital fiber sensor (Note) | FX-551, FX-411, FX-412, FX-301(B/G/H), FX-301-HS |
Manually Set Fiber Sensor | FX-311(B/G) | |
Digital laser sensor | LS-401 | |
Compact inductive proximity sensor | GA-311 | |
1ch connector input unit | SC-E1 | |
8ch connector input unit | SC-E81, SC-E82 |
Note:
FX-301 fiber sensor products manufactured before June 2004 are not compatible with optical communication. Those produced from June 2004 are compatible with optical communication.
If "NAVI" is printed only on one side of the product, the unit is not compatible with optical communication. If "NAVI" is printed on both sides of the product, the unit is compatible with optical communication. Please check when using FX-301 fiber sensors.
When connecting ordinary photoelectronic / proximity sensors or analog sensors
By using the SC-E1, SC-E81 or SC-E82 e-CON-compatible connector input extension unit, ordinary photoelectronic / proximity sensors and analog sensors can be connected to the SC-GU3.
The SC-A01 and SC-A02 allow the connection of analog output devices. (1 to 5 V, 4 to 20 mA)
CC-Link IE Field Communication Unit for HG series SC-HG1-CEF
Model No. | SC-HG1-CEF | |
---|---|---|
Applicable regulations | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) | |
Compatible controllers | HG-SC□, HG-TC□ | |
Maximum number of connectable controllers | Maximum of 15 controllers (one master, 14 slaves) per SC‑HG1‑CEF unit | |
Supply voltage(Note 2) | 24V DC ±10%, including 0.5V ripple (P-P) | |
Current consumption | 200 mA or less | |
Communication method | CC-Link IE Field | |
Remote station type | Remote device station | |
Network No. setting | 1 to 239 (decimal) [1 to EF (hex)] (0 and 240 or more: Error)(Note 3) | |
Cyclic transmission (Maximum number of links per station) | RX/RY:128 points each (128 bits), 16 bytes, RWr/RWw: 64 points each (64 words), 128 bytes | |
Transient transmission | Server function only, data size 1024 bytes | |
Station No. setting | 1 to 120 (decimal) (0 and 121 or more: Error) | |
Communication speed | 1 Gbps | |
Transmission line type | Line, star, (mixing of line and star types is possible), ring | |
Maximum transmission distance | 100 m 328.084 ft | |
Maximum number of units connectable | 121 units (1 master station, 120 slave stations) | |
Cascade connection levels | Maximum 20 | |
Pollution degree | 2 | |
Operating altitude | 2,000 m 6561.68 ft or less(Note 4) | |
Environmental resistance | Protection | IP40 (IEC) |
Ambient temperature | -10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed) Storage: -20 to +60 ℃ -4 to +140 ℉ | |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |
Insulation resistance | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure | |
Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s2 (58 to 150 Hz) in X, Y and Z directions for two hours each | |
Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each | |
Material | Enclosure: Polycarbonate | |
Communication cable | Ethernet cable that satisfies 1000BASE-T standard Category 5e or higher (Double-shielded / STP, straight cable)(Note 5) | |
Weight | Net weight: 100 g approx., Gross weight: 150 g approx. |
Notes:
1) Where measurement conditions have not been specified precisely, the conditions used
were ambient temperature +20 ℃ +68 ℉.
2) Power is supplied from a connected controller / master controller.
3) For the network number setting on this product, convert the network number to hex and
set the hex value.
4) Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.
5) Use CC-Link Partner Association recommended cable.
CC-Link Communication Unit for HG series SC-HG1-C
Model No. | SC-HG1-C | |||||
---|---|---|---|---|---|---|
Applicable regulations | CE Marking (EMC Directive (Note 2), RoHS Directive), UKCA Marking (EMC Regulations (Note 2), RoHS Regulations) | |||||
Compatible controllers | HG-SC□, HG-TC□ | |||||
Maximum number of connectable controllers | Maximum of 15 controllers (one master, 14 slaves) per SC-HG1-C unit | |||||
Supply voltage (Note 3) | 24 V DC ±10 %, including 0.5 V ripple (P-P) | |||||
Current consumption | 80 mA or less | |||||
Communication method | Switchable CC-Link Ver.1.10 or 2.00 | |||||
Remote station type | Remote device station | |||||
Number of occupied station | CC-Link Ver.1.10: 4 stations, CC-Link Ver.2.00: Switchable 2 or 4 stations | |||||
Station No. setting | 1 to 64 (0 and 65 or more: Error) | |||||
Communication speed | 10 Mbps | 5 Mbps | 2.5 Mbps | 625 kbps | 156 kbps | |
Maximum transmission distance | 100 m 328.084 ft | 160 m 524.934 ft | 400 m 1,312.336 ft | 900 m 2,952.756 ft | 1,200 m 3,937.008 ft | |
Pollution degree | 2 | |||||
Operating altitude | 2,000 m 6561.68 ft or less (Note 4) | |||||
Environmental resistance | Protection | IP40 (IEC) | ||||
Ambient temperature | -10 to +45 ℃ +14 to +113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to +140 ℉ | |||||
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | |||||
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | |||||
Insulation resistance | 20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure | |||||
Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58 Hz), maximum acceleration 49 m/s2(58 to 150 Hz) in X, Y and Z directions for two hours each | |||||
Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each | |||||
Material | Enclosure: Polycarbonate | |||||
Communication cable | Specified cable (shielded twisted cable) (Note 5) | |||||
Weight | Net weight: 80 g approx., Gross weight: 130 g approx. |
Notes:
1) Where measurement conditions have not been specified precisely,
the conditions used were ambient temperature +20℃+68℉.
2) If our product will be incorporated in a customer product that will comply with the EMC Directive / EMC Regulations , install our product in a conductive box in accordance with "PLC User's Manual [Published by Mitsubishi Electric Corporation]".
3) Power is supplied from a connected controller / master controller.
4) Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.
5) Use only a special-use communication cable that is approved by the CC-Link Partner Association.
------------------------------ Tab5 showing ------------------------------
Dimensions
Unit: mm in
SC-GU3-04
Communication unit for CC-Link IE Field

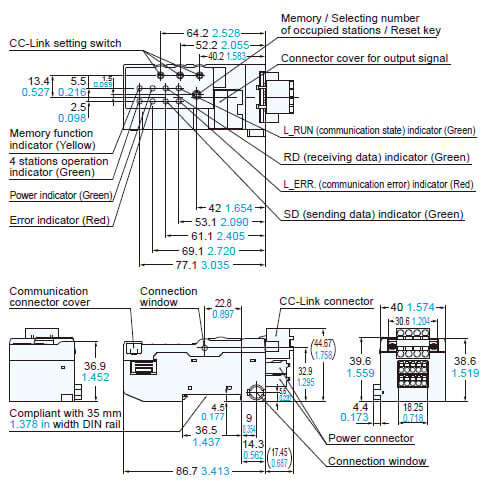

SC-GU3-01
Communication unit for CC-Link
SC-GU3-EU
End unit
SC-71
Cascading connector unit
SC-E1
e-CON 1-channel connector input extension unit
SC-E81 / SC-E82
e-CON 8-channel connector input extension unit
* SC-E82 is not equipped with an input indicator.
SC-A01 / SC-A02
Analog input unit
SC-HG1-CEF
Communication unit for CC-Link IE Field

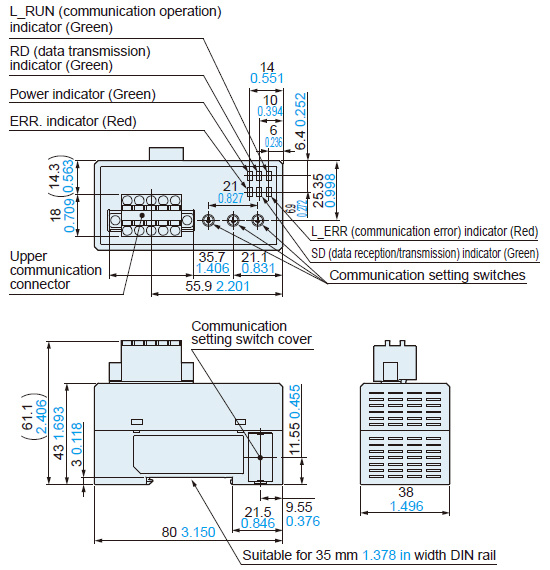

SC-HG1-C
Communication unit for CC-Link

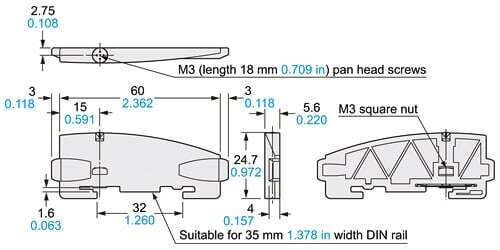

MS-DIN-E
End unit
Material:Polycarbonate
------------------------------ Tab6 showing ------------------------------
Software
SC-PC1 computer software with support for Mitsubishi Electric’s EZSocket
By using the SC-PC1 PC software setting, communication commands can be transmitted via the MELSEC series for the ladderless manipulation of information (including sensor data) for the SC-GU3-01 units connected to CC-Link.
* Supported only by SC-GU3-01 (Soon to be supported by SC-GU3-04 and SC-HG1-C/CEF) (As of June 2017)
* iQ Works, CC-Link, CC-Link IE Field, iQ Sensor Solution and EZSocket are registered trademarks of Mitsubishi Electric Corporation.
Sensor settings backup
The SC-PC1 software can load sensor settings information. * The loaded data can be saved in the CSV format.
Furthermore, cross-checking with the settings data of sensors connected to the SC-PC1 is possible.
This function is useful when you want to store the sensor settings data before sending out the devices or when you want to check the sensor settings in the event a problem occurs.
Sample program for the display of data for when using PLC and display device*
The sample program enables the monitoring of digital sensors, such as incident light intensity and pressure, as well as the writing of data for the change of sensor settings.
* Program designed for SC-GU3-01 (Soon to be supported by SC-GU3-04 and SC-HG1-C/CEF) (As of June 2017)
Sample program for the SC-GU3-01 Communication Unit for CC-Link
The sample program (display screen, ladder) includes a process for the confirmation of threshold values / displayed values and the basic settings for sensor amplifiers. It facilitates the development of original programs. The display language of the sample program can be switched to Japanese or English.
Display | Sequencer | Free downloads |
---|---|---|
GOT1000 series (Mitsubishi Electric Corporation) | MELSEC-Q series (Mitsubishi Electric Corporation) | Available for download from the Mitsubishi Electric and Panasonic Industry websites *Amplifier-separated Type Digital Laser Sensor LS-500 will be compatible soon. |
GP3000 series (Digital Electronics Corporation) | Mitsubishi Electric Corporation | Available for download from the Digital Electronics website (from the “Connectable Device Samples” section under Pro-face / cockpit parts) (also works with the SC-GU2-C) |
------------------------------ Tab7 showing ------------------------------
Cautions For Use
- Never use this product in a device for personnel protection.
- In case of using sensing devices for personnel protection, use products which meet laws and standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
With regards to the connected use of HG-S and HG-T
Please refer to the page below when using HG-S controllers and HG-T controllers connected.
>>With regards to the connected use of HG-S and HG-T
