Discontinued Products
[Note]
The following applicable products and options are available continuously.
FP-X Expansion Unit
Input Unit / Output unit
| Product name | Power supply | Specifications | Part number |
|---|---|---|---|
| FP-X E16X Expansion Input Unit | - (Power is supplied from the left-side Unit.) | 24 V DC, 16 input points *1 | AFPX-E16X |
| FP-X E14YR Expansion Output Unit | - (Power is supplied from the left-side Unit.) | 2A relay, 14 output points *1 | AFPX-E14YR |
I/O Unit (Relay output)
| Product name | Power supply | Specifications | Part number |
|---|---|---|---|
| FP-X E16R Expansion I/O Unit | - (Power is supplied from the left-side Unit.) | 8-point input of 24 V DC, 8-point relay output of 2 A *1 | AFPX-E16R |
| FP-X E30R Expansion I/O Unit | 100~240V AC | 16-point input of 24 V DC, 14-point relay output of 2 A *2 | AFPX-E30R |
| FP-X E30RD Expansion I/O Unit | 24V DC | 16-point input of 24 V DC, 14-point relay output of 2 A *2 | AFPX-E30RD |
I/O Unit (Transistor output)
| Product name | Power supply | Specifications | Part number |
|---|---|---|---|
| FP-X E16T Expansion I/O Unit | - (Power is supplied from the left-side Unit.) | 8-point input of 24 V DC, 8-point transistor (NPN) output of 0.5 A *1 | AFPX-E16T |
| FP-X E16P Expansion I/O Unit | - (Power is supplied from the left-side Unit.) | 8-point input of 24 V DC, 8-point transistor (PNP) output of 0.5 A *1 | AFPX-E16P |
| FP-X E30TD Expansion I/O Unit | 24V DC | 16-point input of 24 V DC, 14-point transistor (NPN) output of 0.5 A *2 | AFPX-E30TD |
| FP-X E30T Expansion I/O Unit | 100~240V AC | 16-point input of 24 V DC, 14-point transistor (NPN) output of 0.5 A *2 | AFPX-E30T |
| FP-X E30PD Expansion I/O Unit | 24V DC | 16-point input of 24 V DC, 14-point transistor (PNP) output of 0.5 A *2 | AFPX-E30PD |
| FP-X E30P Expansion I/O Unit | 100~240V AC | 16-point input of 24 V DC, 14-point transistor (PNP) output of 0.5 A *2 | AFPX-E30P |
FP0R Expansion units and FP0 Intelligent units can be used for FP-X.*3
Expansion FP0 Adapter
| Product name | Power supply | Specifications | Part number |
|---|---|---|---|
| Expansion FP0 Adapter | 24VDC | Up to 3 FP0R expansion Units can be connected via an adapter.With an 8cm extension cable and power cable | AFPX-EFP0 |
* The 24 V DC inputs of all Units are bi-directional (sink/source) inputs.
*1 Two or more E16T cannot be connected serially because it cannot supply the power to other units. With an 8cm extension cable
*2 Possible to connect up to 8 units including E16, EFP0. With an 8cm extension cable
*3 Up to 3 Units can be connected. Expansion FP0 Adapter is required.
FP-X Add-on Cassette
Application Cassette
| Product name | Specifications | Part number |
|---|---|---|
| FP-X Input /Output cassette | 4-point input of 24 V DC, bi-directional (sink/source), 3-point output of NPN transistor 0.3 A/24 V DC | AFPX-IN4T3 |
| FP-X Input cassette | 8-point input of 24 V DC, bi-directional (sink/source) | AFPX-IN8 |
| FP-X Output cassette | 8-point output of NPN transistor, 0.3 A/24 V DC | AFPX-TR8 |
| 6-point output of PNP transistor, 0.5 A/24 V DC | AFPX-TR6P | |
| FP-X Pulse I/O cassette | High-speed counter input: single-phase 2 ch., each 80 kHz or two-phase 1 ch., 30 kHz, Pulse output: one axis 100 kHz/ch. (Use restriction is applied for a two-Unit installation) Cannot be used with a transistor output type control Unit. | AFPX-PLS |
| FP-X Analog input cassette | 2-point analog input, 0 to 10 V/0 to 20 mA, 12-bit, 2 ms/2 ch. (non-insulated) | AFPX-AD2 |
| FP-X Analog output cassette | 2-point analog output, 0 to 10 V/0 to 20 mA, 12-bit, 2 ms/2 ch. (insulated) | AFPX-DA2 |
| FP-X Analog I/O cassette | 2-point analog input, 0 to 5 V/0 to 10 V or 0 to 20 m, 12-bit, 2 ms/2 ch., 1 point analog output, 0 to 10 V or 0 to 20 m, 12-bit, 1 ms/1 ch. (insulated) | AFPX-A21 |
| FP-X Thermocouple input cassette | 2-point thermocouple input, K/J type, Resolution: 0.2 C, 200 ms/2 ch. Channels insulated | AFPX-TC2 |
| FP-X Master memory cassette with a real-time clock | Master memory: Capable of storing all program steps and comments simultaneously. Storage of FPWIN Pro source files Real-time clock: Year, month, day, hour, minute, second, day of week (optional battery required) | AFPX-MRTC |
Communication Cassette
| Product name | Specifications | Part number |
|---|---|---|
| FP-X COM1 Communication Cassette | RS232C 1 ch. RS and CS control signal equipped (non-insulated) | AFPX-COM1 |
| FP-X COM2 Communication Cassette | RS232C 2 ch. (non-insulated) | AFPX-COM2 |
| FP-X COM3 Communication Cassette | RS485/RS422 selectable 1ch (insulated) | AFPX-COM3 |
| FP-X COM4 Communication Cassette | RS485 1 ch. (insulated) + RS232C 1 ch. (non-insulated) | AFPX-COM4 |
| FP-X COM5 Communication Cassette | Ethernet 1 ch. (10BASE-T, 100BASE-TX) + RS232C 1 ch. (non-insulated) | AFPX-COM5 |
| FP-X COM6 Communication Cassette | RS485 2 ch. (insulated) | AFPX-COM6 |
* Please read the " Limitation of use" before using FP-X Add-on cassettes.
FP-X Options and Service Parts
| Product name | Specifications | Part number |
|---|---|---|
| FP-X Backup battery | Battery for backing up the operation memory and real-time clock | AFPX-BATT |
| FP-X Expansion cable | Expansion Unit connection cable, 8 cm | AFPX-EC08 |
| Expansion Unit connection cable, 30cm | AFPX-EC30 | |
| Expansion Unit connection cable, 80cm | AFPX-EC80 | |
| FP-X Terminal block | Terminal block for C30, C60 and E30, 21 pins, cover with no marking, four Units included | AFPX-TAN1 |
Programming tools
For software specifications, please refer to the web page of each software.
>> Refer to "Control FPWIN GR7"
>> Refer to "Control FPWIN Pro7"
| Product name | Type | Part No. | ||
|---|---|---|---|---|
| Programming software for Windows® Control FPWIN GR7 | Japanese version | Supports only CPU unit without encryption function | AFPSGR7JP | |
| Security enhanced type | Supports both CPU unit with / without encryption function | AFPSGR7JPS | ||
| English version | Supports only CPU unit without encryption function | AFPSGR7EN | ||
| Security enhanced type | Supports both CPU unit with / without encryption function | AFPSGR7ENS | ||
| Programming software for Windows® Control FPWIN Pro7 | Japanese English Chinese Korean | Supports only CPU unit without encryption function | AFPSPR7A | |
| Supports both CPU unit with / without encryption function * The encryption function will be offered in the future. | AFPSPR7AS | |||
* Windows is trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.
* When exporting to China, CPU unit without encryption function is required.
Note:
1) Please use a commercially available USB2.0 cable (A type mini B) for connecting a control unit with a PC.
------------------------------ Tab2 showing ------------------------------
------------------------------ Tab3 showing ------------------------------
Dimensions
Unit: mm inFP-X Control Units
AFPX-C14**
AFPX-C30**
AFPX-C60**
FP-X Expansion Units
AFPX-E16X, E14YR, E16T, E16R
(Refer to the dimension of AFPX-C14** above)
AFPX-E30**
(Refer to the dimension of AFPX-C30** above)

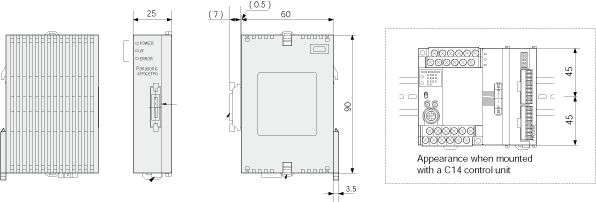

AFPX-EFP0

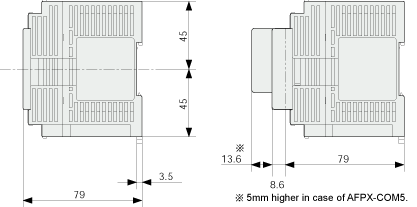

FP-X Add-on Cassettes *
AFPX-COM*AFPX-IN8/AFPX-TR8/
AFPX-AD2/AFPX-PL8/AFPX-MRTC
* Please read the'Limitation of use'before using FP-X Add-on cassettes.
