Basic Information
Programming software of PLC open certification corresponds to FP7
Features
- The universal software for all Panasonic PLC’sThe Panasonic programming software developed according to the international standard IEC 61131-3.
- The universal software for all Panasonic PLC’s
- Programs written in Control FPWIN Pro6 or earlier versions will run with Control FPWIN Pro7
- Programs are compatible across FP series PLCs, and FP0R will run with minor adjustments on FPΣ (Sigma) and FP7 PLCs
- FP7 PLCs and Control FPWIN Pro7 offer the same flexible choice of editors and allow you to select the programming language you are most familiar with.
* Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.

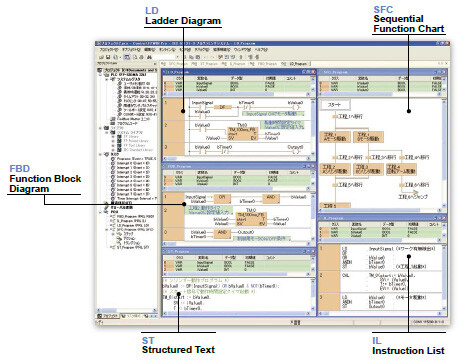

Five programming languages can be used.
Programming can be done using the language most familiar to the developer or using the language most suited to the process to be performed.
High-level (structured text) languages that allow structuring, such as C, are supported. 5 programming languages: IL (Instruction List), LD (Ladder Diagram), FBD (Function Block Diagram), SFC (Sequential Function Chart ), ST (Structured Text)
Easy to reuse well-proven programs
Efficiency when writing programs has been greatly increased by being able to split programming up for each function and process using structured programming.
Keep know-how from getting out
By “black boxing” a part of a program, you can prevent know-how from leaking out and improve the program's maintainability.
Source program from PLC can be uploaded.
Serviceability is improved by being able to read programs and comments from a PLC.
• 4 languages are fully supported: English, Japanese, Korean, Chinese
• Well-structured through program organization units, task and project management
• Remote programming, service and diagnostics via modem or Ethernet
• Extensive comments and online documentation created hand in hand with the program
• Min. program size through optimized compiler
• Powerful debugging and monitoring tools provide information on the current status of the PLC.
• Comprehensive printed documentation and support for function blocks and libraries help to get your hardware running in record time while maintaining rigorous quality standards.
• Reuse of functions and function blocks saves time.
SYSTEM REQUIREMENTS
| Item | Specifications |
|---|---|
| OS | Windows® 11 / Windows® 10 (64-bit) |
| Available hard disk space | 600 MB or more |
Notes: 1) Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
Applicable PLCs
| PLC | Availability | Supported Ver. |
|---|---|---|
| FP7 | A | All Versions |
| FP0H | A | *1 |
| FP-XH | A | *2 |
| FP2SH | A | All Versions |
| FP-X0 | A | All Versions |
| FPΣ | A | All Versions |
| FP-X | A | All Versions |
| FP0R | A | All Versions |
| FP2 | A | All Versions |
| PLC | Availability | Supported Ver. |
|---|---|---|
| FP-e | A | All Versions |
| BX | A | All Versions |
| FP-M | A | All Versions |
| FP10SH | A | All Versions |
| FP10S | A | All Versions |
| FP10 | A | All Versions |
| FP3 | A | All Versions |
| FP1 | A | All Versions |
| FP0 | A | All Versions |
*1 Supported from Ver.7.2.0. FP0H positioning RTEX unit is compatible from Ver.7.3.0.0.
*2 Supported from Ver.7.1.6.
ORDER GUIDE
| Product name | Type | Part No. | ||
|---|---|---|---|---|
| Programming software for Windows® Control FPWIN Pro7 | English, Japanese, Korean and Chinese | Supports all FP series PLCs (FP7 series: Supports only CPU unit without encryption function) | AFPSPR7A | |
| Security enhanced type | Supports all FP series PLCs (FP7 series: Supports both CPU unit with/without encryption function) * The encryption function will be offered in the future. | AFPSPR7AS | ||
Notes:
1) Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
2) When exporting to China, CPU unit without encryption function is required.
