LP-V15U｜FAYb Laser Marker LP-V(Discontinued)

Download

Discontinued

Last time buy (JST)

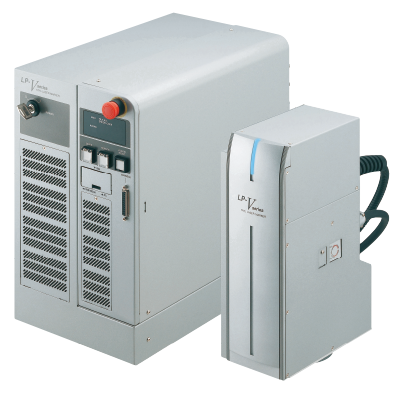

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    LP-V15U

    Part Number

    LP-V15U

    Product

    FAYb Laser Marker LP-V

    Details

    Wide-area type

    Product Name

    		 FAYb Laser Marker LP-V(Discontinued)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberLP-V15U
    Product NumberLP-V15U
    Products NameFAYb Laser Marker LP-V
    Product detailsWide-area type
    The price of the productPlease contact our office
    TypeWide-area type
    Japanese model
    Work distance350 mm 13.8 in
    (Note) It is output of a laser oscillator.
    Marking laserClass 4 Yb fiber laser; wavelength: 1.06 microm 0.042 mil
    Marking laser : Average output12 W (pulse oscillation)
    (Note) Distance from target object varies by approx. plus or minus2 mm plus or minus0.079 in from model to model.
    Guide laser / pointerClass 2 semiconductor laser; wavelength: 655 nm 0.026 mil
    Marking field160 x 160 mm 6.3 x 6.3 in
    Scan speedMax. 12000 mm/s
    Line speed240 m/min or less
    (Note) Varies by target object.
    Installation orientationAll
    Character settings (character height, width)0.2 to 160 mm 0.008 to 6.3 in (variable in 0.001 mm 0.00004 in steps)
    Marking spacing (character spacing, line pitch)0 to 160 mm 0 to 6.3 in (variable in 0.001 mm 0.00004 in steps)
    Arced output: -180degrees to +180degrees (variable in 0.01degrees steps)
    Character arraysLinear, proportional, monospaced, arced
    Character typesEnglish uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
    Bar codeCode 39, Code 128, ITF, NW-7, JAN/UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
    2D codeQR Code, Micro QR Code, Data Matrix, GST Data Matrix
    Composite codesRSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc.
    Logos / GraphicsBMP, DXF, HPGL, JPEG, AI (Note), EPS (Note)
    (Note) The PC installed Adobe(R) Illustrator(R) is necessary.
    Cooling methodForced air cooling
    Power supply100 to 120 V AC plus or minus10 %, or 200 to 240 V AC plus or minus10 % (automatic switching), 50/60 Hz
    Power consumption390 VA or less (100 V AC); 420 V or less (200 V AC)
    InputsRemote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc.
    OutputsPower supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete
    Marking object stateStatic, On the fly
    FunctionsMarking order optimization / Intersection correction / Counter marking / Current date marking / Deadline date marking
    Lot marking / Logo data marking / Font creation and editing / Monospaced alignment / Updating of operating
    System offset / Shared character settings / Guide laser / Dual pointers / screen display
    Overlapping marking / Backup / Marking on long moving objects / Font selection / Focus adjustment
    Proportional marking / Marking image display / Marking time measurement / Target object image display / Bold marking
    Rank marking / Offset marking / Time hold / Step and repeat / Operator adjustment
    I/O simulation / Error log display / Serial data marking / Power check and correction / I/O confirmation monitor
    Power and speed configuration by row or logo file
    Emergency stop switchLocated on controller
    Ambient temperature0 to +40 degrees +32 to +104 degrees Fahrenheit (Storage: -10 to +60 degrees +14 to 140 degrees Fahrenheit) (No dew condensation or icing allowed)
    Ambient humidity35 % to 85 % RH (No dew condensation or icing allowed)
    Net weight : Head10 kg
    Net weight : Controller22 kg
    Laser Marker Driver & Utility OSMicrosoft Windows® 10 Pro (32 bit / 64 bit) / 8 Pro (32 bit / 64 bit) / 7 Professional (32 bit / 64 bit) SP1 / Vista Business (32 bit) SP2 / XP Professional (32 bit) SP3
    * To use Export Vec, Adobe® Illustrator® must be installed.
    * Windows® 10 Pro, 8 Pro, 7 Professional, Vista Business, and XP Professional are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.
