FAYb Laser Marker LP-V (Discontinued Products)

Download

Discontinued Products
Specifications

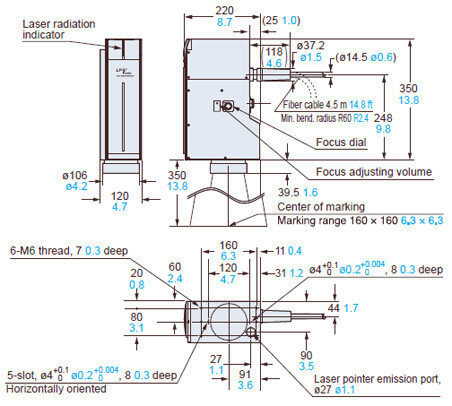

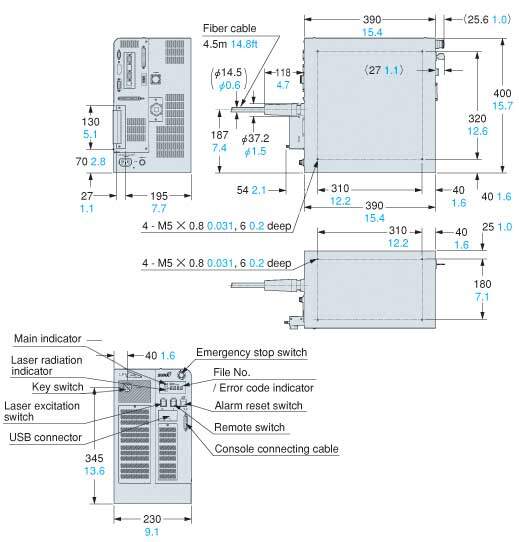

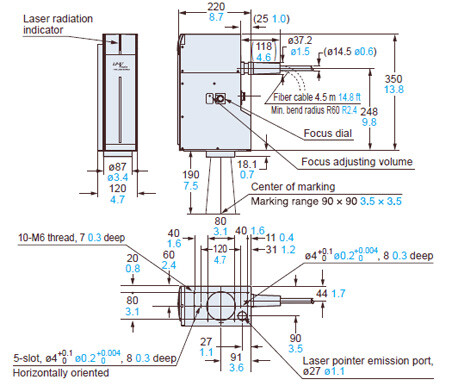

Dimensions

Ⅾiscontinued

Last time buy (JST)

September 29, 2023

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

------------------------------ Tab1 showing ------------------------------

Discontinued Products

------------------------------ Tab2 showing ------------------------------

Specifications

Type		Wide-area type
Set model No.		LP-V15U
Work distance (Note 1)		350 mm 13.8 in
Marking laser		Class 4 Yb fiber laser; wavelength: 1.06 μm 0.042 mil
	Average output (Note 2)	12 W (pulse oscillation)
Guide laser/pointer		Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil
Marking field		160 x 160 mm 6.3 x 6.3 in
Scan speed		Max. 12,000 mm/s
Line speed (Note 3)		240 m/min or less
Installation orientation		All
Character settings (character height, width)		0.2 to 160 mm 0.008 to 6.3 in (variable in 0.001 mm 0.00004 in steps)
Marking spacing (character spacing, line pitch)		0 to 160 mm 0 to 6.3 in (variable in 0.001 mm 0.00004 in steps) Arced output: -180° to +180° (variable in 0.01° steps)
Making shape		Straight Line, Arc, Proportional, Justify
Character types		English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
Barcodes		Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
2D codes		QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix
Composite codes		RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc.
Logos / Graphics		VEC (Note 4), BMP, DXF, HPGL, JPEG, AI (Note 5), EPS (Note 5)
Interface (Note 6)		RS-232C, Ethernet
Cooling method		Forced air cooling
Power supply		90 to 132 V AC or 180 to 264 V AC (automatic switching), 50/60 Hz
Power consumption		390 VA or less (100 V AC); 420 V or less (200 V AC)
Inputs		Remote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc.
Outputs		Power supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete
Marking condition		Static, On the fly
Functions		・Marking order optimization ・Intersection correction ・Counter marking ・Current date marking ・Deadline date marking ・Lot marking ・Logo data marking ・Font creation and editing ・Monospaced alignment ・Updating of operating screen display ・System offset ・Shared character settings ・Guide laser ・Dual pointers ・Overlapping marking ・Backup ・Marking on long moving objects ・Font selection ・Focus adjustment ・Proportional marking ・Marking image display ・Marking time measurement ・Target object image display ・Bold marking ・Rank marking ・Offset marking ・Time hold ・Step and repeat ・Operator adjustment ・I/O simulation ・Error log display ・Serial data marking ・Power check and correction ・I/O confirmation monitor ・Power and speed configuration by row or logo file
Emergency stop switch		Located on controller
Ambient temperature		0 to +40 ℃ +32 to +104 ℉ (Storage: -10 to +60 ℃ +14 to 140 ℉) (non-condensing and non-freezing)
Ambient humidity		35 % to 85 % RH (non-condensing and non-freezing)
Net weight	Head	10 kg
Net weight	Controller	22 kg

Notes:

1) Work distance varies by approx. ±2 mm ±0.079 in from model to model.

2) It is output of a laser oscillator.

3) Varies by target object.

4) VEC is a usable format of logo file for laser marker.

5) The PC installed Adobe Illustrator is necessary.

6) Ethernet has been changed from production in March 2013.

Available FDA and CE marking compliant variations

Type	Japanese model	FDA regulations conforming type	CE marking confoming type
Wide-area type	LP-V15U	LP-V15U-A	LP-V15U-C

Software for PC Setting of Laser Marker

Software	Supported OS
Laser Marker Driver & Utility^※1	Microsoft Windows® 10 Pro (32 bit / 64 bit) / 8.1 Pro (32 bit / 64 bit) / 7 Professional (32 bit / 64 bit) SP1

※1 To use Export Vec, Adobe® Illustrator® must be installed.
The OS version which is no longer supported by Microsoft is excluded from our supported OS.
Windows® 10 Pro, 8.1 Pro and 7 Professional are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.

PRECAUTIONS FOR PROPER USE

This product is classified as a Class 4 Laser Product in IEC / JIS standards and a Class IV Laser Product in FDA regulations 21 CFR 1040.10. Never look at or touch the direct laser beam and its reflection.
The laser used by this product generates infrared light that is invisible to the human eye. Use particular caution when the laser is operating.
The following labels are attached to this product. Handle the product according to the instruction given on the warning labels. (Warning labels are not shown in the product photographs.)

Touch Panel Console

Model No.	LP-ADP50
Power voltage	DC24V±10% (supplied from laser marker/laser processing machine)
Consumption current	300mA or less
Display device	Color liquid crystal display with touch panel 10.1 inch TFT WXGA
Resolution	1280 × 3 × 800 (pixel)
Viewing angle	Omnidirectional: -85° to 85° (Typ.)
Backlight	LED
Operating ambient temperature (Note)	0 to +50℃ For storage: -10 to +70℃
Operating ambient humidity (Note)	10 to 90%RH For storage: 10 to 90%RH
Protection degree	IP54 (excluding the cable connector)
Material	Case: PC + ABS Cable: PVC
Weight	Approx. 1.5kg
Applicable laser marker/laser processing machine	LP-M series/LP-S series/LP-S500W series/LP-Z series/LP-400 series/LP-V series

(Note) : No condensation or freezing shall be allowed. If there is a gap between the stored temperature and operating temperature, make sure to have the product get used to the operating ambient temperature gradually prior to use to prevent the dew condensation.

Discontinued products [Order accepted till September, 2021]

Type		General-purpose type
Set model No.		LP-V10U
Work distance (Note 1)		190 mm 7.5 in
Marking laser		Class 4 Yb fiber laser; wavelength: 1.06 μm 0.042 mil
	Average output (Note 2)	12 W (pulse oscillation)
Guide laser/pointer		Class 2 semiconductor laser; wavelength: 655 nm 0.026 mil
Marking field		90 x 90 mm 3.5 x 3.5 in
Scan speed		Max. 12,000 mm/s
Line speed (Note 3)		240 m/min or less
Installation orientation		All
Character settings (character height, width)		0.2 to 90 mm 0.008 to 3.5 in (variable in 0.001 mm 0.00004 in steps)
Marking spacing (character spacing, line pitch)		0 to 90 mm 0 to 3.5 in (variable in 0.001 mm 0.00004 in steps) Arced output: -180° to +180° (variable in 0.01° steps)
Making shape		Straight Line, Arc, Proportional, Justify
Character types		English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50)
Barcodes		Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC, RSS-14 (GS1 DataBar), RSS (GS1 DataBar) Limited, RSS (GS1 DataBar) Expanded
2D codes		QR Code, Micro QR Code, Data Matrix, GS1 Data Matrix
Composite codes		RSS-14 (GS1 DataBar) CC-A, RSS-14 (GS1 DataBar) Stacked CC-A, RSS (GS1 DataBar) Limited CC-A, etc.
Logos / Graphics		VEC (Note 4), BMP, DXF, HPGL, JPEG, AI (Note 5), EPS (Note 5)
Interface (Note 6)		RS-232C, Ethernet
Cooling method		Forced air cooling
Power supply		90 to 132 V AC or 180 to 264 V AC (automatic switching), 50/60 Hz
Power consumption		390 VA or less (100 V AC); 420 V or less (200 V AC)
Inputs		Remote, trigger, encoder (A), encoder (B), shutter control, laser excitation, alarm reset, emergency stop, laser stop, etc.
Outputs		Power supply (+12 V), remote, marking ready, marking, marking complete, laser excitation, warning, alarm, configuration complete, counter complete
Marking condition		Static, On the fly
Functions		・Marking order optimization ・Intersection correction ・Counter marking ・Current date marking ・Deadline date marking ・Lot marking ・Logo data marking ・Font creation and editing ・Monospaced alignment ・Updating of operating screen display ・System offset ・Shared character settings ・Guide laser ・Dual pointers ・Overlapping marking ・Backup ・Marking on long moving objects ・Font selection ・Focus adjustment ・Proportional marking ・Marking image display ・Marking time measurement ・Target object image display ・Bold marking ・Rank marking ・Offset marking ・Time hold ・Step and repeat ・Operator adjustment ・I/O simulation ・Error log display ・Serial data marking ・Power check and correction ・I/O confirmation monitor ・Power and speed configuration by row or logo file
Emergency stop switch		Located on controller
Ambient temperature		0 to +40 ℃ +32 to +104 ℉ (Storage: -10 to +60 ℃ +14 to 140 ℉) (non-condensing and non-freezing)
Ambient humidity		35 % to 85 % RH (non-condensing and non-freezing)
Net weight	Head	9 kg
Net weight	Controller	22 kg
