Low CxR type VSSOP package 60 V and 100 V load voltage
No foreign certifications are acquired as of now.
Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.
-
Features
- Miniature VSSOP package

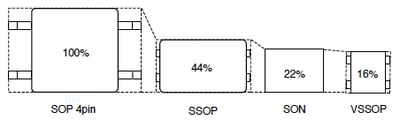

4.6 mm2 mounting area achieved. Approx 29 % less than previous product (SON type).
Contributes to the miniaturization of instruments and higher density mounting.
- Load voltage: 60 V and 100 V
- Low C×R
Low on resistance and low output capacitance available
• 60 V load voltage: AQY222R2T
Output capacitance: Typ. 27 pF, On resistance: Typ. 0.8Ω
• 100 V load voltage: AQY225R3T
Output capacitance: Typ. 5.8 pF, On resistance: Typ. 8.8 Ω
- Miniature VSSOP package
-
Typical Applications
1.Measuring and testing equipment
IC tester, Probe card, Board tester and other testing equipment
2.Telecommunication equipment
Note: Please contact our sales representative for automotive applications of PhotoMOS.
