PhotoMOS CC TSON 1 Form B | PhotoMOS

Download

  • Lineup

  • Basic Information

------------------------------ Tab1 showing ------------------------------

Normally closed, ultra-miniature TSON type using capacitive isolation technology

No foreign certifications are acquired as of now.

Please refer to "the latest product specifications" when designing your product.
Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

    • Features

      1.  Ultra-miniature TSON package contributes to space savings and high density mounting

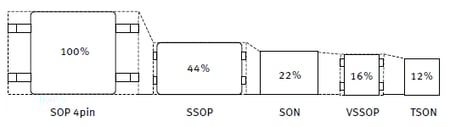

        3.5 mm2 mounting area achieved. Approx. 88 % less than previous product (SOP type).
        pic02
      2. Low current consumption (input current: Max. 0.2 mA)
      3. Guaranteed performance at high temperature (Max. 105 °C)
      4. Voltage driving type (3 V to 5 V)

    • Typical Applications

      1. Measuring equipment
        IC tester, probe cards, board tester and other testing equipment
      2. Security equipment
      3. Wearable device, voltage operating equipment application for requiring low electricity consumption.
        Note: Please contact our sales representative for automotive applications of PhotoMOS.

    ------------------------------ Always showing ------------------------------

    • Lineup
    • Discontinued Products
    PhotoMOS CC TSON 1 Form B Product number list
    No matching products found.
    • Please review your search criteria and try again.
    • If you have any questions, feel free to contact us.

      • Packing quantity

        Packing style X: 1-reel 3,500 pcs., Outer carton 3,500 pcs.
        Packing style 1X: 1-reel 1,000 pcs., Outer carton 1,000 pcs.

      • Note）

        １， For space reasons, only ＂4C2＂ is marked on the product as the part number.  (Ex. the label for product number AQY4C2PX  is 4C2.）
        ２，Indicate the peak AC and DC values.
        ３，Only tape and reel package is available.Tape and reel packing style X: picked from the 1/2-pin side. Packing with picked from 3/4-pin side is also available. Please contact our sales represetative.
