RN Relays | Microwave Devices

Download

  • Lineup

  • Basic Information

------------------------------ Tab1 showing ------------------------------

8 GHz max. capable, 150 W carrying power (at 2 GHz), compact SMD type, 50 Ω impedance and 1 Form C relays

    • Protective construction: Flux-resistant type

    Please refer to "the latest product specifications" when designing your product.
    Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

      • Features

        • Excellent high frequency characteristics (50 Ω, up to 8 GHz)
        • Compact size: 9.6 (W) x 14.6 (L) x 10 (H) mm
        • 2 GHz, 150 W carrying power possible

      • Typical Applications

        • Measuring equipment
        • Base stations market
        • High-frequency amp switching in wireless devices, etc.

      • Note

        • If you consider using applications with low level loads or with high frequency switching, please consult us.

      High Frequency Characteristics

      50 Ω (Initial)

      FrequencyUp to 1 GHz1 to 2 GHz2 to 3 GHz3 to 6 GHz
      V.S.W.R. (Max.)1.11.151.21.3
      Insertion loss (dB、Max.)0.10.120.150.5
      Isolation (dB、Min.)60554530

      Reference Data

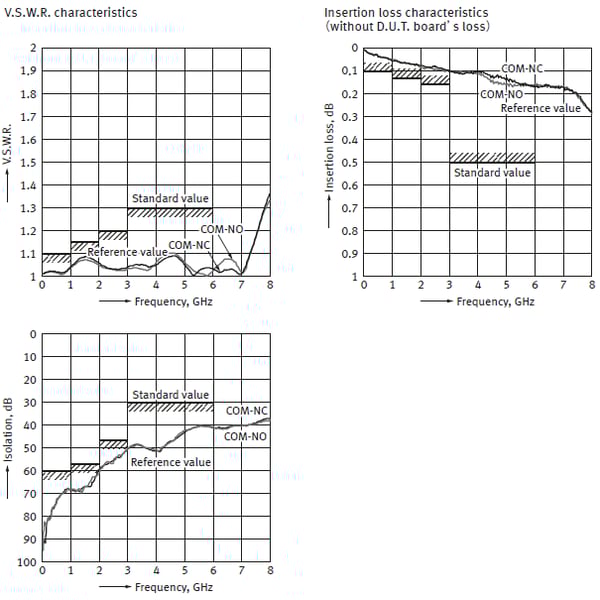

      1. High frequency characteristics

      Sample: ARN10A12
      Measuring method: See "Measuring method" under "NOTES".

      pic02_2

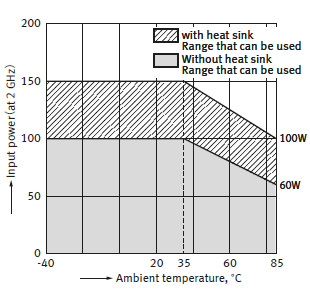

      2.Contact input power

      Max. 150 W (with heat sink)
      (at 2 GHz, Impedance 50 Ω, V.S.W.R. Max. 1.15, at 20°C)
      Max. 100 W (without heat sink)
      (at 2 GHz, Impedance 50 Ω, V.S.W.R. Max. 1.15, at 20°C)

      pic03



      ------------------------------ Always showing ------------------------------

      • Lineup
      • Discontinued Products
      RN Relays Product number list
      No matching products found.
      • Please review your search criteria and try again.
      • If you have any questions, feel free to contact us.

        • Notes）

          1. Please inquire regarding use with coil voltage of 28 V DC.
          2. Packing style symbol“ X”,“ Z” is not marked on the relay.

        • Standard packing

          Single side stable (Carton packing)　 　　    : Inner carton 50 pcs. , Outer carton 500 pcs.
          Single side stable (Tape and reel packing Z) : Inner carton (1-reel) 400 pcs. , Outer carton 800 pcs.
          2 coil latching (Carton packing)　 　　　　  : Inner carton 50 pcs. , Outer carton 500 pcs.
          2 coil latching (Tape and reel packing Z)       : Inner carton (1-reel) 400 pcs. , Outer carton 800 pcs.
